2020 NISSAN VERSA NOTE Owner´s Manual

WARNING
∙ Do not adjust the steering wheel whiledriving. You could lose control of your
vehicle and cause an accident.
∙ Do not adjust the steering wheel any closer to you than is necessary for
proper steering operation and com-
fort. The driver’s air bag inflates with
great force. If you are unrestrained,
leaning forward, sitting sideways or
out of position in any way, you are at
greater risk of injury or death in a
crash. You may also receive serious or
fatal injuries from the air bag if you
are up against it when it inflates. Al-
ways sit back against the seatback
and as far away as practical from the
steering wheel. Always use the seat
belts.

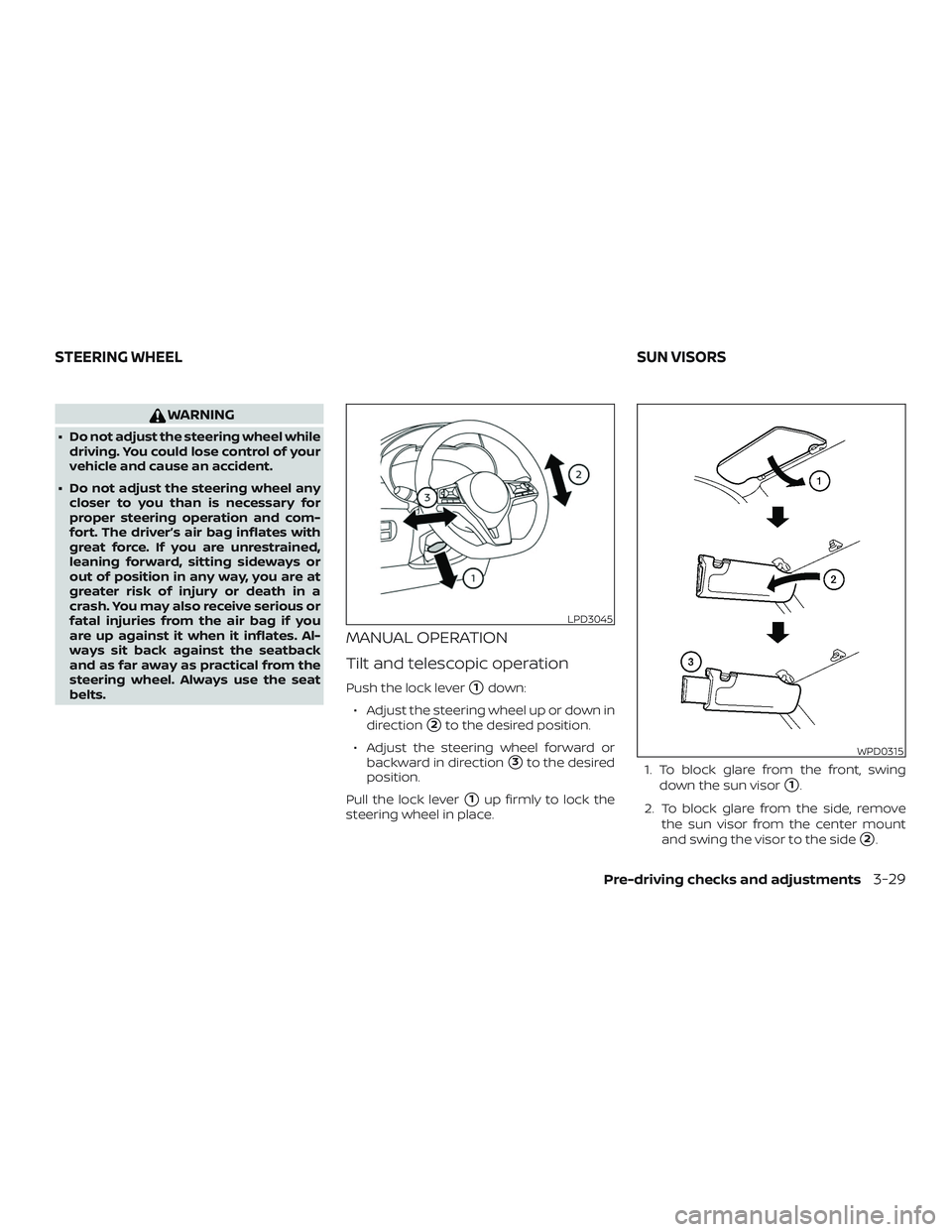

MANUAL OPERATION
Tilt and telescopic operation
Push the lock lever1down:
∙ Adjust the steering wheel up or down in direction
2to the desired position.
∙ Adjust the steering wheel forward or backward in direction
3to the desired
position.
Pull the lock lever
1up firmly to lock the
steering wheel in place. 1. To block glare from the front, swing
down the sun visor1.
2. To block glare from the side, remove the sun visor from the center mount
and swing the visor to the side
2.
LPD3045
WPD0315
STEERING WHEEL SUN VISORS
Pre-driving checks and adjustments3-29

3. Slide the sun visor extension3in or
out as needed.
CAUTION
∙ Do not store the sun visor before re- turning the extension to its original
position.
∙ Do not pull the extension sun visor forcibly downward.
VANITY MIRROR
To access the vanity mirror, pull the sun
visor down and flip open the mirror cover.
REARVIEW MIRROR
The night position1reduces glare from
the headlights of vehicles behind you at
night.
Use the day position
2when driving in
daylight hours.
WARNING
Use the night position only when neces-
sary, because it reduces rear view
clarity.
SPA1733WPD0126
MIRRORS
3-30Pre-driving checks and adjustments

OUTSIDE MIRRORS
To operate the outside mirror remote con-
trol move the small switch
1to select the
right or lef t mirror. Adjust each mirror to the
desired position using the large switch
2.
Move the small switch to the center (neu-
tral) position to prevent accidentally mov-
ing the mirror.
WARNING
∙ Do not adjust the mirrors while driv- ing. You could lose control of your ve-
hicle and cause an accident.
∙ Objects viewed in the outside mirror on the passenger side are closer than
they appear. Be careful when moving
to the right. Using only this mirror
could cause an accident. Use the in-
side mirror or glance over your shoul-
der to properly judge distances to
other objects.
Manual folding outside mirrors
Pull the outside mirror toward the door to
fold it.
Heated mirrors (if so equipped)
Some outside mirrors can be heated to
defrost, defog, or de-ice for improved vis-
ibility. Push the rear window defroster
switch to activate the heating function.
Push the switch again to deactivate, or the
heating function will automatically turn off
af ter approximately 15 minutes.
LPD2452LPD2216
Pre-driving checks and adjustments3-31

4 Monitor, climate, audio, phone and
voice recognition systems
NissanConnect® Owner’s Manual
(if so equipped)..................................4-2
Control panel buttons (if so equipped) ...........4-3
How to use the touch-screen .................4-4
How to use the
MENU button ...........4-6
(brightness control) button .............4-8
How to use the VOL (volume) knob /
PUSH
(power)button ...................4-8
Selecting menu from launch bar .............4-8
RearView Monitor ...............................4-9
RearView Monitor system operation .........4-10
How to read the displayed lines ..............4-10
Difference between predicted and
actual distances .............................. 4-11
How to park with predicted course
lines (if so equipped) ......................... 4-13
Adjusting the screen ........................ 4-14
How to turn on and off predicted
course lines (if so equipped) .................4-15
RearView Monitor system limitations ........4-15
System maintenance ........................ 4-16
Vents ........................................... 4-17
Heater and air conditioner (manual)
(if so equipped) ................................. 4-17Controls
..................................... 4-19
Heater operation ............................ 4-19
Air conditioner operation ....................4-20
Air flow charts ............................... 4-22
Heater and air conditioner (automatic)
(if so equipped) ................................. 4-25
Automatic operation ........................ 4-26
Manual operation ........................... 4-27
Operating tips ............................... 4-28
Servicing air conditioner ........................4-28
Audio system ................................... 4-29
Radio ........................................ 4-29
FM radio reception .......................... 4-29
AM radio reception .......................... 4-29
Audio operation precautions ................4-30
FM/AM radio ................................. 4-34
USB (Universal Serial Bus) connection
port......................................... 4-39
iPod®* player operation ......................4-42
Bluetooth® streaming audio .................4-45
Steering wheel switch for audio control ......4-48
USB/iPod® charging ports ......................4-49
Antenna (Type A) (if so equipped) ...............4-49
Antenna (T

ype B) (if so equipped) ...............4-50

Siri® Eyes Free (if so equipped)..................4-50
Requirements ............................... 4-50
Operating Siri® Eyes Free ....................4-51
Troubleshooting guide ......................4-52
Car phone or CB radio .......................... 4-53
Bluetooth® Hands-Free Phone System .........4-53
Regulatory information ......................4-55
Using the system ............................ 4-56
Indicators ................................... 4-57
Control buttons ............................. 4-58
Connecting procedure ......................4-59Voice commands
........................... 4-60
Phone display screen ........................ 4-62
Making a call ................................ 4-63
Receiving a call .............................. 4-64
During a call ................................. 4-64
Ending a call ................................. 4-65
Text messaging (if so equipped) .............4-65
Bluetooth® connections screen .............4-68
Phone and text message settings ...........4-69
iPod®/iPhone® .................................. 4-71

Refer to the NissanConnect® Owner’s
Manual that includes the following infor-
mation.∙ Audio system
∙ Apple CarPlay®
∙ Android Auto
TM
∙ Bluetooth® Hands-Free Phone system
∙ Viewing information
∙ Other settings
∙ Voice Recognition
∙ General system information
WARNING
∙ Positioning of the heating or air con- ditioning controls and display con-
trols should not be done while driving
in order that full attention may be
given to the driving operation.
∙ Do not disassemble or modif y this system. If you do, it may result in acci-
dents, fire, or electrical shock. ∙ Do not use this system if you notice
any abnormality, such as a frozen
screen or lack of sound. Continued
use of the system may result in acci-
dent, fire or electric shock.
∙ In case you notice any foreign object in the system hardware, spill liquid on
it, or notice smoke or smell coming
from it, stop using the system imme-
diately. Ignoring such conditions may
lead to accidents, fire or electrical
shock. It is recommended that you
visit a NISSAN dealer for servicing.
NISSANCONNECT® OWNER’S
MANUAL (if so equipped)
4-2Monitor, climate, audio, phone and voice recognition systems

1.MENU button
2. Display screen
3. DISP button
4.
BACK button 5. TUNE•SCROLL knob / PUSH SOUND
button
6. VOL (volume) knob / PUSH
(power) button
7.
(brightness control) button 8.
button*
* For additional information, refer to
“Bluetooth® Hands-Free Phone System” in
this section regarding the Bluetooth®
Hands-Free Phone System control button.
When you use this system, make sure the
engine is running.
If you use the system with the engine not
running for a long time, it will discharge
the battery, and the engine will not start.
Reference symbols:
“Example” — Words marked in quotes refer
to a key shown only on the display. These
keys can be selected by touching the
screen.
LHA4703
CONTROL PANEL BUTTONS (if so
equipped)
Monitor, climate, audio, phone and voice recognition systems4-3

HOW TO USE THE TOUCH-SCREEN
CAUTION
∙ The glass display screen may break ifit is hit with a hard or sharp object. If
the glass screen breaks, do not touch
it. Doing so could result in an injury.
∙ To clean the display, never use a rough cloth, alcohol, benzine, thinner or any
kind of solvent or paper towel with a
chemical cleaning agent. They will
scratch or deteriorate the panel.
∙ Do not splash any liquid such as water or car fragrance on the display. Con-
tact with liquid will cause the system
to malfunction. To help ensure safe driving, some functions
cannot be operated while driving.
The on-screen functions that are not avail-
able while driving will be “grayed out” or
muted.
WARNING
∙ ALWAYS give your full attention to
driving.
∙ Avoid using vehicle features that could distract you. If distracted, you
could lose control of your vehicle and
cause an accident.
LHA4700
4-4Monitor, climate, audio, phone and voice recognition systems
