2020 NISSAN VERSA NOTE glove box

1. Interior light (P. 2-62)
2. Sun visors (P. 3-29)
3. Map light (P. 2-62)
4. Rearview mirror (P. 3-30)
5. Glove box (P. 2-57)
6. Parking brake (P. 5-25)
Refer to the page number indicated in
parentheses for operating details.
LII2599
PASSENGER COMPARTMENT
Illustrated table of contents0-5

1. Vents (P. 4-17)
2. Headlight/fog light (if soequipped)/turn signal switch
(P. 2-43)
3. Driver’s supplemental air bag
(P. 1-43)
Horn (P. 2-50)
4. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-12)
Trip computer (if so equipped)
(P. 2-10)
Vehicle information display
(if so equipped) (P. 2-23)
5. Wiper and washer switch (P. 2-41)
6. Center display controls (if so
equipped) (P. 4-2, 4-3, 4-29)
Audio controls (P. 4-2, 4-3, 4-29)
7. Front passenger airbag status
light (P. 1-43)
Hazard warning flasher switch
(P. 6-2)
8. Center display (P. 4-2, 4-3, 4-29)
9. Passenger’s supplemental air bag
(P. 1-43)
10. Passenger’s supplemental knee
airbag (P. 1-43)
11. Glove box (P. 2-57)
LII2594
INSTRUMENT PANEL
0-6Illustrated table of contents

WARNING
To ensure proper operation of the pas-
senger’s NISSAN Advanced Air Bag Sys-
tem, please observe the following
items.
∙ Do not allow a passenger in the rearseat to push or pull on the seatback
pocket.
∙ Do not place heavy loads heavier than 9.1 lbs. (4 kg) on the seatback, head
restraint/headrest or in the seatback
pocket.
∙ Make sure that there is nothing press- ing against the rear of the seatback,
such as a child restraint installed in
the rear seat or an object stored on
the floor.
∙ Make sure that there is no object placed under the front passenger
seat.
∙ Make sure that there is no object placed between the seat cushion and
the center console or between the
seat cushion and the door. ∙ If a forward-facing child restraint is
installed in the front passenger seat,
do not position the front passenger
seat so the child restraint contacts the
instrument panel. If the child restraint
does contact the instrument panel,
the system may determine the seat is
occupied and the passenger air bag
and passenger knee air bag may de-
ploy in a collision. Also the front pas-
senger air bag status light may not
illuminate. For additional information,
refer to “Child restraints” in this
section.
∙ Confirm the operating condition with the front passenger air bag status
light.
∙ If you notice that the front passenger air bag status light is not operating as
described in this section, get the oc-
cupant classification system checked.
It is recommended that you visit a
NISSAN dealer for this service.
∙ Until you have confirmed with a dealer that your front passenger seat
occupant classification system is
working properly, position the occu-
pants in the rear seating positions. ∙ Do not position the front passenger
seat so it contacts the rear seat. If the
front seat does contact the rear seat,
the air bag system may determine a
sensor malfunction has occurred and
the front passenger air bag status
light may illuminate and the supple-
mental air bag warning light may
flash.
This vehicle is equipped with the NISSAN
Advanced Air Bag System for the driver and
front passenger seats. This system is de-
signed to meet certification requirements
under U.S. regulations. It is also permitted in
Canada. However, all of the information,
cautions and warnings in this manual
still apply and must be followed.
The driver supplemental front-impact air
bag is located in the center of the steering
wheel. The front passenger supplemental
front-impact air bag is mounted in the
dashboard above the glove box. The front
air bags are designed to inflate in higher
severity frontal collisions, although they
may inflate if the forces in another type of
collision are similar to those of a higher
severity frontal impact. They may not in-
flate in certain frontal collisions. Vehicle
Safety—Seats, seat belts and supplemental restraint system1-51

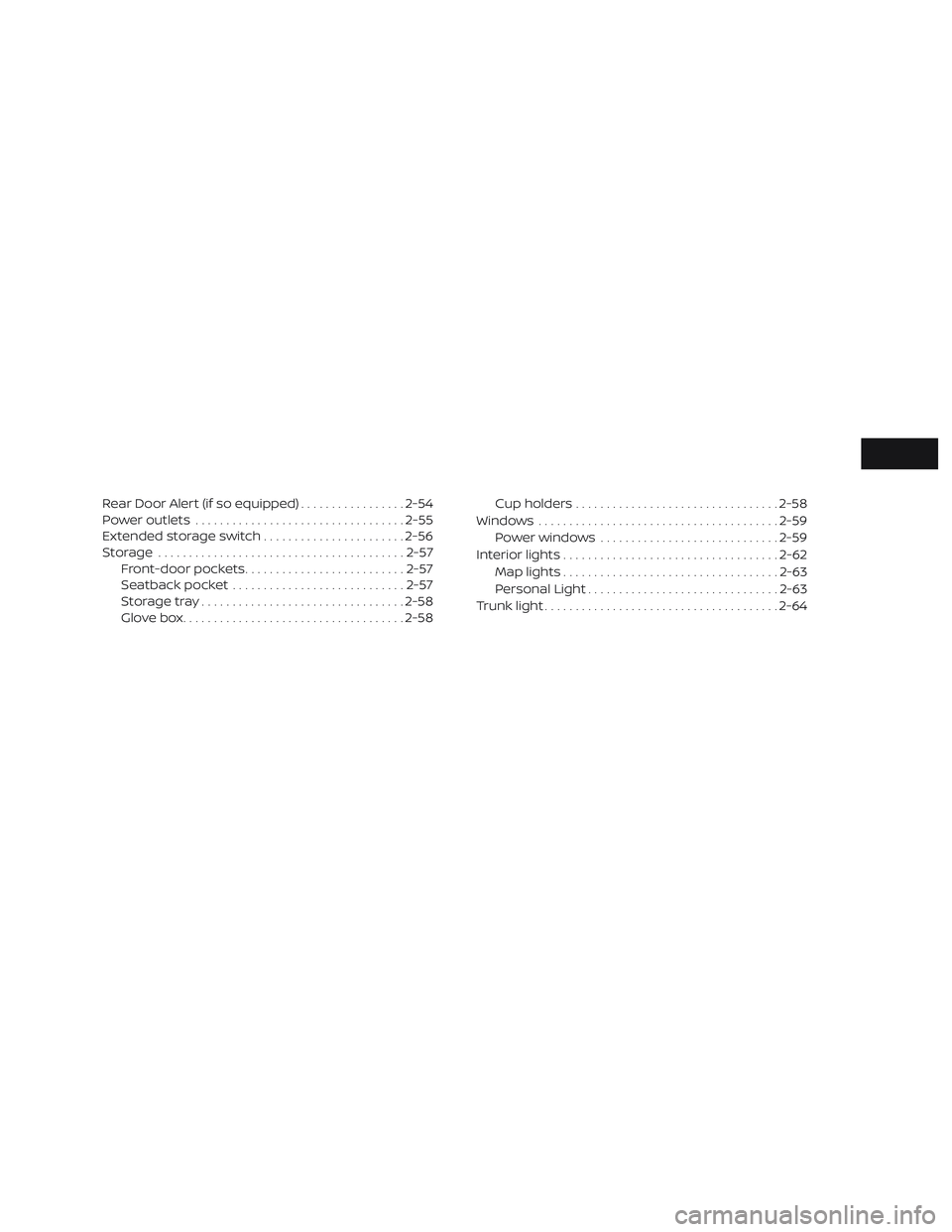

Rear Door Alert (if so equipped).................2-54
Power outlets .................................. 2-55
Extended storage switch .......................2-56
Storage ........................................ 2-57
Front-door pockets .......................... 2-57
Seatback pocket ............................ 2-57
Storagetray................................. 2-58
Glovebox.................................... 2-58Cup holders
................................. 2-58
Windows ....................................... 2-59
Power windows ............................. 2-59
Interior lights ................................... 2-62
Map lights ................................... 2-63
Personal Light ............................... 2-63
Trunk light ...................................... 2-64

1. Vents (P. 4-17)
2. Headlight/fog light(if so equipped)/turn signal switch
(P. 2-43)
3. Driver’s supplemental air bag
(P. 1-43)
Horn (P. 2-50)
4. Meters and gauges (P. 2-4) Warning and indicator lights
(P. 2-12)
Trip computer (if so equipped)
(P. 2-10)
Vehicle information display
(if so equipped) (P. 2-23)
5. Wiper and washer switch (P. 2-41)
6. Center display controls (if so
equipped) (P. 4-2, 4-3, 4-29)
Audio controls (P. 4-2, 4-3, 4-29)
7. Front passenger airbag status
light (P. 1-43)
Hazard warning flasher switch
(P. 6-2)
8. Center display (P. 4-2, 4-3, 4-29)
9. Passenger’s supplemental air bag
(P. 1-43)
10. Passenger’s supplemental knee
airbag (P. 1-43)
11. Glove box (P. 2-57)
LII2594
INSTRUMENT PANEL
2-2Instruments and controls

STORAGE TRAY
WARNING
Do not place sharp objects in the trays
to help prevent injury in an accident or
sudden stop.
GLOVE BOX
Open the glove box by pulling the handle.
WARNING
Keep glove box lid closed while driving
to help prevent injury in an accident or a
sudden stop.
CUP HOLDERS
WARNING
∙ Avoid abrupt starting and brakingwhen the cup holder is being used to
prevent spilling the drink. If the liquid
is hot, it can scald you or your
passenger.
∙ Use only sof t cups in the cup holder. Hard objects can injure you in an
accident.
LIC3986LIC3580
Front console
LIC3573
2-58Instruments and controls

NOTE:
The doors may not lock when the Intelli-
gent Key is in the same hand that is op-
erating the request switch (if so
equipped) to lock the door. Put the Intel-
ligent Key in a purse, pocket or your
other hand.
CAUTION
The lockout protection may not func-
tion under the following conditions:
∙ When the Intelligent Key is placed ontop of the instrument panel.
∙ When the Intelligent Key is placed on top of the rear parcel shelf.
∙ When the Intelligent Key is placed in- side the glove box or a storage bin.
∙ When the Intelligent Key is placed in- side the door pockets.
∙ When the Intelligent Key is placed on or under the spare tire area.
∙ When the Intelligent Key is placed in- side or near metallic materials.
Unlocking doors
1. Carry the Intelligent Key.
2. Push the door handle request switch (if
so equipped)
1.
3. The hazard warning lights flash once and the outside buzzer sounds once.
4. Push the door handle request switch (if so equipped)
1again within 5 sec-
onds to unlock all doors. NOTE:
Request switches for all doors can be de-
activated when the Ext. Door Switch fea-
ture is switched to OFF using the “Vehicle
Settings” menu on the vehicle informa-
tion display. For additional information,
refer to “Vehicle information display ” in
the “Instruments and controls” section
of this manual.
LPD3040LPD2165
3-12Pre-driving checks and adjustments

OPERATING RANGE
The Intelligent Key functions can only be
used when the Intelligent Key is within the
specified operating range.
When the Intelligent Key battery is almost
discharged or strong radio waves are pres-
ent near the operating location, the Intelli-
gent Key system’s operating range becomes
narrower and may not function properly.
If the Intelligent Key is within the operating
range, it is possible for anyone, even some-
one who does not carry the Intelligent Key,
to turn the ignition switch to start the en-
gine.The operating range of the engine start
function is inside of the vehicle
1.
∙ If the Intelligent Key is placed on the instrument panel, rear parcel shelf, in-
side the glove box, storage bin or door
pocket, the Intelligent Key may not
function.
∙ If the Intelligent Key is placed near the door or window outside the vehicle, the
Intelligent Key may function.
PUSH-BUTTON IGNITION SWITCH
POSITIONS
LOCK (Normal parking position)
The ignition switch can only be locked in
this position.
The ignition switch will be unlocked when it
is pushed to the ON position while carrying
the Intelligent Key or with the Intelligent Key
inserted in the port.
The ignition switch will lock when any door
is opened or closed with the ignition
switched off. OFF
The ignition switch is in the OFF position
when the engine is turned off using the
ignition switch. No lights will illuminate on
the ignition switch.
AUTO ACC
With the vehicle in the P (Park) position, the
Intelligent Key with you, and the ignition
switch placed from the ON to the OFF po-
sition, the radio can still be used for a period
of time, or until the driver’s door is opened.
Af ter a period of time, functions such as
radio, navigation, and Bluetooth® Hands-
Free Phone System may be restarted by
pressing the POWER button/VOLUME con-
trol knob or the key fob unlock button. For
additional information, refer to “Monitor, cli-
mate, audio, phone and voice recognition
systems” in this manual.
ON (Without cranking)
If the vehicle is in the ON position, it has a
battery saver feature that will turn the igni-
tion switch to OFF af ter 10 minutes.WSD0165
5-14Starting and driving
