2020 MERCEDES-BENZ GLE Owners Manual

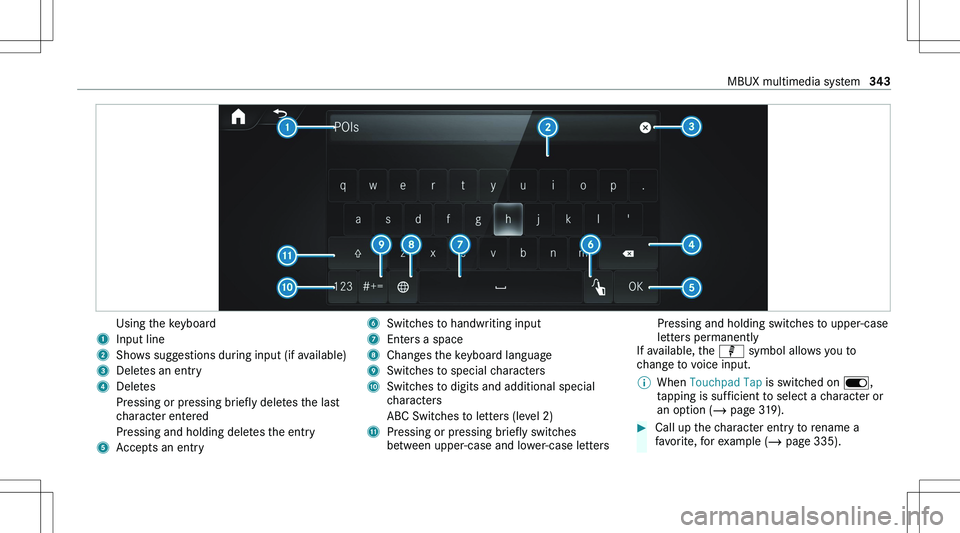

Using the keyboard1Input line2Shows suggestions during input (if available)3Deletes an entry4DeletesPressing or pressing briefly deletes the last
character enteredPressing and holding deletes the entry5Accepts an entry6Switches to handwriting input7Enters a space8Changes the keyboard language9Switches to special charactersASwitches to digits and additional special
charactersABC Switches to letters (level 2)BPressing or pressing briefly switches
between upper-case and lower-case lettersPressing and holding switches to upper-case
letters permanently
If available, the p symbol allows you to
change to voice input.
%When Touchpad Tap is switched on D,
tapping is sufficient to select a character or an option (  page 319).Call up the character entry to rename a
favorite, for example (  page 335).MBUX multimedia system343

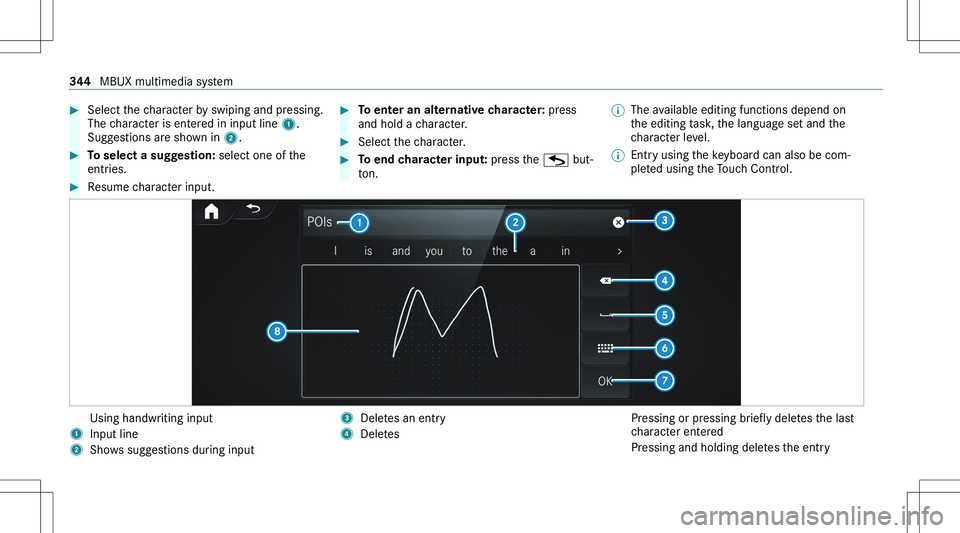

Select the character by swiping and pressing.The character is entered in input line 1.
Suggestions are shown in 2.Toselectasuggestion: select one of the
entries.Resume character input.Toenteranalternativecharacter: press
and hold a character.Select the character.Toendcharacterinput: press the ( but

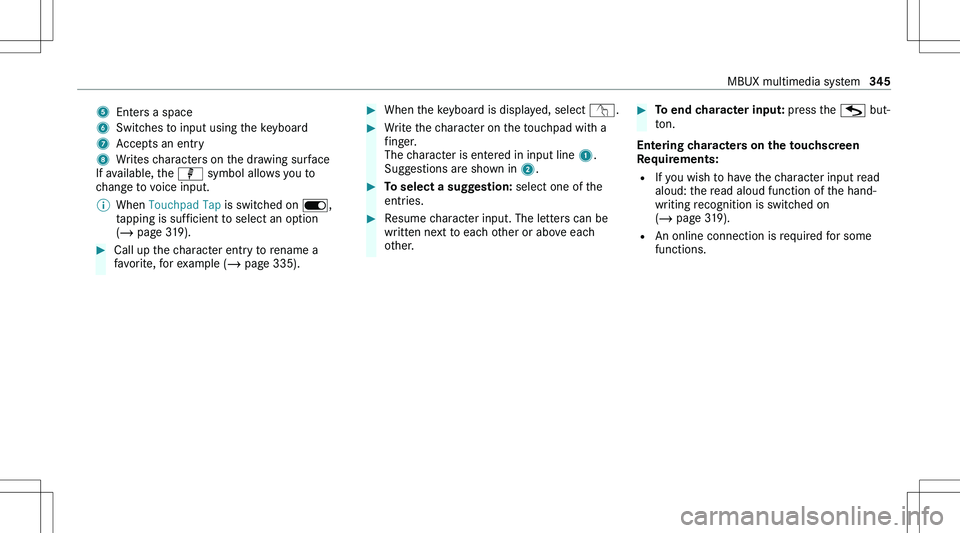

5Enters a space6Switches to input using the keyboard7Accepts an entry8Writes characters on the drawing surface
If available, the p symbol allows you to
change to voice input.
%When Touchpad Tap is switched on D,
tapping is sufficient to select an option
(  page 319).Call up the character entry to rename a
favorite, for example (  page 335).When the keyboard is displayed, select v.Write the character on the touchpad with a
finger.
The character is entered in input line 1.
Suggestions are shown in 2.Toselectasuggestion: select one of the
entries.Resume character input. The letters can be written next to each other or above eachother.Toendcharacterinput: press the ( but

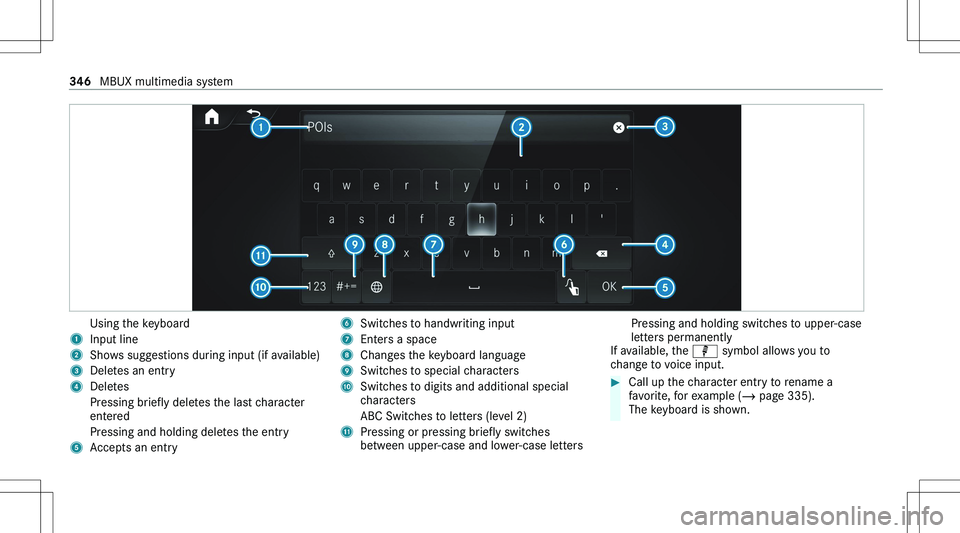

Using the keyboard1Input line2Shows suggestions during input (if available)3Deletes an entry4DeletesPressing briefly deletes the last character
enteredPressing and holding deletes the entry5Accepts an entry6Switches to handwriting input7Enters a space8Changes the keyboard language9Switches to special charactersASwitches to digits and additional special
charactersABC Switches to letters (level 2)BPressing or pressing briefly switches
between upper-case and lower-case lettersPressing and holding switches to upper-case
letters permanently
If available, the p symbol allows you to
change to voice input.
Call up the character entry to rename a favorite, for example (  page 335).
The keyboard is shown.346MBUX multimedia system

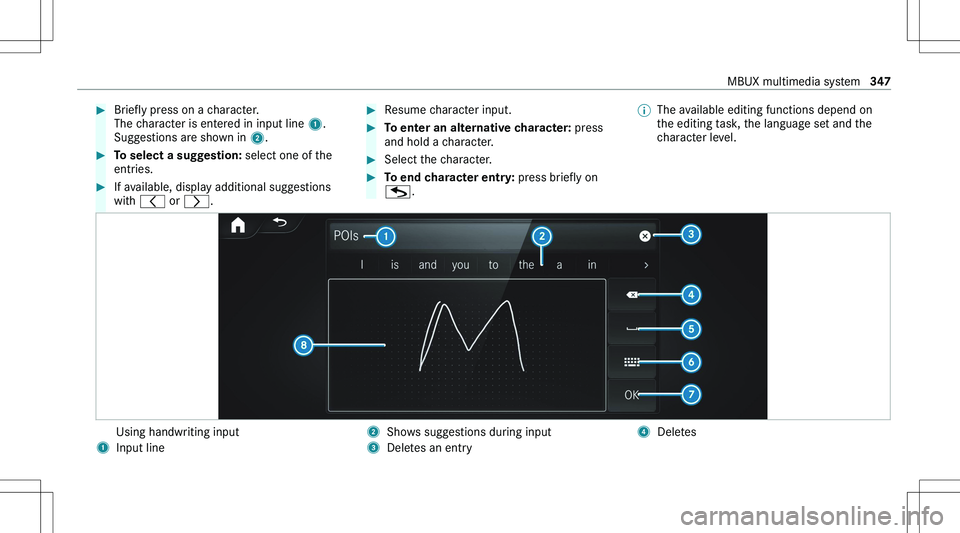

Briefly press on a character.
The character is entered in input line 1.
Suggestions are shown in 2.Toselectasuggestion: select one of the
entries.If available, display additional suggestions
with 0047 or 0048 .Resume character input.Toenteranalternativecharacter: press
and hold a character.Select the character.Toendcharacterentry: press briefly on
( .%The available editing functions depend on
the editing task, the language set and the

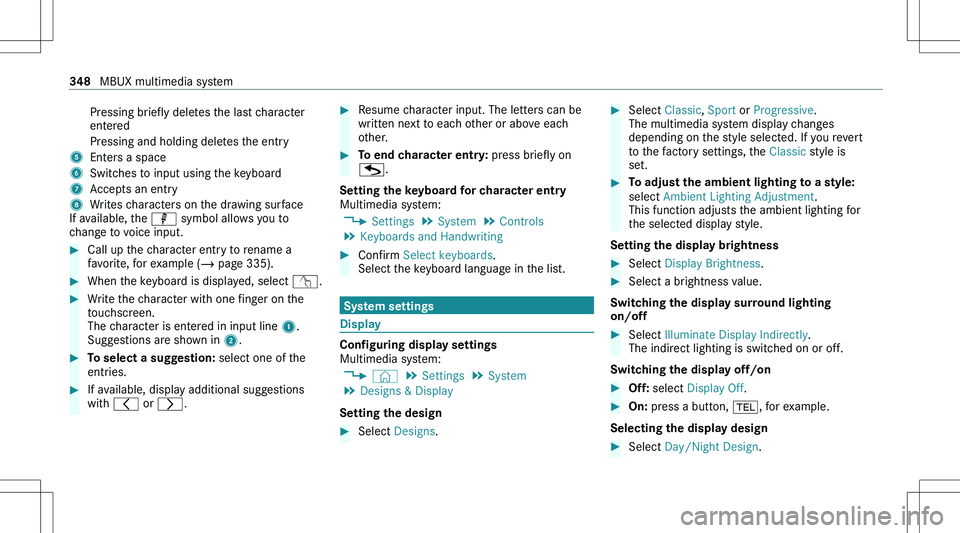

character level.Using handwriting input1Input line2Shows suggestions during input3Deletes an entry4DeletesMBUX multimedia system347

Pressing briefly deletes the last character
enteredPressing and holding deletes the entry5Enters a space6Switches to input using the keyboard7Accepts an entry8Writes characters on the drawing surface
If available, the p symbol allows you to
change to voice input.
Call up the character entry to rename a favorite, for example (  page 335).When the keyboard is displayed, select v.Write the character with one finger on the
touchscreen.
The character is entered in input line 1.
Suggestions are shown in 2.Toselectasuggestion: select one of the
entries.If available, display additional suggestions
with 0047 or 0048 .Resume character input. The letters can be
written next to each other or above eachother.Toendcharacterentry: press briefly on
( .
Settingthekeyboardforcharacterentry
Multimedia system:
4 Settings 5
System 5
Controls
5 Keyboards and Handwriting
Confirm Select keyboards .
Select the keyboard language in the list.
Systemsettings
Display
Configuringdisplaysettings
Multimedia system:
4 © 5
Settings 5
System
5 Designs & Display
Settingthedesign
Select Designs .Select Classic , Sport or Progressive .
The multimedia system display changes
depending on the style selected. If you revert
to the factory settings, the Classic style is
set.Toadjusttheambientlightingtoastyle:
select Ambient Lighting Adjustment .
This function adjusts the ambient lighting for
the selected display style.
Settingthedisplaybrightness
Select Display Brightness .Select a brightness value.
Switchingthedisplaysurroundlighting
on/off
Select Illuminate Display Indirectly .
The indirect lighting is switched on or off.
Switchingthedisplayoff/on
Off: select Display Off .On:press a button, 002B, for example.

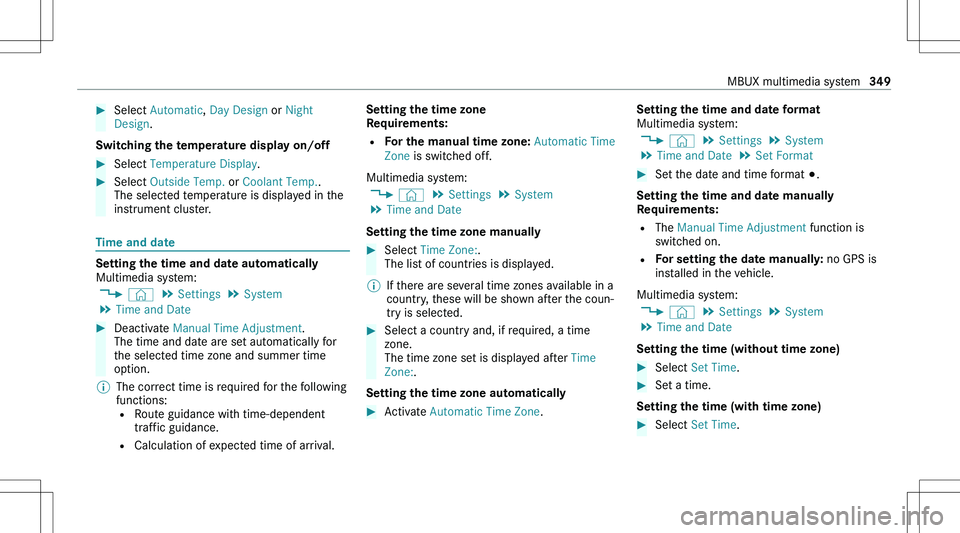

Selectingthedisplaydesign
Select Day/Night Design .348MBUX multimedia system

Select Automatic , Day Design or Night
Design .
Switchingthetemperaturedisplayon/off
Select Temperature Display .Select Outside Temp. or Coolant Temp. .
The selected temperature is displayed in the instrument cluster.
Timeanddate
Settingthetimeanddateautomatically
Multimedia system:
4 © 5
Settings 5
System
5 Time and Date
Deactivate Manual Time Adjustment .
The time and date are set automatically for the selected time zone and summer time option.%The correct time is required for the followingfunctions: = Route guidance with time-dependent
traffic guidance.
= Calculation of expected time of arrival.Settingthetimezone
Requirements:
= Forthemanualtimezone: Automatic Time
Zone is switched off.
Multimedia system: 4 © 5
Settings 5
System
5 Time and Date
SettingthetimezonemanuallySelect Time Zone: .
The list of countries is displayed.%If there are several time zones available in a country, these will be shown after the coun

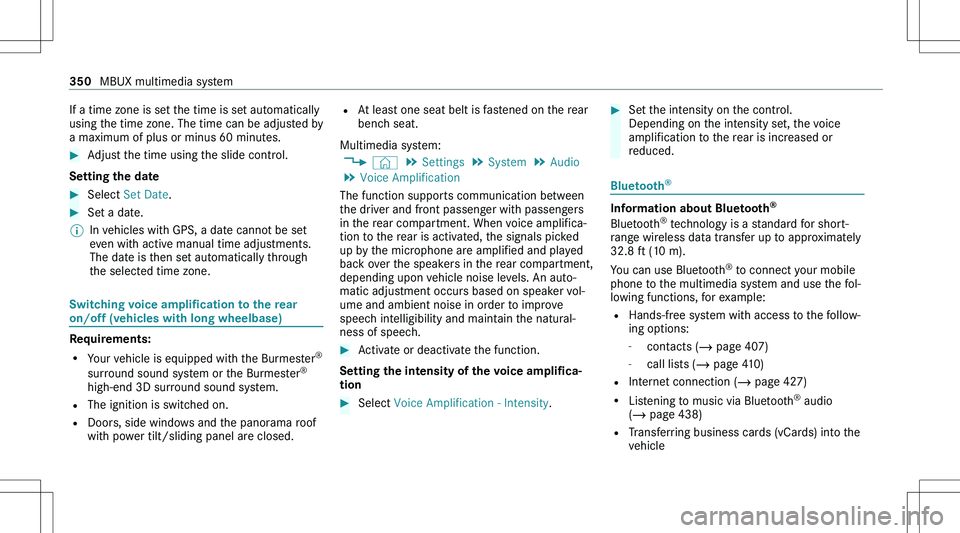

If a time zone is set the time is set automatically
using the time zone. The time can be adjusted by a maximum of plus or minus 60 minutes.Adjust the time using the slide control.
Settingthedate
Select Set Date .Set a date.%In vehicles with GPS, a date cannot be set
even with active manual time adjustments. The date is then set automatically through
the selected time zone.
Switchingvoiceamplificationtotherear
on/off(vehicleswithlongwheelbase)
Requirements:
= Your vehicle is equipped with the Burmester
