2020 MERCEDES-BENZ GLE Owners Manual

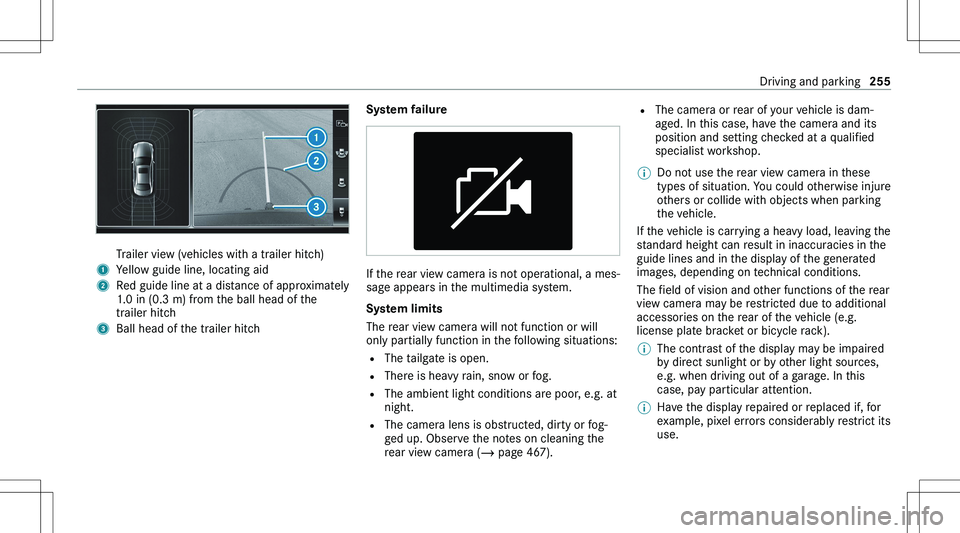

Trailer view (vehicles with a trailer hitch)1Yellow guide line, locating aid2Red guide line at a distance of approximately1.0 in (0.3 m) from the ball head of the
trailer hitch3Ball head of the trailer hitchSystemfailure
If the rear view camera is not operational, a mes

360

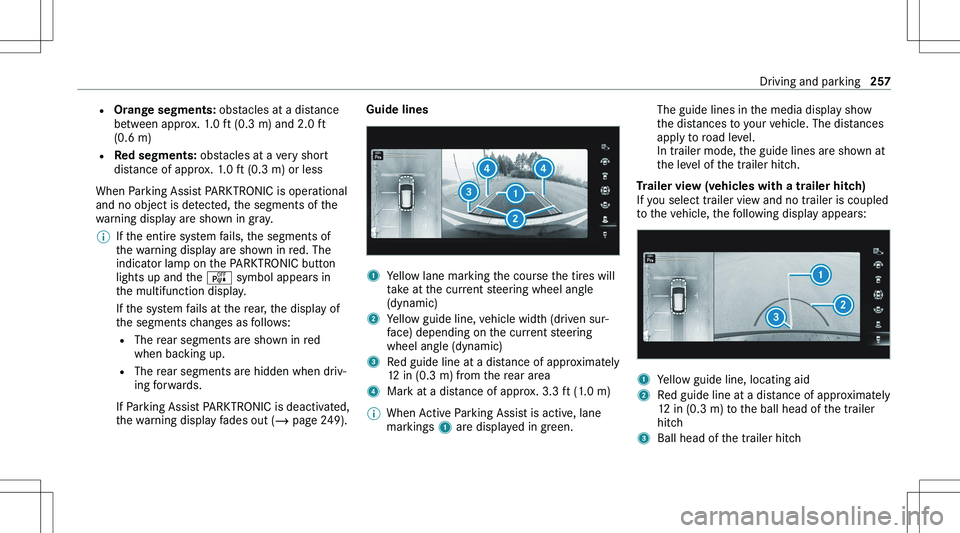

=Orangesegments: obstacles at a distance
between approx. 1.0 ft (0.3 m) and 2.0 ft (0.6 m)
= Redsegments: obstacles at a very short
distance of approx. 1.0 ft (0.3 m) or less
When Parking Assist PARKTRONIC is operational
and no object is detected, the segments of the warning display are shown in gray.%If the entire system fails, the segments of
the warning display are shown in red. The
indicator lamp on the PARKTRONIC button
lights up and the

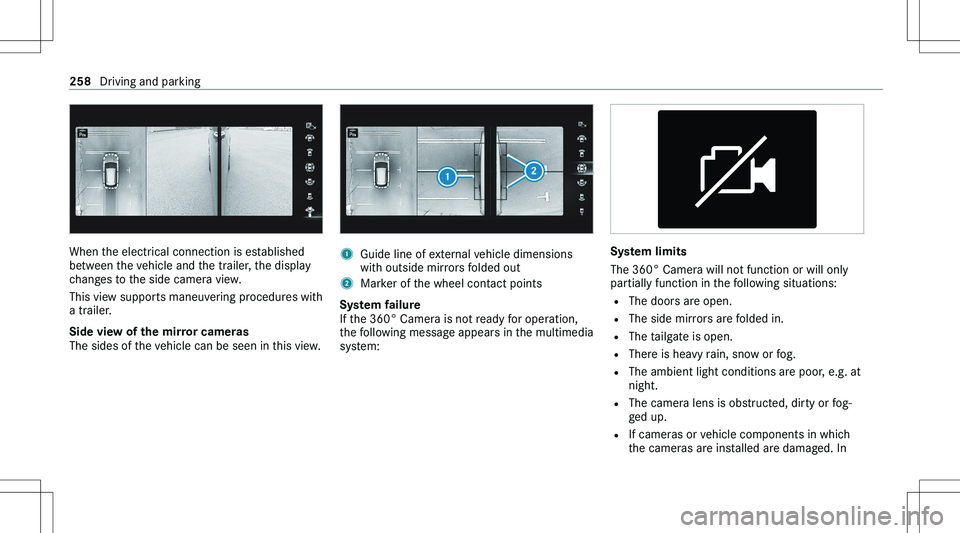

When the electrical connection is establishedbetween the vehicle and the trailer, the displaychanges to the side camera view.
This view supports maneuvering procedures with
a trailer.
Sideviewofthemirrorcameras
The sides of the vehicle can be seen in this view.
1Guide line of external vehicle dimensions with outside mirrors folded out2Marker of the wheel contact points
Systemfailure

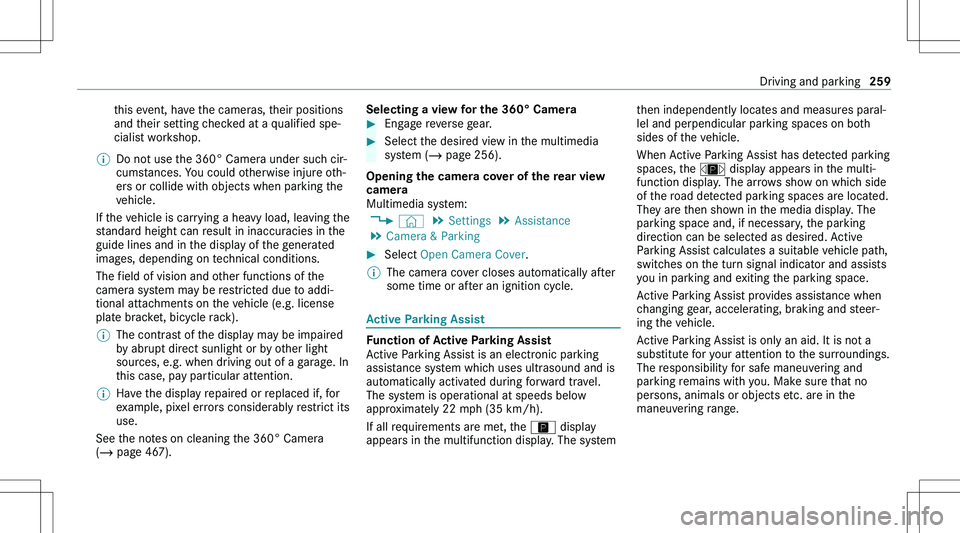

If the 360

this event, have the cameras, their positions
and their setting checked at a qualified spe

Active Parking Assist is canceled if, among other
things, one of the following actions is carried
out:
= Parking Assist PARKTRONIC is deactivated.
= Active Parking Assist is deactivated.
= You begin steering.
= You apply the parking brake.
= You engage transmission position 005D.
= ESP

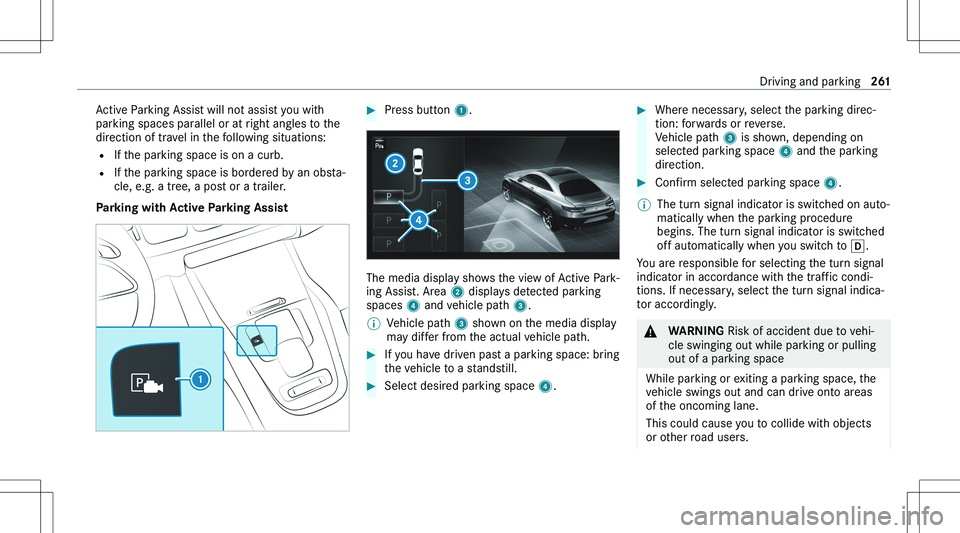

Active Parking Assist will not assist you with
parking spaces parallel or at right angles to the
direction of travel in the following situations:
= If the parking space is on a curb.
= If the parking space is bordered by an obsta

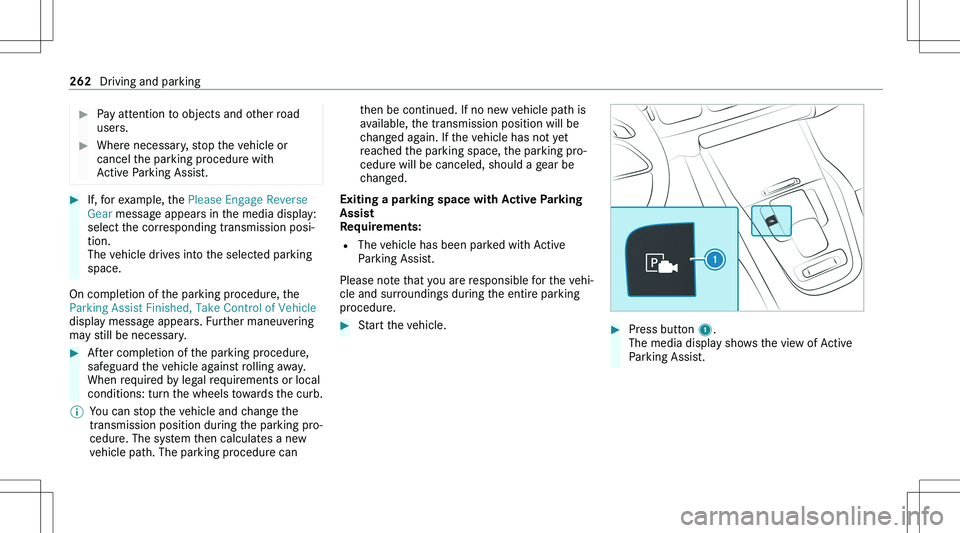

Pay attention to objects and other road
users.Where necessary, stop the vehicle or
cancel the parking procedure with Active Parking Assist.If, for example, the Please Engage Reverse
Gear message appears in the media display:
select the corresponding transmission posi
