2020 MERCEDES-BENZ GLE Owners Manual

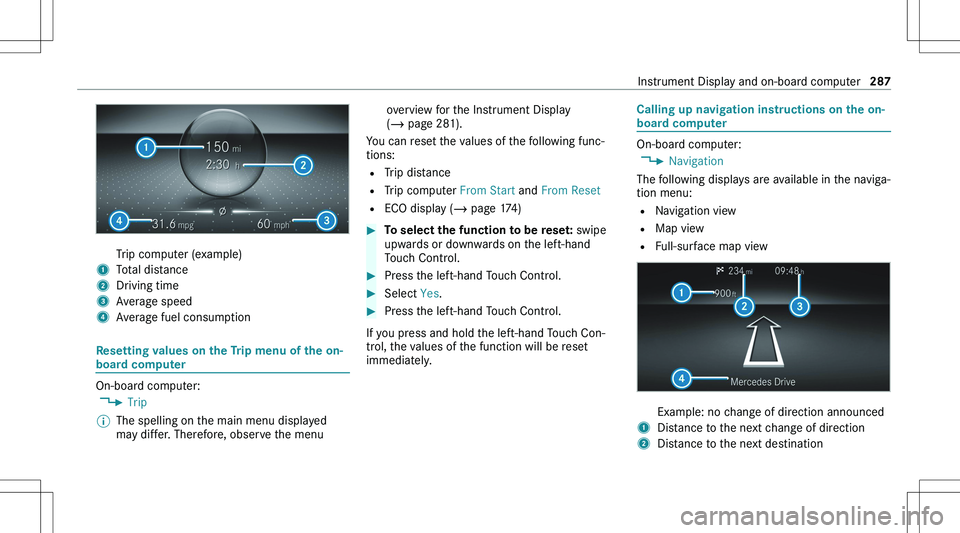

Trip computer (example)1Total distance2Driving time3Average speed4Average fuel consumption
ResettingvaluesontheTripmenuoftheon-
boardcomputer
On-board computer:
4 Trip
%The spelling on the main menu displayed
may differ. Therefore, observe the menuoverview for the Instrument Display (  page 281).
You can reset the values of the following func

3Estimated arrival time at next destination4Current roadExample: change of direction announced1Distance to the change of direction2Road to which the change of direction leads3Change-of-direction symbol4Recommended lane (white)5Possible lane6Lane not recommended (dark gray)Further possible displays on the Navigation
menu:
= Direction of Travel : display of direction of
travel and road currently being traveled on.
= New Route... or Calculating Route... : a new
route is being calculated.
= Road Not Mapped : the road is unknown, e.g.
for newly built roads.
= No Route : no route could be calculated to
the selected destination.
= Off Map : the map for the current location is
not available.
= Area of Dest. Reached : when an intermediate
destination is reached, the intermediate des

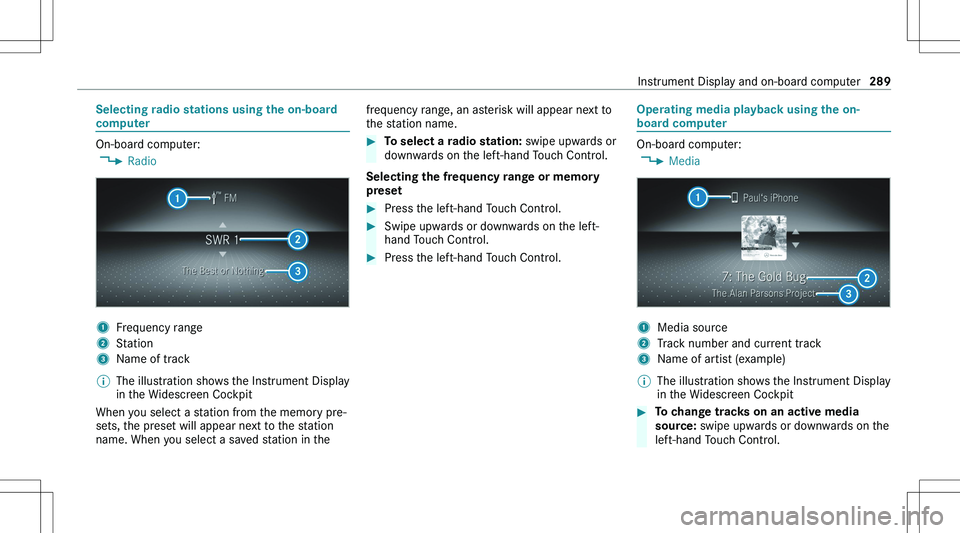

Selectingradiostationsusingtheon-board
computer
On-board computer:
4 Radio
1Frequency range2Station3Name of track%The illustration shows the Instrument Display
in the Widescreen Cockpit
When you select a station from the memory pre

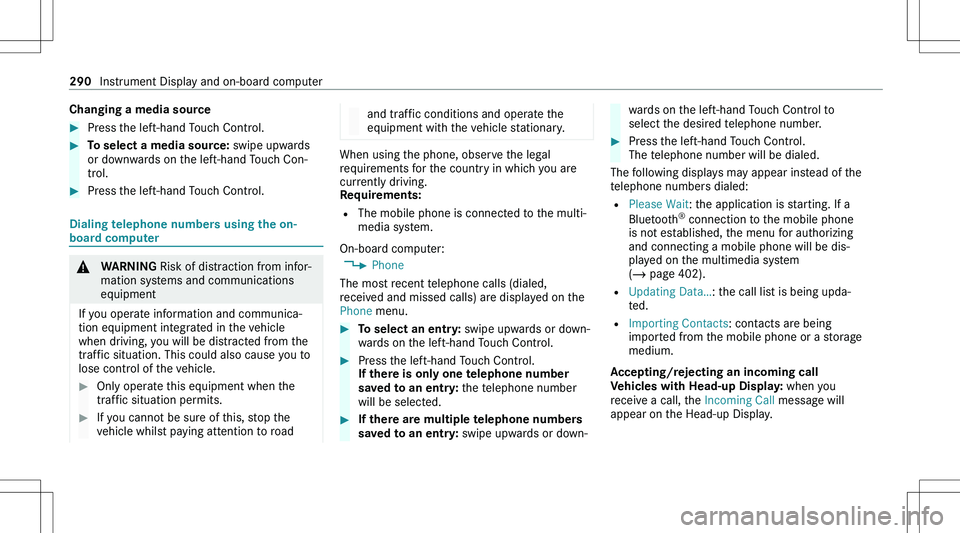

ChangingamediasourcePress the left-hand Touch Control.Toselectamediasource:swipe upwards
or downwards on the left-hand Touch Con

Swipe upwards or downwards on the left-
hand Touch Control and select 0061 (Accept)
or 0076 (Reject).Press the left-hand Touch Control.
You may accept or reject the call using the 0061
or 0076 button on the steering wheel.

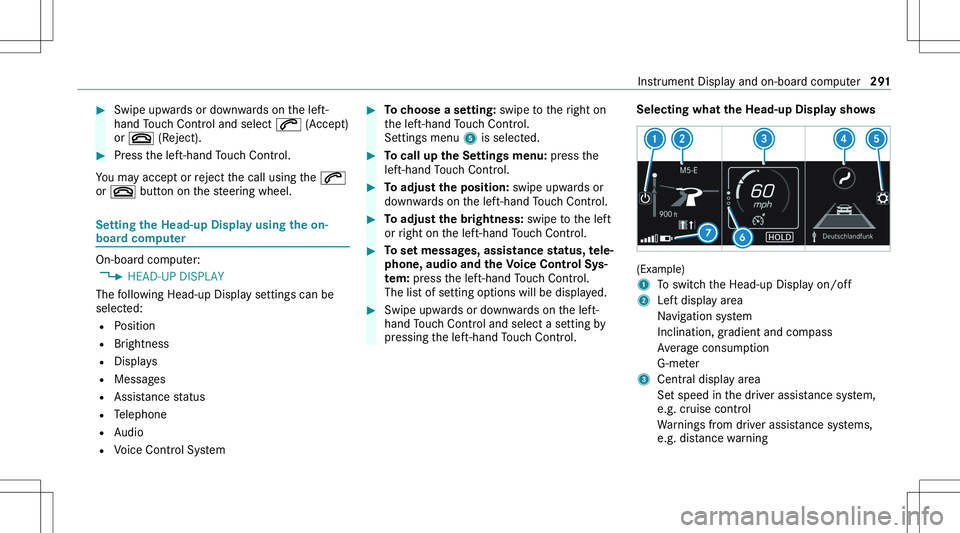

SettingtheHead-upDisplayusingtheon-
boardcomputer
On-board computer:
4 HEAD-UP DISPLAY
The following Head-up Display settings can be
selected:
= Position
= Brightness
= Displays
= Messages
= Assistance status
= Telephone
= Audio
= Voice Control System
Tochooseasetting: swipe to the right on
the left-hand Touch Control.
Settings menu 5 is selected.TocalluptheSettingsmenu: press the
left-hand Touch Control.Toadjusttheposition: swipe upwards or
downwards on the left-hand Touch Control.Toadjustthebrightness: swipe to the left
or right on the left-hand Touch Control.Tosetmessages,assistancestatus,tele

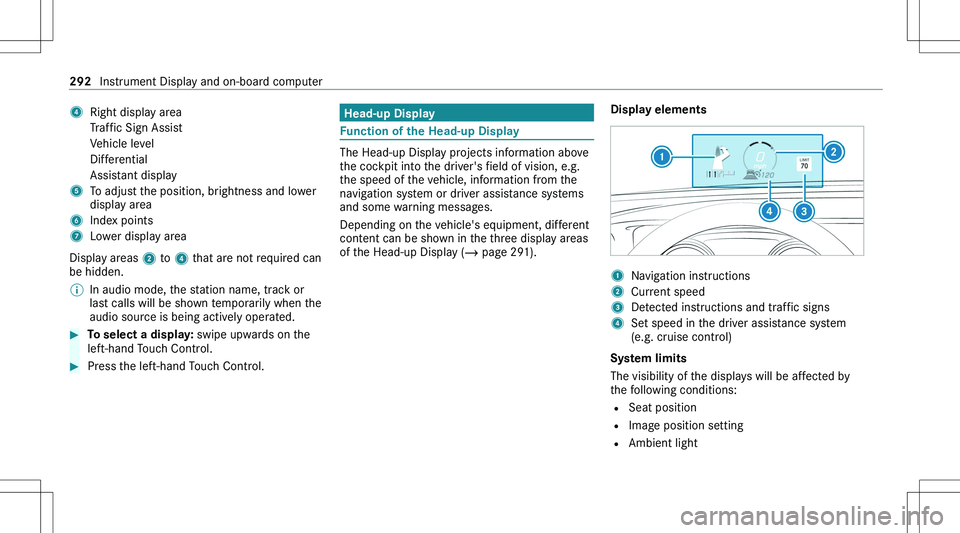

4Right display areaTraffic Sign AssistVehicle levelDifferentialAssistant display5To adjust the position, brightness and lower
display area6Index points7Lower display area
Display areas 2 to 4 that are not required can
be hidden.
%In audio mode, the station name, track or
last calls will be shown temporarily when the audio source is being actively operated.Toselectadisplay: swipe upwards on the
left-hand Touch Control.Press the left-hand Touch Control.Head-upDisplay
FunctionoftheHead-upDisplay
The Head-up Display projects information above
the cockpit into the driver's field of vision, e.g.
the speed of the vehicle, information from the navigation system or driver assistance systemsand some warning messages.
Depending on the vehicle's equipment, different content can be shown in the three display areasof the Head-up Display (  page 291).
Displayelements1Navigation instructions2Current speed3Detected instructions and traffic signs4Set speed in the driver assistance system
(e.g. cruise control)
Systemlimits
The visibility of the displays will be affected by the following conditions:
= Seat position
= Image position setting
= Ambient light
292Instrument Display and on-board computer

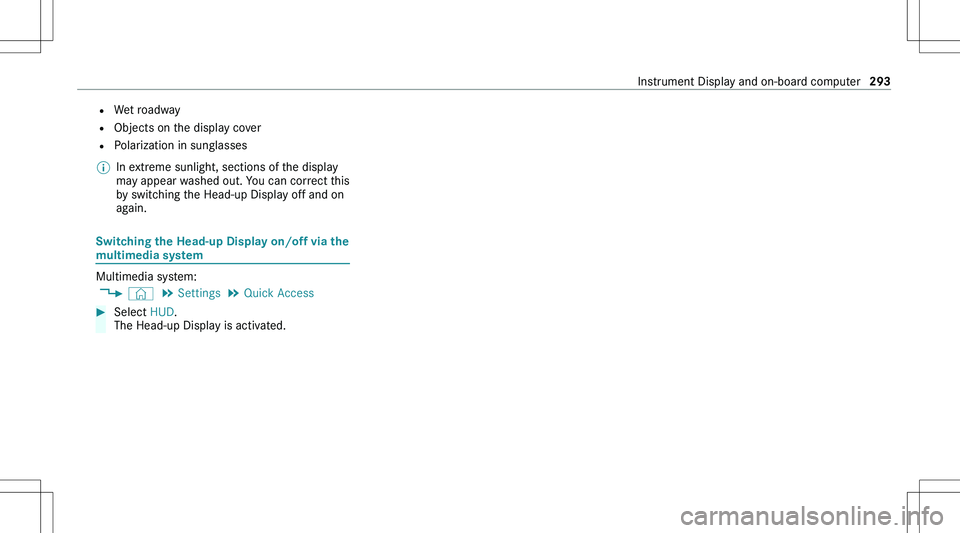

=Wet roadway
= Objects on the display cover
= Polarization in sunglasses%In extreme sunlight, sections of the display
may appear washed out. You can correct this by switching the Head-up Display off and on
again.
SwitchingtheHead-upDisplayon/offviathe
multimediasystem
Multimedia system:
4 © 5
Settings 5
Quick Access
Select HUD.
The Head-up Display is activated.Instrument Display and on-board computer293

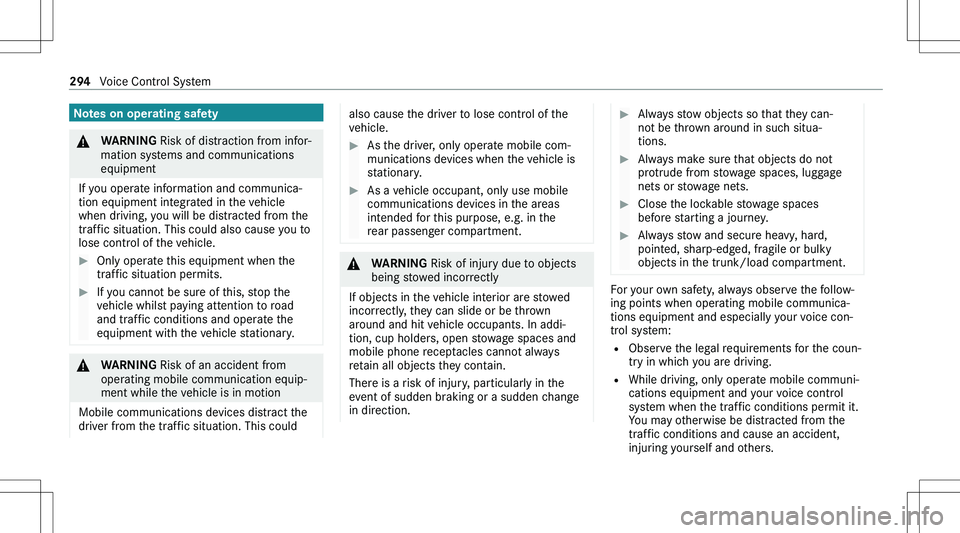

Notesonoperatingsafety&WARNING Risk of distraction from infor
