2020 Hyundai Sonata Owner's Manual

2-4
Vehicle Information
The actual shape may differ from the illustration.ODN8A019003
1. Inside door handle ................................ 5-32
2. Seat position memory system .............5-39
3. Side view mirror control switch ...........5-54
4. Central door lock switch .......................5-33
5. Power window switches ......................5-56
6. Power window lock button ..................5-59
7. Steering wheel tilt/telescopic lever ....5-43
8. Steering wheel ......................................5-42
9. Instrument panel illumination control
switch
......................................................4-3
10. Idle Stop and Go (ISG) OFF button ......6-33
11. Lane Keeping Assist system button ....6-58
12. Trunk release button ............................5-65
13. ESC OFF button ....................................6-29
14. EPB (Electronic Parking Brake) .............6-21
15. Hood release lever ...............................5-64
INTERIOR OVERVIEW

2-5
02
The actual shape may differ from the illustration.ODN8019005
1. Instrument cluster ..................................4-2
2. Driver’s front air bag .............................3-39
3. Key ignition switch/ ...............................6-6
Engine Start/Stop button
.......................6-9
4. Audio / Video / Navigation system .....5-154
5. Hazard warning flasher switch ...............7-2
6. Manual climate control system/ ..........5-118
Automatic climate control system
.....5-127
7. Passenger’s front air bag .....................3-39
8. Glove box .............................................5-144
9. Transmission shift button .....................6-13
10. Reverse Parking Distance
Warning/
...............................................5-95
Forward/Reverse Parking Distance
Warning system button
........................5-99
11. Surround View Monitor system button 5-88
12. Drive mode integrated control system 6-37
13. AUTO HOLD ..........................................6-24
14. Remote Smart Parking Assist (RSPA)
system button
......................................5-104
INSTRUMENT PANEL OVERVIEW

2-6
Vehicle Information
„„Smartstream G1.6 T-GDi
„„Smartstream G2.5 GDi
The actual engine room in the vehicle may differ from the illustration.ODN8089103/ ODN8089048L
ENGINE COMPARTMENT
1. Engine coolant reservoir .......................8-21
2. Brake fluid reservoir .............................8-24
3. Air cleaner .............................................8-26
4. Engine oil dipstick ................................ 8-19
5. Engine oil filler cap ................................8-19
6. Windshield washer fluid reservoir .......8-25
7. Fuse box ................................................8-46
8. Battery ....................................................8-31

02
2-7
DIMENSIONS
Itemsin. (mm)
Overall length 192.9 (4,900)
Overall width 73.2 (1,860)
Overall height 56.9 (1,445)
Front tread 205/65 R16
64.3 (1,633)
215/55 R17 63.9 (1,623)
235/45 R18 63.7 (1,618)
Rear tread 205/65 R16
64.6 (1,640)
215/55 R17 64.2 (1,630)
235/45 R18 64.0 (1,625)
Wheelbase 111.8 (2,840)
ENGINE SPECIFICATION
ItemSmartstream G1.6 T-GDi
Smartstream G2.5 GDi
Displacement cu. in. (cc) 97.08 (1,591)
152.37 (2,497)
Bore x Stroke in. (mm)3.03 x 3.06 (77 x 85.44)
3.47 x 4.00 (88.5 x 101.5)
Firing order 1-3-4-21-3-4-2
No. of cylinders 4, in-line4, in-line

Vehicle Information
2-8

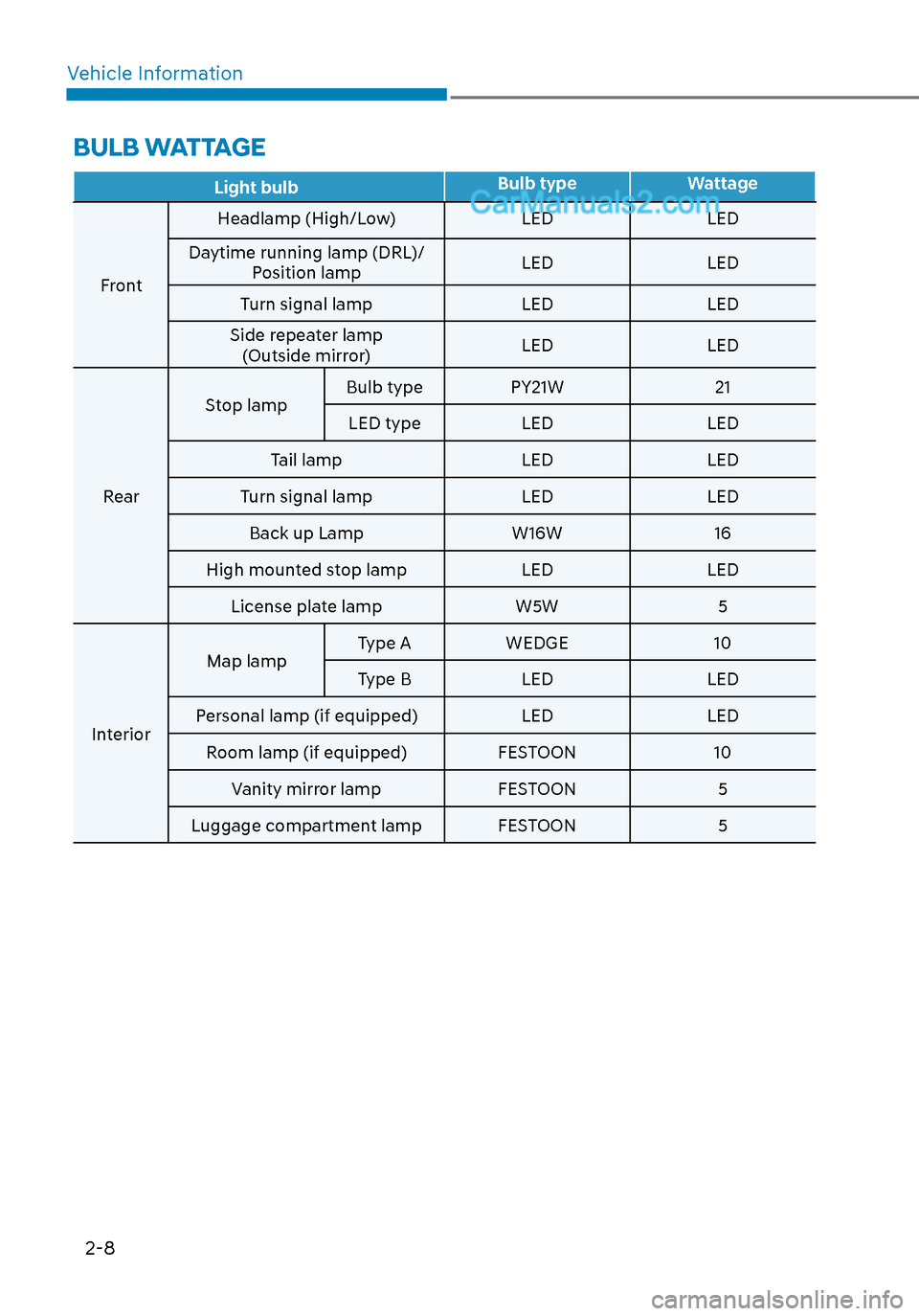

BULB WATTAGE
Light bulbBulb type
Wattage
Front Headlamp (High/Low)
LEDLED
Daytime running lamp (DRL)/ Position lamp LED
LED
Turn signal lamp LEDLED
Side repeater lamp (Outside mirror) LED
LED
Rear Stop lamp
Bulb type
PY21W 21
LED type LED LED
Tail lamp LEDLED
Turn signal lamp LEDLED
Back up Lamp W16W16
High mounted stop lamp LEDLED
License plate lamp W5W5
Interior Map lamp
Type A
WEDGE 10
Type B LED LED
Personal lamp (if equipped) LEDLED
Room lamp (if equipped) FESTOON10
Vanity mirror lamp FESTOON5
Luggage compartment lamp FESTOON5

02
2-9
TIRES AND WHEELS
ItemTire Size Wheel
Size Inflation pressure kPa (psi)
Wheel lug
nut torque kgf·m
(lbf·ft, N·m)
Normal load
*1Maximum load
Front RearFront Rear
Full size tire 205/65 R16
6.5Jx16240 (35) 240 (35)240 (35)240 (35)
11~13
(79~94,
107~127)
215/55 R17
7.0Jx17240 (35) 240 (35)240 (35)240 (35)
235/45 R18 7.5Jx18240 (35) 240 (35)240 (35)240 (35)
Compact
spare tire
(if equipped) T125/80 D16
4Tx16420 (60) 420 (60)420 (60)420 (60)
T135/80 D17 4Tx17420 (60) 420 (60)420 (60)420 (60)
T135/80 D18 4Tx18420 (60) 420 (60)420 (60)420 (60)
*1 : Normal load: Up to 3 persons
NOTICE
• It is permissible to add 3 psi to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to
keep them properly inflated.
• Tire inflation pressures will vary with changes in elevation. If driving in areas of
higher or lower elevation, be sure to check and adjust for proper tire inflation.
CAUTION
• When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
• When replacing tires, ALWAYS use the same size, type, construction and tread
pattern supplied with the vehicle for all tires.

Vehicle Information
2-10

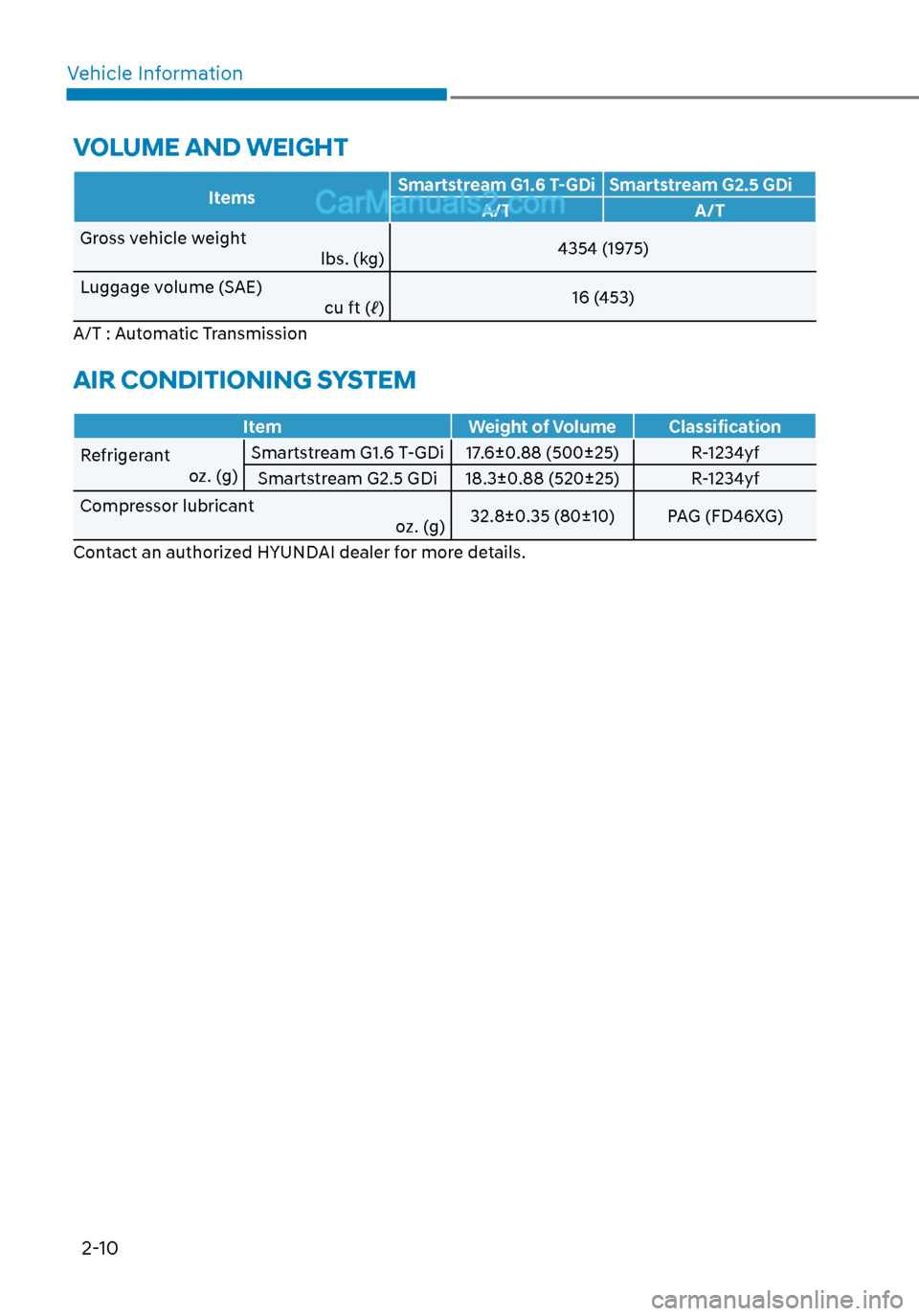

VOLUME AND WEIGHT
ItemsSmartstream G1.6 T-GDi
Smartstream G2.5 GDi
A/T A/T
Gross vehicle weight lbs. (kg)4354 (1975)
Luggage volume (SAE) cu ft (ℓ) 16 (453)
A/T : Automatic Transmission
AIR CONDITIONING SYSTEM
Item Weight of VolumeClassification
Refrigerant oz. (g)Smartstream G1.6 T-GDi
17.6±0.88 (500±25) R-1234yf
Smartstream G2.5 GDi 18.3±0.88 (520±25) R-1234yf
Compressor lubricant oz. (g)32.8±0.35 (80±10)
PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.

02
2-11

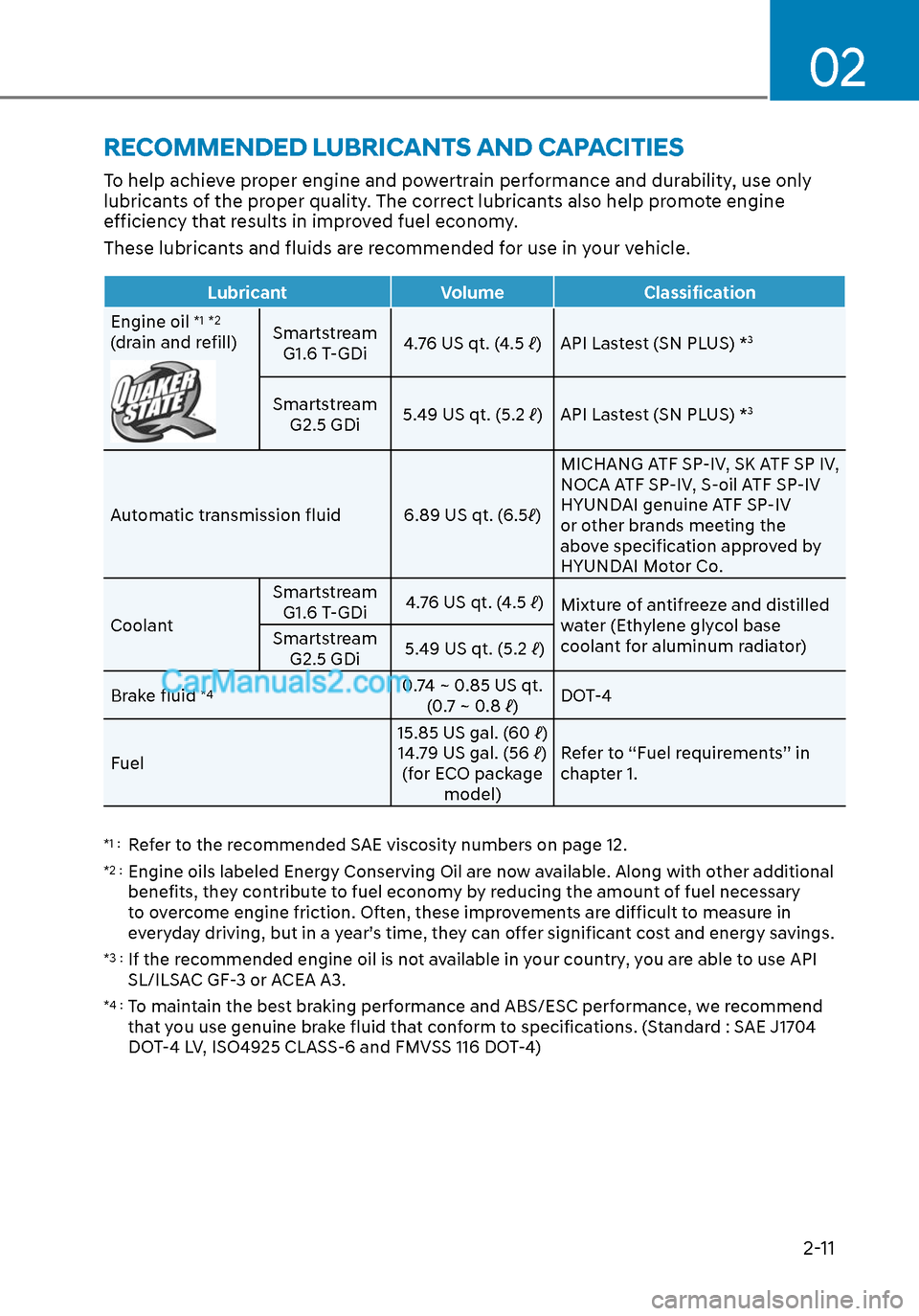

RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
LubricantVolumeClassification
Engine oil
*1 *2
(drain and refill) Smartstream
G1.6 T-GDi 4.76 US qt. (4.5 ℓ)
API Lastest (SN PLUS) *3
Smartstream G2.5 GDi5.49 US qt. (5.2 ℓ)
API Lastest (SN PLUS) *3
Automatic transmission fluid 6.89 US qt. (6.5ℓ)MICHANG ATF SP-IV, SK ATF SP IV,
NOCA ATF SP-IV, S-oil ATF SP-IV
HYUNDAI genuine ATF SP-IV
or other brands meeting the
above specification approved by
HYUNDAI Motor Co.
Coolant Smartstream
G1.6 T-GDi 4.76 US qt. (4.5 ℓ)
Mixture of antifreeze and distilled
water (Ethylene glycol base
coolant for aluminum radiator)
Smartstream
G2.5 GDi 5.49 US qt. (5.2 ℓ)
Brake fluid
*40.74 ~ 0.85 US qt. (0.7 ~ 0.8 ℓ) DOT-4
Fuel 15.85 US gal. (60 ℓ)
14.79 US gal. (56 ℓ) (for ECO package model) Refer to “Fuel requirements” in
chapter 1.
*1 : Refer to the recommended SAE viscosity numbers on page 12.
*2 : Engine oils labeled Energy Conserving Oil are now available. Along with other additional
benefits, they contribute to fuel economy by reducing the amount of fuel necessary
to overcome engine friction. Often, these improvements are difficult to measure in
everyday driving, but in a year’s time, they can offer significant cost and energy savings.
*3 : If the recommended engine oil is not available in your country, you are able to use API
SL/ILSAC GF-3 or ACEA A3.
*4 : To maintain the best braking performance and ABS/ESC performance, we recommend
that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704
DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)
