2020 Hyundai Santa Fe Owner's Manual

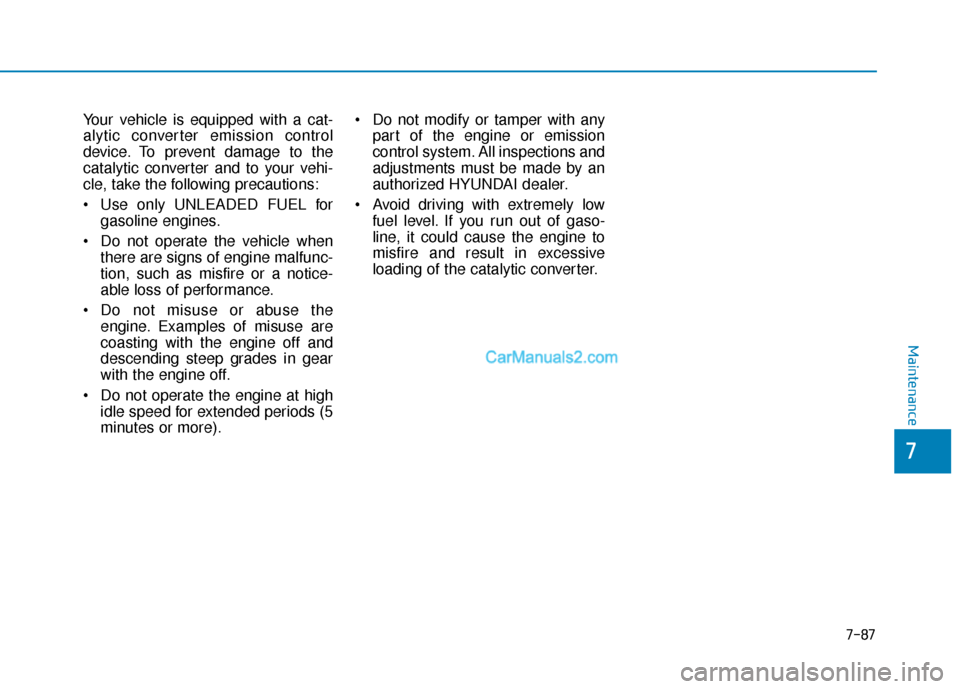

Your vehicle is equipped with a cat-
alytic converter emission control
device. To prevent damage to the
catalytic converter and to your vehi-
cle, take the following precautions:
Use only UNLEADED FUEL forgasoline engines.
Do not operate the vehicle when there are signs of engine malfunc-
tion, such as misfire or a notice-
able loss of performance.
Do not misuse or abuse the engine. Examples of misuse are
coasting with the engine off and
descending steep grades in gear
with the engine off.
Do not operate the engine at high idle speed for extended periods (5
minutes or more). Do not modify or tamper with any
part of the engine or emission
control system. All inspections and
adjustments must be made by an
authorized HYUNDAI dealer.
Avoid driving with extremely low fuel level. If you run out of gaso-
line, it could cause the engine to
misfire and result in excessive
loading of the catalytic converter.
Maintenance
7-87
7

C
CA
A L
LI
IF
F O
O R
RN
N I
IA
A
P
P E
ER
R C
CH
H L
LO
O R
RA
A T
TE
E
N
N O
O T
TI
IC
C E
E

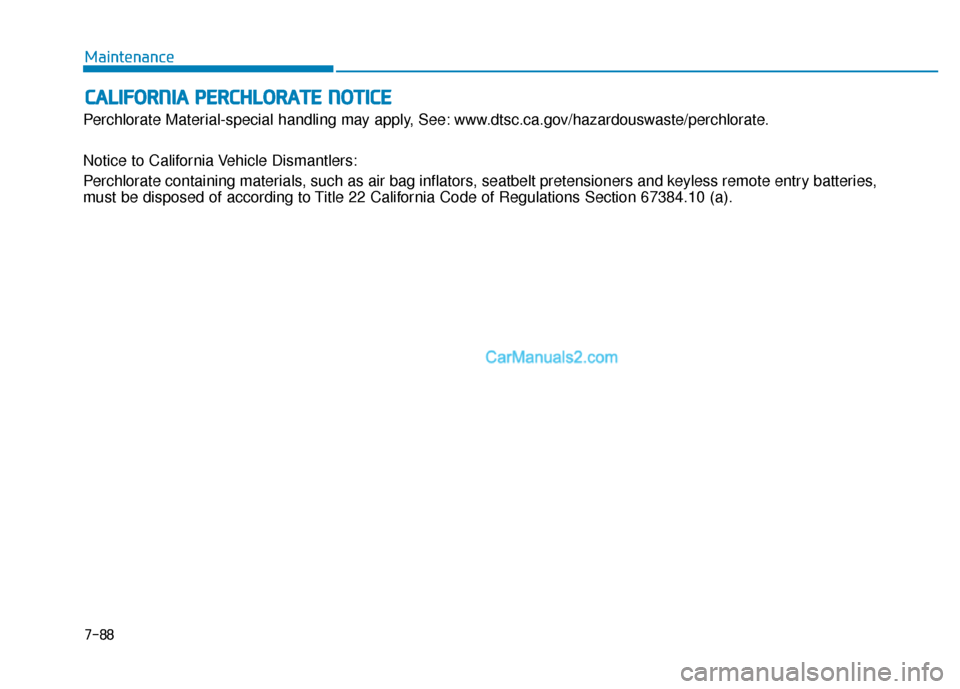

Perchlorate Material-special handling may apply, See: www.dtsc.ca.gov/hazardouswaste/perchlorate.
Notice to California Vehicle Dismantlers:
Perchlorate containing materials, such as air bag inflators, seatbelt pretensioners and keyless remote entry batteries,
must be disposed of according to Title 22 California Code of Regulations Section 67384.10 (a).Maintenance
7-88

888
Specifications & Consumer information
8

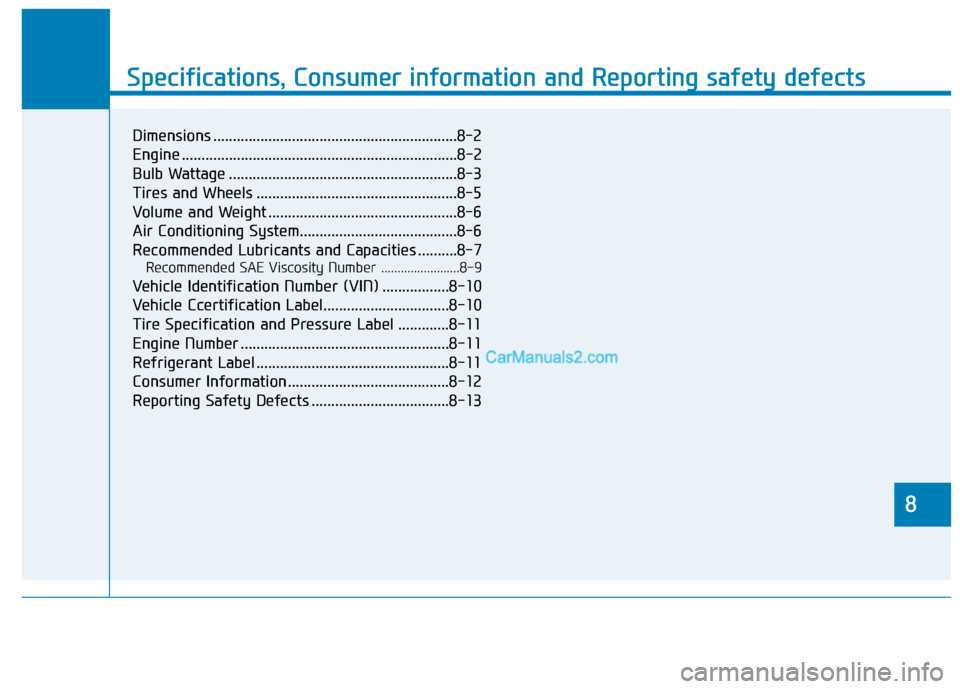

Specifications, Consumer information and Reporting safety defects
8
Dimensions ..............................................................8-2
Engine ......................................................................8-\
2
Bulb Wattage ..........................................................8-3
Tires and Wheels ...................................................8-5
Volume and Weight ................................................8-6
Air Conditioning System........................................8-6
Recommended Lubricants and Capacities ..........8-7
Recommended SAE Viscosity Number ........................8-9
Vehicle Identification Number (VIN) .................8-10
Vehicle Ccertification Label................................8-10
Tire Specification and Pressure Label .............8-11
Engine Number .....................................................8-11
Refrigerant Label .................................................8-11
Consumer Information .........................................8-12
Reporting Safety Defects ...................................8-13

D
DI
IM
M E
EN
N S
SI
IO
O N
NS
S
8-2
Specifications, Consumer information and Reporting safety defects
E
EN
N G
GI
IN
N E
E
Items 2.4 GDI2.0 T-GDI
Displacement
cu. in. (cc)143.95 (2,359)108.86 (1,998)
Bore x Stroke in. (mm)3.46X3.81 (88x97)3.38X3.38 (86x86)
Firing order1-3-4-21-3-4-2
No. of cylindersIn-line 4 cylinderIn-line 4 cylinder
*1: with roof rack
Itemsin (mm)
Overall length187.8 (4,770)
Overall width74.41 (1,890)
Overall height66.14 (1,680) / 67.13 (1,705)*1
Front tread
235/65 R1764.69 (1,643)
235/60 R1864.49 (1,638)
235/55 R1964.49 (1,638)
Rear tread
235/65 R1765.04 (1,652)
235/60 R1864.84 (1,647)
235/55 R1964.84 (1,647)
Wheelbase108.86 (2,765)

B
BU
U L
LB
B
W
W A
AT
TT
TA
A G
G E
E
88
Specifications, Consumer information and Reporting safety defects
Light Bulb Bulb Type Wattage
FrontType A
Headlamp
Low HB3 60
High HB3 60
Turn signal lamp PY28W28
Type B
Headlamp Low/High LED LED
Low/High (sub) LED LED
Turn signal lampPY28W28
Side marker lamp LEDLED
Parking lamp LEDLED
Daytime Running Lamp (DRL) LEDLED
Fog lamp Type A
H835
Type B LEDLED
Rear Type A
Tail lamp
W5W5
Tail/Stop lamp P21/5W5/21
Side marker lamp W5W5
Type B
Tail lamp LEDLED
Tail/Stop lamp LEDLED
Side marker lampLEDLED
Turn signal lamp PY21W21
Back up lamp W16W16
License plate lamp W5W5
High mounted stop lamp LEDLED
8-3

8-4
Specifications, Consumer information and Reporting safety defects

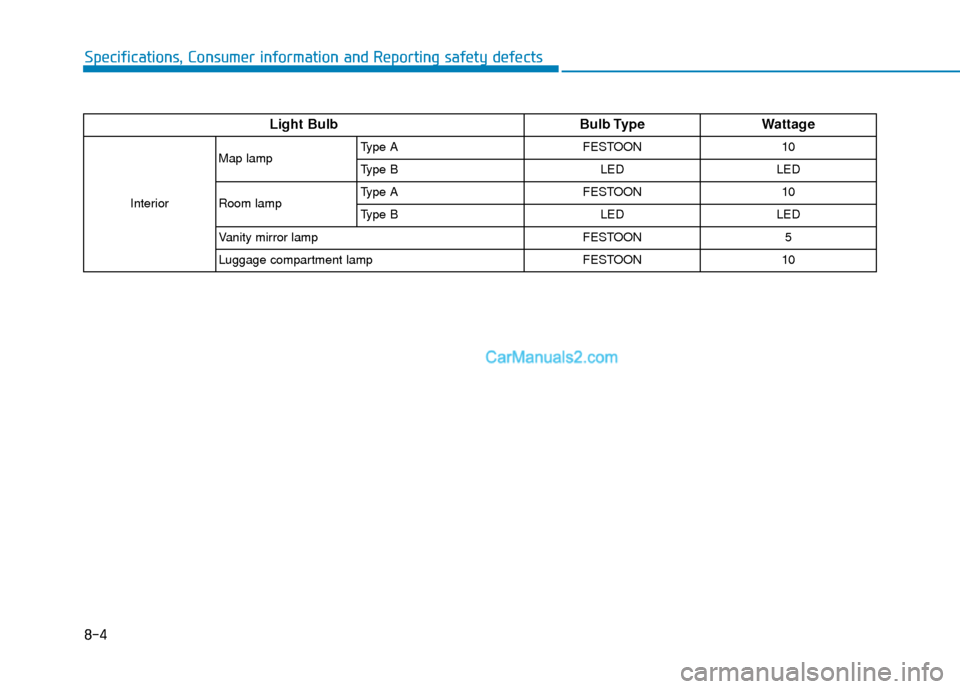

Light BulbBulb TypeWattage
InteriorMap lamp
Type A FESTOON 10
Type B LED LED
Room lamp Type A FESTOON 10
Type B
LEDLED
Vanity mirror lampFESTOON5
Luggage compartment lamp FESTOON10

When replacing tires, use the same size originally supplied with the vehicle.
Using tires of a different size can damage the related parts or not work properly.
CAUTION
T
T I
IR
R E
ES
S
A
A N
N D
D
W
W H
HE
EE
EL
LS
S
8-5
88
Specifications, Consumer information and Reporting safety defects

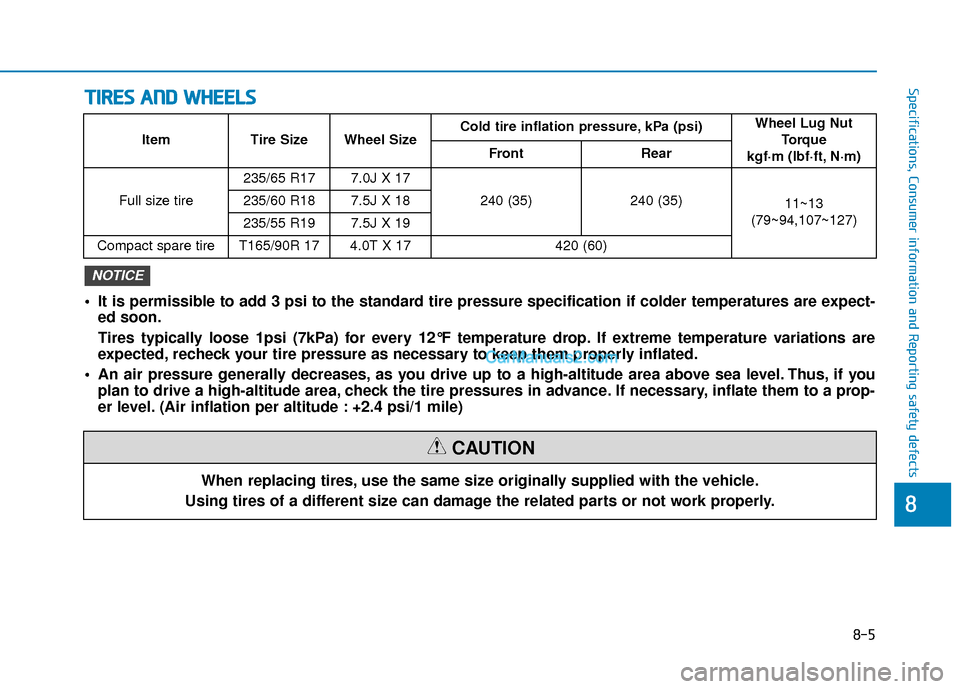

• It is permissible to add 3 psi to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 1psi (7kPa) for every 12°F temperature drop. If extreme temperature variations are
expected, recheck your tire pressure as necessary to keep them properly inflated.
An air pressure generally decreases, as you drive up to a high-altitude area above sea level. Thus, if you plan to drive a high-altitude area, check the tire pressures in advance. If necessary, inflate them to a prop-
er level. (Air inflation per altitude : +2.4 psi/1 mile)
NOTICE
Item Tire Size Wheel Size Cold tire inflation pressure, kPa (psi)
Wheel Lug Nut
Torque
kgf·m (lbf·ft, N·m)
Front
Rear
Full size tire 235/65 R17 7.0J X 17
240 (35)240 (35)
11~13
(79~94,107~127)
235/60 R18 7.5J X 18
235/55 R19 7.5J X 19
Compact spare tire T165/90R 17 4.0T X 17 420 (60)

8-6
Specifications, Consumer information and Reporting safety defects
V
VO
O L
LU
U M
M E
E
A
A N
N D
D
W
W E
EI
IG
G H
H T
T
A
A I
IR
R
C
C O
O N
ND
DI
IT
T I
IO
O N
NI
IN
N G
G
S
S Y
Y S
ST
T E
EM
M

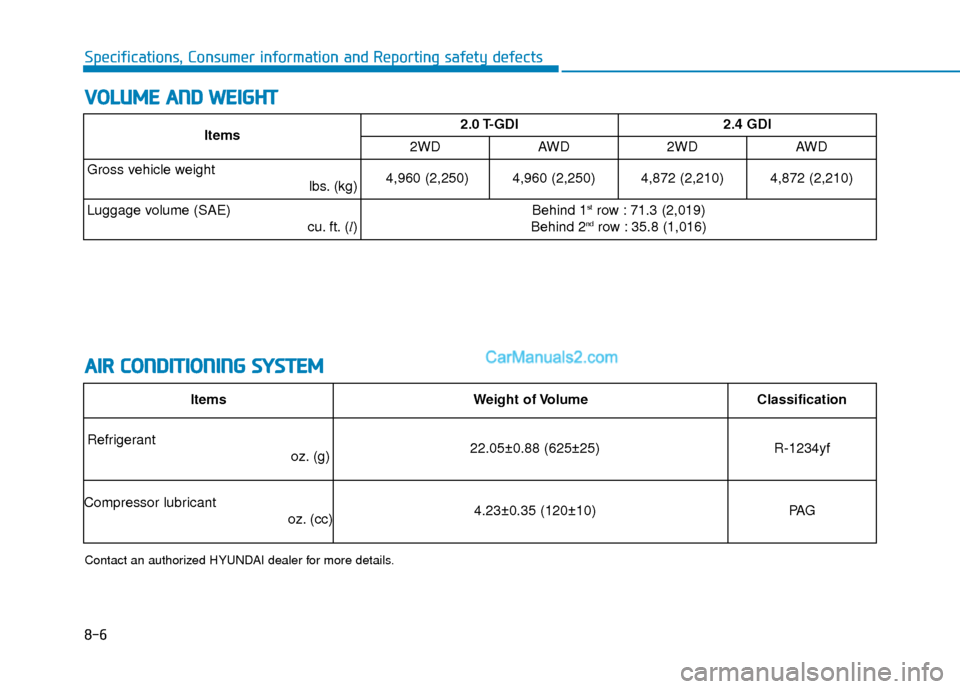

Contact an authorized HYUNDAI dealer for more details.
Items2.0 T-GDI2.4 GDI
2WDAWD2WDAWD
Gross vehicle weight
lbs. (kg)4,960 (2,250)4,960 (2,250)4,872 (2,210)4,872 (2,210)
Luggage volume (SAE)cu. ft. (l)Behind 1strow : 71.3 (2,019)
Behind 2ndrow : 35.8 (1,016)
ItemsWeight of VolumeClassification
Refrigerant oz. (g) 22.05±0.88 (625±25)R-1234yf
Compressor lubricant oz. (cc) 4.23±0.35 (120±10)PA G
