2020 HONDA CIVIC HATCHBACK Owner's Manual (in English)

127
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in PSI when the brake is applied.
Displays the accelerator po sition in degrees of %.
Light up from left to righ t according to engine
speed.
■G-Meter*
■Braking Pressure Meter*
■Accelerator Position Meter*
■Rev Indicators*
Rev Indicators
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 127 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuGauges and Driver Information Interface uDriver Information Interface
128
Instrument Panel
Measures the lap time, and displays the previously measured ti mes, split time and
the fastest lap time.
■Measuring LAP Time
1. Press the ENTER button to display the lap
time measurement screen.
2. Press the ENTER button to start
measurement.
3. Press the ENTER button again to stop
measurement.
u To measure the time per lap, press the
/ button at the completion of each
lap.
u To return to the Stopwatch screen,
press the (Hang-up/back)
button.
■Stopwatch*1 Stopwatch*
Be sure to use this measurement function only where
and when it is safe to do so.
Lap time is displayed from 00:00.00 to 9:59:59.99.
Button3ENTER Button
Button
Button
(Hang-up/Back)
Button
Button4
34
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 128 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

129
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Checking/Clearing history
• To check history, pres s the button (when
lap time is not running) to change the
display, then pres s the / button to
scroll through lap times.
u A maximum of 20 lap times can be
stored at a time.
• To clear the history, press and hold the /
button when lap time is not running.
• To return to the lap time measurement
screen, press the button.
• To return to the Stopwatch screen, press
the (Hang-up/back) button.
Press
ButtonPress
Button
34
3
4
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 129 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

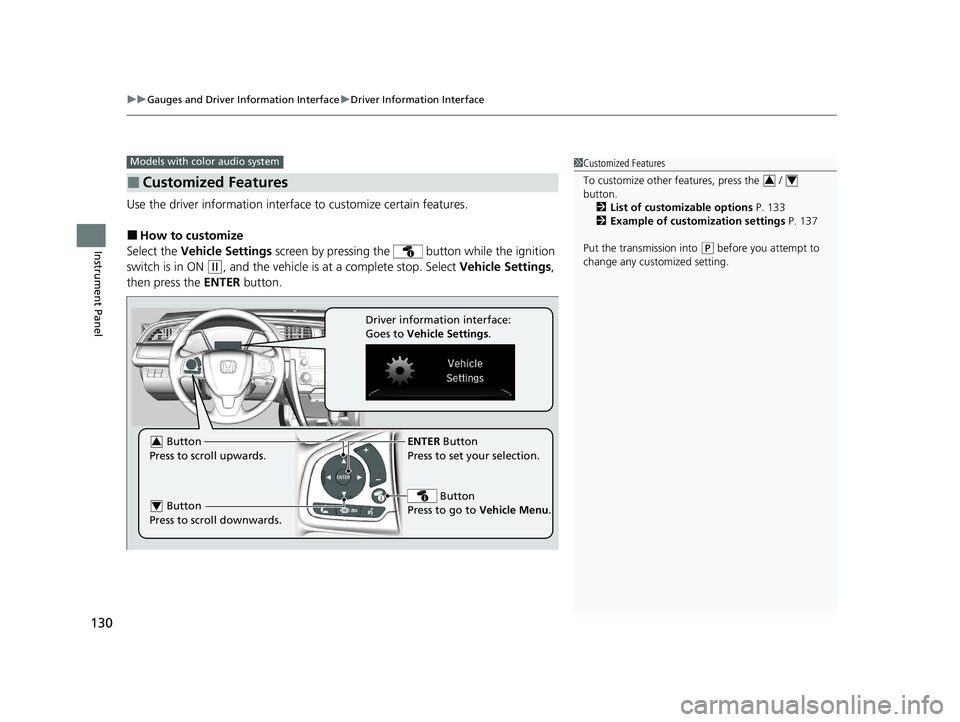

uuGauges and Driver Information Interface uDriver Information Interface
130
Instrument Panel
Use the driver information interfac e to customize certain features.
■How to customize
Select the Vehicle Settings screen by pressing the button while the ignition
switch is in ON
(w, and the vehicle is at a complete stop. Select Vehicle Settings,
then press the ENTER button.
■Customized Features
Models with color audio system1Customized Features
To customize other features, press the /
button.
2 List of customizable options P. 133
2 Example of customization settings P. 137
Put the transmission into
( P before you attempt to
change any customized setting.
34
ENTER Button
Press to set your selection.
Button
Press to go to Vehicle Menu. Button
Press to scroll upwards.3
Button
Press to scroll downwards.4
Driver information interface:
Goes to Vehicle Settings .
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 130 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

131
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■Customization flow
Press the button.
ENTERVehicle Settings
“Trip A” Reset Timing
Language Selection
Adjust Outside Temp. Display
3
4
TPMS Calibration
ENTER
“Trip B” Reset Timing
Fuel Efficiency Backlight
3
4
ACC Forward Vehicle Detect Beep
3
4Tachometer
ENTER
Forward Collision Warning Distance
3
4
3
4
Lane Keeping Assist Suspend Beep
Road Departure Mitigation Setting
Adjust Alarm Volume
Speed/Distance Units
3
4
ENTER
Driver Assist System Setup
Meter Setup
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 131 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

132
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Exit
3
4
3
4
3
4
Maintenance Reset
Default All
3
4
ENTER
3
4
3
4
Key And Remote Unlock Mode
Auto Door Lock
Auto Door Unlock
Keyless Lock Answer Back
Security Relock Timer
Interior Light Dimming Time
Headlight Auto OFF Timer
Auto Light Sensitivity3
4
3
4
Auto Headlight ON With Wiper ON
ENTER
ENTER
Auto Interior Illumination Sensitivity
Lighting Setup
Door Setup
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 132 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

133
uuGauges and Driver Information Interface uDriver Information Interface
Continued
Instrument Panel
■List of customizable options
*1:Default Setting Setup Group Customizable Features
Description Selectable Settings
TPMS
Calibration—Calibrates the TPMS.Cancel/Calibrate
Driver Assist
System
Setup Forward Collision
Warning Distance
Changes the distance at which CMBS
TM alerts.
Long/Normal*1/ Short
ACC Forward Vehicle
Detect Beep Causes the system to beep
when the system detects a
vehicle, or when the vehicle goes out of ACC range. ON
/OFF
*1
Road Departure
Mitigation Setting Changes the setting fo
r the road departure
mitigation system. Normal*1/
Wide /Warning
Only
Lane Keeping Assist
Suspend Beep Causes the system to b
eep when the LKAS is
suspended. ON
/OFF
*1
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 133 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

134
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
*1:Default SettingSetup Group Customizable Features Description Selectable Settings
Meter Setup
Language SelectionChanges the displayed language.English*1/
Français /Español
Adjust Outside Temp.
DisplayAdjusts the temperature reading by a few degrees.-5°F ~ ±0°F*1 ~ +5°F
“Trip A” Reset Timing
Changes the setting of how to reset trip meter A,
average fuel economy A, average speed A, and
elapsed time A.When Refueled /IGN OFF /
Manually Reset*1
“Trip B” Reset Timing
Changes the setting of how to reset trip meter B,
average fuel economy B, average speed B, and
elapsed time B.When Refueled /IGN OFF /
Manually Reset*1
Adjust Alarm VolumeChanges the alarm volume, such as buzzers,
warnings, turn signal sound, and so on.High /Mid*1/Low
Fuel Efficiency BacklightTurns the ambient meter feature on and off.ON*1/OFF
Speed/Distance UnitsSelects the trip computer units.mph ∙miles*1/ km/h ∙km
TachometerSelects whether the tachomet er is displayed on the
driver information interface.ON*1/ OFF
