2020 HONDA CIVIC HATCHBACK turn signal bulb

88
uuIndicators u
Instrument Panel
IndicatorNameOn/BlinkingExplanationMessage
System Message
Indicator
●Comes on along with a beep
when a problem is detected. A
system message on the driver
information interface appears at
the same time.●While the indicator is on, press the
(display/information ) button to see the
message again.
●Refer to the Indicators information in this
chapter when a system message appears
on the driver information interface. Take
the appropriate action for the message.
●The driver information interface does not
return to the normal screen unless the
warning is canceled, or the button
is pressed.
—
Turn Signal and
Hazard Warning
Indicators
●Blinks when you operate the turn
signal lever.
●Blink along with all turn signals
when you press the hazard
warning button.
●Does not blink or blinks rapidly
2 Replacing Light Bulbs P. 594, 598
—
High Beam
Indicator●Comes on when the high beam
headlights are on.——
Lights On
Indicator
●Comes on when the light switch
in a position other than OFF or
when the switch is set to AUTO
and the exterior lights come on.●If you remove the key from the ignition
switch*1 while the exterior lights are on, a
chime sounds when the driver's door is
opened.—
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 88 ページ ２０１９年１１月１１日　 月曜日　午後２時５０分

594
uuReplacing Light Bulbs uFront Turn Signal Light Bulbs
Maintenance
Front Turn Signal Light Bulbs
When replacing, use the following bulbs.
1.Turn the socket counter-clockwise and
remove it.
2. Remove the old bulb and insert a new bulb.
Front Turn Signal Light: 21 W (Amber)
1Front Turn Signal Light Bulbs
Front turn signal lights are LED type. Have an
authorized Honda d ealer inspect and replace the light
assembly.
Models with LED headlights
Models with halogen headlights
Socket Bulb
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 594 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

597
uuReplacing Light Bulbs uParking/Daytime Running Lights
Maintenance
3. Turn the socket counter-clockwise to
remove it, then remove the old bulb.
4. Insert a new bulb.
3. Turn the socket cloc kwise to remove it,
then remove the old bulb.
4. Insert a new bulb.
Parking/Daytime Running Lights
Parking/daytime running lights are LED ty pe. Have an authorized Honda dealer
inspect and replace the light assembly.
Side Turn Signal/Emer gency Indicator Lights*
Door mirror side turn lights are LED type. Have an authorized Honda dealer inspect
and replace the light assembly.
Bulb
SocketDriver side
Bulb SocketPassenger side
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 597 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

598
uuReplacing Light Bulbs uBrake Light, Rear Turn Signal Light and Back-Up Light Bulbs
Maintenance
Brake Light, Rear Turn Signal Light and Back-Up
Light Bulbs
When replacing, use the following bulbs.
1.Use a Phillips-head screwdriver or socket to
remove the bolts.
2. Pull the light assembly out of the rear pillar.
3. Turn the socket counter-clockwise and
remove it.
4. Remove the old bulb and insert a new bulb.
5. Slide the light assembly onto the guide on
the body.
6. Align the pins with the body grommets,
then push in unt il they fully seat.
Brake Light: 21 W
Rear Turn Signal Light: 21 W (Amber)
Back-Up Light: 16 W
Bolts
Bulbs
Sockets
Bulb
Socket
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 598 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

680
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
ModelCivic*1
Civic TYPE R*2
No. of Passengers:
Front 2
Rear 3
*1
2*2
Total 5*1
4*2
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■
Air Conditioning
■ Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: Models without 18 or 20 inch wheels
*2: Models with 18 or 20 inch wheels
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 ml)
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
3.2 US qt (3.0 L)*2
Canada:4.8 US qt (4.5 L)*1
3.2 US qt (3.0 L)*2
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WCenter Pocket Lights* LEDGlove Box Light3.4 WCargo Area Light5 W
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 680 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

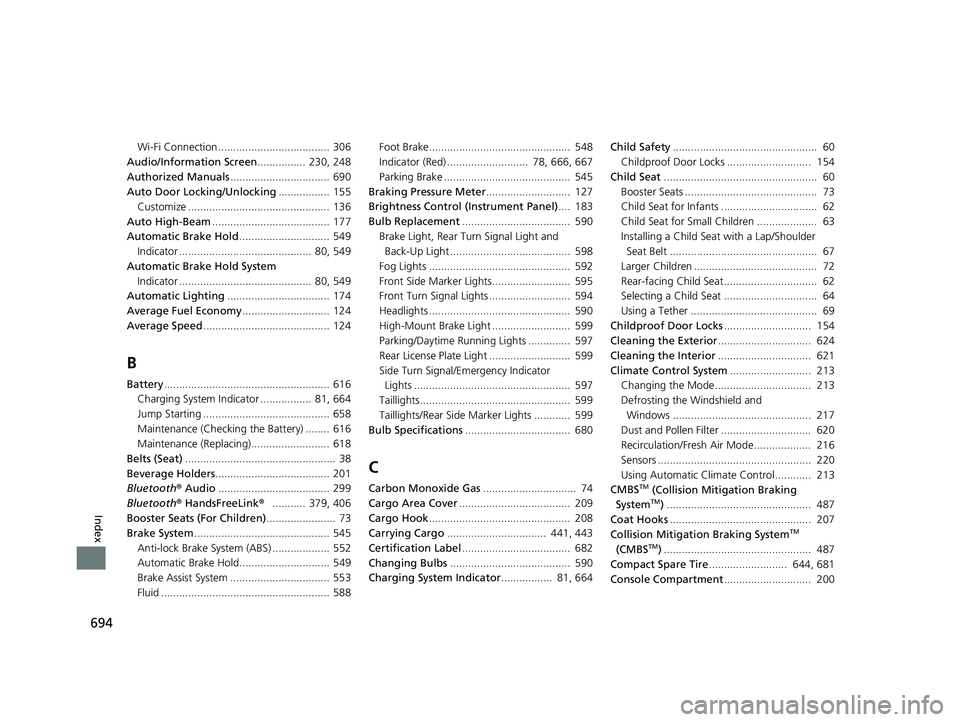

694
Index
Wi-Fi Connection ..................................... 306
Audio/Information Screen ................ 230, 248
Authorized Manuals ................................. 690
Auto Door Locking/Unlocking ................. 155
Customize ............................................... 136
Auto High-Beam ....................................... 177
Automatic Brake Hold .............................. 549
Indicator ............................................ 80, 549
Automatic Brake Hold System Indicator ............................................ 80, 549
Automatic Lighting .................................. 174
Average Fuel Economy ............................. 124
Average Speed .......................................... 124
B
Battery....................................................... 616
Charging System Indicator ................. 81, 664
Jump Starting .......................................... 658
Maintenance (Checking the Battery) ........ 616
Maintenance (Replacing).......................... 618
Belts (Seat) .................................................. 38
Beverage Holders ...................................... 201
Bluetooth ® Audio ..................................... 299
Bluetooth ® HandsFreeLink ®........... 379, 406
Booster Seats (For Children) ....................... 73
Brake System ............................................. 545
Anti-lock Brake System (ABS) ................... 552
Automatic Brake Hold.............................. 549
Brake Assist System ................................. 553
Fluid ........................................................ 588 Foot Brake............................................... 548
Indicator (Red) ........................... 78, 666, 667
Parking Brake .......................................... 545
Braking Pressure Meter ............................ 127
Brightness Control (Instrument Panel).... 183
Bulb Replacement .................................... 590
Brake Light, Rear Tu rn Signal Light and
Back-Up Light ........................................ 598
Fog Lights ............................................... 592
Front Side Marker Lights.......................... 595
Front Turn Signal Lights ........................... 594
Headlights ............................................... 590
High-Mount Brake Light .......................... 599
Parking/Daytime Running Lights .............. 597
Rear License Plate Light ........................... 599
Side Turn Signal/Emergency Indicator Lights .................................................... 597
Taillights.................................................. 599
Taillights/Rear Side Marker Lights ............ 599
Bulb Specifications ................................... 680
C
Carbon Monoxide Gas ............................... 74
Cargo Area Cover ..................................... 209
Cargo Hook ............................................... 208
Carrying Cargo ................................. 441, 443
Certification Label .................................... 682
Changing Bulbs ........................................ 590
Charging System Indicator ................. 81, 664Child Safety
................................................ 60
Childproof Door Locks ............................ 154
Child Seat ................................................... 60
Booster Seats ............................................ 73
Child Seat for Infants ................................ 62
Child Seat for Small Children .................... 63
Installing a Child Seat with a Lap/Shoulder
Seat Belt ................................................. 67
Larger Children ......................................... 72
Rear-facing Child Seat............................... 62
Selecting a Child Seat ............................... 64
Using a Tether .......................................... 69
Childproof Door Locks ............................. 154
Cleaning the Exterior ............................... 624
Cleaning the Interior ............................... 621
Climate Control System ........................... 213
Changing the Mode................................ 213
Defrosting the Windshield and Windows .............................................. 217
Dust and Pollen Filter .............................. 620
Recirculation/Fresh Air Mode................... 216
Sensors ................................................... 220
Using Automatic Climate Control............ 213
CMBSTM (Collision Mitigation Braking
SystemTM) ................................................ 487
Coat Hooks ............................................... 207
Collision Mitigation Braking System
TM
(CMBSTM) ................................................. 487
Compact Spare Tire .......................... 644, 681
Console Compartment ............................. 200
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 694 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

697
Index
I
Identification Numbers............................ 682
Vehicle Identification............................... 682
Ignition Switch ......................................... 167
Illumination Control ................................ 183
Knob ...................................................... 183
Immobilizer System .................................. 159
Immobilizer System Indicator..................... 90
Indicators .................................................... 78
Adaptive Cruise Control (ACC) with Low Speed Follow ........................... 96, 497
Anti-lock Brake System (ABS) .................... 85
Auto High-Beam ....................................... 89
Automatic Brake Hold ....................... 80, 549
Automatic Brake Hold System ........... 80, 549
Charging System............................... 81, 664
Collision Mitigation Braking System
TM (CMBSTM)...................... 97, 98, 99
Drive Mode ............................................... 89
ECON Mode ..................................... 91, 468
Electric Power Steering (EPS) System ............................................ 85, 668
Fog Light .................................................. 89
Gear Position ............................................ 83
High Beam ................................................ 88
Immobilizer System ................................... 90
Lane Keeping Assist System (LKAS) ... 96, 531
Lights On .................................................. 88
Low Fuel ................................................... 84
Low Oil Pressure ............................... 80, 664
Low Tire Pressure/TPMS ............ 87, 478, 482 M (7-speed manual shift mode) Indicator/
Shift Indicator .......................................... 82
Malfunction Indicator Lamp ............... 81, 665
Parking Brake and Brake System (Amber) ... 79
Parking Brake and Brake System (Red)........................................ 78, 666, 667
Road Departure Mitigation (RDM) .............. 92
Seat Belt Reminder .............................. 40, 84
Security System Alarm ............................... 91
Shift Down ................................................ 82
Shift Lever Position .................................... 82
Shift Up ..................................................... 82
Supplemental Restraint System ............ 57, 85
System Message ........................................ 88
Transmission System .................................. 82
Turn Signal and Haza rd Warning ............... 88
Vehicle Stability Assist ® (VSA ®) OFF .... 86, 472
Vehicle Stability Assist ® (VSA ®)
System............................................. 86, 471
Information ............................................... 679
Instant Fuel Economy ............................... 125
Instrument Panel ........................................ 77
Brightness Control ................................... 183
Interior Lights ........................................... 197
Interior Rearview Mirror .......................... 186
iPod ........................................................... 287
J
Jack (Wheel Nut Wrench) ........................ 648
Handling of the jack ................................ 652 Jump Starting
........................................... 658
K
Key Number Tag ....................................... 142
Keys ........................................................... 141
Number Tag ............................................ 142
Rear Door Won’t Open............................ 154
Remote Transmitter ................................. 149
Types and Functions ................................ 141
Won’t Turn ............................................... 28
Kickdown (Continuously Variable Transmission) .......................................... 456
L
Lane Keeping Assist System (LKAS) ......... 529
LaneWatchTM............................................ 476
Language (HFL) ........................................ 408
LATCH (Child Seats) .................................... 65
Lights ................................................. 173, 590
Automatic ............................................... 174
Bulb Replacement ................................... 590
Daytime Running Lights........................... 176
Fog Lights ............................................... 176
High Beam Indicator .................................. 88
Interior .................................................... 197
Light Switches ......................................... 173
Lights On Indicator .................................... 88
Turn Signals ............................................ 172
Limited Slip Differential (LSD) ................. 475
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 697 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分
