2020 HONDA CIVIC HATCHBACK Owner's Manual (in English)

639
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Continued
Handling the Unexpected
5. Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
u Do not turn the air compressor on to
check the pressure.
2 Inflating an Under-inflated Tire P. 641
6.If the air pressure is
• Less than 25 psi (175 kPa):
Do not add air or continue driving. The
leak is too severe. Call for help and have
your vehicle towed.
2 Emergency Towing P. 675
•Front: 35 psi (240 kPa)/rear: 33 psi (230
kPa) or more:
Continue driving for another 10 minutes
or until you reach the nearest service
station, whichever is sooner.
Do not exceed 50 mph (80 km/h). If you
have not reached a service station, stop
and check the tire pressure.
u If the air pressure does not go down
after the 10 minutes of driving, you do
not need to check the pressure any
more.
*1: U.S. models
*2: Canadian models
U.S.
Canada
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 639 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
640
Handling the Unexpected
• Greater than 25 psi (175 kPa), but less
than front: 35 psi (240 kPa)/rear: 33 psi
(230 kPa):
Turn the air compressor on to inflate the
tire until the tire pres sure reaches front: 35
psi (240 kPa)/rear: 33 psi (230 kPa).
2Inflating an Under-inflated Tire P. 641
Then drive carefully for 10 more minutes
or until you reach the nearest service
station, whichever is sooner.
Do not exceed 50 mph (80 km/h). If you
have not reached a service station, stop
and check the tire pressure.
u You should repeat this procedure as
long as the air pressure is within this
range.
7. Unplug the kit from the accessory power
socket.
8. Unscrew the sealant/air hose from the tire
valve stem.
Reinstall the valve cap.
9. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
10. Repackage and properly stow the kit.
1Distributing the Sealant in the Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
Pressure Relief Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 640 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

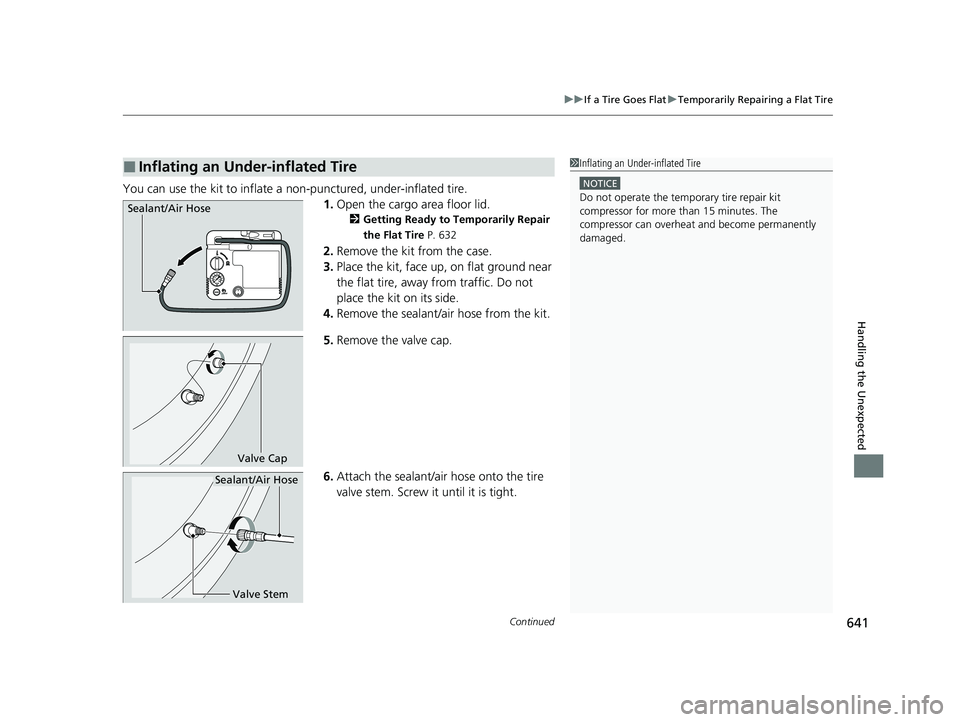

Continued641
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
You can use the kit to inflate a non-punctured, under-inflated tire.
1.Open the cargo area floor lid.
2 Getting Ready to Temporarily Repair
the Flat Tire P. 632
2.Remove the kit from the case.
3. Place the kit, face up, on flat ground near
the flat tire, away from traffic. Do not
place the kit on its side.
4. Remove the sealant/air hose from the kit.
5. Remove the valve cap.
6. Attach the sealant/air hose onto the tire
valve stem. Screw it until it is tight.
■Inflating an Under-inflated Tire1Inflating an Under-inflated Tire
NOTICE
Do not operate the temporary tire repair kit
compressor for more than 15 minutes. The
compressor can overheat and become permanently
damaged.Sealant/Air Hose
Valve Cap
Valve Stem
Sealant/Air Hose
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 641 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
642
Handling the Unexpected
7. Plug in the kit to the accessory power
socket.
u Be careful not to pinch the cord in a
door or window.
8. Start the engine.
u Keep the engine runn ing while injecting
air.
2 Carbon Monoxide Gas P. 74
9.Turn the selector knob to AIR*1, AIR
ONLY*2, AIR SEULEMENT*2.
10. Press the inflator swit ch to turn on the kit.
u The compressor starts to inject air into
the tire.
11. Inflate the tire to the specified air pressure.
*1: U.S. models
*2: Canadian models
1Inflating an Under-inflated Tire
3WARNING
Running the engine with the vehicle in an
enclosed or even partly enclosed area can
cause a rapid build-up of toxic carbon
monoxide.
Breathing this colorless, odorless gas can
cause unconsciousness and even death.
Only run the engine to power the air
compressor with th e vehicle outdoors.
CanadaU.S.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 642 ページ ２０１９年１１月１１日
　月曜日　午後２時５０分

643
uuIf a Tire Goes Flat uTemporarily Repairing a Flat Tire
Handling the Unexpected
12. Turn off the kit.
u Check the pressure gauge on the air
compressor.
u If overinflated, press the pressure relief
button.
13. Unplug the kit from the accessory power
socket.
14. Unscrew the sealant/ai r hose from the tire
valve stem. Reinstall the valve cap.
15. Press the pressure relief button until the
gauge returns to 0 psi (0 kPa).
16. Repackage and properly stow the kit.
Pressure Relief Button
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 643 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

644
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
Changing a Flat Tire
If a tire goes flat while driving, grasp the steering wheel firmly, and brake gradually
to reduce speed. Then, stop in a safe place. Replace the flat tire with a compact
spare tire. Go to a dealer as soon as possible to have th e full-size tire repaired or
replaced.
1. Park the vehicle on firm, level, and non- slippery surface and apply the parking
brake.
2. Put the transmission into
(P.
2. Put the transmission into
(R.
3. Turn on the hazard warning lights an d turn the ignition switch to LOCK
(0*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Models with a compact spare tire
1 Changing a Flat Tire
Follow compact spare precautions:
Periodically check the tire pressure of the compact
spare. It should be set to the specified pressure.
Specified Pressure: 60 psi (420 kPa, 4.2 kgf/cm
2)
When driving with the compact spare tire, keep the
vehicle speed under 50 mph (80 km/h). Replace with
a full-size tire as soon as possible.
The compact spare tire and wheel in your vehicle are
specifically for this model. Do not use them with
another vehicle. Do not us e another type of compact
spare tire or wheel with your vehicle.
Do not mount tire chains on a compact spare tire.
If a chain-mounted front tire goes flat, remove one of
the full-size rear tires and replace it with the compact
spare tire. Remove the flat front tire and replace it
with the full-size tire that was removed from the rear.
Mount the tire chains on the front tire.
NOTICE
Do not use the jack if it doesn’t work properly. Call
your dealer or a prof essional towing service.
The subwoofer
*, a large black enclosure, is located
on the rear right side. Do not store anything in this
area. Doing so may compromise vehicle audio
performance.
Continuously variable transmission models
Manual transmission models
All models
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 644 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

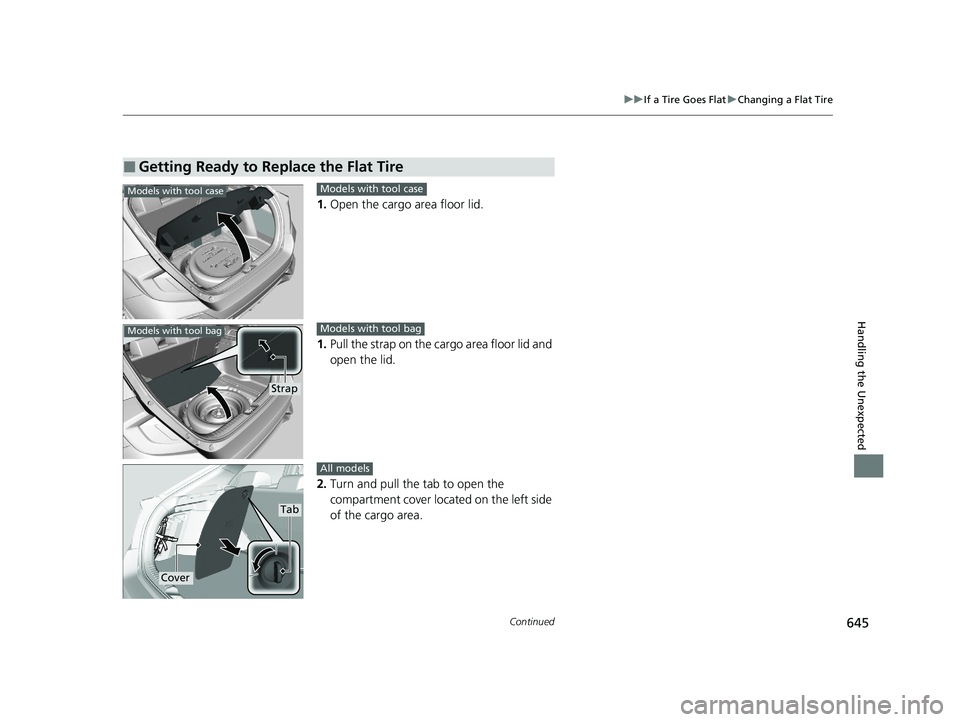

645
uuIf a Tire Goes Flat uChanging a Flat Tire
Continued
Handling the Unexpected
1. Open the cargo area floor lid.
1. Pull the strap on the cargo area floor lid and
open the lid.
2. Turn and pull the tab to open the
compartment cover located on the left side
of the cargo area.
■Getting Ready to Replace the Flat Tire
Models with tool caseModels with tool case
Models with tool bag
Strap
Models with tool bag
Tab
Cover
All models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 645 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

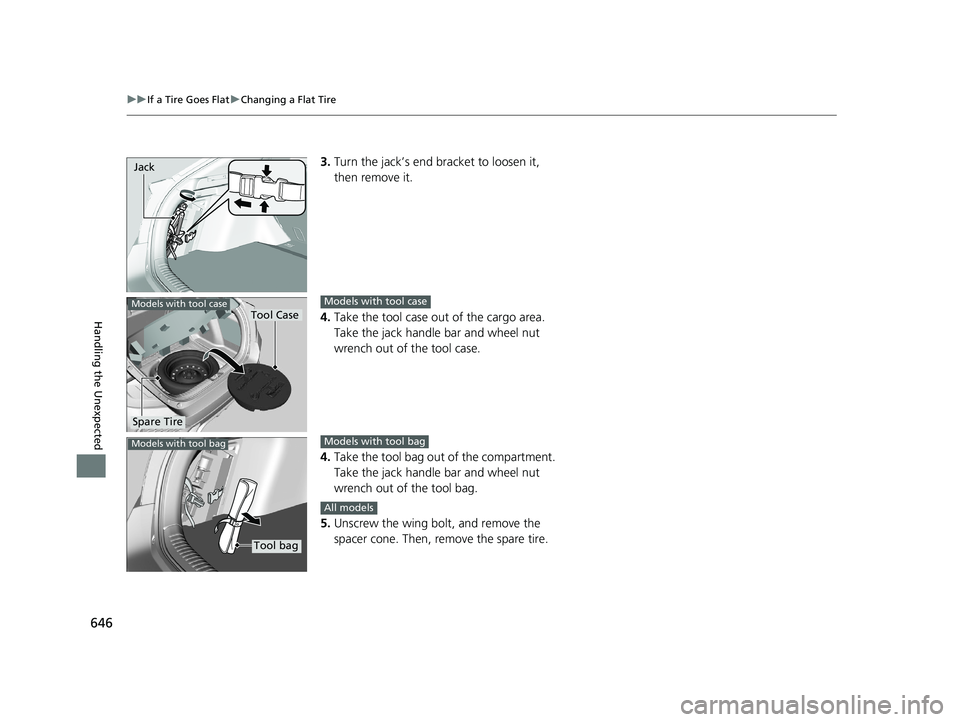

646
uuIf a Tire Goes Flat uChanging a Flat Tire
Handling the Unexpected
3. Turn the jack’s end br acket to loosen it,
then remove it.
4. Take the tool case out of the cargo area.
Take the jack handle bar and wheel nut
wrench out of the tool case.
4. Take the tool bag out of the compartment.
Take the jack handle bar and wheel nut
wrench out of the tool bag.
5. Unscrew the wing bolt, and remove the
spacer cone. Then, remove the spare tire.Jack
Tool Case
Spare Tire
Models with tool caseModels with tool case
Models with tool bag
Tool bag
Models with tool bag
All models
