2020 HONDA CIVIC HATCHBACK Owner's Manual (in English)

Continued479
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving
You must start TPMS calibration every time you:
• Adjust the pressure in one or more tires.
• Rotate the tires.
• Replace one or more tires.
Before calibrating the TPMS:
• Set the cold tire pressure in all four tires.
2 Checking Tires P. 605
Make sure:
•The vehicle is at a complete stop.
• The shift lever is in
(N.
• The shift lever is in
(P.
• The ignition switch is in ON
(w*1.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■TPMS Calibration1 TPMS Calibration
•TPMS cannot be calibrated if a compact spare tire*
is installed.
•The calibration process requires approximately 30
minutes of cumulative dr iving at speeds between
30-65 mph (48-105 km/h).
•During this period, if the ignition is turned on and
the vehicle is not move d within 45 seconds, you
may notice the low tire pressure/TPMS indicator
comes on briefly. This is normal and indicates that
the calibration process is not yet complete.
If the tire chains are installed, remove them before
calibrating the TPMS.
If the low tire pressure/TPMS indicator comes on even
when the properly inflated specified regular tires are
installed, have your vehicle checked by a dealer.
We recommend that the tires be replaced with the
same brand, model, and size as the originals. Ask a
dealer for details.
The indicators for the Adaptive Cruise Control (ACC)
with Low Speed Follow, Road Departure Mitigation
(RDM), Vehicle Stability Assist ® (VSA ®) System,
Vehicle Stability Assist ® (VSA ®) OFF, low tire Pressure/
TPMS and Collision Mi tigation Braking System
TM
(CMBSTM) may come on afte r reconnecting the
battery. Drive a short distance at more than 12 mph
(20 km/h). The indicator shoul d go off. If it does not,
have your vehicle ch ecked by a dealer.
Manual transmission models
Continuously variable transmission models
All models
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 479 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

480
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving
You can calibrate the system from the
customized features on the driver information
interface.
1. Press the button and press /
button to select ( Vehicle Settings),
then press the ENTER button.
u TPMS Calibration appears on the
display.
2. Press the ENTER button.
u The display switches to the
customization setup screen, where you
can select Cancel or Calibrate .
3. Press the / button and select
Calibrate , then press the ENTER button.
u Calibration Started screen appears,
then the display returns to the
customization menu screen.
• If the Calibration Failed to Start message
appears, repeat steps 2-3.
• The calibration pr ocess finishes
automatically.
Models with color audio system
34
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 480 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

481
uuWhen Driving uTire Pressure Monitoring System (TPMS)*
Driving
You can calibrate the system from the
customized feature on the audio/information
screen.
1. Set the power mode to ON.
2. Press the button.
3. Select Settings .
4. Select Vehicle .
5. Select TPMS Calibration .
6. Select Cancel or Calibrate .
u When the calibration is complete, the
display returns to the customization
menu screen.
• If the Calibration Failed To Start.
message appears, repeat step 6.
• The calibration process finishes
automatically.
Models with Display Audio
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 481 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

482
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation*
Driving
Tire Pressure Monitoring System (TPMS) - Required
Federal Explanation*
Each tire, including the spare (i f provided), should be checked
monthly when cold and inflated to the inflation pressure
recommended by the vehicle manufacturer on the vehicle placard
or tire inflation pressure label.
(If your vehicle has tires of a different size than the size indicated
on the vehicle placard or tire infl ation pressure label, you should
determine the proper tire inflat ion pressure for those tires.)
As an added safety feature, your vehicle has been equipped with
a tire pressure monitoring system (TPMS) that illuminates a low
tire pressure telltale
when one or more of your tire s is significantly under-inflated.
Accordingly, when the low tire pr essure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate
them to the proper pressure.
Driving on a significantly under-in flated tire causes the tire to
overheat and can lead to tire fail ure. Under-inflation also reduces
fuel efficiency and tire tread li fe, and may affect the vehicle's
handling and stopping ability.
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 482 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

483
uuWhen Driving uTire Pressure Monitoring System (TPMS) - Required Federal Explanation*
Driving
Please note that the TPMS is not a substitute for proper tire
maintenance, and it is the driver 's responsibility to maintain
correct tire pressure, even if un der-inflation has not reached the
level to trigger illumination of th e TPMS low tire pressure telltale.
Your vehicle has also been equi pped with a TPMS malfunction
indicator to indicate when the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire
pressure telltale. When the syst em detects a malfunction, the
telltale will flash fo r approximately one minute and then remain
continuously illumina ted. This sequence will continue upon
subsequent vehicle start-ups as long as the malfunction exists.
When the malfunction indicator is illuminated, the system may
not be able to detect or signal low tire pressure as intended.
TPMS malfunctions may occur for a variety of reasons, including
the installation of replacement or alternate tires or wheels on the
vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or
more tires or wheels on your vehicle to ensure that the
replacement or alternate tires and wheels allow the TPMS to
continue to function properly.
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 483 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

484
Driving
Honda Sensing®
Honda Sensing® is a driver support system which employs the use of two distinctly
different kinds of sensors: a radar sensor located in the lower bumper and a front
sensor camera mounted to th e interior side of the windshield, behind the rearview
mirror.
Honda Sensing® has following functions.
■The functions whic h do not require switch operations to activate
• Collision Mitigation Braking SystemTM (CMBSTM) 2 P. 487
• Road Departure Mitigation (RDM) System 2 P. 537
■The functions wh ich require switch op erations to activate
• Adaptive Cruise Control ( ACC) with Low Speed Follow* 2 P. 497
• Adaptive Cruise Control (ACC)* 2 P. 514
• Lane Keeping Assist System (LKAS) 2 P. 529
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 484 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

485
uuHonda Sensing ®u
Continued
Driving
■MAIN Button
Press to activate sta ndby mode for ACC with
Low Speed Follow
*/ACC* and LKAS. Or press
to cancel these systems.
■LKAS Button
Press to activate or cancel the LKAS.
■RES/+/−/SET Button
Press RES/+ to resume the ACC with Low
Speed Follow
*/ACC* or increase the vehicle
speed.
Press −/SET to set the ACC with Low Speed
Follow
*/ACC* or decrease the vehicle speed.
■Interval Button
Press the (interval) button to change the
ACC with Low Speed Follow
*/ACC* following-
interval.
■CANCEL Button
Press to cancel ACC wi th Low Speed Follow*/
ACC*.

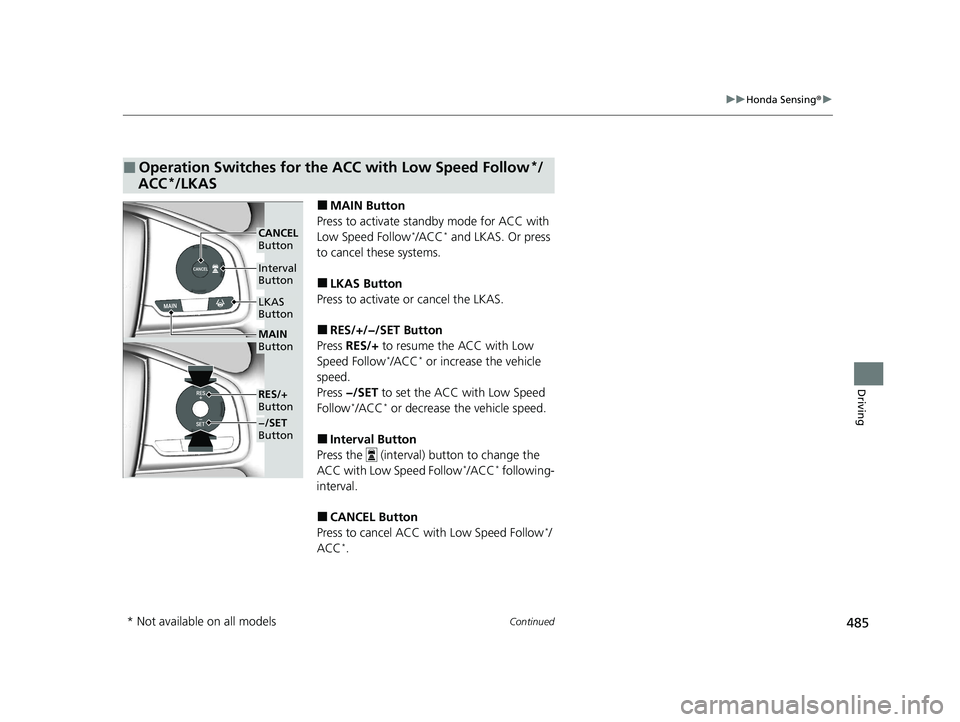

■Operation Switches for the ACC with Low Speed Follow*/
ACC*/LKAS
MAIN
Button
Interval
Button
CANCEL
Button
LKAS
Button
RES/+
Button
−/SET
Button
* Not available on all models
20 CIVIC 5D HUM (KA KC KL)-31TGG6310.book 485 ページ ２０１９年１１月１１日 　月曜日　午後２時５０分

486
uuHonda Sensing ®u
Driving
You can see the current state of ACC with
Low Speed Follow*/ACC* and LKAS.

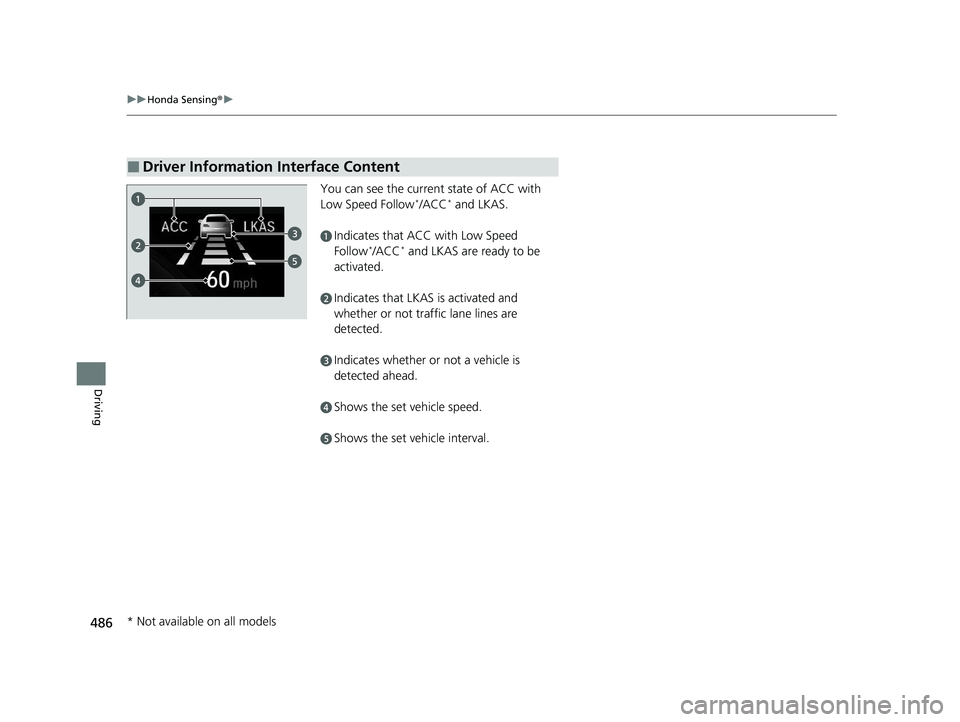

■Driver Information Interface Content
aIndicates that ACC with Low Speed
Follow*/ACC* and LKAS are ready to be
activated.
bIndicates that LKAS is activated and
whether or not traffic lane lines are
detected.
cIndicates whether or not a vehicle is
detected ahead.
dShows the set vehicle speed.
eShows the set vehicle interval.
* Not available on all models
