uuFuses uFuse Locations
Continued
Handling the Unexpected
*2:Models without SPORT mode
*3:Models with SPORT mode
*5:1.5L engine models
Circuit ProtectedAmps
17Daytime Running Lights10 A
18 Back Up 10 A
19Audio15 A
20 Audio AMP*(30 A)
21Interior Lights10 A
22 Front Fog Lights*(15 A)
23A/C Compressor(10 A)
24 Horn 10 A
25Left Headlight Low Beam10 A
26 Right Headlight Low Beam 10 A
27VB ACT*5(10 A)
28 Left Headlight High Beam 10 A
29Right Headlight High Beam10 A
30 − −
31−(15 A)
32 − (20 A)*2
−*3
33−*2
Adaptive Damper System*3(20 A)
15 A
34 − −
35−−
36 − −
Located under the dashboard.
Fuse locations are shown on the label on
the side panel.
Locate the fuse in question by the fuse
number and label number.
■Circuit protected and fuse rating
■Interior Fuse Box
Fuse Label
Circuit ProtectedAmps
1Accessory10 A
2−*1
Key Lock*2−
(5 A)
3−−
4Front Sensor Camera*1
Transmission*2, *3(5 A)
(10 A)
5Option10 A
6SRS Indicator10 A
7Meter10 A
8Fuel Pump15 A
*1:Models with smart entry system
*2:Models without smart entry system
*3:Continuously variable transmission models
9AIRCON10 A
10−−
11Engine Control5A
12Passenger Side Door Lock10 A
13−(10 A)
14−(20 A)
15Passenger’s Side Power
Window20 A
16Door Lock20 A
17Transmission*1, *3
Front Sensor Camera*2(10 A)(5 A)
18−−
19Moonroof*(20 A)
20−−
21ACG10 A
22Daytime Running Lights10 A
23−−
24Front Sensor Camera(5 A)
25Driver’s Door Lock10 A
26Passenger Side Door Unlock10 A
27−(20 A)
28Driver’s Power Window20 A
Circuit ProtectedAmps
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 639 ページ ２０１９年６月４日　火 曜日　午前８時３２分

640
uuFuses uFuse Locations
Handling the Unexpected
*1:Models with smart entry system
*2:Models without smart entry system
Circuit ProtectedAmps
29Front Accessory Power
Socket20 A
30Smart Entry*1
−*210 A−
31−(20 A)
32Front Seat Heater*(20 A)
33−(20 A)
34VSA/ABS10 A
35SRS10 A
36−−
37−−
38−(10 A)
39Driver’s Door Unlock10 A
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 640 ページ ２０１９年６月４日　火 曜日　午前８時３２分

641
uuFusesuInspecting and Changing Fuses
Handling the Unexpected
Inspecting and Changing Fuses
1.Turn the ignition switch to LOCK (0*1. Turn
headlights and all accessories off.
2. Remove the fuse box cover.
3. Check the large fuse in the engine
compartment.
u If the fuse is blown, use a Phillips-head
screwdriver to remove the screw and
replace it with a new one.
4. Inspect the small fu ses in the engine
compartment and the vehicle interior.
u If there is a blown fuse, remove it with
the fuse puller and replace it with a new
one.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Inspecting and Changing Fuses
NOTICE
Replacing a fuse with on e that has a higher rating
greatly increases the chances of damaging the
electrical system.
There is a fuse puller on the back of the engine
compartment fuse box cover.
Combined
Fuse Blown Fuse
Fuse Puller
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 641 ページ ２０１９年６月４日　火
曜日　午前８時３２分

642
Handling the Unexpected

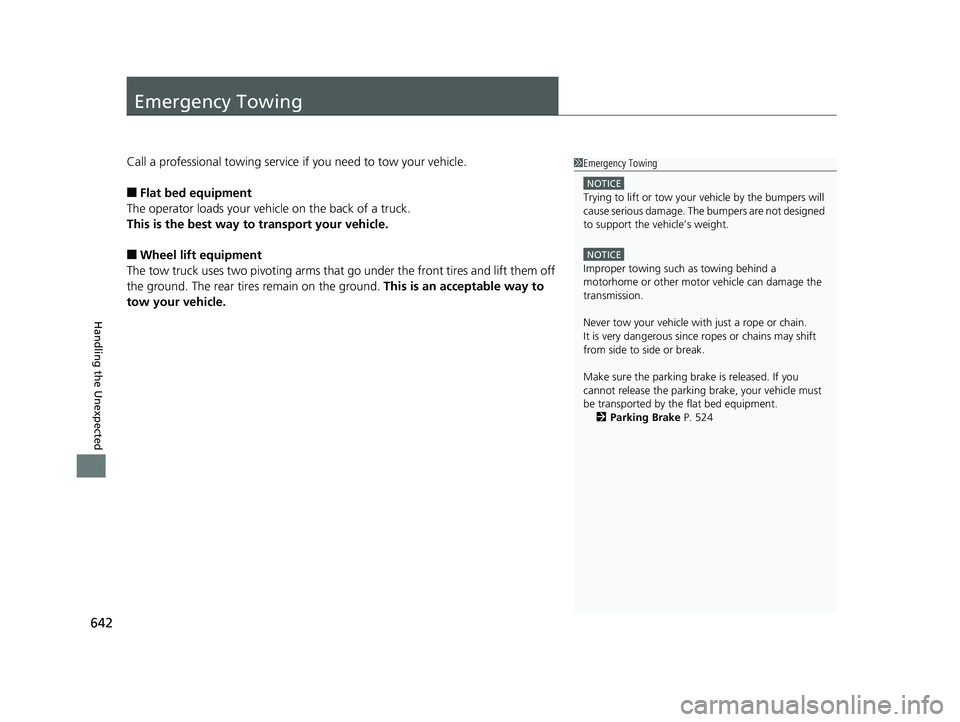

Emergency Towing
Call a professional towing service if you need to tow your vehicle.
■Flat bed equipment
The operator loads your vehicle on the back of a truck.
This is the best way to transport your vehicle.
■Wheel lift equipment
The tow truck uses two pivoti ng arms that go under the front tires and lift them off
the ground. The rear tires remain on the ground. This is an acceptable way to
tow your vehicle.
1 Emergency Towing
NOTICE
Trying to lift or tow your vehicle by the bumpers will
cause serious damage. The bumpers are not designed
to support the vehicle’s weight.
NOTICE
Improper towing such as towing behind a
motorhome or other motor vehicle can damage the
transmission.
Never tow your vehicle with just a rope or chain.
It is very dangerous since ropes or chains may shift
from side to side or break.
Make sure the parking brake is released. If you
cannot release the parking brake, your vehicle must
be transported by the flat bed equipment.
2 Parking Brake P. 524
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 642 ページ ２０１９年６月４日　火 曜日　午前８時３２分

643
Handling the Unexpected
When You Cannot Unlock the Fuel Fill Door
If you cannot unlock the fuel fill door, use the following procedure.
1.Open the trunk.
2. Pull the yellow release cord beneath the
rear tray as shown.
u The release cord unlocks the fuel fill door
when it is pulled.
■What to Do When Unable to Unlock the Fuel Fill Door1When You Cannot Unlo ck the Fuel Fill Door
After taking these steps, contact a dealer to have
your vehicle checked.
Release Cord
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 643 ページ ２０１９年６月４日　火 曜日　午前８時３２分

644
Handling the Unexpected
When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 644 ページ ２０１９年６月４日　火 曜日　午前８時３２分

645
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel provided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 602
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 645 ページ ２０１９年６月４日　火 曜日　午前８時３２分
