2020 HONDA CIVIC COUPE Owner's Manual (in English)

95
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
*1:Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
MessageConditionExplanation
●Appears when you turn the ignition switch to ON
(w*1 without fastening the driver’s seat belt.
●Fasten the seat belt properly before you start to drive.
●Appears if the automatic br ake hold is automatically
canceled while it is in operation.●Immediately depress the brake pedal.
●Appears when the automatic brake hold system is
turned off.
2 Automatic Brake Hold P. 527
●Appears when the automatic brake hold button is
pressed without wearing the driver’s seat belt.●Fasten the driver’s seat belt.
2Automatic Brake Hold P. 527
Continuously
variable transmission
models
Manual transmission
models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 95 ページ ２０１９年６月４日　火曜 日　午前８時３２分

96
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the automatic brake hold button is
pressed without depressing the brake pedal while
the automatic brake hold is in operation.●Press the automatic brake hold button with the brake
pedal depressed.
2 Automatic Brake Hold P. 527
●Appears when the parking brake is applied
automatically while it is in operation.2Automatic Brake Hold P. 527
2 Parking Brake P. 524
●Appears when the electric parking brake switch is
pressed without depressing the brake pedal while
the electric parking brake is in operation.●Press the electric parking brake switch with the brake
pedal depressed.
2 Parking Brake P. 524
Continuously
variable transmission
models
Manual transmission
models
Continuously
variable transmission
models
Manual transmission
models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 96 ページ ２０１９年６月４日　火曜 日　午前８時３２分

97
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when ACC with Low Speed Follow* has been
automatically canceled.●You can resume the set speed after the condition
that caused ACC with Low Speed Follow* to
cancel improves. Press the RES/+ button.
2Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when the distance be tween your vehicle and the
vehicle ahead of you is too close while ACC with Low
Speed Follow
* is in operation.
●ACC with Low Speed Follow* has been
automatically canceled.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when pressing the –/SET button while the
distance between your vehicl e and the vehicle ahead of
you is too close.●ACC with Low Speed Follow* cannot be set.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when the driver’s seat belt is unfastened while
your vehicle is automatica lly stopped by ACC with Low
Speed Follow.●ACC with Low Speed Follow has been
automatically canceled.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 478
●Appears when pressing the –/SET button while the
driver’s seat belt is unfastened.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low
Speed Follow* P. 478
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 97 ページ ２０１９年６月４日　火曜 日　午前８時３２分

98
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears if the VSA® or traction control function
operates while ACC with Low Speed Follow* is in
operation.
●ACC with Low Speed Follow* has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when the vehicle in front of you starts
moving while your vehicle is stopped automatically
by ACC with Low Speed Follow.●Either press the RES/+ button or –/SET button, or
depress the accelerator pedal.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
●Appears when the shift lever is moved into any
position other than
(D or (S while ACC with Low
Speed Follow is in operation.
●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
●Appears when pressing the –/SET button while the
shift lever is in any position other than
(D or (S.
●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 98 ページ ２０１９年６月４日　火曜 日　午前８時３２分

99
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the vehicle is stopped on a very steep
slope while ACC with Low Speed Follow is in
operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
●Appears when pressing the –/SET button while the
vehicle is stopped on a very steep slope.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 99 ページ ２０１９年６月４日　火曜 日　午前８時３２分

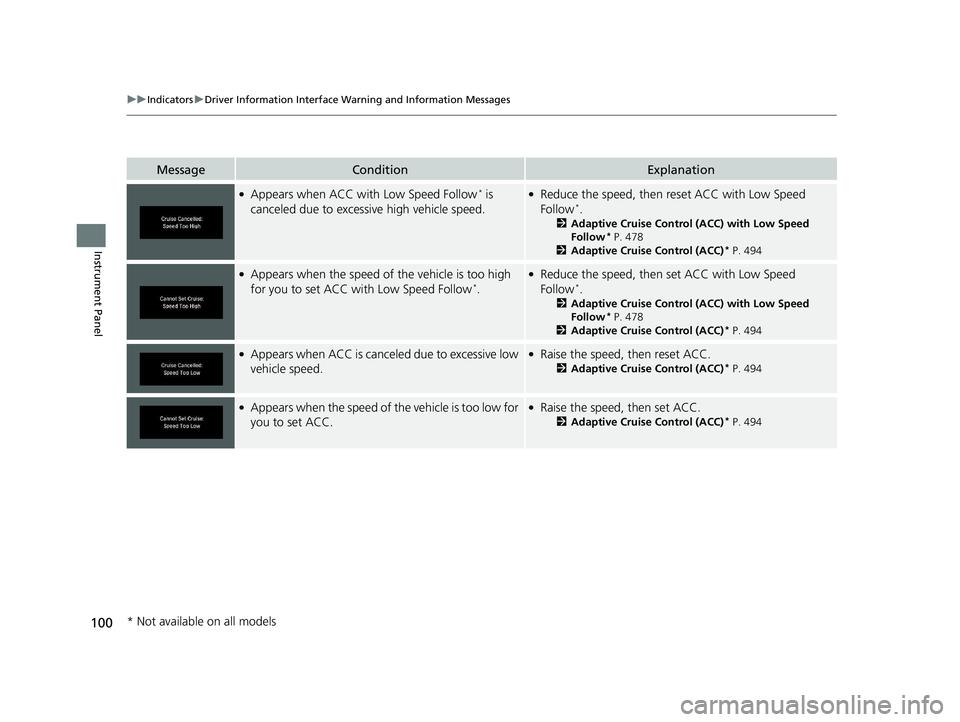

100
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when ACC with Low Speed Follow* is
canceled due to excessi ve high vehicle speed.●Reduce the speed, then reset ACC with Low Speed
Follow*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when the speed of the vehicle is too high
for you to set ACC with Low Speed Follow*.
●Reduce the speed, then set ACC with Low Speed
Follow*.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
●Appears when ACC is canceled due to excessive low
vehicle speed.●Raise the speed, then reset ACC.
2Adaptive Cruise Control (ACC)* P. 494
●Appears when the speed of the vehicle is too low for
you to set ACC.●Raise the speed, then set ACC.
2 Adaptive Cruise Control (ACC)* P. 494
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 100 ページ ２０１９年６月４日　火 曜日　午前８時３２分

101
uuIndicators uDriver Information Interface Wa rning and Information Messages
Continued
Instrument Panel
MessageConditionExplanation
●Appears when the parking brake is applied
automatically while ACC with Low Speed Follow is
in operation.●ACC with Low Speed Follow has been automatically
canceled.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Parking Brake P. 524
●Appears when pressing the –/SET button while the
parking brake is applied.●ACC with Low Speed Follow cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Parking Brake P. 524
●Appears when pressing the –/SET button while the
vehicle is moving and the brake pedal is depressed.●ACC with Low Speed Follow* cannot be set.
2 Adaptive Cruise Control (ACC) with Low Speed
Follow* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
Continuously
variable
transmission
models
Manual
transmission
models
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 101 ページ ２０１９年６月４日　火 曜日　午前８時３２分

102
uuIndicators uDriver Information Interface Wa rning and Information Messages
Instrument Panel
MessageConditionExplanation
●Appears when the clutch pedal is applied too long
while ACC is in operation.●ACC has been automatically canceled.
2Adaptive Cruise Control (ACC)* P. 494
●Appears when pressing the –/SET button while the
vehicle is moving and the clutch pedal is depressed.●ACC cannot be set.
2 Adaptive Cruise Control (ACC)* P. 494
●Appears if ACC with Low Sp eed Follow is canceled
while your vehicle is automatically stopped by ACC
with Low Speed Follow.●Immediately depress the brake pedal.
●Flashes when the system senses a likely collision
with a vehicle in front of you.●Take the appropriate means to prevent a collision (apply
the brakes, change lanes, etc.)
2 Collision Mitigation Braking SystemTM (CMBSTM)
P. 468
2 Adaptive Cruise Control (ACC) with Low Speed
Follow
* P. 478
2 Adaptive Cruise Control (ACC)* P. 494
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 102 ページ ２０１９年６月４日　火 曜日　午前８時３２分
