2020 HONDA CIVIC COUPE navigation system

4
Quick Reference Guide
Quick Reference Guide
Visual Index
❙Ignition Switch* (P160)
❙ENGINE START/STOP Button*1 (P161)
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an ignition switch.
❙System Indicators (P76)
❙Gauges (P110)
❙Navigation System*
() See the Navigation System Manual
❙Audio System (P219, 237)
❙Hazard Warning Button
❙Rear Defogger (P175)
❙Heated Door Mirror Button* (P175)
❙Climate Control System (P202)
❙Seat Heater Buttons* (P201)
❙Steering Wheel Adjustments (P177)
❙Driver Information Interface (P112)
❙Collision Mitigation Braking SystemTM
(CMBSTM) OFF Button (P472)
❙ (Vehicle Stability Assist ® (VSA ®)
System OFF) Button
(P455)
❙Road Departure Mitigation (RDM)
Button
(P518)
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 4 ページ ２０１９年６月４日　火曜日　午前８時３２分

5
Quick Reference Guide❙Headlights/Turn Signals (P165)
❙ (TRIP) Knob (P115)
❙Brightness Control (P176)
❙LaneWatchTM * (P463)
❙Fog Lights* (P169)
❙Wipers/Washers (P173)
❙ (Display/Information) Button (P113)
❙Navigation System Voice Control Buttons*
(P262), () See the Navigation System Manual
❙Bluetooth® HandsFreeLink ® System
Voice Control Buttons
(P365, 391)
❙ENTER Button (P113, 216)
❙ / / / Buttons (P113, 216)34
❙Paddle Shifter (Shift down)* (P447)
❙MAIN Button (P466, 479, 495, 511)
❙Paddle Shifter (Shift up)* (P447)
❙Adaptive Cruise Control (ACC) with Low
Speed Follow Buttons* (P479)
❙Horn (Press an area around .)
❙Lane Keeping Assist System (LKAS) Button
(P511)
❙Interval Button (P503)
❙Adaptive Cruise Control (ACC) Buttons*
(P495)
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 5 ページ ２０１９年６月４日　火曜日　午前８時３２分

12
Quick Reference Guide
Controls (P 133)
Clock (P 134)
aPress and hold the MENU/CLOCK
button.
bRotate to change hour, then press .
cRotate to change minute, then
press .
dSelect SET, then press .
These indications are used to show how to
operate the LIST/SELECT (List/Selector) knob.
•Rotate to select.
•Press to enter.
Models with color audio system
aPress the (HOME) button, then
select Settings .
bSelect Clock, then Clock Adjustment .
cTouch the respective / icon to
adjust the hours or minutes up or
down.
dSelect OK.
The audio system receives signals from GPS
satellites, updating the clock automatically.
Models with Display Audio
34
Models with navigation system
ENGINE START/STOP
Button
* (P 161)
Press the button to change the vehicle’s
power mode.
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 12 ページ ２０１９年６月４日　火曜 日　午前８時３２分

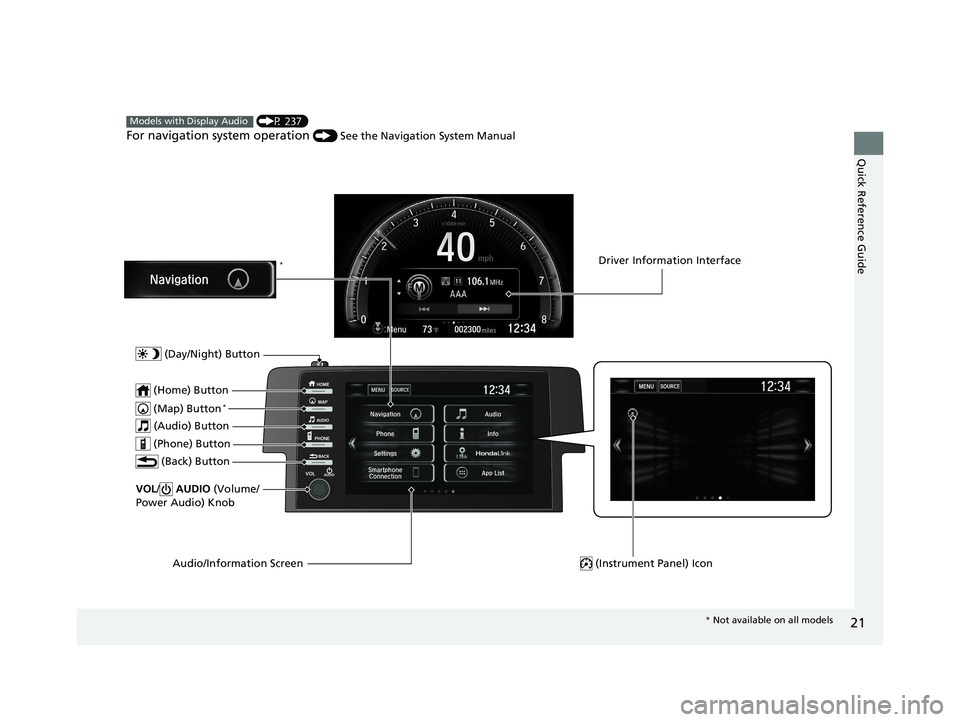

21
Quick Reference Guide
(P 237)
For navigation system operation () See the Navigation System Manual
Models with Display Audio
(Map) Button*
VOL/ AUDIO (Volume/
Power Audio) Knob
(Home) Button
(Back) Button
Audio/Information Screen
(Audio) Button
Driver Information Interface
(Instrument Panel) Icon
(Day/Night) Button
*
(Phone) Button
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 21 ページ ２０１９年６月４日　火曜 日　午前８時３２分

uuGauges and Driver Information Interface uDriver Information Interface
118
Instrument Panel
■Compass*
Shows the compass screen.
■Turn-by-Turn Directions
When driving guidance is provided by the navigation system* or Android Auto, turn-
by-turn directions to your destination appear.
2 Refer to the Navigation System Manual
2 Android Auto P. 303
Shows the current audio information.
2Audio System Basic Operation P. 237
Shows the current mail information.
2Bluetooth ® HandsFreeLink ® P. 391
Shows the current phone information.
2 Bluetooth ® HandsFreeLink ® P. 391
■Navigation*
■Audio*
■Mail*
■Phone*
1 Navigation*
You can select whether the turn-by-turn display
comes on or not during the route guidance.
2 Customized Features P. 335
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 118 ページ ２０１９年６月４日　火 曜日　午前８時３２分

134
Controls
Clock
Adjusting the Clock
You can adjust the time in the clock display with the ignition switch in ON (w*1.
■Using the MENU/CLOCK button
1. Press and hold the MENU/CLOCK button.
u Adjust Clock is selected.
2. Rotate to change hour, then press .
3. Rotate to change minute, then press
.
4. To enter the selection, rotate and select
Set , then press .
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Adjusting the Time
1 Adjusting the Clock
The clock is automatically updated through the audio
system, so the time does not need to be adjusted.
You cannot adjust the time while the vehicle is
moving.
You can customize the clock display to show the 12
hour clock or 24 hour clock.
2 Customized Features P. 328, 335
Models with navigation system
Models with Display Audio
Models without navigation system
1Using the MENU/CLOCK button
These indications are used to show how to operate
the LIST/SELECT (List/Selector) knob.
Rotate to select.
Press to enter.
Models with color audio system
Models with color audio system
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 134 ページ ２０１９年６月４日　火 曜日　午前８時３２分

237
Features
Audio System Basic Operation
To use the audio system function, the ignition swit ch must be in ACCESSORY (q or
ON
(w*1.
(Home) button: Press to go to the home
screen.
2 Using the audio/information screen
P. 239
(Map) button*: Press to display the map
screen.
2 Refer to the Navigation System Manual
(Audio) button: Press to display the
audio screen.
(Phone) button: Press to display the
phone screen. (Back) button: Press to go back to the
previous screen.
(Day/Night) button: Press to change
the audio/information screen brightness.
Press once and select
(- or (+ to make
an adjustment. u Each time you press , the mode
switches between da ytime, nighttime
and off.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Audio System Basic Operation
Audio Menu Items
2 Station List P. 267, 268
2 Music Search List P. 279, 288, 291
2 Scan P. 268, 269, 277, 289
2 Play Mode P. 280, 289Models with Display Audio
(Day/Night) Button
(Home) Button
(Back) Button
(Phone) Button
(Audio) Button
(Map) Button*
* Not available on all models
20 CIVIC 2D HCM (KA KL KC)-31TBG6400.book 237 ページ ２０１９年６月４日　火 曜日　午前８時３２分

Continued239
uuAudio System Basic Operation uAudio/Information Screen
Features
■Using the audio/in formation screen
Press the button to go to the home screen.
Select Phone , Info , Audio , Settings , Navigation
*, HondaLink , Smartphone
Connection (Apple CarPlay, Android Auto), App List , or Instrument Panel .
■Phone
Displays the HFL information.
2 Bluetooth ® HandsFreeLink ® P. 391
1 Using the audio/in formation screen
Touchscreen operation
•Use simple gestures - in cluding touching, swiping
and scrolling - to operate certain audio functions.
•Some items may be grayed out during driving to
reduce the potential for distraction.
•You can select them when the vehicle is stopped or
use voice commands.
•Wearing gloves may limit or prevent touchscreen
response.
You can change the touchs creen sensitivity setting.
2 Customized Features P. 352
Home Screen
Models without navigation system
Models with navigation system
* Not available on all models
