2020 FORD GT Warranty Guide

6. California requirements for emissions warranties
QUICK REFERENCE: EMISSIONS WARRANTY COVERAGE
This chart shows the emission warranty that Ford Motor
Company provides for your vehicle under the emissions control
warranty in accordance with the regulations of the California Air
Resources Board. This coverage is in addition to Federal Emission
warranties (Page 19).
24

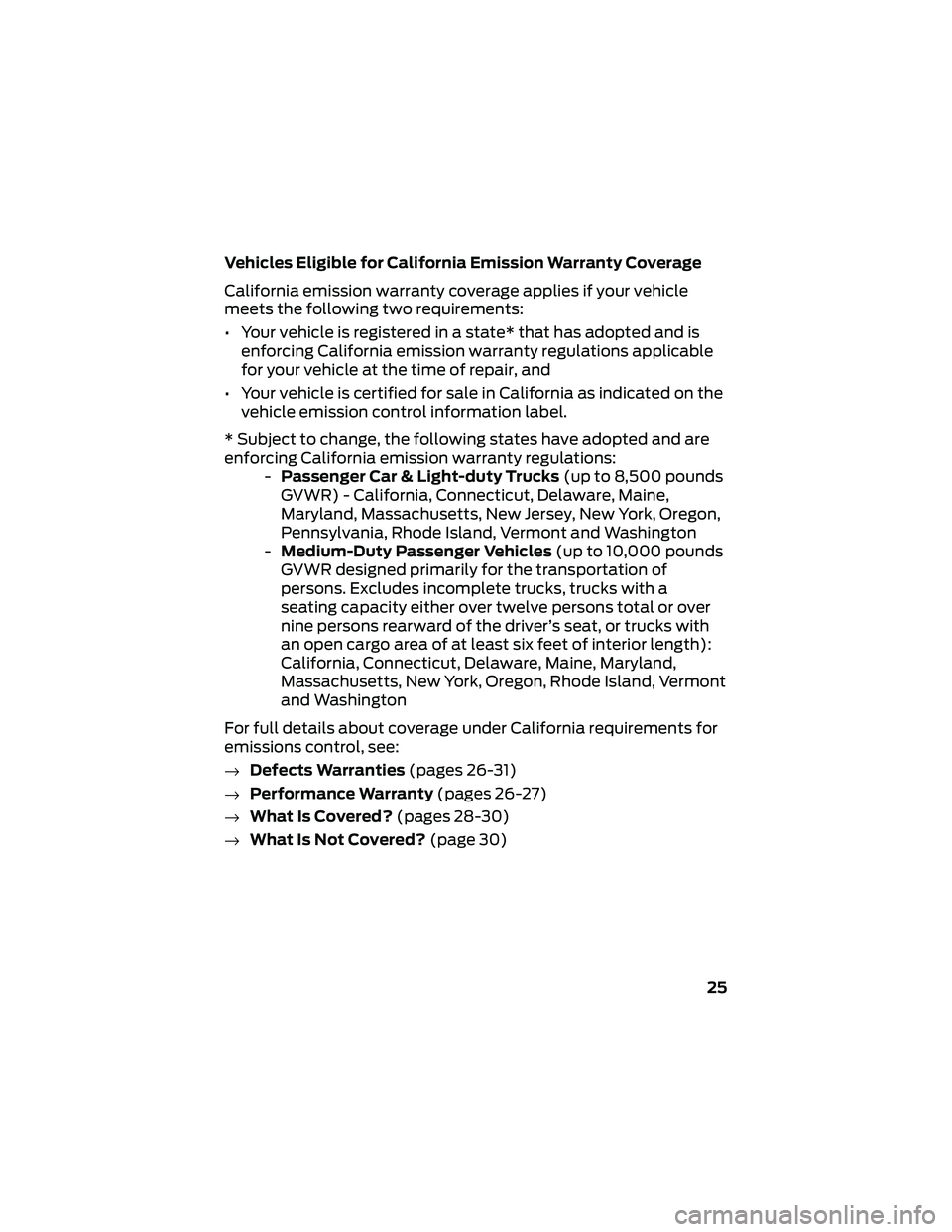

Vehicles Eligible for California Emission Warranty Coverage
California emission warranty coverage applies if your vehicle
meets the following two requirements:
• Your vehicle is registered in a state* that has adopted and isenforcing California emission warranty regulations applicable
for your vehicle at the time of repair, and
• Your vehicle is certified for sale in California as indicated on the vehicle emission control information label.
* Subject to change, the following states have adopted and are
enforcing California emission warranty regulations: -Passenger Car & Light-duty Trucks (up to 8,500 pounds
GVWR) - California, Connecticut, Delaware, Maine,
Maryland, Massachusetts, New Jersey, New York, Oregon,
Pennsylvania, Rhode Island, Vermont and Washington
- Medium-Duty Passenger Vehicles (up to 10,000 pounds
GVWR designed primarily for the transportation of
persons. Excludes incomplete trucks, trucks with a
seating capacity either over twelve persons total or over
nine persons rearward of the driver’s seat, or trucks with
an open cargo area of at least six feet of interior length):
California, Connecticut, Delaware, Maine, Maryland,
Massachusetts, New York, Oregon, Rhode Island, Vermont
and Washington
For full details about coverage under California requirements for
emissions control, see:
→ Defects Warranties (pages 26-31)
→ Performance Warranty (pages 26-27)
→ What Is Covered? (pages 28-30)
→ What Is Not Covered? (page 30)
25

EXPLANATION OF CALIFORNIA EMISSIONS WARRANTIES
Your Warranty Rights and Obligations
The California Air Resources Board and Ford Motor Company are
pleased to explain the emission control system warranty on your
2020-model vehicle. In California, new motor vehicles must be
designed, built, and equipped to meet the State's stringent
anti-smog standards. Ford must warrant the emission control
system on your vehicle for the periods of time listed on pages 26-27,
provided there has been no abuse, neglect, or improper maintenance
of your vehicle.
Your emission control system may include parts such as the
carburetor or fuel injection system, the ignition system, catalytic
converter, and the engine computer. Also included may be hoses,
belts, connectors, and other emissions-related assemblies.
Where a warrantable condition exists, Ford Motor Company will
repair your vehicle at no cost to you including diagnosis, parts,
and labor.
Manufacturer's Warranty Coverage
For Vehicles Eligible for California Emission Warranty Coverage
If Gross Vehicle Weight Rating is 14,000 lbs. or less:
For 3 years or 50,000 miles (whichever first occurs):
1. If your vehicle fails a Smog Check inspection, all necessary
repairs and adjustments will be made by Ford to ensure that your
vehicle passes the inspection. This is your emission control
system PERFORMANCE WARRANTY.
2. If any emissions-related part on your vehicle is defective, the
part will be repaired or replaced by Ford. This is your short-term
emission control system DEFECTS WARRANTY.
26

For 7 years or 70,000 miles (whichever first occurs):
If an emissions-related part listed on pages 29 and 30 with
coverage for 7 years or 70,000 miles is defective or if its failure
causes your vehicle to fail a Smog Check inspection, the part will
be repaired or replaced by Ford. This is your long-term emission
control system DEFECTS WARRANTY.
Owner's Warranty Responsibilities
As the vehicle owner, you are responsible for the performance of
the required maintenance listed in your owner's manual. Ford
Motor Company recommends that you retain all receipts
covering maintenance on your vehicle, but Ford cannot deny
warranty coverage solely for the lack of receipts or for your failure
to ensure the performance of all scheduled maintenance.
You are responsible for presenting your vehicle to a Ford Motor
Company dealer as soon as a problem exists. The warranty
repairs should be completed in a reasonable amount of time, not
to exceed 30 days.
As the vehicle owner, you should also be aware that Ford Motor
Company may deny you warranty coverage if your vehicle or a
part has failed due to abuse, neglect, improper maintenance, or
unapproved modifications.
If you have any questions regarding your warranty rights and
responsibilities, or if you want to report what you believe to be
violations of the terms of this warranty, you may contact the Ford
Customer Relationship Center at 1-800-392-3673 (FORD) or the
California Air Resources Board at:
California Air Resource Board
9528 Telstar Avenue
El Monte, CA 9173127

WHAT IS COVERED?
If the parts on the following list contains a defect that affects
emissions, they are covered by the Defects Warranties.
• Air Flow Sensor
• Air/Fuel Feedback ControlSystem and Sensors
• Air Induction System
• Catalytic Converters
• Electronic Engine Control Sensors and Switches
• Powertrain Control Module (PCM)/Engine Control
Module (ECM)*
• Evaporative Emission Control System
• Exhaust Gas Recirculation (EGR) System
• Exhaust Manifold
• Fuel Filler Tube and Seal
• Fuel Injection System
• Fuel Injector Supply Manifold
• Fuel Tank
• Fuel Tank Pressure Control Valve • Idle Air Bypass Valve
• Ignition Coil and/or Control
Module
• Intake Manifold
• Intercooler Assemblies - Engine Charger
• Malfunction Indicator Lamp (MIL)/On-Board Diagnostic
(OBD) System
• PCV System and Oil Filler Cap
• Spark Control Components
• Spark Plugs and Ignition Wires
• Thermostat
• Throttle Body Assembly (MFI)
• Transmission Control Module (TCM)
• Turbocharger Assemblies
• Vacuum Distribution System
* Includes hardware and emissions related software changes
only
28

COVERAGE FOR 2020 MODEL VEHICLE (GVWR OF 14,000 LBS. OR LESS)UNDER LONG TERM DEFECTS WARRANTY
APPLICABLE ONLY TO CALIFORNIA-CERTIFIED VEHICLES REGISTERED IN A STATE THAT HAS
ADOPTED AND IS ENFORCING CALIFORNIA EMISSION WARRANTY REGULATIONS (Coverage for (Coverage for up to 7 years/70,000 miles, whichever first occurs)
Part Name GT
Catalyst X
Y-Pipe X
Cam Timing Assembly Engine Variable RH X
Housing and Valve Assembly Camshaft Variable Timing X
Cam Timing Assembly Engine Variable LH X
High Pressure Line LH, RH X
CHG Assembly Engine Exhaust Drive LH X
Intercooler LH, RH X
Transmission/Differential Assembly X
Transmission Control Unit X
Fuel Tank Assembly X
Inlet Hose Fuel Filler X
Fuel Line Filter to Flange X
Fuel System Wiring (2) X
Manifold Assembly Fuel Injection Supply X
Fuel Line Filter to Flange X
Fuel Level Sensor ASM X
Dual Pump Assembly X
Fuel Vapor Hose ASM X
High Pressure Fuel Pump Assembly X
Manifold Assembly Intake X
Manifold Exhaust RH X
Manifold Exhaust LH X
PCV Vacuum Line X
Exhaust Manifold Gasket X
Gasket, Exhaust Manifold to Turbo X
Fuel Injectors X
Air Box LH, RH X
Vapor Purge Line ASM X
Valve Assembly Fuel Vapor Purge X
Instrument Cluster (1) X
Wiring Assembly (2) X
Power Control Module X
Engine Knock Sensor X
Dash Panel and Headlight Junction Harness (2) X
Main Wiring Harness (2) X
Jumper Harness (2) X
Capless Filler Neck X
Positive Crankcase Ventilation (PCV) Hose X
Fuel Tank Filler Hose X
Fuel Filter Inlet Tube Assembly X
Direct Fuel Injector X
Fuel Sender Wiring Assembly (2) X
Transmission Harness Connector X
Oil Pump Assembly (2) X
(1) for Service Engine Soon/Malfunction Indicator Lamp (MIL) functionality concerns only
(2) for MIL illumination only
29

Important Information about List of Parts
There may be additional coverage for these parts through the
Bumper to Bumper, Powertrain, or Diesel Engine limited
warranties. In any case, the warranty with the broadest coverage
applies.
Also covered by this warranty are all emissions-related bulbs,
hoses, clamps, brackets, tubes, gaskets, seals, belts, connectors,
non diesel fuel lines, and wiring harnesses that are used with
components on the list of parts above.
Concerning parts that should be replaced on a certain
maintenance schedule: these parts remain under warranty until
the first required replacement time that is specified in your
Owner’s Manual.
NOTE: If the diagnosis does not reveal a defect, the Defects
Warranty does not apply.
Your Ford Motor Company dealer maintains a complete list of
covered parts. For more details about the specific parts that are
covered by the Defects Warranty, contact your dealer.
WHAT IS NOT COVERED?
Ford Motor Company may deny you emissions warranty coverage
if your vehicle or a part does not contain a defect that affects
emissions or has failed because of abuse, neglect, improper
maintenance, unapproved modifications, or any items included in
What Is Not Covered?, pages 13-17.
30

7. Additional information about your emissions warranty
coverage, under Federal and California requirements
HOW DO I GET WARRANTY SERVICE?
To get service under your emissions warranties, take your vehicle
to a Ford GT Certified Service dealer as soon as possible after
illumination of the Malfunction Indicator Light or it has failed an
EPA-approved test or a California Smog Check inspection. If you
need help finding a Ford GT Service dealer, please contact the
Ford GT Concierge. Be sure to show the dealer the document that
says your vehicle has failed the test.
Your dealer will determine whether the repair is covered by the
warranty. If the dealer has a question about Emissions
Performance Warranty coverage, it will forward the question to
Ford Motor Company, which must make a final decision within 30
days after you bring your vehicle in for repair. (The decision will
be made within a shorter time if state, local, or federal law
requires you to have the vehicle repaired more quickly in order to
avoid additional penalties.) The deadline for a determination
about Emissions Performance Warranty Coverage does not need
to be met if you request a delay, agree to a delay in writing, or if
the delay is caused by an event for which neither Ford nor your
dealer is responsible. If a question about Emissions Performance
Warranty coverage is referred to Ford Motor Company, you will be
notified by Ford Motor Company in writing if your claim for
warranty coverage is denied. The notice will explain the basis for
denying your claim. If you fail to receive this notice within a timely
manner, as determined above, Ford will perform the warranty
repair for you free of charge.31
