1.Open the floor console storagecompartment lid.
2.Remove the tray.
3.Place the key into the backup slot.
4.Press the push button ignition switch.
5.Wait five seconds and then press thepush button ignition switch again.
6.Remove the intelligent access key.
7.Within 10 seconds, place a secondprogrammed intelligent access key inthe backup slot and press the pushbutton ignition switch.
8.Wait five seconds and then press thepush button ignition switch again.
9.Remove the intelligent access key.
10.Wait five seconds, then place theunprogrammed intelligent access keyin the backup slot and press the pushbutton ignition switch.
Programming is now complete. Check thatthe remote control functions operate andyour vehicle starts with the new intelligentaccess key.
If programming was unsuccessful, wait 10seconds and repeat steps 1 through 6. If itstill does not work, take your vehicle to anauthorized dealer.
ANTI-THEFT ALARM
Alarm System (If Equipped)
Perimeter Alarm (if equipped)
The perimeter alarm is a deterrent againstunauthorized access to your vehiclethrough the doors and the hood.
Triggering the Alarm
Once armed, the alarm is triggered in anyof the following ways:
•If someone opens a door, the tailgateor the hood without a valid key orremote control.
•If someone switches your vehicle onwithout a correctly coded key.
69
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSecurity

If the alarm is triggered, the alarm horn willsound for 30 seconds and the hazardwarning flasher will flash for five minutes.
Any further attempts to perform one of theabove will trigger the alarm again.
Arming the Alarm
With ignition OFF and doors closed, lockthe vehicle via Remote Control or exteriordoor handle. Alarm will be armed after 20seconds.
Arming the alarm can also be achieved bylocking the vehicle using the trim switcheswhile a side door is open and closing alldoors, or using the driver's door cylinder.In these two last cases, alarm will bearmed after 20 seconds.
Note:Alarm will arm due to an auto-relock.See Doors and Locks (page 60).
Disarming the Alarm
Vehicles Without Intelligent AccessSystem
Disarm and silence the alarm by unlockingthe doors with the key and switching yourvehicle on with a correctly coded key orunlocking the doors with the remotecontrol.
Vehicles with Intelligent AccessSystem
Note:A valid intelligent access key mustbe located within the detection range ofthat door for entry.
Disarm the alarm by performing aintelligent access entry, or switching yourvehicle on, or unlocking the vehicle withthe remote control.
Disarm the alarm by performing a keylessentry, or switching your vehicle on, orunlocking the vehicle with the remotecontrol.
70
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSecurity

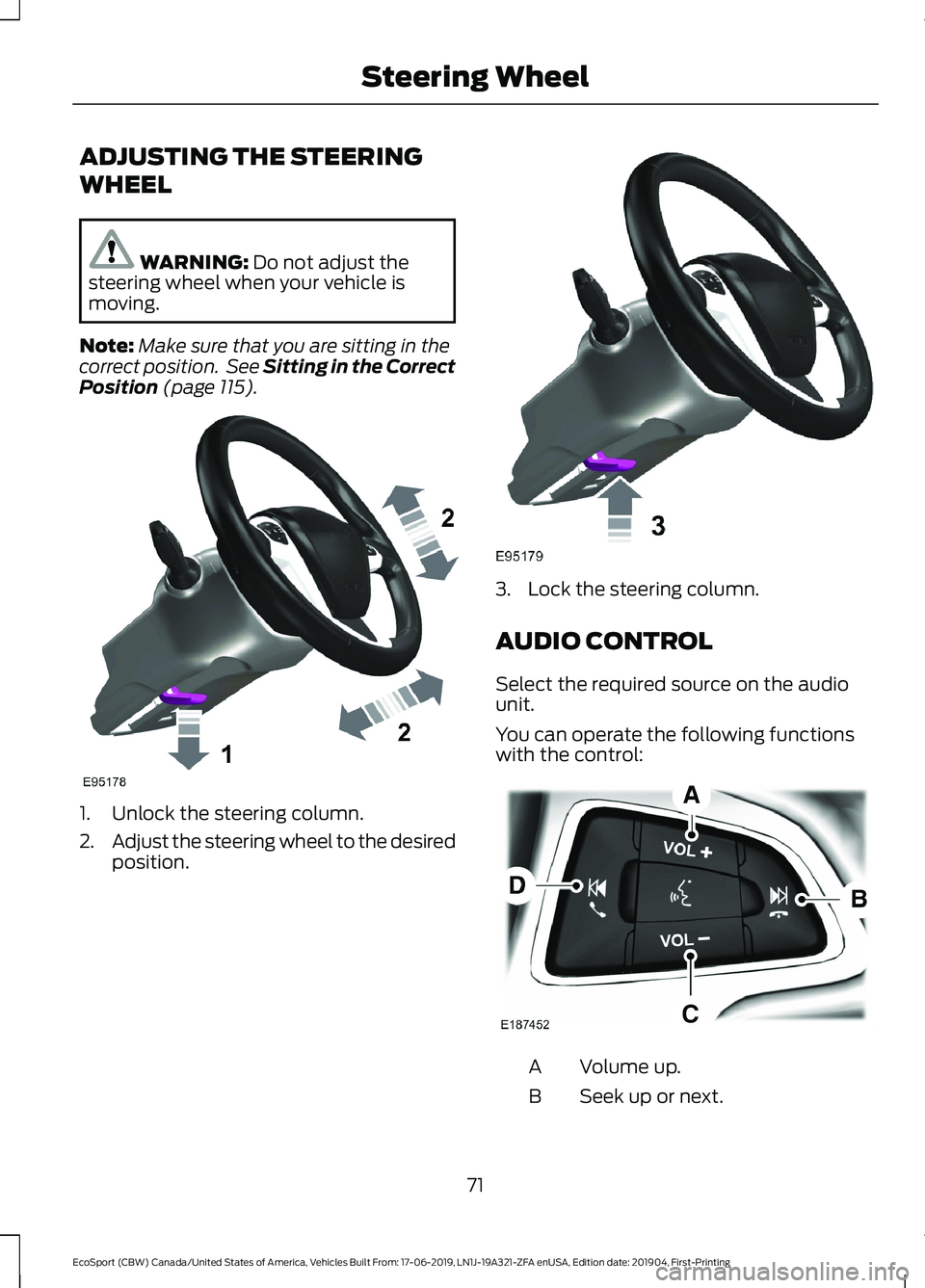

ADJUSTING THE STEERING
WHEEL
WARNING: Do not adjust thesteering wheel when your vehicle ismoving.
Note:Make sure that you are sitting in thecorrect position. See Sitting in the CorrectPosition (page 115).
1.Unlock the steering column.
2.Adjust the steering wheel to the desiredposition.
3.Lock the steering column.
AUDIO CONTROL
Select the required source on the audiounit.
You can operate the following functionswith the control:
Volume up.A
Seek up or next.B
71
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSteering Wheel

Volume down.C
Seek down or previous.D
Seek, Next or Previous
Press the seek button to:
•Tune the radio to the next or previousstored preset.
•Play the next or the previous track.
Press and hold the seek button to:
•Tune the radio to the next station upor down the frequency band.
•Seek through a track.
VOICE CONTROL
Press the button to select or deselect voicecontrol. See Using Voice Recognition(page 327).
CRUISE CONTROL
See Using Cruise Control (page 167).
INFORMATION DISPLAY
CONTROL
See General Information (page 93).
HEATED STEERING WHEEL (IF
EQUIPPED)
The heated steering wheel button is on theclimate controls.
Press the button to switch theheated steering wheel on andoff.
Note:You can use the heated steeringwheel only when the engine is running.
72
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSteering Wheel

Note:The system uses a sensor and isdesigned to control the temperature of thesteering wheel and to prevent it fromoverheating.
Note:In warm temperatures, the steeringwheel quickly reaches its maximumtemperature and the system reduces thecurrent to the heating element. This couldcause you to think that the system hasstopped working but it has not. This isnormal.
73
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSteering Wheel

WINDSHIELD WIPERS
Push the lever up or down tooperate the windshield wiper.
Single wipe.A
Intermittent wipe.B
Normal wipe.C
High-speed wipe.D
Note:Fully defrost the windshield beforeyou switch the windshield wipers on.
Note:Make sure that you switch thewindshield wipers off before entering a carwash.
Note: If streaks or smears appear on thewindshield, clean the windshield and thewiper blades. If that does not resolve theissue, install new wiper blades.
Note: Do not operate the wipers on a drywindshield. This may scratch the glass,damage the wiper blades or cause the wipermotor to burn out. Always use thewindshield washers before wiping a drywindshield.
Intermittent Wipe
Shortest wipe interval.A
Intermittent wipe.B
Longest wipe interval.C
Use the rotary control to adjust theintermittent wipe interval.
Speed Dependent Wipers
When your vehicle speed increases, theinterval between wipes decreases.
AUTOWIPERS (IF EQUIPPED)
Autowipers uses a rain sensor in the areaaround the interior mirror. The wipersoperate when the rain sensor detectswater on the windshield in front of it. Therain sensor continues to monitor theamount of water and adjusts the speed ofthe wipers.
You can switch autowipers on or off in theinformation display.
Note:If you switch autowipers off in theinformation display, the windshield wipersoperate in intermittent mode.
74
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingWipers and Washers

High sensitivity.A
Autowipers on.B
Low sensitivity.C
Move the wiper lever upward to the firstposition to switch autowipers on.
Use the rotary control to adjust thesensitivity of the autowipers. When youselect low sensitivity, the wipers operatewhen the sensor detects a large amountof water on the windshield. When youselect high sensitivity, the wipers operatewhen the sensor detects a small amountof water on the windshield.
Note:Keep the outside of the windshieldclean. The rain sensor is very sensitive andthe wipers may operate if dirt, mist orinsects hit the windshield.
If you leave autowipers on, it may notoperate when you switch the ignition onduring freezing temperatures. This isbecause the system has deactivated therain sensor to prevent damage to thewindshield wipers. Defrost the windshieldbefore reactivating the rain sensor. Youcan reactivate the rain sensor by movingthe rotary control or switching autowipersoff and on.
Note:Fully defrost the windshield beforeyou switch the windshield wipers on.
Note:Make sure that you switch thewindshield wipers off before entering a carwash.
Wet or winter weather conditions couldcause unexpected wiping or smearing.
To keep the windshield clear:
•Lower the sensitivity of the autowipersto reduce the amount of smearing onthe windshield.
•Switch autowipers off.
Note: If streaks or smears appear on thewindshield, clean the windshield and thewiper blades. See Checking the WiperBlades (page 224). If that does not resolvethe issue, install new wiper blades. SeeChanging the Wiper Blades (page 225).
Settings
To switch autowipers on or off, use the information display controls on the steeringwheel to select the following:
ActionMenu Item
Press the menu button.Settings
Press the OK button.Vehicle Settings
Press the OK button.Wipers
Press the OK button.Rain Sensing
75
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingWipers and Washers

WINDSHIELD WASHERSPull the lever toward you to operate thewindshield washers. When you release thelever, the wipers operate for a short time.A courtesy wipe occurs a short time afterthe wipers stop to clear any remainingwasher fluid.
You can switch courtesy wipe on or off inthe information display.
Note: Do not operate the washers whenthe washer reservoir is empty. This couldcause the washer pump to overheat.
Settings
To switch courtesy wipe on or off, use the information display controls on thesteering wheel to select the following:
ActionMenu Item
Press the menu button.Settings
Press the OK button.Vehicle Settings
Press the OK button.Wipers
Press the OK button.Courtesy Wipe
