2020 FORD ECOSPORT Owners Manual

The rear center head restraint consists of:
An energy absorbing headrestraint.A
Two steel stems.B
Guide sleeve unlock and removebutton.C
Raising the Head Restraint
Pull the head restraint up.
Lowering the Head Restraint
1.Press and hold button C.
2.Push the head restraint down.
Tilting the Front Seat HeadRestraint (If Equipped)
The front head restraint tilts for extracomfort. To tilt the head restraint, do thefollowing:
1.Adjust the seat backrest to an uprightdriving or riding position.
2.Pivot the head restraint forward towardyour head to the desired position.
After the head restraint reaches theforward-most tilt position, pivot it forwardagain to release it to the rearward, un-tiltedposition.
Folding the Rear Seat OutermostHead Restraint
1.Press and hold button E.
2.Pull the head restraint back up to reset.
Removing the Head Restraint
Removing the Front Seat HeadRestraint and the Rear Seat OutermostHead Restraint
1.Pull the head restraint up until itreaches its highest position.
2.Press and hold buttons C and D.
3.Pull the head restraint up.
Removing the Rear Seat Center HeadRestraint
1.Pull the head restraint up until itreaches its highest position.
2.Press and hold buttons C.
3.Pull the head restraint up.
Installing the Head Restraint
Align the steel stems into the guide sleevesand push the head restraint down until itlocks.
MANUAL SEATS
WARNING: Do not adjust thedriver seat or seat backrest when yourvehicle is moving. This may result insudden seat movement, causing the lossof control of your vehicle.
117
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

WARNING: Do not recline theseatback too far as this can cause theoccupant to slide under the seatbelt,resulting in serious injury in the event ofa collision.
WARNING: Do not place cargo orany objects behind the seat backrestbefore returning it to the original position.Pull on the seat backrest to make surethat it has fully latched after returningthe seat backrest to its original position.An unlatched seat may becomedangerous if you stop suddenly or havea crash.
WARNING: Make sure the seatfully locks into place by rocking itbackward and forward. Not securing theseat into the locked position can bedangerous in a crash and could causeserious personal injury or death.
Moving the Seat Backward andForward
Adjusting the Lumbar Support (If
Equipped)
118
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

Adjusting the Height of theDriver’s Seat (If Equipped)Recline Adjustment
POWER SEATS (IF EQUIPPED)
WARNING: Do not adjust thedriver seat or seat backrest when yourvehicle is moving. This may result insudden seat movement, causing the lossof control of your vehicle.
WARNING: Reclining the seatbackcan cause an occupant to slide under theseat's seatbelt, resulting in severepersonal injuries in the event of a crash.
119
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

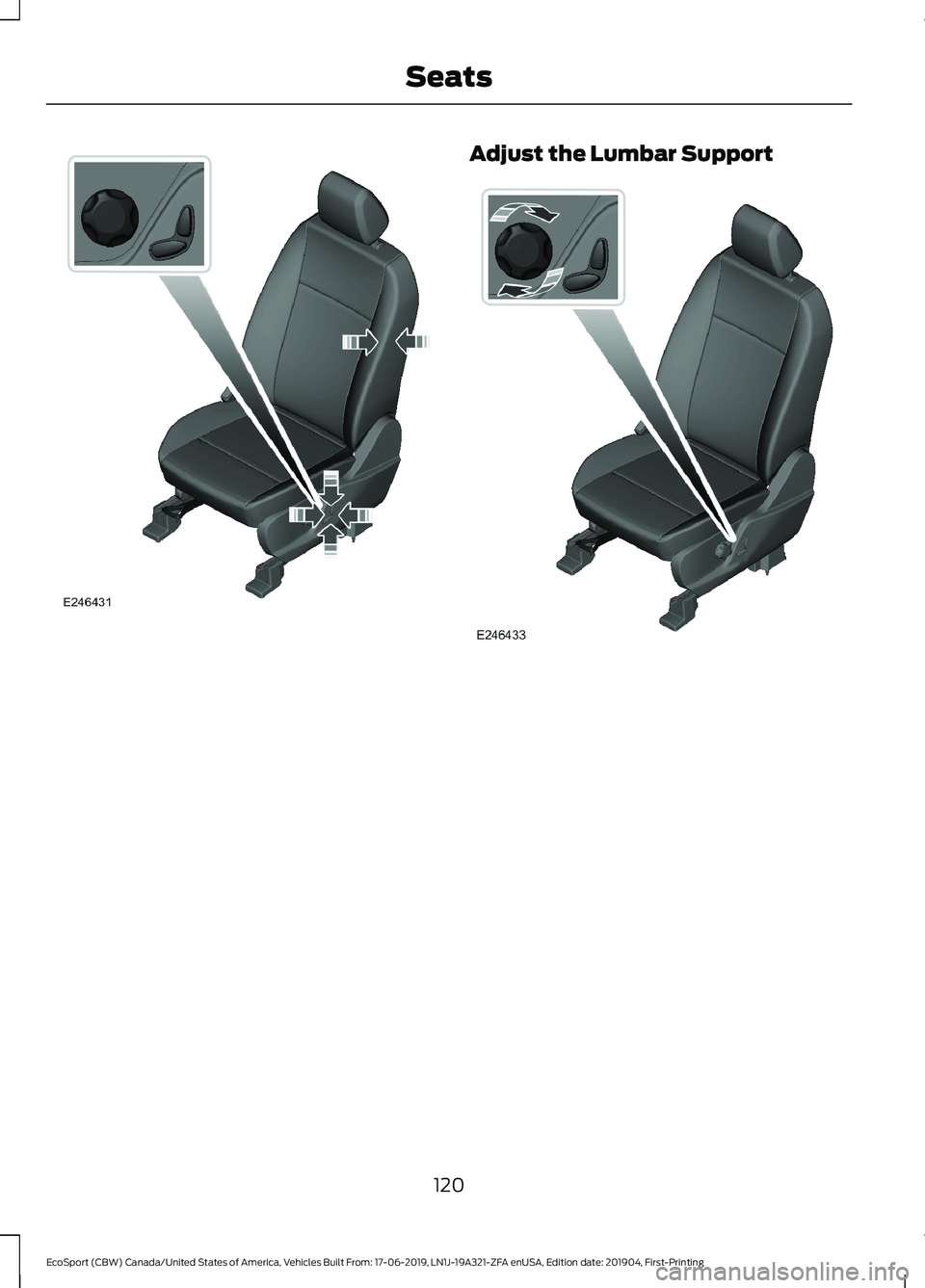

Adjust the Lumbar Support
120
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

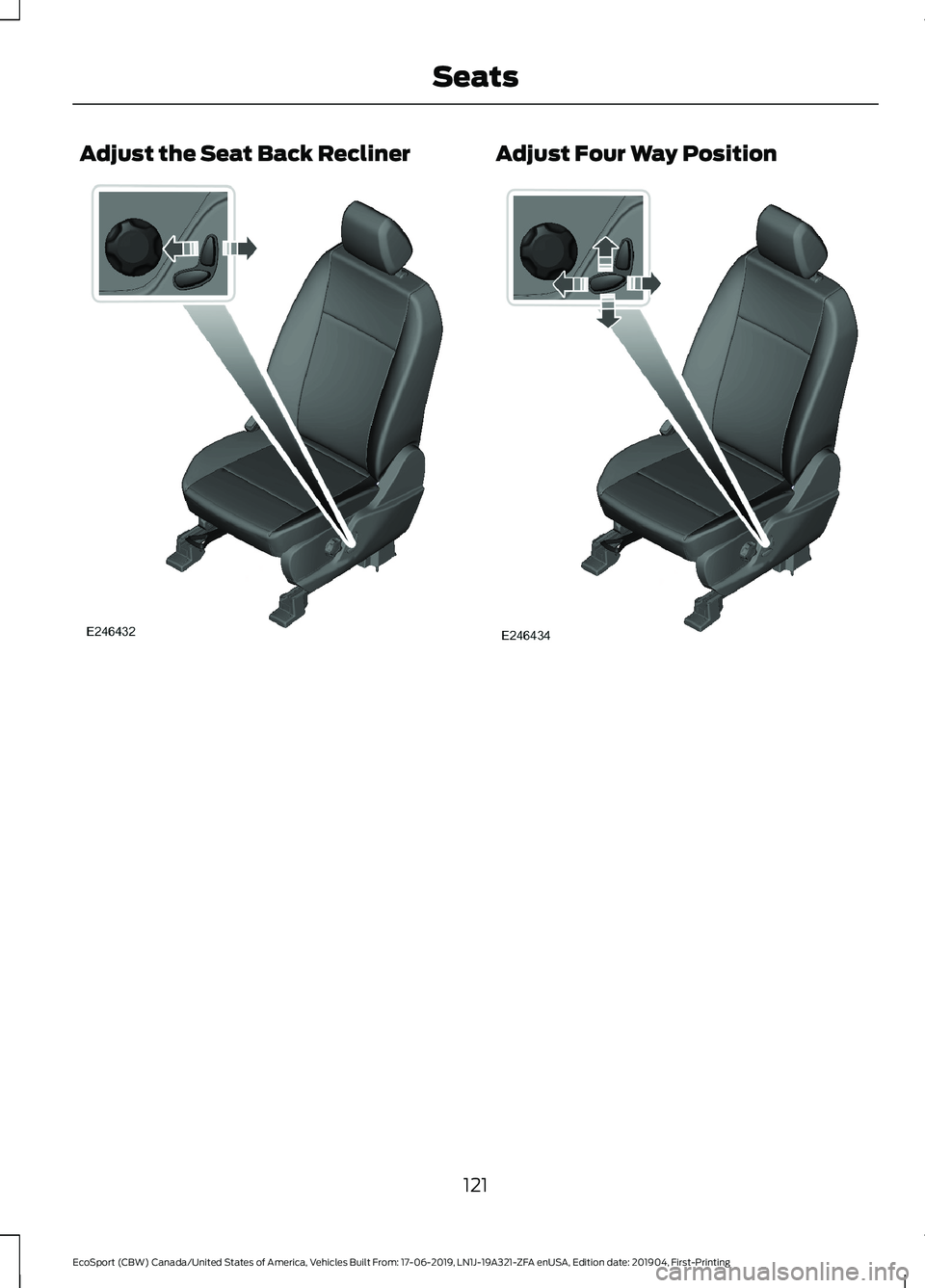

Adjust the Seat Back ReclinerAdjust Four Way Position
121
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

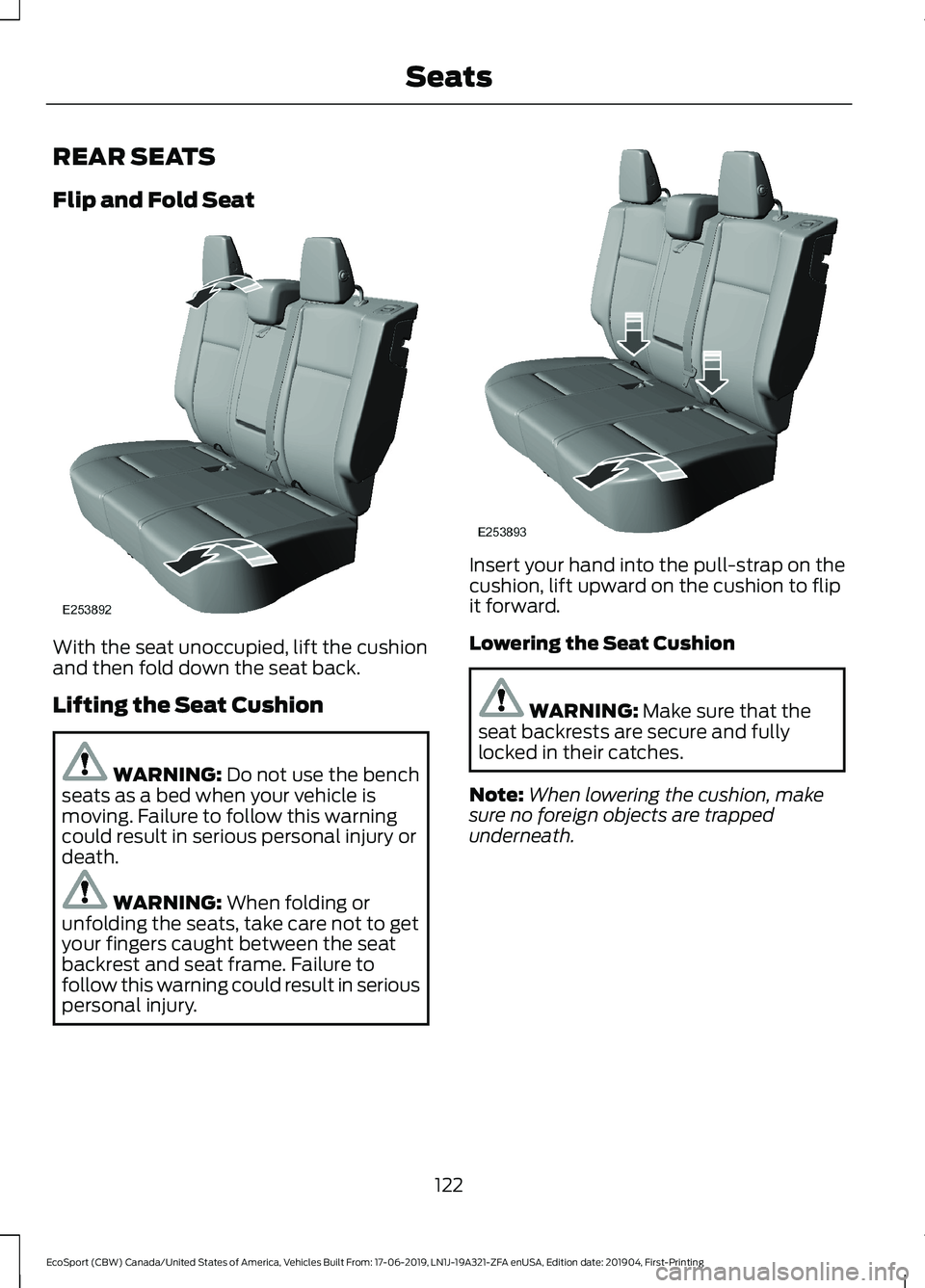

REAR SEATS
Flip and Fold Seat
With the seat unoccupied, lift the cushionand then fold down the seat back.
Lifting the Seat Cushion
WARNING: Do not use the benchseats as a bed when your vehicle ismoving. Failure to follow this warningcould result in serious personal injury ordeath.
WARNING: When folding orunfolding the seats, take care not to getyour fingers caught between the seatbackrest and seat frame. Failure tofollow this warning could result in seriouspersonal injury.
Insert your hand into the pull-strap on thecushion, lift upward on the cushion to flipit forward.
Lowering the Seat Cushion
WARNING: Make sure that theseat backrests are secure and fullylocked in their catches.
Note:When lowering the cushion, makesure no foreign objects are trappedunderneath.
122
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

Lower the seat cushion to the full-downposition.
Folding the Seatback Down
WARNING: Do not place anyobjects on a folded seat. Hard objectsmay become projectiles in a crash orsudden stop, which may increase the riskof serious personal injury.
Note:Do not attempt to fold the rear seatbackrest forward before flipping the seatcushion up and out from underneath it.
Note:When folding the seatback, makesure no foreign objects are trappedunderneath.
Note:Do not attempt to fold the rear seatbackrest forward before lowering the headrestraints. See Head Restraints (page 115).
Before folding the rear row seats, fold thehead restraint down by pushing the buttonlocated on the side of the head restraint.
When the seatback is in the upright andlocked position, depress the back-latchrelease button.
123
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats

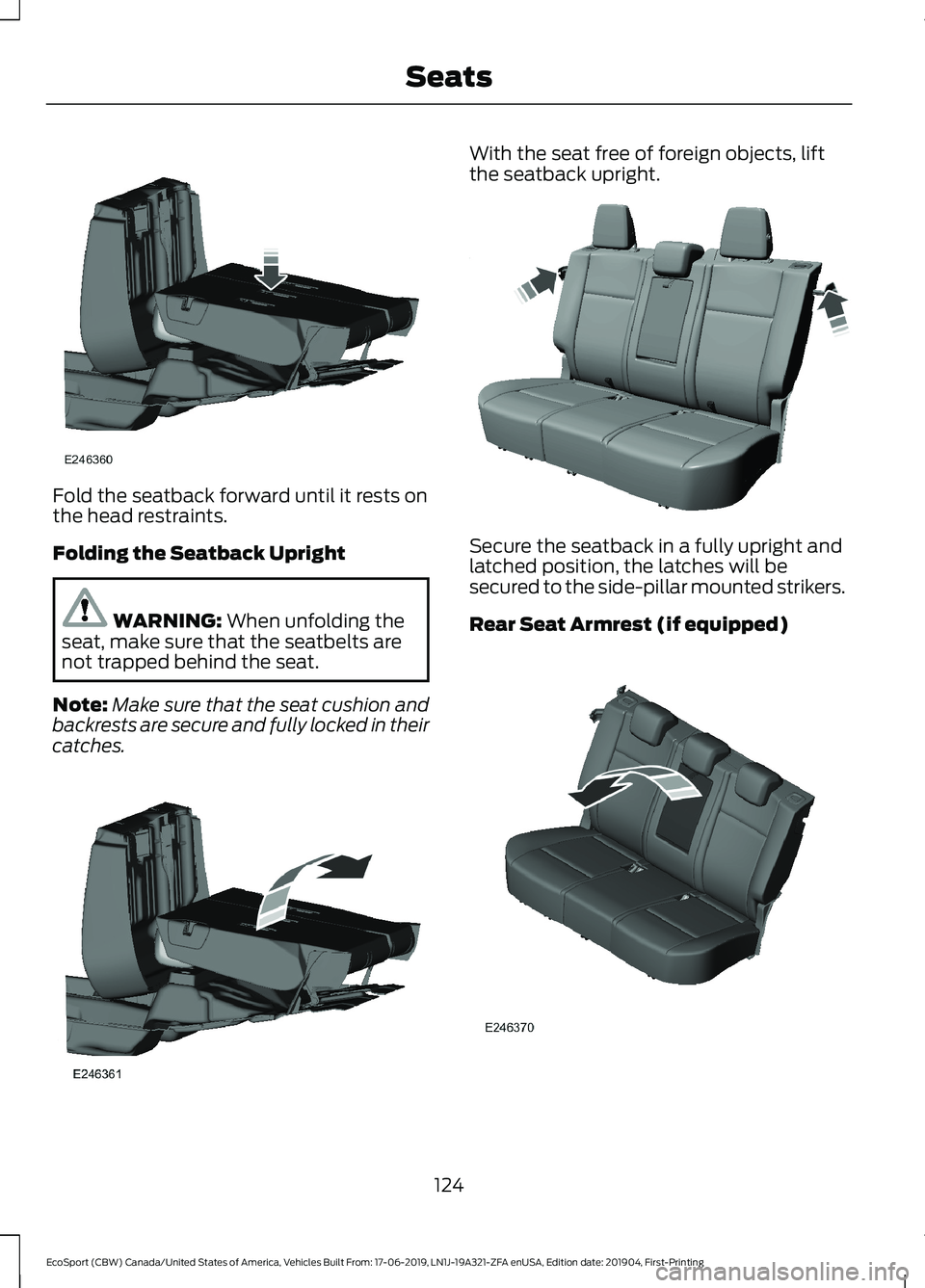

Fold the seatback forward until it rests onthe head restraints.
Folding the Seatback Upright
WARNING: When unfolding theseat, make sure that the seatbelts arenot trapped behind the seat.
Note:Make sure that the seat cushion andbackrests are secure and fully locked in theircatches.
With the seat free of foreign objects, liftthe seatback upright.
Secure the seatback in a fully upright andlatched position, the latches will besecured to the side-pillar mounted strikers.
Rear Seat Armrest (if equipped)
124
EcoSport (CBW) Canada/United States of America, Vehicles Built From: 17-06-2019, LN1J-19A321-ZFA enUSA, Edition date: 201904, First-PrintingSeats
