Equipment operation
51
could fall, which could result in severe in-
jury.
[EWJ01511]
EJU34894
Pull-up cleats (FX Cruiser HO)
The pull-up cleats are used to attach a rope
to the watercraft when mooring it.
To use a pull-up cleat, pull it up. The pull-up
cleat returns automatically to its original posi-
tion when released. WARNING! Do not use
the pull-up cleats to lift the watercraft. The
pull-up cleats are not designed to support
the watercraft’s weight. If the pull-up
cleats break, the watercraft could fall,
which could result in severe injury.
[EWJ00822]
EJU35148
Storage compartments
This watercraft is equipped with the following
storage compartments.
Only the securely closed watertight storage
compartment is waterproof. If you carry ob-jects that must be kept dry, put them in a wa-
terproof bag.
Make sure that the storage compartments
are closed securely before operating the wa-
tercraft.
EJU45250Bow storage compartment
The bow storage compartment is located un-
der the hood.

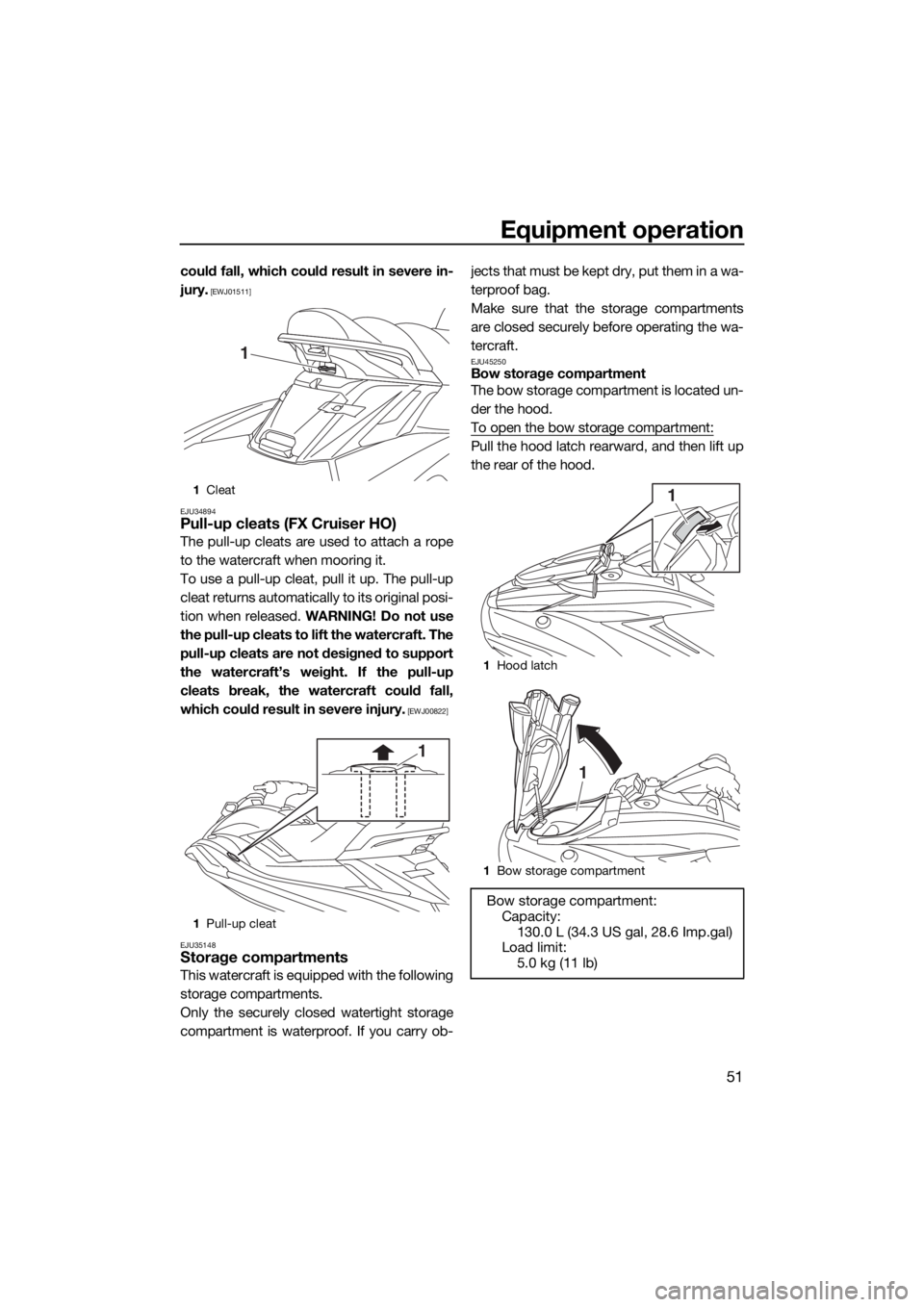

To open the bow storage compartment:
Pull the hood latch rearward, and then lift up
the rear of the hood.
1Cleat
1Pull-up cleat
1
1
1Hood latch
1Bow storage compartment
Bow storage compartment:
Capacity:
130.0 L (34.3 US gal, 28.6 Imp.gal)
Load limit:
5.0 kg (11 lb)
1
1
UF3V70E0.book Page 51 Tuesday, August 28, 2018 10:16 AM

Equipment operation
52

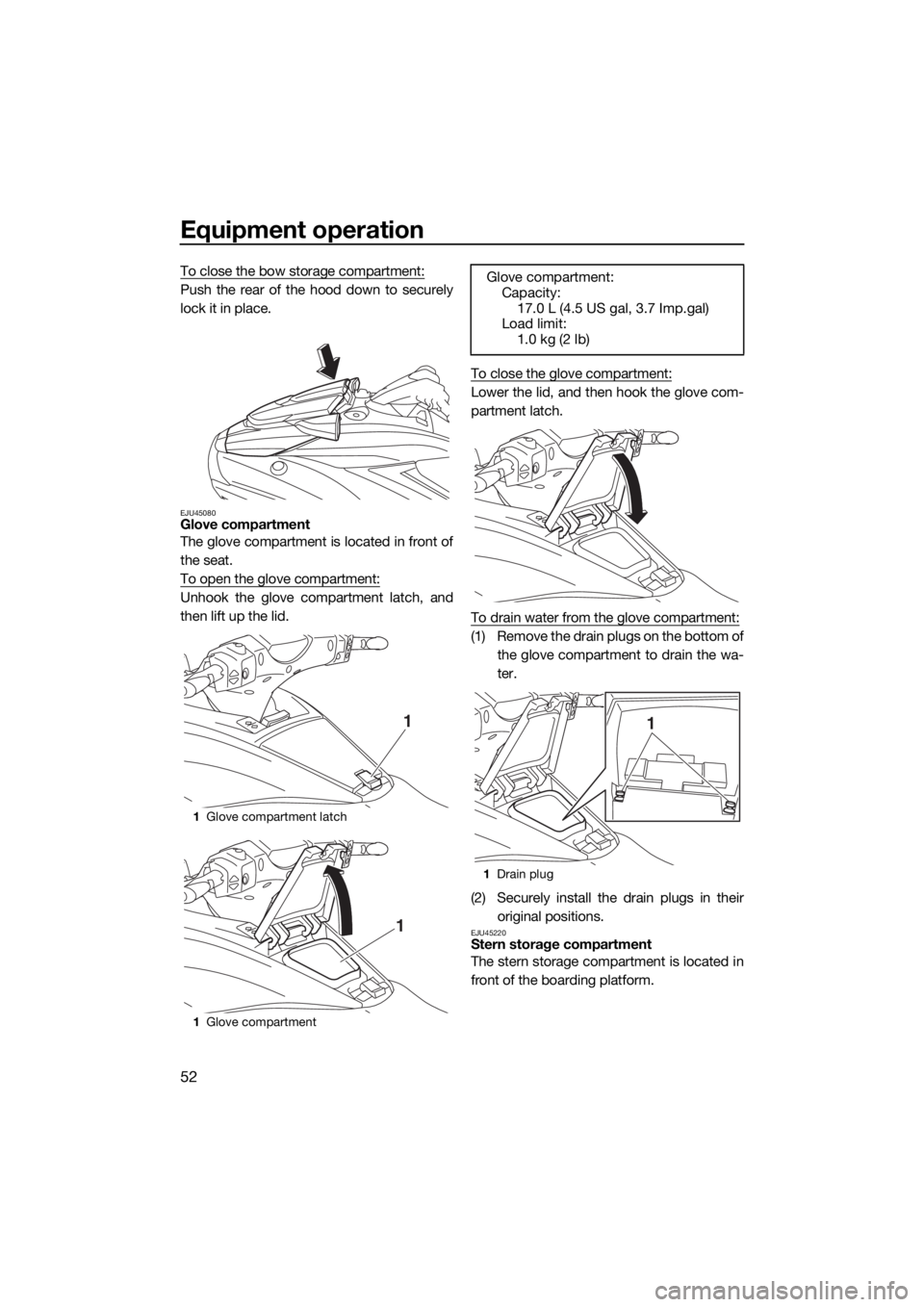

To close the bow storage compartment:
Push the rear of the hood down to securely
lock it in place.
EJU45080Glove compartment
The glove compartment is located in front of
the seat.
To open the glove compartment:
Unhook the glove compartment latch, and
then lift up the lid.To close the glove compartment:
Lower the lid, and then hook the glove com-
partment latch.
To drain water from the glove compartment:
(1) Remove the drain plugs on the bottom of
the glove compartment to drain the wa-
ter.
(2) Securely install the drain plugs in their
original positions.
EJU45220Stern storage compartment
The stern storage compartment is located in
front of the boarding platform.
1Glove compartment latch
1Glove compartment
1
1
Glove compartment:
Capacity:
17.0 L (4.5 US gal, 3.7 Imp.gal)
Load limit:
1.0 kg (2 lb)
1Drain plug
1
UF3V70E0.book Page 52 Tuesday, August 28, 2018 10:16 AM

Equipment operation
53

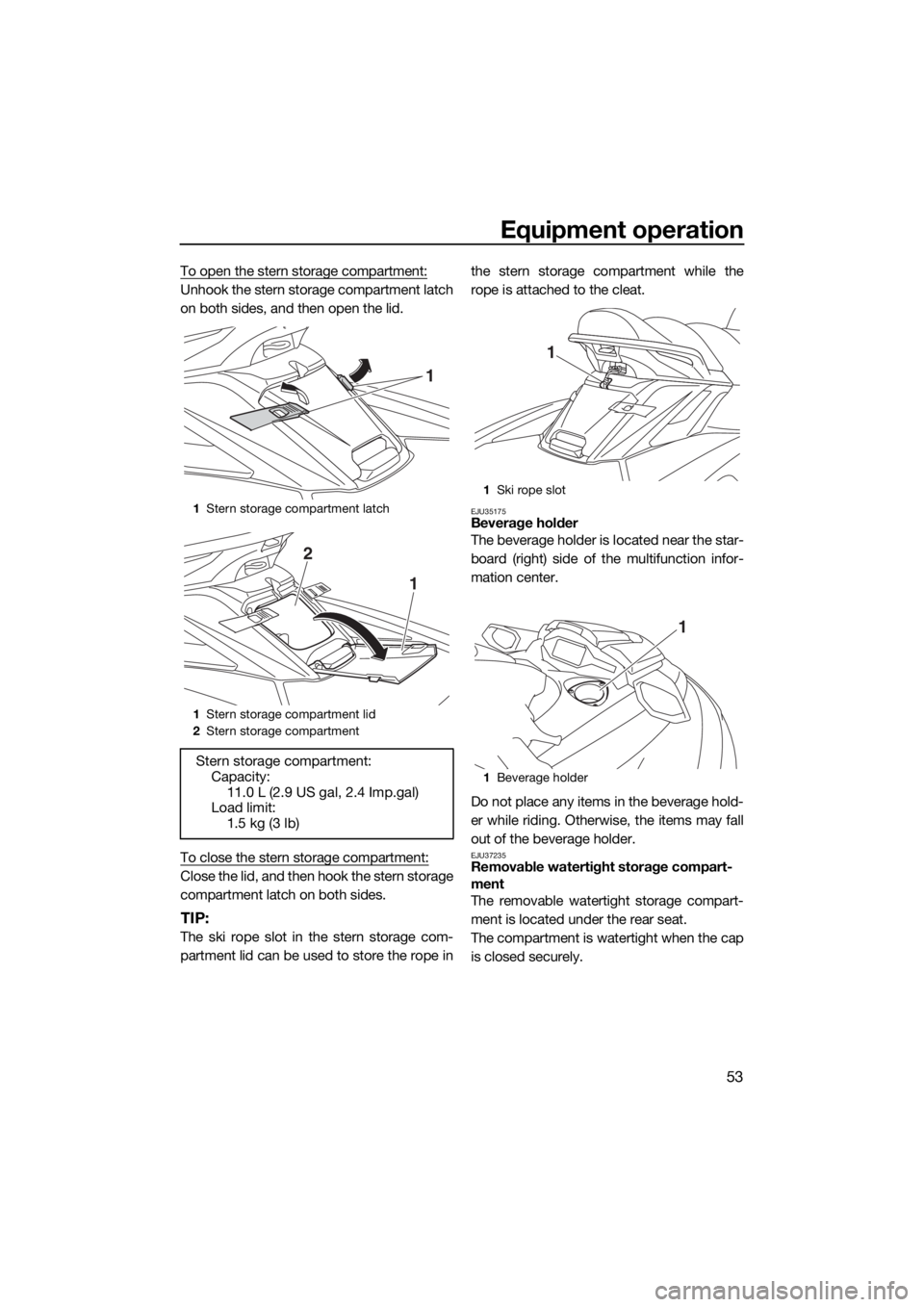

To open the stern storage compartment:
Unhook the stern storage compartment latch
on both sides, and then open the lid.
To close the stern storage compartment:
Close the lid, and then hook the stern storage
compartment latch on both sides.
TIP:
The ski rope slot in the stern storage com-
partment lid can be used to store the rope inthe stern storage compartment while the
rope is attached to the cleat.
EJU35175Beverage holder
The beverage holder is located near the star-
board (right) side of the multifunction infor-
mation center.
Do not place any items in the beverage hold-
er while riding. Otherwise, the items may fall
out of the beverage holder.
EJU37235Removable watertight storage compart-
ment
The removable watertight storage compart-
ment is located under the rear seat.
The compartment is watertight when the cap
is closed securely.
1Stern storage compartment latch
1Stern storage compartment lid
2Stern storage compartment
Stern storage compartment:
Capacity:
11.0 L (2.9 US gal, 2.4 Imp.gal)
Load limit:
1.5 kg (3 lb)
1
1
2
1Ski rope slot
1Beverage holder
1
1
UF3V70E0.book Page 53 Tuesday, August 28, 2018 10:16 AM

Equipment operation
54
To open the removable watertight storage
compartment:
(1) Remove the rear seat. (See page 48 for
seat removal and installation proce-
dures.)
(2) Loosen the cap and remove it.
To close the removable watertight storage
compartment:
(1) Securely install the cap by tightening it
until it stops.
(2) Securely install the rear seat in its original
position.
EJU42391Fire extinguisher holder and cover
The fire extinguisher holder and cover are lo-
cated in the bow storage compartment.
To use the fire extinguisher holder and cover:
(1) Pull the hood latch rearward, and then lift
up the rear of the hood.
(2) Unhook the band and remove the fire ex-
tinguisher cover.
(3) Place the fire extinguisher in the holder,
and then place the cover over the fire ex-
tinguisher.
(4) Securely fasten the cover and the fire ex-
tinguisher with the band.
(5) Push the rear of the hood down to se-
curely lock it in place. Make sure that the
1Cap
1Removable watertight storage compart-
ment
Removable watertight storage compart-
ment:
Capacity:
9.0 L (2.4 US gal, 2.0 Imp.gal)
Load limit:
3.0 kg (7 lb)
1
1
1Hood latch
1Fire extinguisher holder and cover
2Band
1
1
2
UF3V70E0.book Page 54 Tuesday, August 28, 2018 10:16 AM

Equipment operation
55
hood is securely closed before using the
watercraft.
EJU45291Optional part mounting bracket
A mounting bracket for installing optional
parts is located near the port (left) side of the
multifunction information center.
1Optional part mounting bracket
Load limit:
1.0 kg (2.2 lb)
1
UF3V70E0.book Page 55 Tuesday, August 28, 2018 10:16 AM

Operation and handling requirements
56
EJU31823
Fuel requirementsEJU45310Fuel
WARNING
EWJ00283
Gasoline and gasoline vapors are ex-
tremely flammable. To avoid fires and
explosions and to reduce the risk of in-
jury when refueling, follow these in-
structions.
Gasoline is poisonous and can cause in-
jury or death. Handle gasoline with care.
Never siphon gasoline by mouth. If you
should swallow some gasoline, inhale a
lot of gasoline vapor, or get some gaso-
line in your eyes, see your doctor imme-
diately. If gasoline spills on your skin,
wash with soap and water. If gasoline
spills on your clothing, change your
clothes.
NOTICE
ECJ00322
Do not use leaded gasoline. Leaded
gasoline can seriously damage the en-
gine.
Avoid getting water and contaminants in
the fuel tank. Contaminated fuel can
cause poor performance and engine
damage. Use only fresh gasoline that
has been stored in clean containers.
TIP:
This mark identifies the recommended fuel
for this watercraft as specified by European
regulation (EN228).
Check that gasoline nozzle has the same
identifier when fueling.
Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and
the fuel meets the minimum octane ratings.
E-85 is a fuel blend containing 85% ethanol
and therefore must not be used in this water-
craft. All ethanol blends containing more than
10% ethanol can cause fuel system damage
or engine performance problems.
Yamaha does not recommend gasohol con-
taining methanol because it can cause fuel
system damage and engine performance
problems.

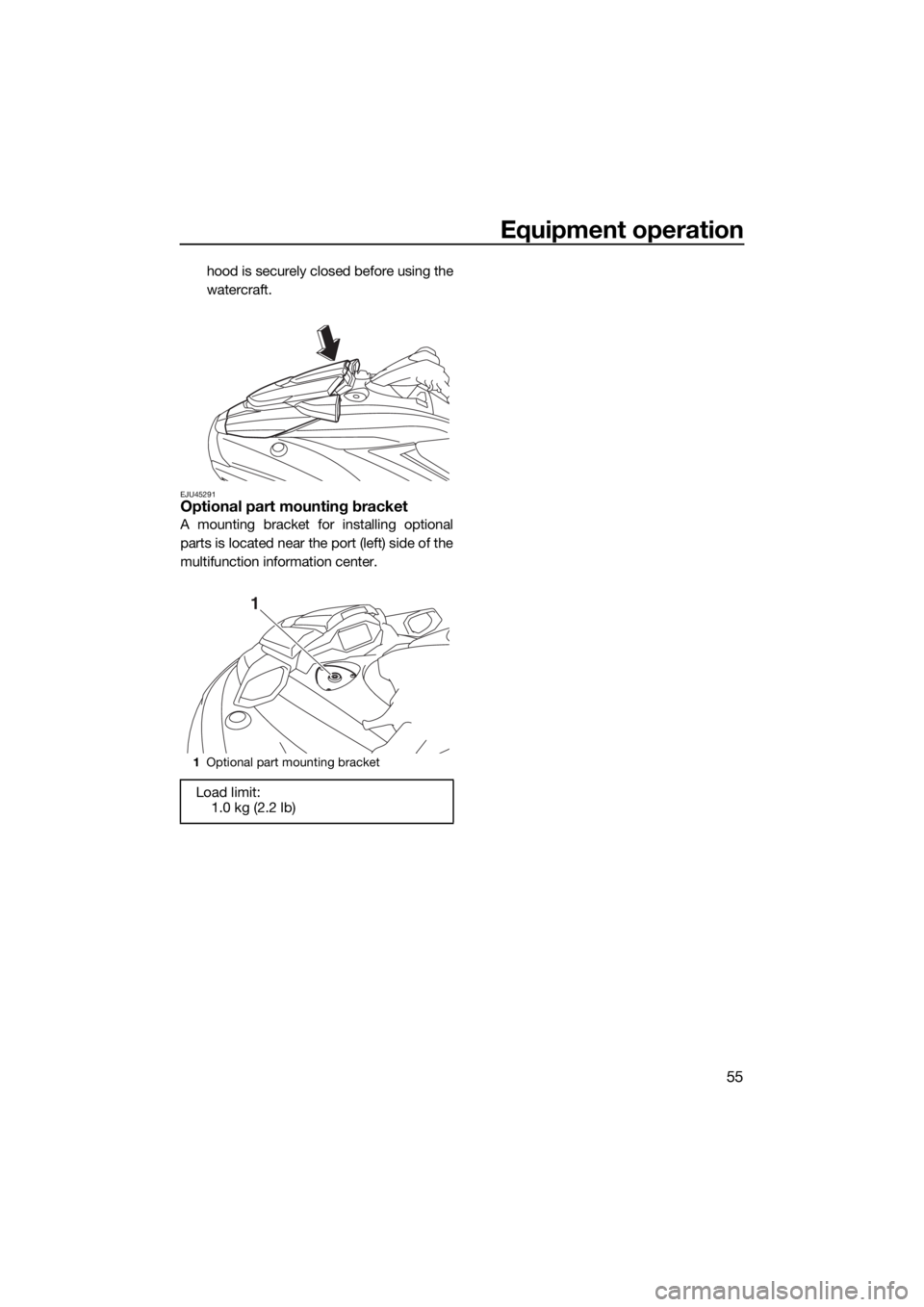

To fill the fuel tank:
(1) Before refueling, stop the engine. Do not
stand or sit on the watercraft. Never refu-
el while smoking, or while in the vicinity Recommended fuel:
Regular unleaded gasoline with a
minimum octane rating of
86
(Pump octane number) = (R + M)/2
90 (Research octane number)
E10
UF3V70E0.book Page 56 Tuesday, August 28, 2018 10:16 AM

Operation and handling requirements
57
of sparks, open flames, or other sources
of ignition.
(2) Place the watercraft in a well-ventilated
area and in a horizontal position.
(3) Remove the seats, and then check the
fuel level. (See page 48 for seat removal
and installation procedures.)
(4) Loosen the fuel filler cap and remove it.
(5) Slowly add fuel to the fuel tank.
(6) Stop filling when the fuel level reaches
approximately 50 mm (2 in) from the top
of the fuel tank. Do not overfill the fuel
tank. Because fuel expands when it
heats up, heat from the engine or the sun
can cause fuel to spill out of the fuel tank.Do not leave the watercraft with a full
tank in direct sunlight.
(7) Wipe up any spilled fuel immediately with
a dry cloth.
(8) Securely install the fuel filler cap by tight-
ening it until it clicks.
(9) Securely install the seats in their original
positions.
1Fuel filler cap
Fuel tank capacity:
70 L (18.5 US gal, 15.4 Imp.gal)
1
1Top of the fuel tank
2Approximately 50 mm (2 in) from top of the
fuel tank
1Top of the fuel tank
2Approximately 50 mm (2 in) from top of the
fuel tank
21
21
UF3V70E0.book Page 57 Tuesday, August 28, 2018 10:16 AM

Operation and handling requirements
58
EJU40291
Engine oil requirementsEJU41513Engine oil
NOTICE
ECJ00282
Use only 4-stroke engine oil. Usage of 2-
stroke engine oil could result in severe en-
gine damage.
TIP:
When the engine is operated at high speeds,
some engine oil may be consumed. Be sure
to check the engine oil level.
Checking the engine oil level
WARNING
EWJ00341
Engine oil is extremely hot immediately af-
ter the engine is turned off. Coming in con-
tact with or getting any engine oil on your
clothes could result in burns.
NOTICE
ECJ01002
Make sure that debris and water do not
enter the oil filler hole. Debris and water in
the engine oil can cause serious engine
damage.

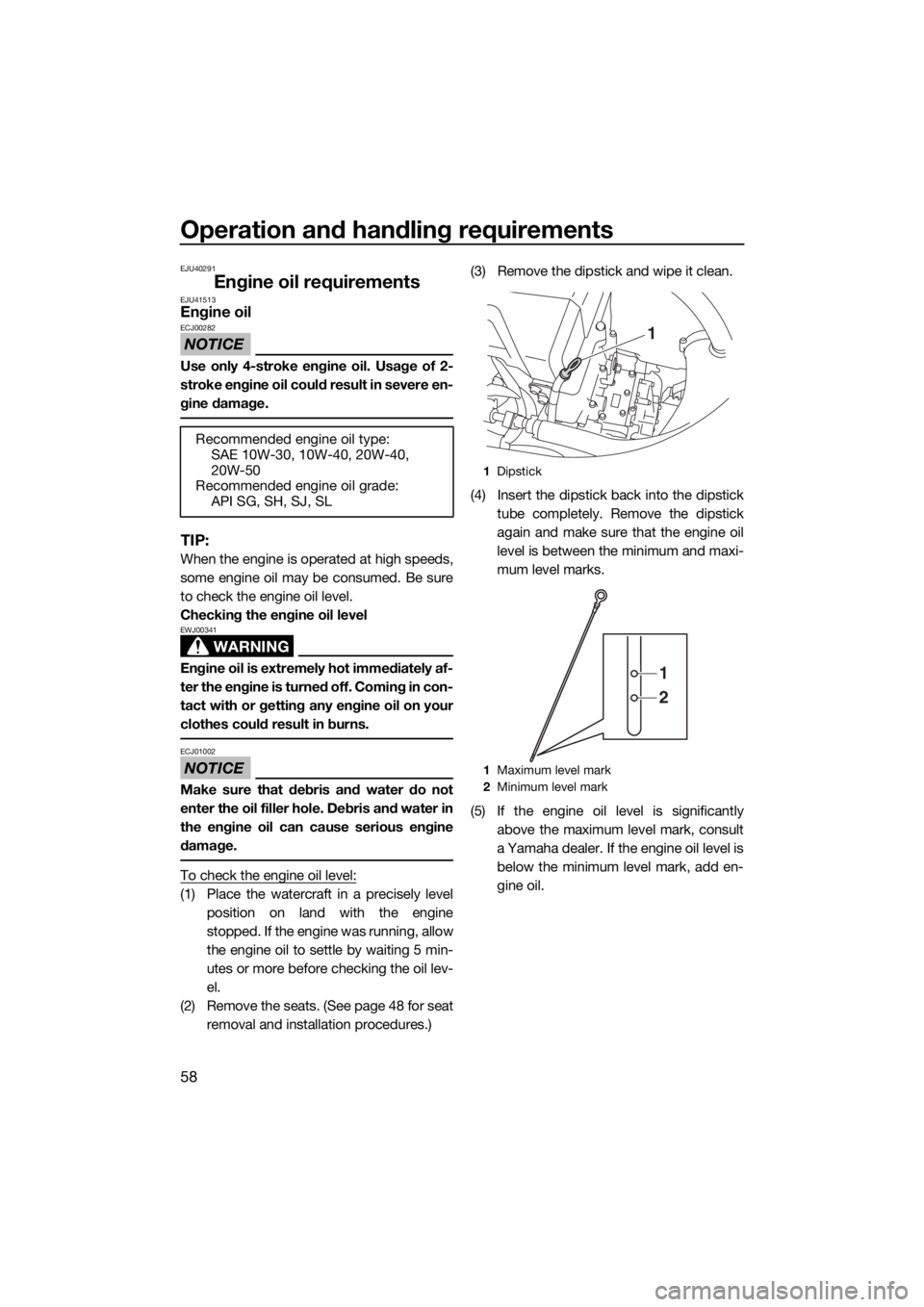

To check the engine oil level:
(1) Place the watercraft in a precisely level
position on land with the engine
stopped. If the engine was running, allow
the engine oil to settle by waiting 5 min-
utes or more before checking the oil lev-
el.
(2) Remove the seats. (See page 48 for seat
removal and installation procedures.)(3) Remove the dipstick and wipe it clean.
(4) Insert the dipstick back into the dipstick
tube completely. Remove the dipstick
again and make sure that the engine oil
level is between the minimum and maxi-
mum level marks.
(5) If the engine oil level is significantly
above the maximum level mark, consult
a Yamaha dealer. If the engine oil level is
below the minimum level mark, add en-
gine oil. Recommended engine oil type:
SAE 10W-30, 10W-40, 20W-40,
20W-50
Recommended engine oil grade:
API SG, SH, SJ, SL
1Dipstick
1Maximum level mark
2Minimum level mark
1
1
2
