Front view

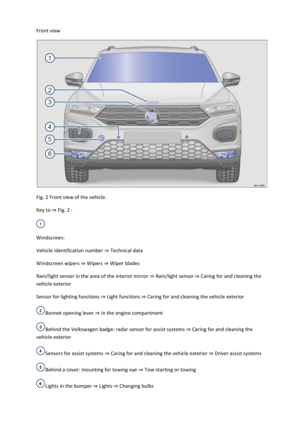

Fig. 2 Front view of the vehicle.
Key to Fig. 2

Windscreen:
Vehicle identification number Technical data

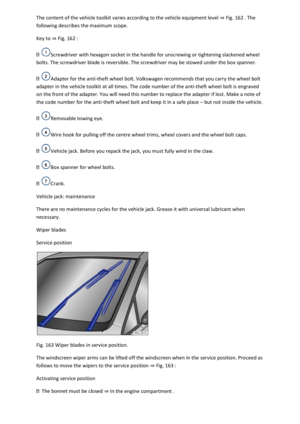

Windscreen wipers WipersWiper blades
Rain/light sensor in the area of the interior mirror Rain/light sensorCaring for and cleaning the
vehicle exterior
Sensor for lighting functions Caring for and cleaning the vehicle exterior

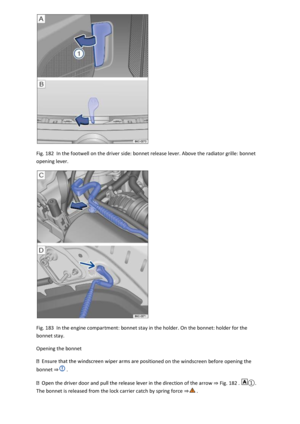

Bonnet opening lever In the engine compartment
Behind the Volkswagen badge: radar sensor for assist systems Caring for and cleaning the
vehicle exterior
Sensors for assist systems Caring for and cleaning the vehicle exteriorDriver assist systems

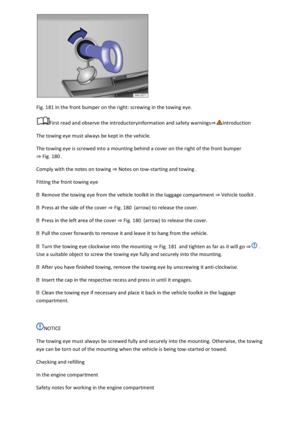

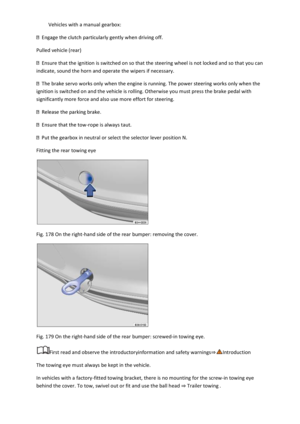

Behind a cover: mounting for towing eye Tow-starting or towing
Lights in the bumper LightsChanging bulbs

e view

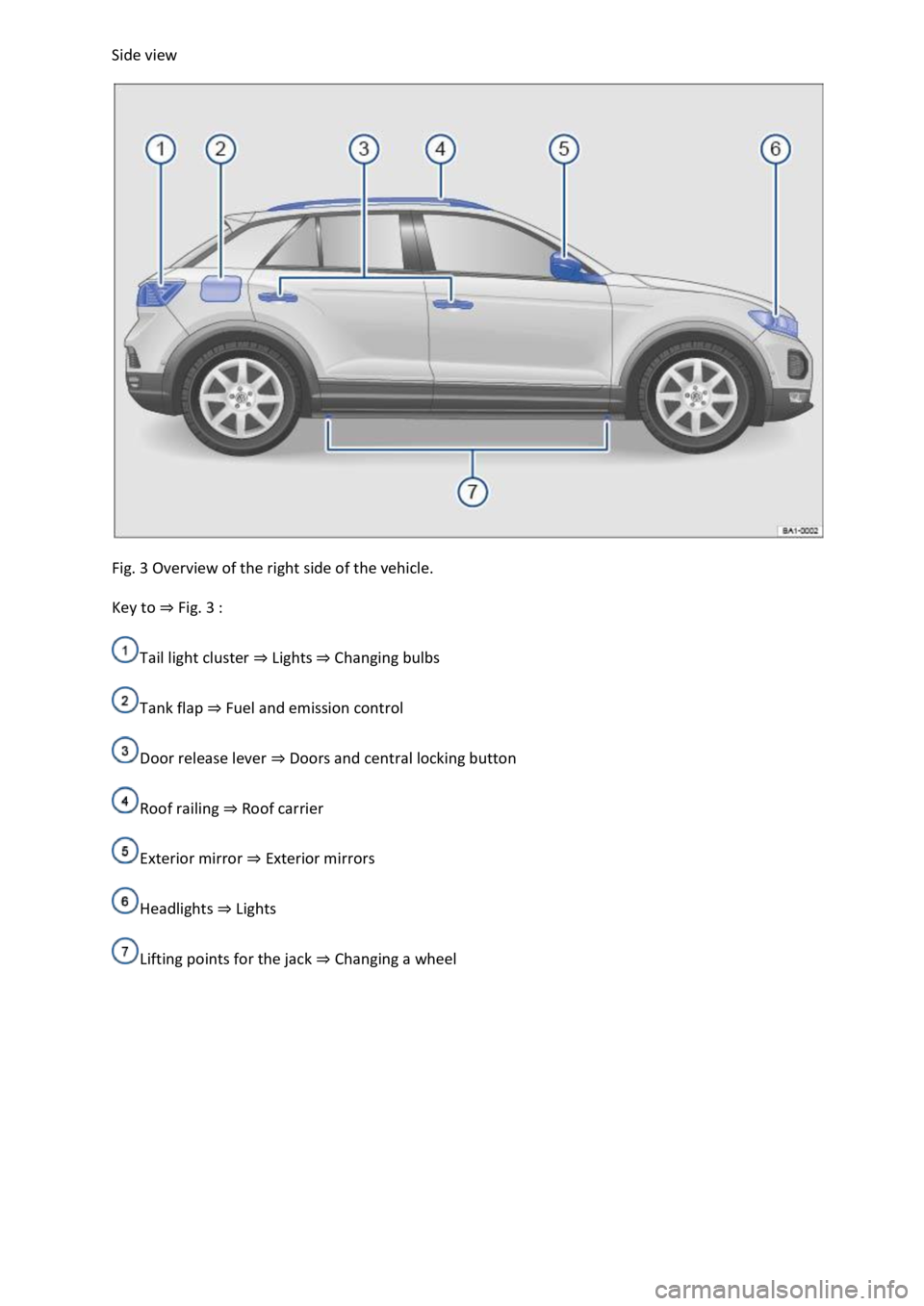

Fig. 3 Overview of the right side of the vehicle.
Key to Fig. 3
Tail light cluster LightsChanging bulbs
Tank flap Fuel and emission control

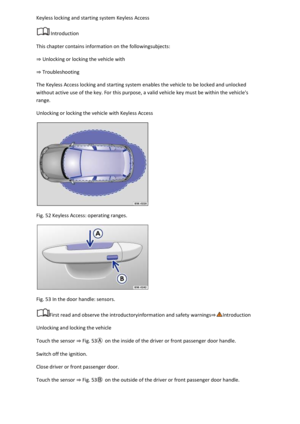

Door release lever Doors and central locking button
Roof railing Roof carrier
Exterior mirror Exterior mirrors
Headlights Lights

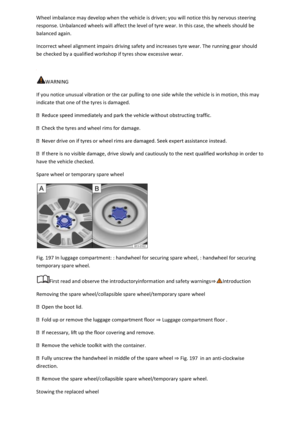

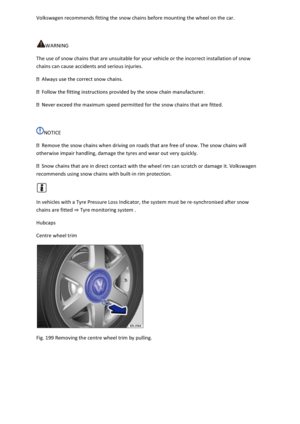

Lifting points for the jack Changing a wheel

Rear view

Fig. 4 Overview of the rear of the vehicle.
Key to Fig. 4
High-level brake light

Rear window:
Rear window heating Heating and air conditioning system
Rear window wiper WipersWiper blades

Volkswagen badge:
To open the boot lid Opening and closing the boot lid
With camera for assist systems Driver assist systems
Sensors for assist systems Caring for and cleaning the vehicle exterior

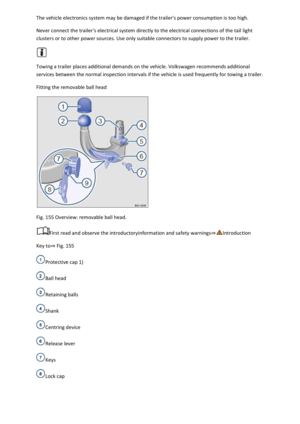

Towing bracket Trailer towing
Behind a cover: mounting for towing eye Tow-starting or towing

Fig. 5 Controls in the driver door (left-hand drive vehicle). The location is mirrored in right-hand drive
vehicles.
Key to Fig. 5

Area:
Switch for exterior mirror adjustment and heating Exterior mirrors
Buttons for operating the electric windows Windows
Door release lever Doors and central locking button

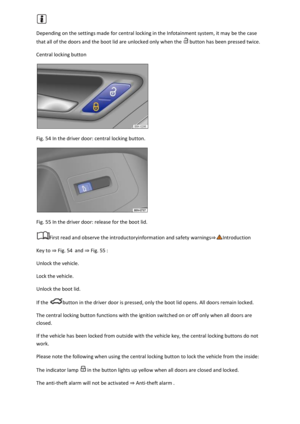

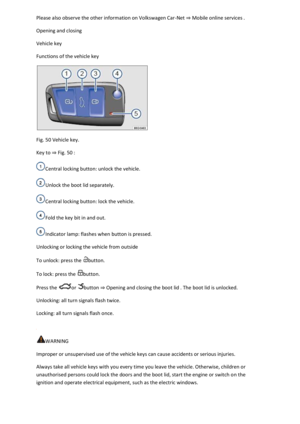

Central locking button for locking and unlocking the vehicle Central locking button
Central locking indicator lamp Indicator lamp in the driver door
Stowage compartment Stowage areas

Fig. 6 Overview of the driver side (left-hand drive vehicles).

Fig. 7 Overview of the driver side (right-hand drive vehicles).
Key to Fig. 6and Fig. 7

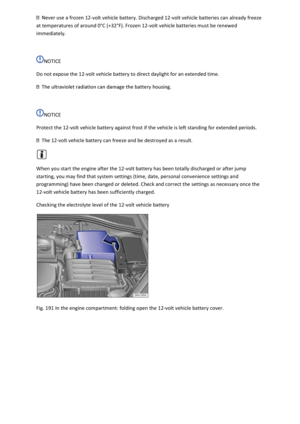

In the engine compartment

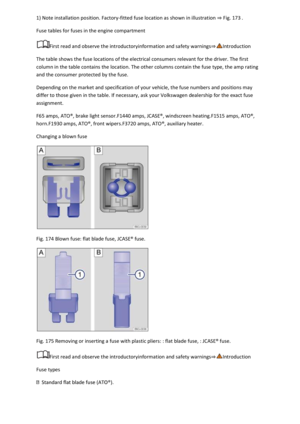

Fuse box cover Changing fuses
Lever for adjusting the steering column position Steering wheel
Light switch Vehicle lighting

Turn signal and main beam lever Vehicle lighting
With switches and buttons for the driver assist systems Button for driver assist systemsDriver
assist systems
Vents Heating and air conditioning system

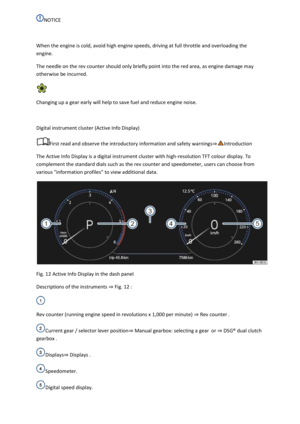

Instrument cluster Instrument cluster
With warning and indicator lamps Symbols in instrument cluster

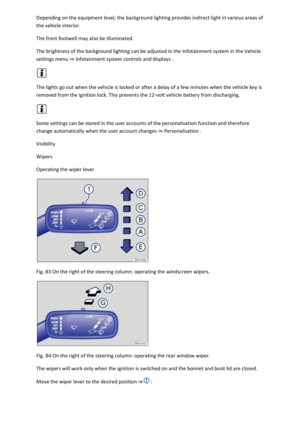

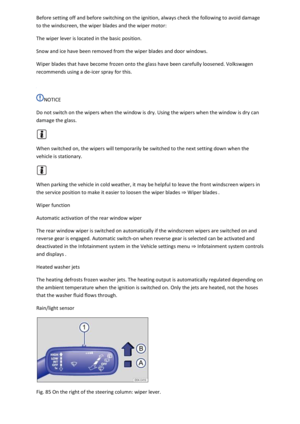

Lever for wipers and washers Wipers
With buttons for operating the menus Instrument cluster

Controls on the multifunction steering wheel:
Operating driver assist systems Operating using the multifunction steering wheelDriver assist
systems
Audio, navigation
Opening the telephone menu or accepting telephone calls
Volume adjustment
Activating voice control (no function in some models)
Horn
Location of the driver front airbag Airbag system

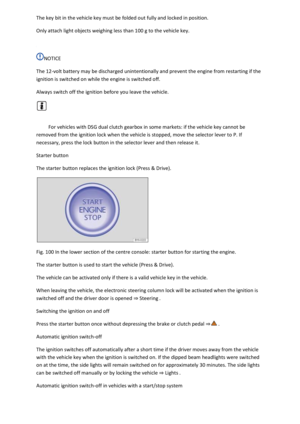

Ignition lock Starting and stopping the engine
Pedals Pedals

Centre console

Fig. 8 Overview of the upper section of the centre console.

Fig. 9 Overview of the lower section of the centre console.
Key to Fig. 8
Infotainment system Infotainment system, Infotainment system controls and
displays
Vents Heating and air conditioning system

Buttons:

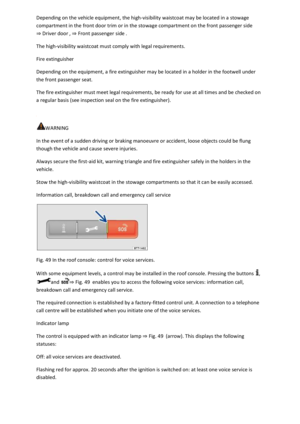

In an emergency
Indicator lamp for the front passenger front airbag switch-off function Airbag system
Driver assist systems Driver assist systems

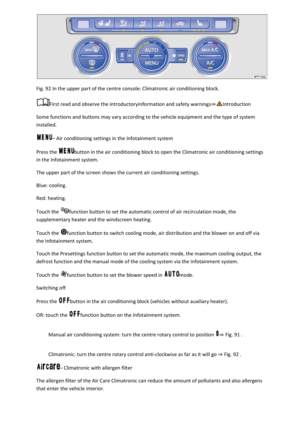

Controls for the air conditioning system, heating and fresh air system Heating, ventilating,
cooling
Controls for the air conditioning system, heating and fresh air system Heating, ventilating,
cooling

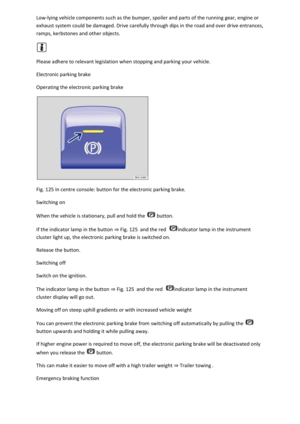

Key to Fig. 9

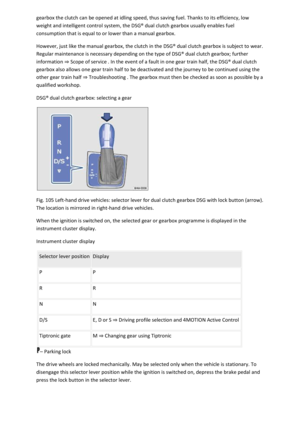

Lever:
DSG
