2019 VOLKSWAGEN E-GOLF Owners Manual

Fuses

Fuses in the vehicle

Fig. 178 On the driver side in the instrument panel: Fuse box cover.

Fig. 179 In the electric motor compartment: Fuse box cover 1 with tweezers 2.

Color Current strength in
amps
(ATO® /MINI®)
Current strength in
amps
(JCASE®)
Light
brown
5 —
Brown 7.5 —
Red 10 50
Blue 15 20
Yellow 20 60
White or
clear
25 —
Green 30 40
Orange 40 —
Pink 30 30

Opening the fuse box in the instrument panel
x Pull the lower part of the cover toward the steering wheel (in the direction of the arrow ⇒ fig. 178) and remove the cover from the bottom. This action may require moderate force.
x To install, guide the cover from the bottom into the instrument panel and push in the direction
opposite to the arrow ⇒ fig. 178 until you can hear it latch into place.
Opening the fuse box in the electric motor compartment
x Open the electric motor hood

The vehicle contains other fuses in addition to those mentioned in this section. Have these fuses replaced by an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Replacing blown fuses

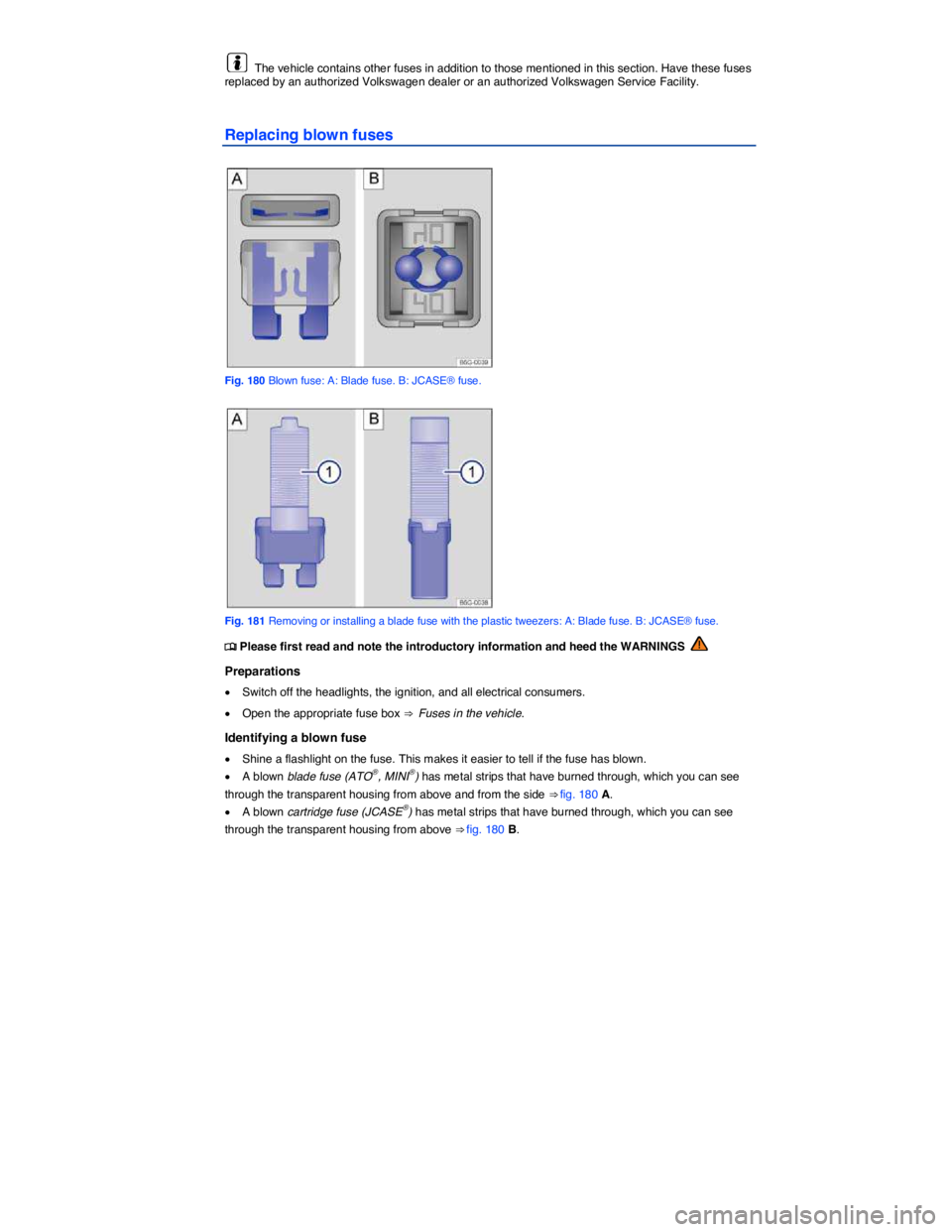

Fig. 180 Blown fuse: A: Blade fuse. B: JCASE® fuse.

Fig. 181 Removing or installing a blade fuse with the plastic tweezers: A: Blade fuse. B: JCASE® fuse.

Replacing a fuse
In some vehicles, there are plastic tweezers for removing blade fuses on the inside of the fuse box cover in the electric motor compartment.
x Open the fuse box cover in the electric motor compartment ⇒  Fuses in the vehicle and remove the plastic tweezers.
x Depending on the type of fuse, slide the tweezers ⇒ fig. 181 A (1) or ⇒ fig. 181 B (1) onto the fuse from the side.
x Pull out the fuse.
x If the fuse is blown, replace the fuse with a new fuse of the same amperage (same color and same
imprint) and same size ⇒ .
x Clip the plastic tweezers back into the holder inside the fuse box cover.
x Replace the fuse box cover.
NOTICE
If a fuse is replaced with a fuse with higher amperage, then damage can occur at various plac-es in the electrical system.

Jump-starting

WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety
precautions before working on the batteries or the electrical system ⇒  12 Volt vehicle bat-tery.
x Always make sure that the battery providing starting assistance (the booster battery) has the same voltage as the dead battery (12 V) and about the same amperage capacity (see bat-tery label).
x Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can ex-plode. A dead battery can freeze at temperatures around +32 °F (0 °C).
x A battery that is frozen or was frozen, but has since thawed, must be replaced.
x When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explo-sive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle bat-teries. Never use a mobile telephone while connecting or disconnecting jumper cables.
x Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hy-drogen gas during jump-starting.
x Always route the jumper cables so that they cannot get caught in any moving parts in the electric motor compartment.
x Never short out the battery terminals by connecting the positive (+) and negative (-) termi-nals with each other.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery, as this may cause the hydrogen gas given off by the dead battery to ex-plode.
x Never attach the negative cable from the vehicle providing starting assistance to any part of the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Always follow the instructions of the jumper cable manufacturer.
NOTICE
To help prevent extensive damage to the vehicle electrical system, read and heed the follow-ing:
x Connecting jumper cables improperly can cause a short circuit and do expensive damage to the vehicle's electrical system.
x Do not let the vehicles touch each other while the jumper cables are connected. If they do, electrical current may flow between the vehicles when the positive (+) terminals are connected, causing electrical system damage.

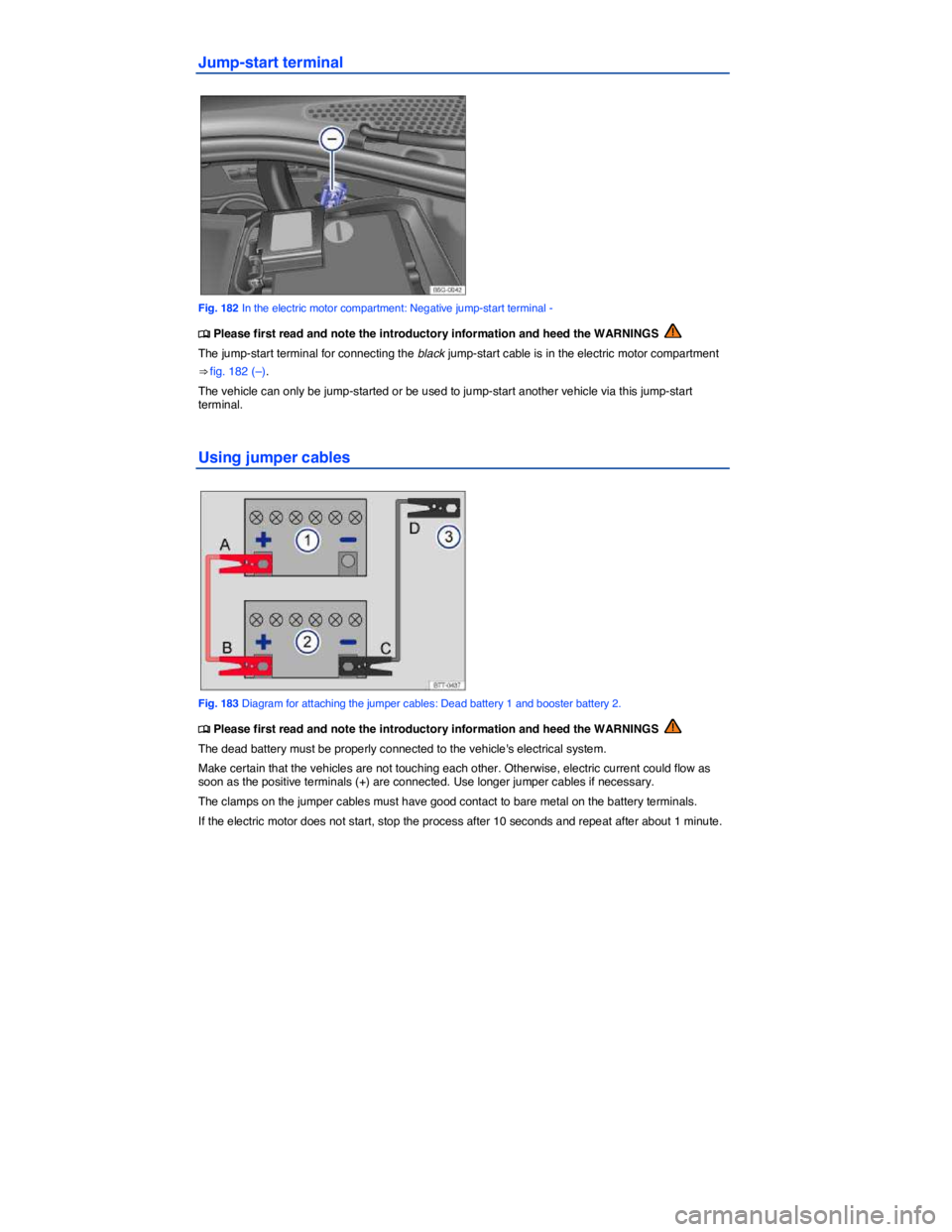

Jump-start terminal

Fig. 182 In the electric motor compartment: Negative jump-start terminal -
