2019 TOYOTA PRIUS Owners Manual (in English)

23
AUTOMATIC AIR CONDITIONING - 11.6” DISPLAY (IF EQUIPPED)
Air conditioning temperature control
Windshield defogger
Rear window and outside rear view mirrors defogger
Temperature setting
Fan speed settingAutomatic mode setting
Air conditioning control screen
Airflow mode setting
S-FLOW mode settingAir conditioningECO mode settingA/C settingOutside/recirculated air mode setting
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Touch area to display air conditioning control screen (See below)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2311/26/18 10:52 PM

24
MAIN DISPLAY
MULTI-INFORMATION DISPLAY (MID)
Color Dual Multi-Information Display (MID)
Push “” to change between the following information screens, “” to select,
“” to switch contents and “” to go back:
The default split screen mode can also be viewed in simple screen mode shown
above. The main display shows basic drive information. Push “” to view more
info for mileage and average fuel consumption display.
For more details, see the Owner’s Manual.
For more details, see the Owner’s Manual.
Warning message display
Settings display
Driving assist system information(if equipped)
Drive information
Clock setting
Navigation system-linked display (if equipped)
Audio system-linked display
Air conditioning system settings screen
Simple screen
Main displayMID
Split screen
FEATURES & OPERATIONS
Fuel gauge
Mileage display (odometer/trip meters/driving range)
Average fuelconsumption display
SpeedometerOutside temperatureHybrid system indicator and current fuel
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2411/26/18 10:52 PM

25
Color Head-up Display (HUD) (if equipped)
The color head-up display can display the current vehicle speed and hybrid system
indicator in front of the driver. Also, it can display various types of information to
assist the driver.
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Meter control switches adjust position and brightness of HUDHead-up display (HUD) switch activates or switches between items
Vehicle speed display
Hybrid system current driving and energy regeneration status
Insert display driving support system information
Route guidance display (if equipped with navigation system)
Clock
To adjust the time, use meter control switches to go to the screen on the MID.
Then, select the option to access the clock setting.
Multi-Information Display (MID)Clock display
Meter control switches
To adjust the time, press to select . Then select to access
General Settings screen. From here, select “System Time” to access clock setting.
11.6” display (if equipped)
Cruise control display shows Cruise control indicators
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2511/26/18 10:52 PM

26
FEATURES & OPERATIONS

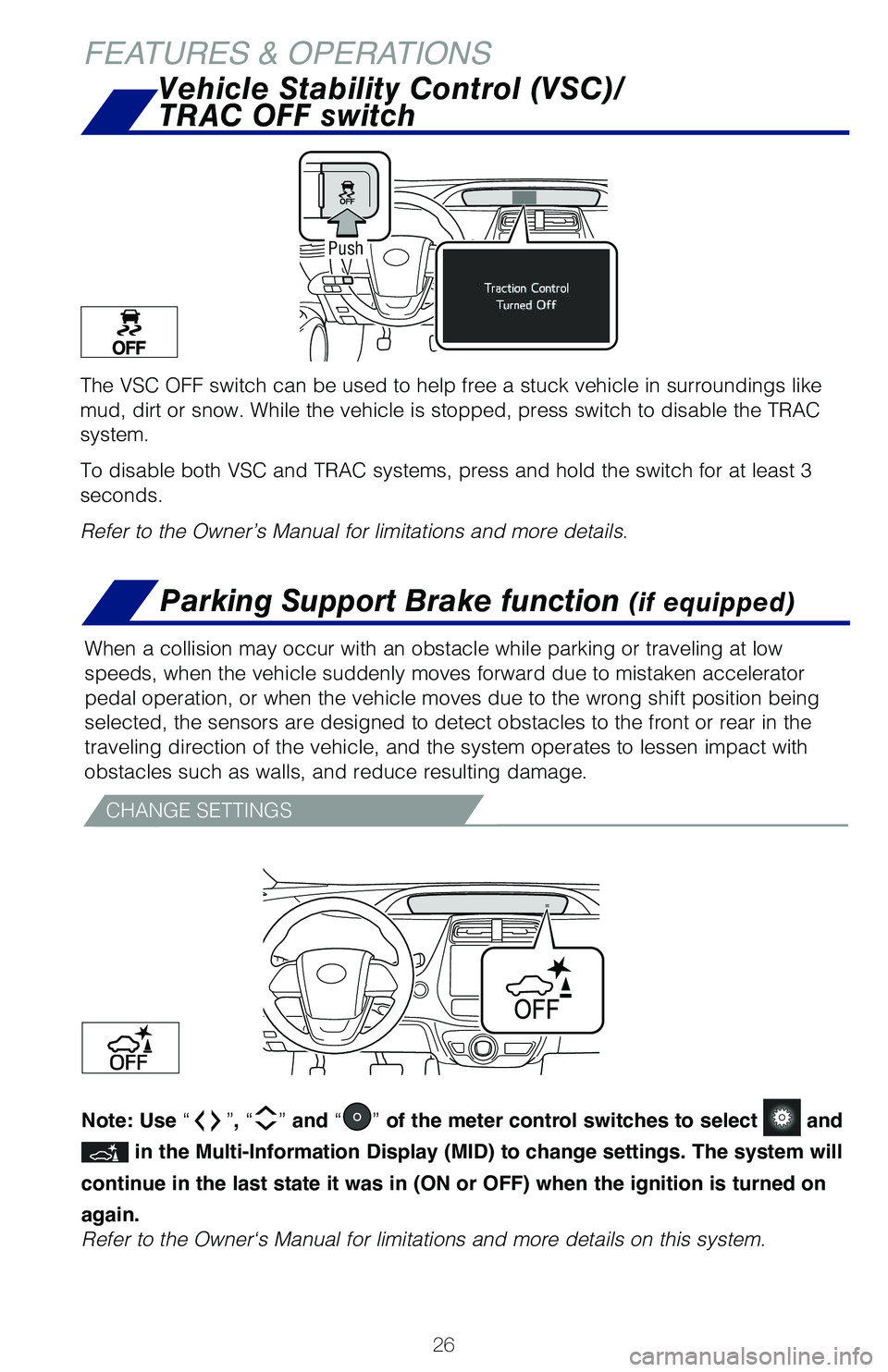

The VSC OFF switch can be used to help free a stuck vehicle in surroundings like
mud, dirt or snow. While the vehicle is stopped, press switch to disable the TRAC
system.
To disable both VSC and TRAC systems, press and hold the switch for at least 3
seconds.
Refer to the Owner’s Manual for limitations and more details.
Push
Parking Support Brake function (if equipped)
Vehicle Stability Control (VSC)/
TRAC OFF switch
When a collision may occur with an obstacle while parking or traveling at low
speeds, when the vehicle suddenly moves forward due to mistaken accelerator
pedal operation, or when the vehicle moves due to the wrong shift position being
selected, the sensors are designed to detect obstacles to the front or rear in the
traveling direction of the vehicle, and the system operates to lessen impact with
obstacles such as walls, and reduce resulting damage.
CHANGE SETTINGS
Note: Use “”, “” and “” of the meter control switches to select and
in the Multi-Information Display (MID) to change settings. The system will
continue in the last state it was in (ON or OFF) when the ignition is turned on
again.
Refer to the Owner‘s Manual for limitations and more details on this system.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2611/26/18 10:52 PM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intuitive Parking Assist (if equipped)
If the sensors detect an obstacle, the buzzer and MID display informs the driver of
the approximate position and distance of the obstacle by illuminating continuously
(far) or blinking (near).
Note: Use in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner’s Manual for limitations and more details.
Frontcenter sensor
Rearcenter sensor
Corner sensors
(front)
Corner sensors
(rear)
Side sensors
(front and rear)
Side sensors
(front and rear)
Corner sensors
(front)
Corner sensors
(rear)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2711/26/18 10:52 PM

28
Garage door opener (HomeLink®) (if equipped)
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc.
Refer to “Garage door opener,” Section 6-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink® at 1-800-355-3515, or visit http://
www.homelink.com.
* HomeLink® is a registered trademark of Johnson Controls, Inc.
FEATURES & OPERATIONS
Rear view monitor system
The rear view monitor system displays an image of the view from the bumper of
the rear area of the vehicle. The camera for the rear view monitor system is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “SETUP” button
and select “Display” on the “Setup” screen. Select “Camera” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Buttons
HomeLink® indicator light
Garage door operation indicators
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2811/26/18 10:52 PM

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

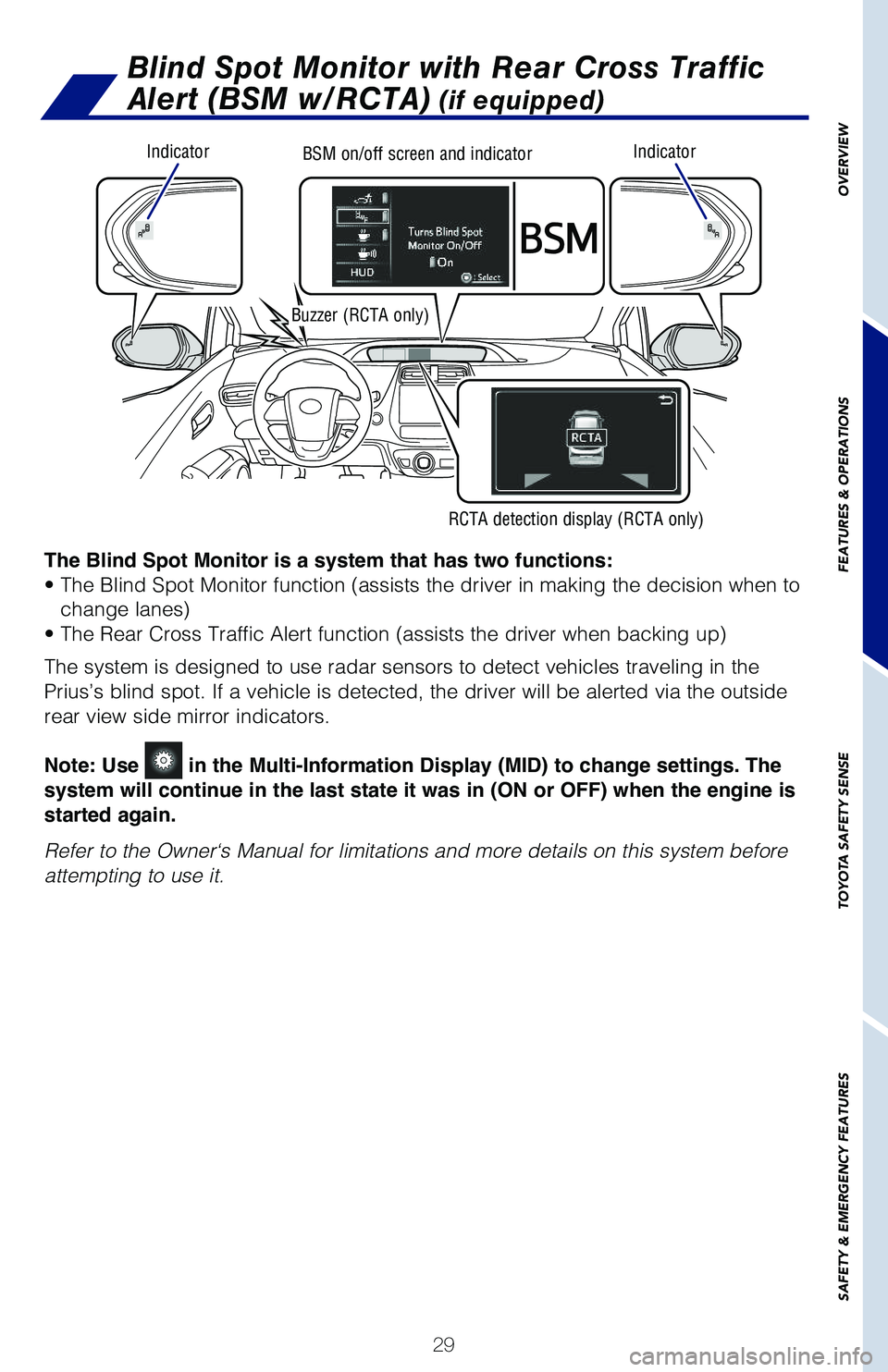

Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA) (if equipped)
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when to
change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling in the
Prius’s blind spot. If a vehicle is detected, the driver will be alerted via the outside
rear view side mirror indicators.
Note: Use in the Multi-Information Display (MID) to change settings. The
system will continue in the last state it was in (ON or OFF) when the engine is
started again.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
IndicatorIndicatorBSM on/off screen and indicator
Buzzer (RCTA only)
RCTA detection display (RCTA only)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2911/26/18 10:52 PM

30
FEATURES & OPERATIONS
The Intelligent Parking Assist (IPA) system automatically operates the steering
wheel to provide support when backing into an area near a target parking spot,
and when departing from a parallel parking spot. (Changing the shift position
and speed adjustment when moving forward or backing up are not performed
automatically.)
While the IPA is operating, if the system detects an obstacle that could result in a
collision, the emergency brakes operate, regardless of whether the Parking Support
Brake function is on or off.
* Refer to section S-APGS (Simple Advanced Parking Guidance System) in the
Owner’s Manual for limitations and more details.
TURNING IPA ASSIST MODE ON
IPA GUIDANCE SCREEN
IPA switch icon
Steering wheel auto operation displayIntuitive parking assist display/door position (open/close) display
Assistance level indicator
Stop displayOperation display area
Advice display
Intelligent Parking Assist (IPA)* (if equipped)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 3011/26/18 10:52 PM
