2019 TOYOTA PRIUS Owners Manual (in English)

7
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
START FUNCTION
Fuel tank door release & cap
NOTE: Tighten until one click is heard. If the cap is not locked or tightened,
Check Engine “” indicator may illuminate.
Smart Key system
Turn to open
Store
Without depressing the brake pedal, pressing the “POWER” switch will change the
operation mode in succession from:
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.
NOTE: The Smart Key must be carried to enable the start function. With gear
shift lever in Park and the brake pedal depressed, push the “POWER” switch.
POWER (WITHOUT STARTING HYBRID SYSTEM)
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 711/26/18 10:52 PM

8

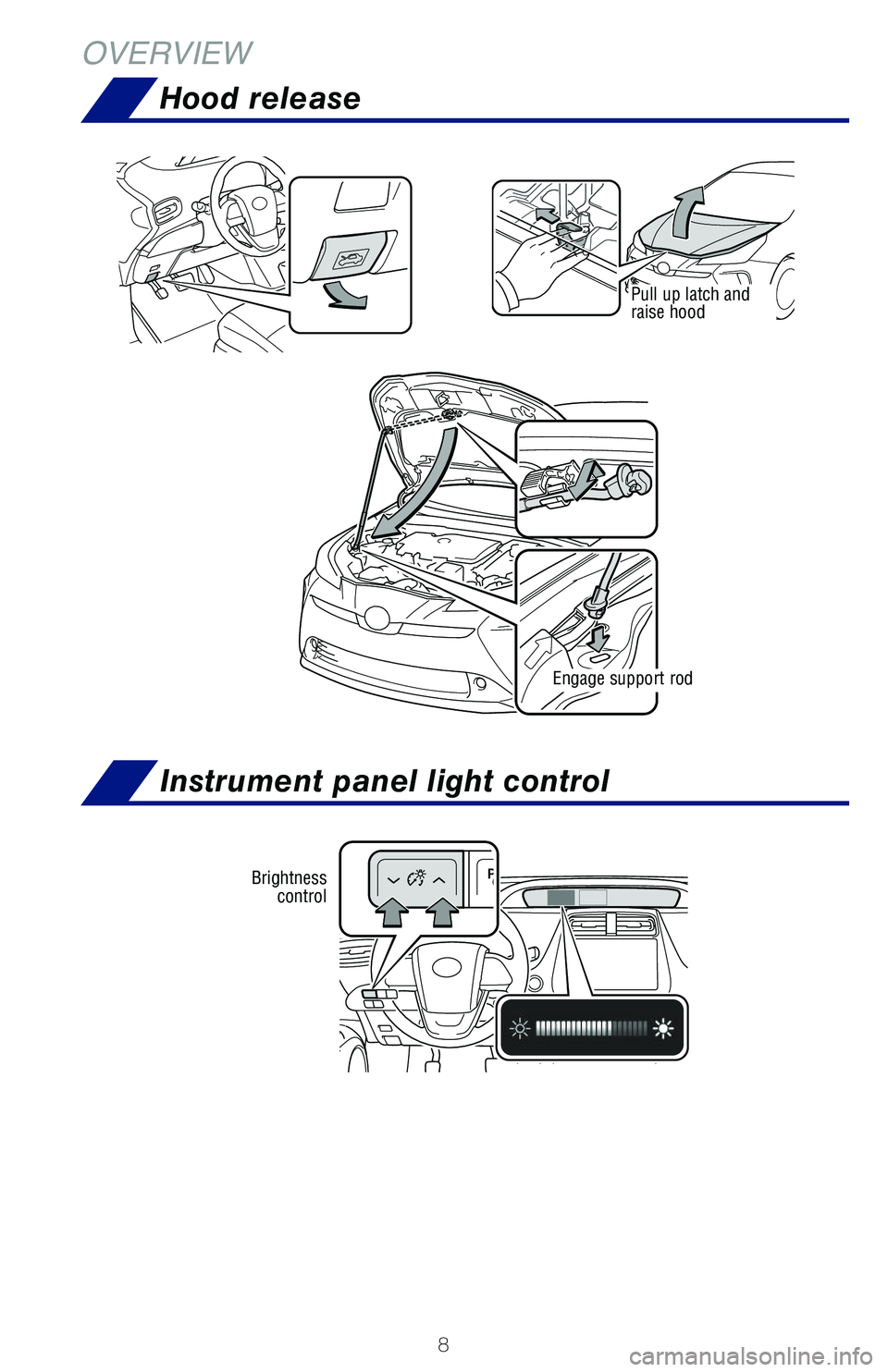

Instrument panel light control
Hood release
OVERVIEW
Pull up latch and raise hood
Engage support rod
Brightness control
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 811/26/18 10:52 PM

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

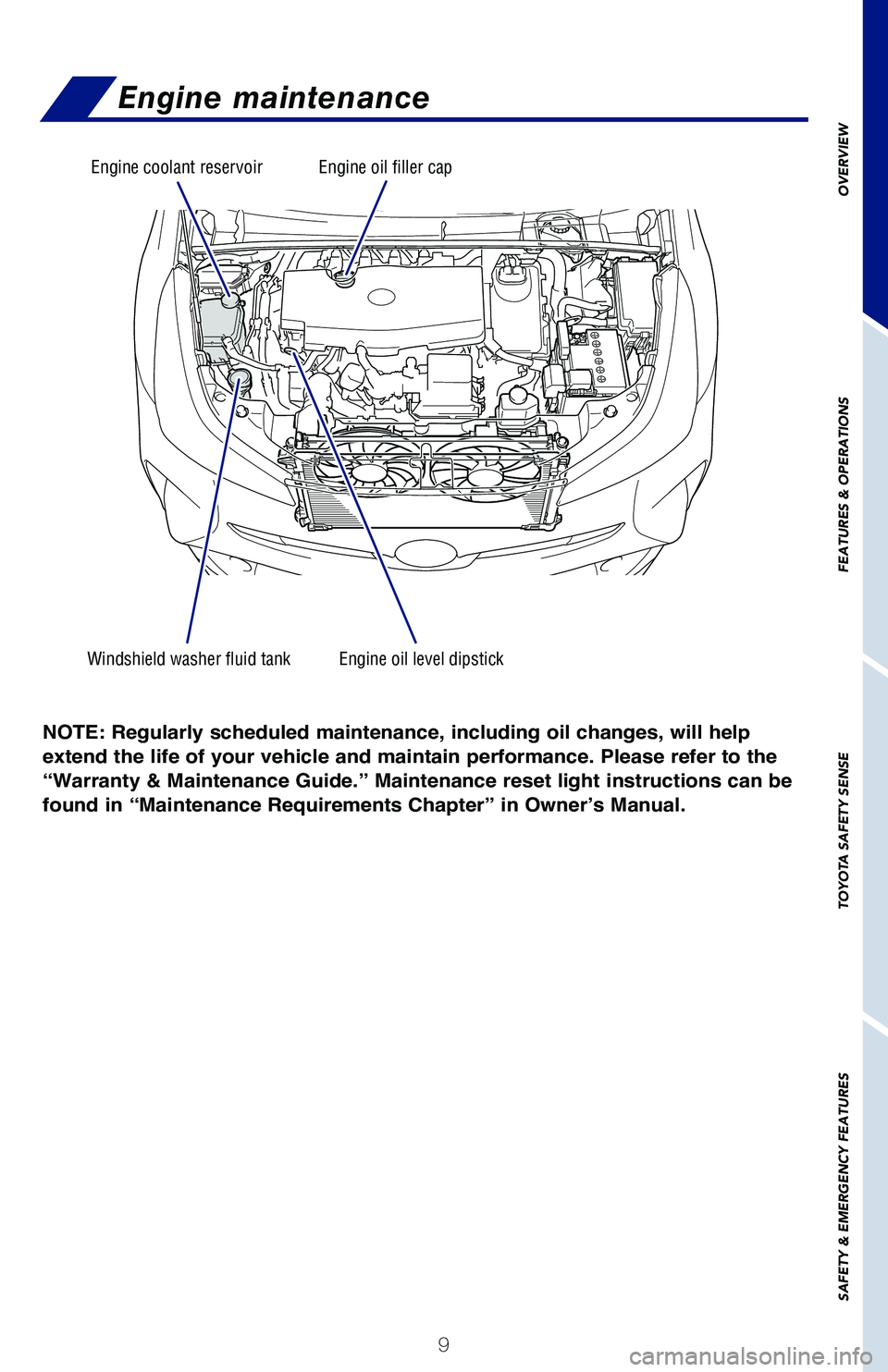

Engine maintenance
Windshield washer fluid tankEngine oil level dipstick
Engine coolant reservoirEngine oil filler cap
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.” Maintenance reset light instructions can be
found in “Maintenance Requirements Chapter” in Owner’s Manual.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 911/26/18 10:52 PM

10
TIPS FOR IMPROVED FUEL ECONOMY
STARTING YOUR VEHICLE
NOTE: Fuel consumption and energy information of the Hybrid System are
shown on the Entune™ Audio system screen or the navigation system.
The Hybrid Synergy Drive System utilizes a computer-controlled gasoline engine
and electric motor to provide the most efficient combination of power for the vehicle.
To conserve energy, when the brakes are applied the braking force generates
electricity which is then sent to the traction battery. In addition, the engine shuts off
when the vehicle is stopped. The benefits are better fuel economy, reduced vehicle
emissions and improved performance.
1. Ensure tire pressures are maintained at levels specified in the Owner’s Manual.
2. When possible, link trips to reduce engine cold starts.
3. Avoid driving at speeds that are higher than necessary, especially on the highway.
4. When possible, avoid sudden stops to maximize regenerative braking energy.
5. Minimize use of the air conditioning.
Hybrid Synergy Drive System
Auto lock/unlock
FEATURES & OPERATIONS
(1) Depress the brake pedal, and “”
will be displayed on the Multi-Information
Display.
(2) Press the “POWER” switch briefly and
firmly.
(3) The “READY” light will blink. After
a few seconds, when the light remains
steady and a beep sounds, you may
begin driving.
Automatic door locks can be programmed to operate in different modes, or turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph.
Driver’s door linked door unlocking function
-Doors unlock when the driver’s door is opened within 45 seconds after turning the
“POWER” switch to OFF.
Refer to the Owner’s Manual for more details.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1011/26/18 10:52 PM

11
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
* The engine brake is the equivalent of downshifting. Shift to “B” when engine
braking is desired (i.e. downhill driving, coasting to a stop, etc.).
Reverse
Park button
Neutral
Drive
Engine brake*
Hybrid transmission
Driving mode select switch
EV Drive Mode ON/OFF switch EV-Drive Mode allows the electric motor (traction
motor), powered by the hybrid battery (traction battery), to be used to drive the
vehicle under certain driving conditions.
Refer to the Owner’s Manual for more details.
Normal - Suitable for
normal driving.
Power mode - Use when
a higher level of response
is desired, such as when
driving in mountainous
regions.
ECO drive mode -
Helps achieve lower fuel
consumption during trips
that involve frequent
accelerating and braking.Refer to the Owner’s Manual for more details.
EV drive mode switch
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1111/26/18 10:52 PM

12
Parking brake
Set: DepressRelease: Depress again
Hold wheel, push lever down, set angle and length, and return lever.
NOTE: Do not attempt to adjust while the vehicle is in motion.
Tilt & telescopic steering wheel
FEATURES & OPERATIONS
The green indicator light on the engine switch will flash and a message will be
shown on the multi-information display. Press the engine switch while turning the
steering wheel left and right.
Push
Turn
Steering lock release
Lock release leverAngle
Length
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1211/26/18 10:52 PM

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

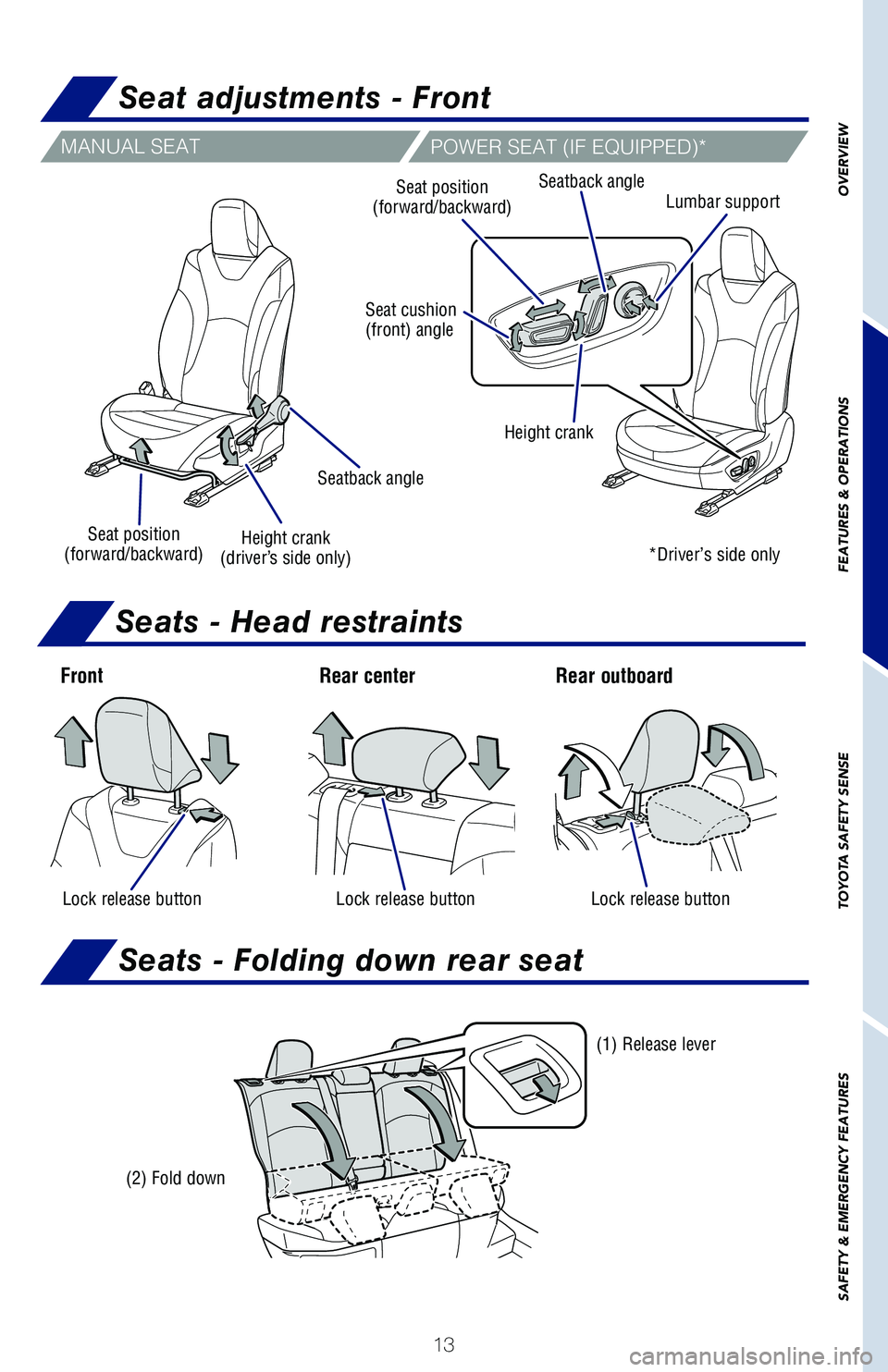

Seat adjustments - Front
Seats - Head restraints
Seats - Folding down rear seat
MANUAL SEATPOWER SEAT (IF EQUIPPED)*
FrontRear center
Lock release buttonLock release button
Rear outboard
Lock release button
*Driver’s side only
Seat position(forward/backward)
Seat cushion (front) angle
Height crank
Seatback angleLumbar support
Seatback angle
Seat position(forward/backward)Height crank(driver’s side only)
(2) Fold down
(1) Release lever
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1311/26/18 10:52 PM

14

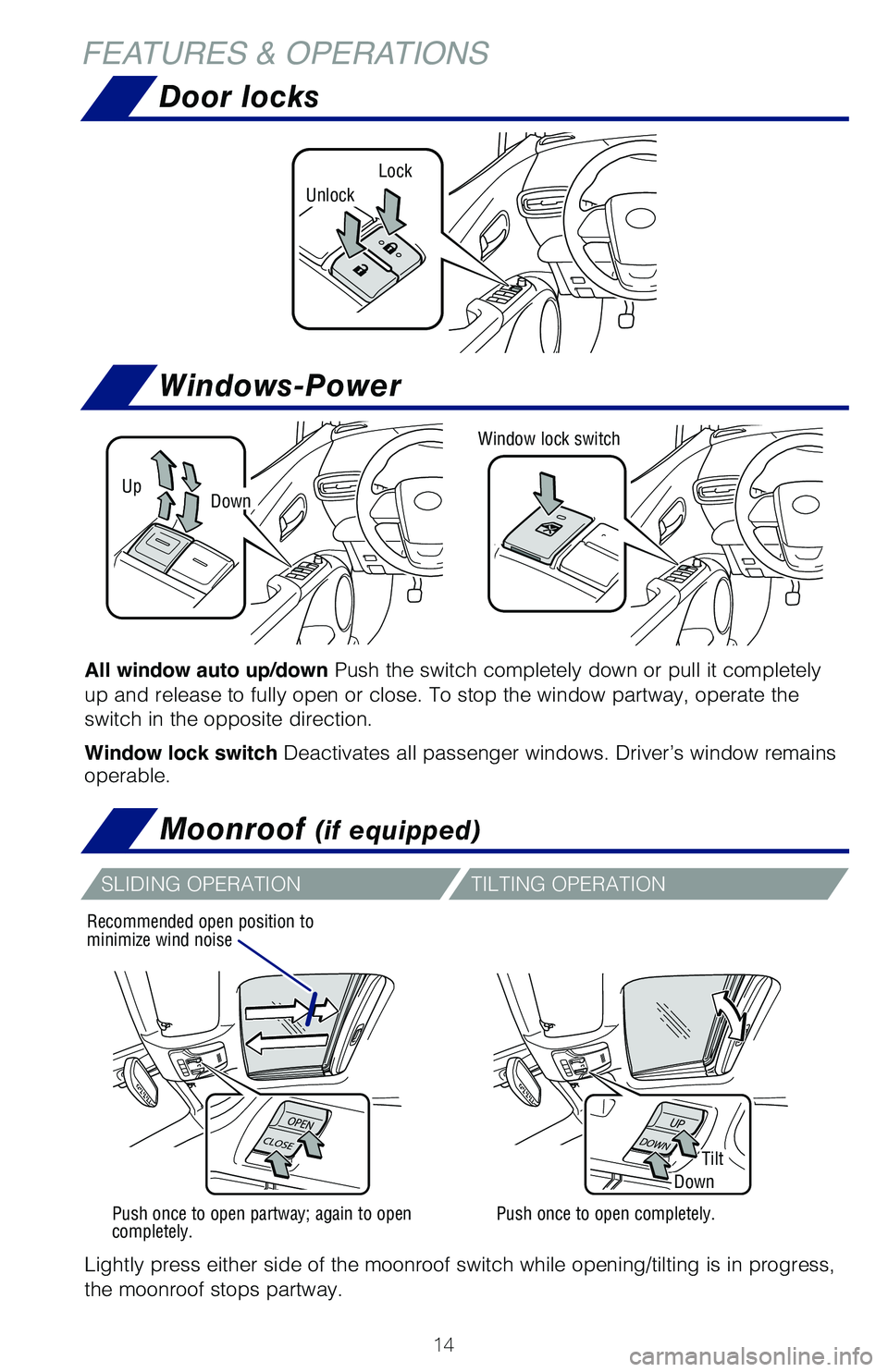

Windows-Power
Door locks
Moonroof (if equipped)
UpDown
Window lock switch
All window auto up/down Push the switch completely down or pull it completely
up and release to fully open or close. To stop the window partway, operate the
switch in the opposite direction.
Window lock switch Deactivates all passenger windows. Driver’s window remains operable.
Push once to open partway; again to open completely.
Unlock
Lock
SLIDING OPERATIONTILTING OPERATION
FEATURES & OPERATIONS
Recommended open position to minimize wind noise
Tilt
Down
Push once to open completely.
Lightly press either side of the moonroof switch while opening/tilting is in progress,
the moonroof stops partway.
