2019 TOYOTA PRIUS Owners Manual (in English)

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
FRONT-INTERMITTENT (IF EQUIPPED)
REAR (IF EQUIPPED)
FRONT-AUTO (RAIN-SENSING)(IF EQUIPPED)

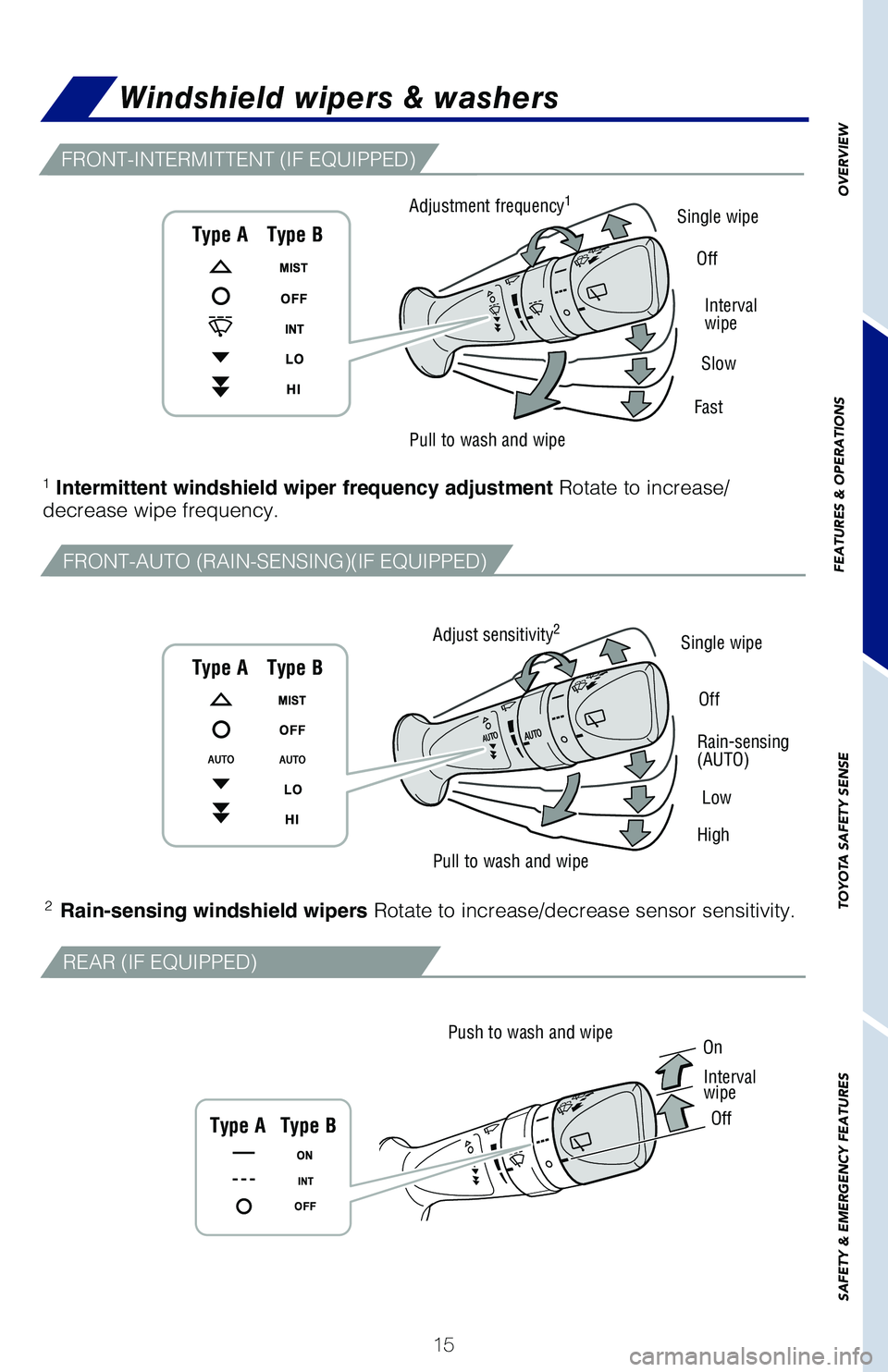

Windshield wipers & washers
1 Intermittent windshield wiper frequency adjustment Rotate to increase/decrease wipe frequency.
2 Rain-sensing windshield wipers Rotate to increase/decrease sensor sensitivity.
Type A
Type A
Type A
Type B
Type B
Type B
Single wipe
Pull to wash and wipe
Adjustment frequency1
Intervalwipe
Slow
Fast
Off
Single wipe
Off
Adjust sensitivity2
Pull to wash and wipe
Rain-sensing (AUTO)
Low
High
Off
On
Intervalwipe
Push to wash and wipe
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1511/26/18 10:52 PM

16
Lights & turn signals
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at night.
Automatic light cutoff system Automatically turns lights off after a delay of 30
seconds, or lock switch on remote is pushed after all doors are locked.
Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate for enhanced vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’s Manual for
more details on the Automatic High Beam feature.
** Operating conditions must be met. Refer to the Owner’s Manual for details.
Front fog lights come on only when the headlights are on low beam.
Type AType B
HEADLIGHTS
FRONT FOG LIGHTS (IF EQUIPPED)
TURN SIGNALS
FEATURES & OPERATIONS
DRL ON
OFF
Parking lights
Headlights
AUTO*
OFF
Parking lights
Headlights
*if equippedLow beam
OFF
ON
Right turn
Lane change
Lane change
Left turn
High beam flasherHigh beam
Auto High Beam**or
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1611/26/18 10:52 PM

17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
MICROPHONE
STEERING WHEEL AUDIO AND TELEPHONE CONTROLS
Steering wheel switches &
telephone controls (Bluetooth®)
Without moonroofWith moonroof
Bluetooth® technology allows dialing or receipt of calls without removing your hands
from the steering wheel or using a cable to connect the compatible telephone and
the system. * Push and hold to access Mobile Assistant. When a compatible smartphone is
Bluetooth® connected push and hold the off hook switch 2-3 seconds to access
Siri® Eyes Free.
Refer to “Bluetooth® Device Pairing Section,” in this guide, for more information
about phone connections and compatibility.
Refer to the “Owner’s Manual” or the “Navigation System Owner’s manual” for more
details.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the hands-free phone system if it will distract you.
Volume control
Start call/Mobile Assistant access*End callVoice command switch
“MODE” Push to turn audio ON and select an audio mode. Push and hold to mute/unmute or pause/resume the current operation.
“vv” Use to search within the selected audio medium (radio, CD, etc.).
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1711/26/18 10:52 PM

18
6.1” Display
Audio
FEATURES & OPERATIONS
CAR ButtonAccess to vehicle information screen. Touch screen displayPush to turn ON/OFF, turn to adjust the volume.
Seek station/CD track select
Touch to pause or resume playing
ButtonAccess Bluetooth hands-free system
Turn to tune radio stations manually or select tracks or files
ENTUNE™ AUDIO
Refer to the “Navigation System Owner’s Manual” and “2019 Prius Entune™ Audio
Quick Reference Guide”.
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
Eject CD
AUDIO ButtonAccess to audio functions.
SETUP ButtonAccess to setting screen.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1811/26/18 10:52 PM

19
OVERVIEW
FEATURES
& OPERATIONS
TOYOTA
SAFETY
SENSE
SAFETY
& EMERGENCY
FEATURES
Home buttonAccess to Homescreen.
Menu buttonAccess to Menuscreen.
Volume button
Push to turn ON/OFF.
Audio information display area
Touch screen displayAccess audio and navigation functions.

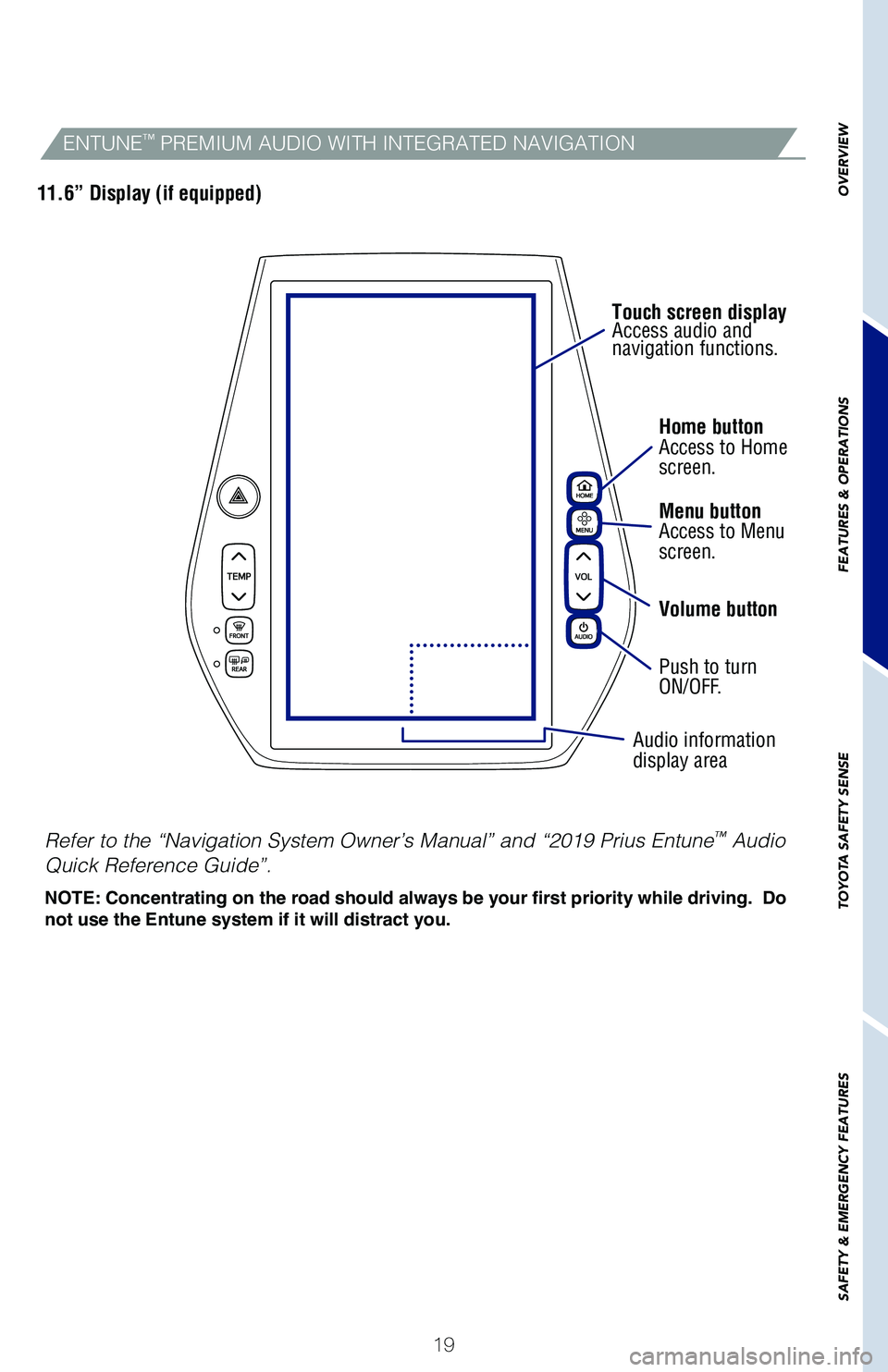

11.6” Display (if equipped)
ENTUNE™ PREMIUM AUDIO WITH INTEGRATED NAVIGATION
Refer to the “Navigation System Owner’s Manual” and “2019 Prius Entune™ Audio
Quick Reference Guide”.
NOTE: Concentrating on the road should always be your first priority while driving. Do not use the Entune system if it will distract you.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 1911/26/18 10:52 PM

20
FEATURES & OPERATIONS
Qi wireless charger (if equipped)
Power outlet-12V DC
The “POWER” switch must be set at “ACCESSORY” or “IGNITION ON” mode to be
used.
Power switch
Charge area
Operation indicator light
Press
When the engine is turned off, the last state (ON/OFF) of the charger is memorized.
Place
(1)
(2)
A mobile device can be charged wirelessly on the tray. (1) Press the wireless charger power switch and the green operation indicator light turns on. (2) Place a mobile device on the tray as shown in the illustration. An amber indicator illuminates while charging is in progress. When charging is complete, the indicator illuminates green. Some phones, cases or cover type wireless chargers may not cause the green indicator to illuminate even though it is fully charged.
Refer to the Owner‘s Manual for limitations and more details on this system before attempting to use it.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2011/26/18 10:52 PM

21

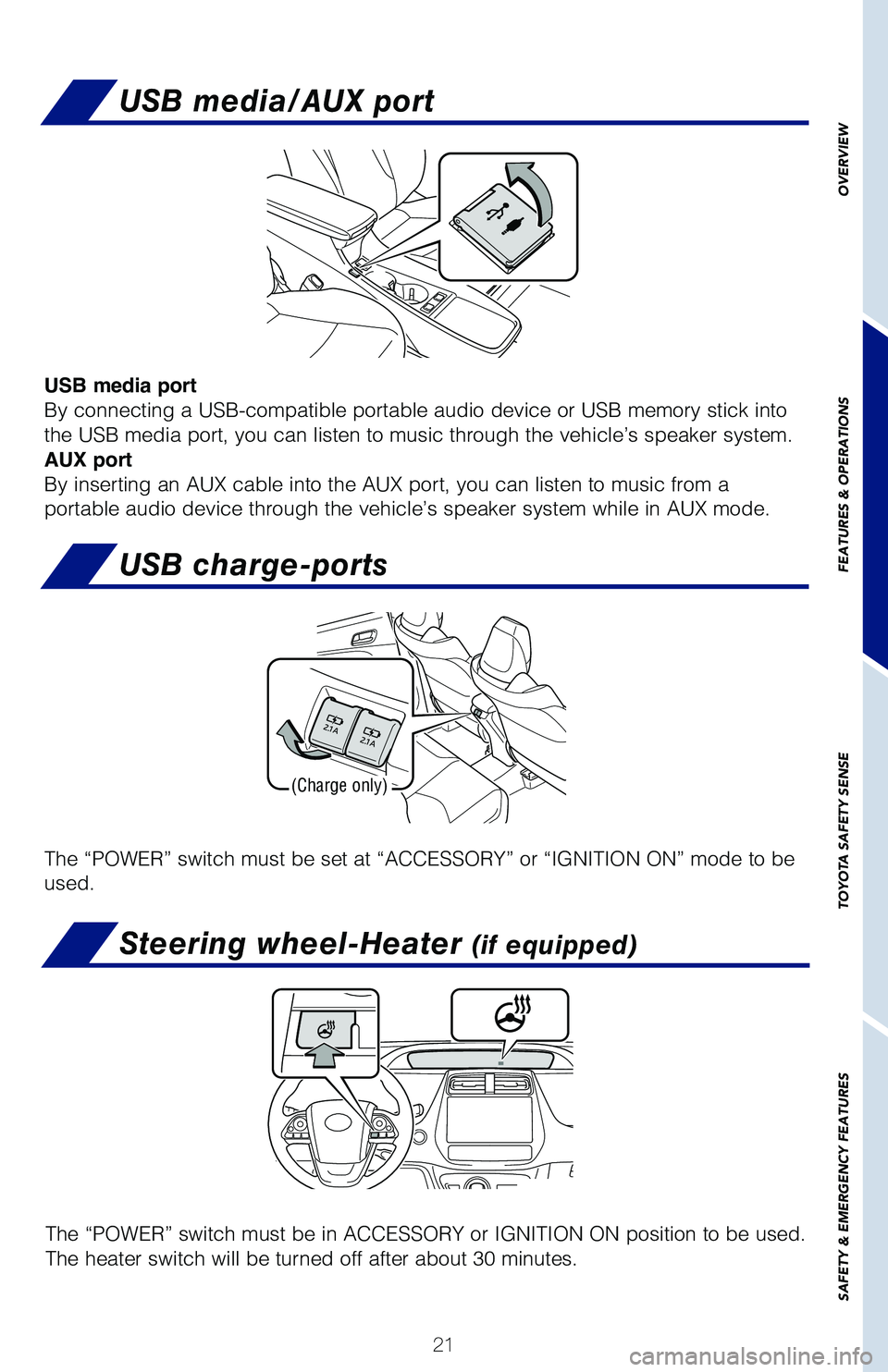

USB media/AUX port
USB media port
By connecting a USB-compatible portable audio device or USB memory stick into
the USB media port, you can listen to music through the vehicle’s speaker system.
AUX port
By inserting an AUX cable into the AUX port, you can listen to music from a
portable audio device through the vehicle’s speaker system while in AUX mode.
USB charge-ports
(Charge only)
The “POWER” switch must be set at “ACCESSORY” or “IGNITION ON” mode to be
used.
Steering wheel-Heater (if equipped)
The “POWER” switch must be in ACCESSORY or IGNITION ON position to be used.
The heater switch will be turned off after about 30 minutes.
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2111/26/18 10:52 PM

22
FEATURES & OPERATIONS
AUTOMATIC AIR CONDITIONING - 6.1” DISPLAY (IF EQUIPPED)
Air conditioning/heating
Air conditioningON/OFF
Recirculate cabin air (outside air when OFF)
Airflow vent
Windshield defogger
Outside rearview mirror/Rear window defogger
Automatic climate control ONAdjusting the temperature setting will cause the airflow vents, air intake and fan to adjust automatically.
Smart-flow (S-Flow) mode gives airflow priority to the front seats, reducing the airflow and air conditioning effect onrear seats when there are no passengers.
Climate control OFF
Temperature settingFan speed
Climate control that minimizes fuel consumption. This option may reduce fan speed.
Adjusters Up/Down: Change temperature,change fan speed, change vent mode.
Seat heaters (if equipped)
Driver seatFrontpassenger seat
The “POWER” switch must be in ACCESSORY or IGNITION ON position to be used.
116674_MY19_Prius_QRG_V3_ML_1126_TEXT_R1.indd 2211/26/18 10:52 PM
