Page 289 of 698

WARNING!(Continued)
vehicle properly parked with the engine off, fully
depress the accelerator, the brake, and the clutch
pedal (if present) to check for interference. If your
floor mat interferes with the operation of any pedal,
or is not secure to the floor, remove the floor mat
from the vehicle and place the floor mat in your
trunk.
• ONLY use the passenger ’s side floor mat on the
passenger ’s side floor area.
• ALWAYS make sure objects cannot fall or slide into
the driver ’s side floor area when the vehicle is
moving. Objects can become trapped under accelera-
tor, brake, or clutch pedals and could cause a loss of
vehicle control.
• NEVER place any objects under the floor mat (e.g.,
towels, keys, etc.). These objects could change the
position of the floor mat and may cause interference
with the accelerator, brake, or clutch pedals.
• If the vehicle carpet has been removed and re-
installed, always properly attach carpet to the floor
and check the floor mat fasteners are secure to the
vehicle carpet. Fully depress each pedal to check for
(Continued)
WARNING! (Continued)
interference with the accelerator, brake, or clutch
pedals then re-install the floor mats.
• It is recommended to only use mild soap and water
to clean your floor mats. After cleaning, always check
your floor mat has been properly installed and is
secured to your vehicle using the floor mat fasteners
by lightly pulling mat.
Periodic Safety Checks You Should Make Outside
The Vehicle
Tires
Examine tires for excessive tread wear and uneven wear
patterns. Check for stones, nails, glass, or other objects
lodged in the tread or sidewall. Inspect the tread for cuts
and cracks. Inspect sidewalls for cuts, cracks, and bulges.
Check the wheel bolts for tightness. Check the tires (includ-
ing spare) for proper cold inflation pressure.
Lights
Have someone observe the operation of brake lights and
exterior lights while you work the controls. Check turn
signal and high beam indicator lights on the instrument
panel.
5
SAFETY 287
Page 290 of 698

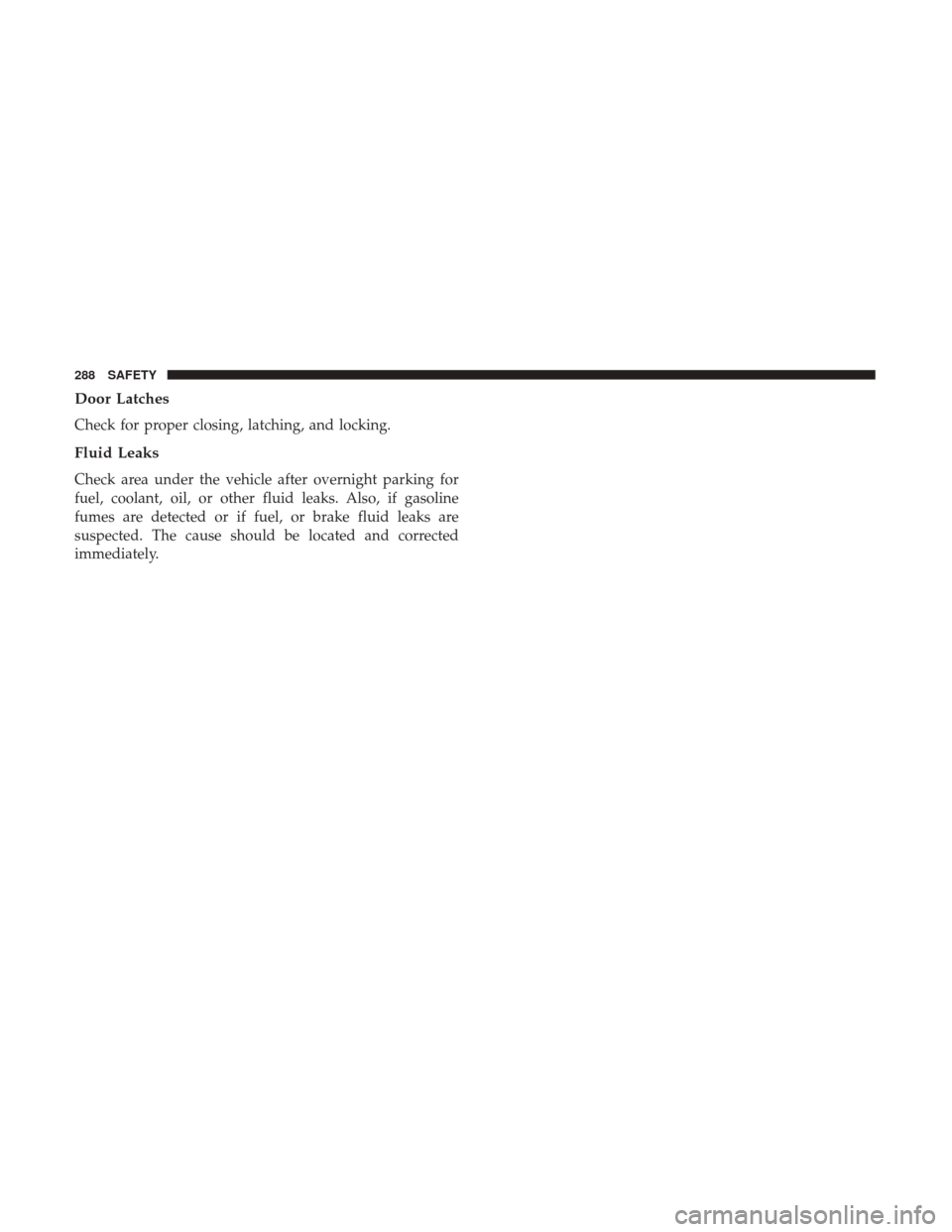

Door Latches
Check for proper closing, latching, and locking.
Fluid Leaks
Check area under the vehicle after overnight parking for
fuel, coolant, oil, or other fluid leaks. Also, if gasoline
fumes are detected or if fuel, or brake fluid leaks are
suspected. The cause should be located and corrected
immediately.
288 SAFETY
Page 291 of 698

STARTING AND OPERATING
CONTENTS
STARTING THE ENGINE ..................293
▫ Automatic Transmission ..................293
▫ Tip Start Feature ...................... .294
▫ Keyless Enter-N-Go — Ignition .............294
▫ Normal Starting Using ENGINE START/STOP
Button ............................. .294
▫ Cold Weather Operation
(Below –22°F Or 30°C) ..................299
▫ After Starting ......................... .299
ENGINE BLOCK HEATER — IF EQUIPPED . . . .299
ENGINE BREAK-IN RECOMMENDATIONS . . . .299
PARKING BRAKE ...................... .300
▫ Electric Park Brake (EPB) .................300
AUTOMATIC TRANSMISSION ..............304
▫ Ignition Park Interlock ...................306 ▫
Brake/Transmission Shift Interlock System . . . .306
▫ Eight-Speed Automatic Transmission .........306
FOUR-WHEEL DRIVE OPERATION —
IF EQUIPPED ......................... .313
▫ Four-Position Electronically Shifted Transfer Case
(Eight Speed Transmission Only) —
If Equipped ......................... .314
▫ Five-Position Electronically Shifted Transfer Case
(Eight Speed Transmission Only) —
If Equipped ......................... .318
ACTIVE-LEVEL FOUR CORNER AIR SUSPENSION
SYSTEM — IF EQUIPPED .................322
▫ Description .......................... .322
▫ Air Suspension Modes ...................325
▫ Instrument Cluster Display Messages .........326
▫ Operation ........................... .326
6
Page 292 of 698

ACTIVE-LEVEL FOUR CORNER AIR SUSPENSION
SYSTEM (REBEL MODELS ONLY) —
IF EQUIPPED ......................... .328
▫ Description .......................... .328
▫ Air Suspension Modes ...................331
▫ Instrument Cluster Display Messages .........332
▫ Operation ........................... .332
AXLE LOCKER SYSTEM — IF EQUIPPED ......334
LIMITED-SLIP DIFFERENTIAL — IF EQUIPPED .335
POWER STEERING ...................... .336
▫ Electric Power Steering ..................336
FUEL SAVER TECHNOLOGY 5.7L ENGINES
ONLY — IF EQUIPPED ....................337
STOP/START SYSTEM — IF EQUIPPED .......337
▫ Automatic Mode ...................... .337
▫ Possible Reasons The Engine Does Not
Autostop ............................ .338
▫ To Start The Engine While In Autostop Mode . . .338 ▫
To Manually Turn Off The Stop Start System . . .339
▫ To Manually Turn On The Stop Start System. . . .340
▫ System Malfunction .....................340
SPEED CONTROL — IF EQUIPPED ..........340
▫ To Activate .......................... .341
▫ To Set A Desired Speed ...................341
▫ To Vary The Speed Setting ................341
▫ To Accelerate For Passing .................343
▫ To Resume Speed ..................... .343
▫ To Deactivate ........................ .343
ADAPTIVE CRUISE CONTROL (ACC) — IF
EQUIPPED ........................... .343
▫ Adaptive Cruise Control (ACC) Operation .....345
▫ Activating
Adaptive Cruise Control (ACC) .....346
▫ To Activate/Deactivate ...................346
▫ To Set A Desired ACC Speed ...............347
▫ To Cancel ........................... .348
290 STARTING AND OPERATING
Page 293 of 698

▫ToTurnOff.......................... .348
▫ To Resume .......................... .348
▫ To Vary The Speed Setting ................349
▫ Setting The Following Distance In ACC .......351
▫ Overtake Aid ......................... .353
▫ ACC Operation At Stop ..................354
▫ Adaptive Cruise Control (ACC) Menu ........354
▫ Display Warnings And Maintenance .........355
▫ Precautions While Driving With ACC .........357
▫ General Information .....................361
▫ Normal (Fixed Speed) Cruise Control Mode . . . .361
PARKSENSE FRONT AND REAR PARK ASSIST . .364
▫ ParkSense Sensors ..................... .366
▫ ParkSense Warning Display ................366
▫ ParkSense Display ..................... .366
▫ Enabling And Disabling Front And/Or Rear
ParkSense ........................... .368▫
Service The ParkSense Park Assist System .....368
▫ Cleaning The ParkSense System .............369
▫ ParkSense System Usage Precautions .........369
PARKSENSE ACTIVE PARK ASSIST SYSTEM — IF
EQUIPPED ........................... .371
▫ Enabling And Disabling The ParkSense Active Park
Assist System ......................... .372
▫ Parallel Parking Space Assistance
Operation/Display ..................... .374
▫ Perpendicular Parking Space Assistance
Operation/Display ..................... .382
LANESENSE — IF EQUIPPED ..............391
▫ LaneSense Operation ....................391
▫ T
urning LaneSense On Or Off ..............392
▫ LaneSense Warning Message ...............393
▫ Changing LaneSense Status ................395
PARKVIEW REAR BACK UP CAMERA ........396
SURROUND VIEW CAMERA SYSTEM — IF
EQUIPPED ........................... .398
6
STARTING AND OPERATING 291
Page 294 of 698

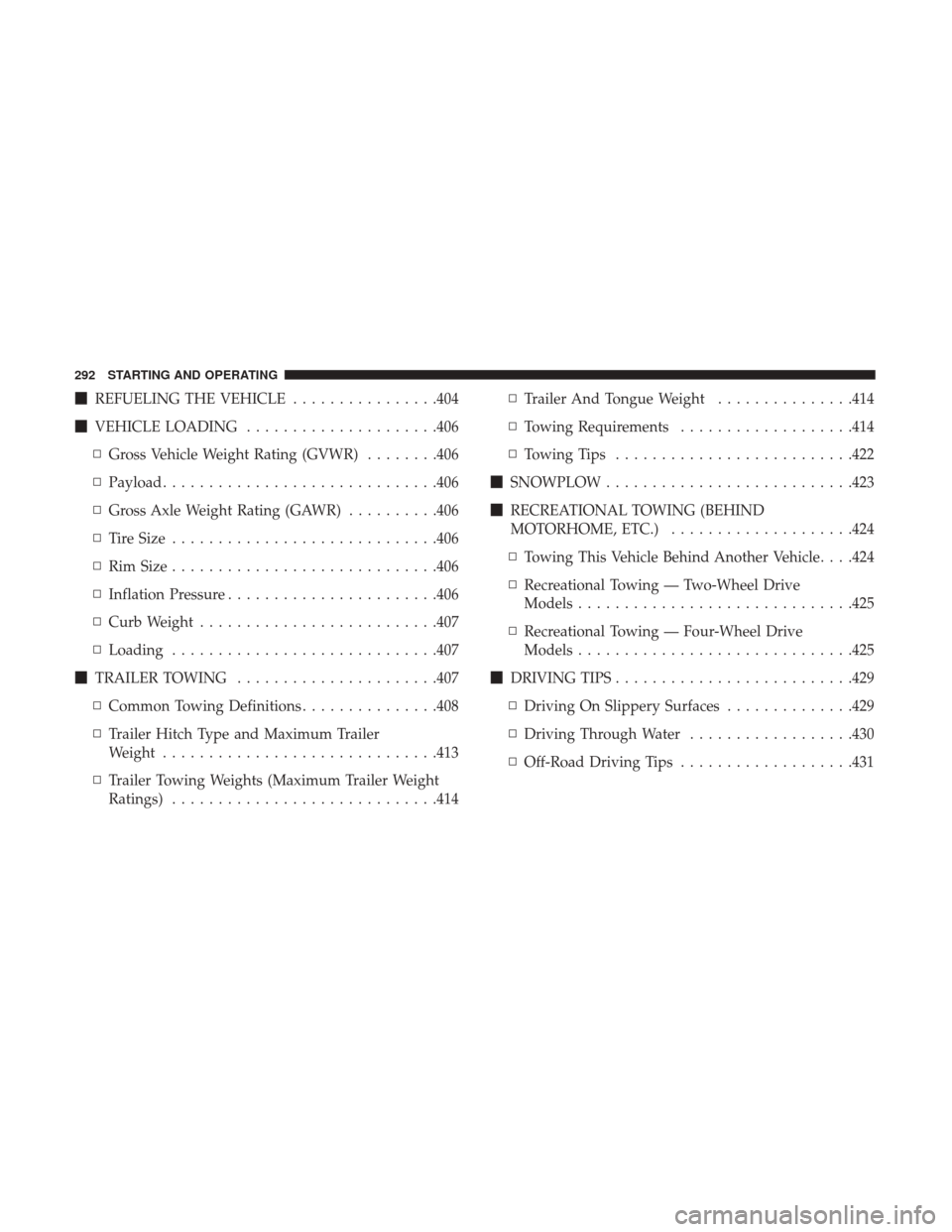

REFUELING THE VEHICLE ................404
VEHICLE LOADING .....................406
▫ Gross Vehicle Weight Rating (GVWR) ........406
▫ Payload ............................. .406
▫ Gross Axle Weight Rating (GAWR) ..........406
▫ Tire Size ............................ .406
▫ Rim Size ............................ .406
▫ Inflation Pressure ...................... .406
▫ Curb Weight ......................... .407
▫ Loading ............................ .407
TRAILER TOWING ..................... .407
▫ Common Towing Definitions ...............408
▫ Trailer Hitch Type and Maximum Trailer
Weight ............................. .413
▫ Trailer Towing Weights (Maximum Trailer Weight
Ratings) ............................ .414▫
Trailer And Tongue Weight ...............414
▫ Towing Requirements ...................414
▫ Towing Tips ......................... .422
SNOWPLOW .......................... .423
RECREATIONAL TOWING (BEHIND
MOTORHOME, ETC.) ....................424
▫ Towing This Vehicle Behind Another Vehicle. . . .424
▫ Recreational Towing — Two-Wheel Drive
Models ............................. .425
▫ Recreational Towing — Four-Wheel Drive
Models ............................. .425
DRIVING TIPS ......................... .429
▫ Driving On Slippery Surfaces ..............429
▫ Driving Through Water ..................430
▫ Of
f-Road Driving Tips ...................431
292 STARTING AND OPERATING
Page 295 of 698

STARTING THE ENGINE
Before starting your vehicle, adjust your seat, adjust both
inside and outside mirrors, and fasten your seat belt.
The starter should not be operated for more than 10-second
intervals. Waiting a few seconds between such intervals
will protect the starter from overheating.
WARNING!
•When leaving the vehicle, always make sure the
keyless ignition node is in the OFFmode, remove
the key fob from the vehicle and lock the vehicle.
•
Never leave children alone in a vehicle, or with access
to an unlocked vehicle. Allowing children to be in a
vehicle unattended is dangerous for a number of
reasons. A child or others could be seriously or fatally
injured. Children should be warned not to touch the
parking brake, brake pedal or the gear selector.
•Do not leave the key fob in or near the vehicle, or in a
location accessible to children, and do not leave the
ignition of a vehicle equipped with Keyless Enter-
N-Go in the ACC or ON/RUN mode. A child could
operate power windows, other controls, or move the
vehicle.
(Continued)
WARNING! (Continued)
•Do not leave children or animals inside parked
vehicles in hot weather. Interior heat build-up may
cause serious injury or death.
Automatic Transmission
Start the engine with the transmission in PARK position.
Apply the brake before shifting into any driving range.
NOTE:
• This vehicle is equipped with a transmission shift inter-
locking system. The brake pedal must be pressed to shift
out of PARK.
• If equipped with an 8-speed transmission, starting the
vehicle in NEUTRAL is not possible unless the Manual
Park Release has been activated. For the Manual Park
Release operation refer to Manual Park Release in “In
Case Of Emergency”.
6
STARTING AND OPERATING 293
Page 296 of 698

Tip Start Feature
Do notpress the accelerator. Cycle the ignition switch
briefly to the START position and release it. The starter
motor will continue to run and will automatically disen-
gage when the engine is running.
Keyless Enter-N-Go — Ignition
This feature allows the driver to operate the ignition switch
with the push of a button, as long as the Remote Start/
Keyless Enter-N-Go key fob is in the passenger
compartment.
Normal Starting Using ENGINE START/STOP
Button
To Turn On The Engine Using The ENGINE START/
STOP Button
1. The transmission must be in PARK.
2. Press and hold the brake pedal while pushing the ENGINE START/STOP button once.
3. The system takes over and attempts to start the vehicle. If the vehicle fails to start, the starter will disengage
automatically after 10 seconds.
4. If you wish to stop the cranking of the engine prior to the engine starting, push the button again.
NOTE: Normal starting of either a cold or a warm engine
is obtained without pumping or pressing the accelerator
pedal.
To Turn Off The Engine Using ENGINE START/STOP
Button
1. Place the gear selector in PARK, then push and release the ENGINE START/STOP button.
2. The ignition will return to the OFF mode.
Keyless Push Button Ignition
294 STARTING AND OPERATING
