2019 NISSAN ALTIMA Owner´s Manual

PR25DD engine
1. Engine coolant reservoir (P. 8-6)
2. Drive belt location (P. 8-17)
3. Engine oil filler cap (P. 8-8)
4. Engine oil dipstick (P. 8-8)
5. Brake fluid reservoir (P. 8-13)
6. Battery (P. 8-15)
7. Fuse/Fusible link box (P. 8-22)
8. Air filter (P. 8-19)
9. Radiator cap (P. 8-6)
10. Windshield-washer fluid reservoir(P. 8-14)
Refer to the page number indicated in
parentheses for operating details.
LDI3261
Illustrated table of contents0-9

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-10
Automatic Emer-
gency Braking
(AEB) system
warning light
(if so equipped)2-10
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-10
or
Brake warning
light
2-11
Warning
light Name Page
Charge warning
light 2-11
Electronic parking
brake warning
light (yellow)
(if so equipped)2-12
Engine oil pres-
sure warning light
2-12
Low tire pressure
warning light2-12
Master warning
light2-14
Power steering
warning light2-14
Rear Automatic
Braking (RAB)
warning light
(if so equipped)2-14
Warning
light Name Page
Seat belt warning
light and chime 2-14
Supplemental air
bag warning light 2-15
Indicator
light Name Page
Automatic brake
hold indicator
light (green) (if so
equipped) 2-15
Automatic brake
hold indicator
light (white) (if so
equipped)2-15
or
Electronic parking
brake indicator
light (red) (if so
equipped)2-15
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

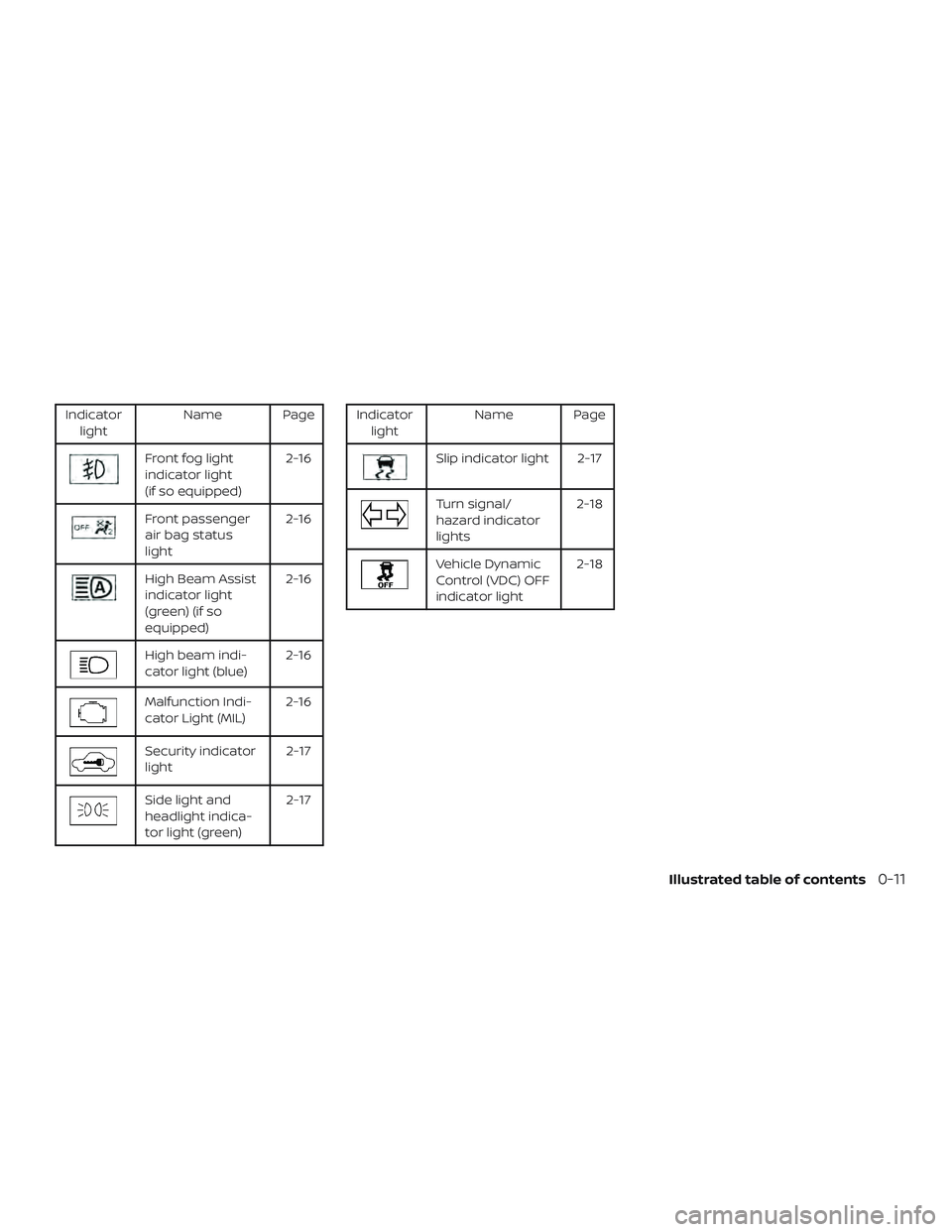

Indicatorlight Name Page
Front fog light
indicator light
(if so equipped) 2-16
Front passenger
air bag status
light2-16
High Beam Assist
indicator light
(green) (if so
equipped)2-16
High beam indi-
cator light (blue)
2-16
Malfunction Indi-
cator Light (MIL)2-16
Security indicator
light 2-17
Side light and
headlight indica-
tor light (green)2-17
Indicator
light Name Page
Slip indicator light 2-17
Turn signal/
hazard indicator
lights 2-18
Vehicle Dynamic
Control (VDC) OFF
indicator light2-18
Illustrated table of contents0-11

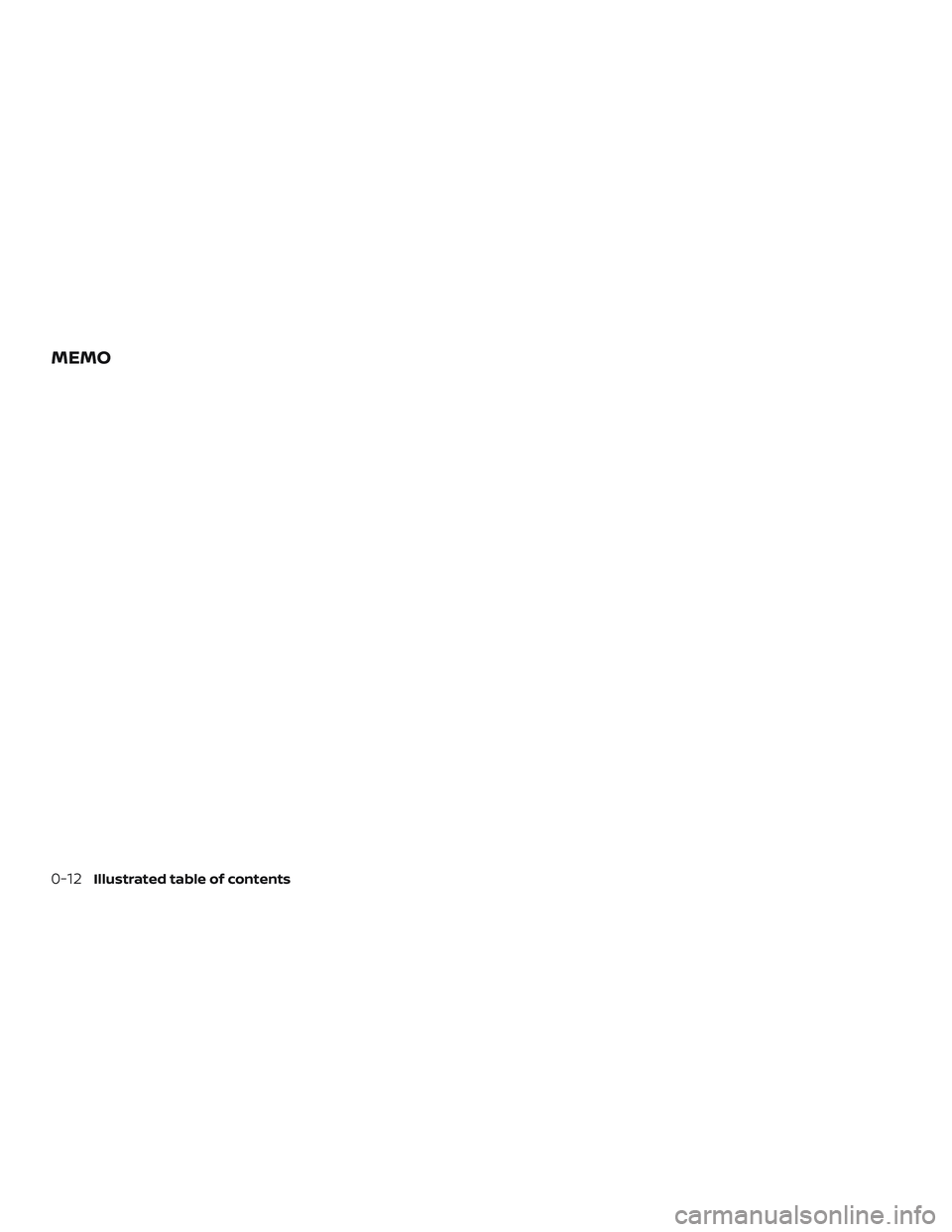

MEMO
0-12Illustrated table of contents

1 Safety—Seats, seat belts and
supplemental restraint system
Seats............................................ 1-2Front manual seat adjustment
(if so equipped for passenger’s seat) ...........1-3
Front power seat adjustment
(for driver’s seat and if so equipped for
passenger’s seat) ............................. 1-4
Folding rear seat ............................. 1-5
Center armrest ................................1-7
Head restraints/headrests .......................1-7
Adjustable head restraint/headrest
components ................................. 1-8
Non-adjustable head restraint/
headrest components ........................ 1-9
Remove...................................... 1-9
Install ......................................... 1-10
Adjust ........................................ 1-10
Seatbelts ....................................... 1-12
Precautions on seat belt usage ...............1-12
Seat belt warning light and chime ............1-14
Pregnant women ............................. 1-15
Injured persons ............................... 1-15
Three-point type seat belt with
retractor ..................................... 1-15Seat belt extenders
.......................... 1-20
Seat belt maintenance ......................1-20
Child safety ...................................... 1-21
Infants ...................................... 1-22
Small children ............................... 1-22
Larger children .............................. 1-22
Child restraints ................................. 1-23
Precautions on child restraints ..............1-23
LATCH (Lower Anchors and Tethers for
CHildren) system ............................ 1-26
Rear-facing child restraint installation
using LATCH ................................. 1-28
Rear-facing child restraint installation
using the seat belts .......................... 1-31
Forward-facing child restraint
installation using LATCH .....................1-34
Forward-facing child restraint
installation using the seat belts ..............1-38
Booster seats ............................... 1-42
Supplemental Restraint System (SRS) ...........1-46
Precautions on SRS .......................... 1-46
Supplemental air bag warning labels ........1-66
Supplemental air bag warning light ..........1-66

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped for
passenger’s seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section. Also, the seatback
can be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS3029LRS3030
Safety—Seats, seat belts and supplemental restraint system1-3

FRONT POWER SEAT ADJUSTMENT
(for driver’s seat and if so
equipped for passenger’s seat)Operating tips
WARNING
Before driving the vehicle, return the
seatback to an upright seating position
af ter manually releasing it. Also, make
sure the seat is locked in place. Failure
to do so may cause the seat to move in a
collision or sudden stop. This may result
in damage to the seat or personal
injury. ∙ The power seat motor has an auto-
reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the en-
gine is off. This will discharge the bat-
tery.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section. Also, the seatback
can be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system
