2019 NISSAN ALTIMA lock

1. Power windows (P. 2-60)
2. Windshield (P. 8-20)
3. Wiper and washer switch (P. 2-42)
4. Engine hood (P. 3-24)
5. Front view camera (if so equipped)(P. 4-11)
6. Fog light switch (if so equipped)
(P. 2-43)
Daytime Running Lights (DRL)
system (Type A) (if so equipped)
(P. 2-43)
Turn signal switch (P. 2-43)
7. Headlight switch (P. 2-43) LED Daytime Running Lights (DRL)
system (Type B) (if so equipped)
(P. 2-43)
Replacing bulbs (P. 8-26)
8. Tire pressure (P. 8-30) Flat tire (P. 6-3)
Tire chains (P. 8-30)
9. Mirrors (P. 3-31) Side view camera (if so equipped)
(P. 4-11)
10. Door locks (P. 3-4) NISSAN Intelligent Key® (P. 3-7)
Keys (P. 3-2)
Refer to the page number indicated in
parentheses for operating details.
LII2559
EXTERIOR FRONT
Illustrated table of contents0-3

1. Rear window and outside mirror(if so equipped) defroster switch
(P. 2-43)
2. Trunk lid (P. 3-25)
3. Sonar sensors (if so equipped)
(P. 5-176)
4. Rearview camera (P. 4-3)
5. Replacing bulbs (P. 8-26)
6. Fuel-filler cap (P. 3-27) Fuel recommendation (P. 10-2)
Fuel-filler door (P. 3-27)
7. Child safety rear door lock (P. 3-4)
Refer to the page number indicated in
parentheses for operating details.
LIC4027
EXTERIOR REAR
0-4Illustrated table of contents

Warninglight Name Page
or
Anti-lock Braking
System (ABS)
warning light 2-10
Automatic Emer-
gency Braking
(AEB) system
warning light
(if so equipped)2-10
Automatic Emer-
gency Braking
(AEB) with Pedes-
trian Detection
system warning
light (if so
equipped)2-10
or
Brake warning
light
2-11
Warning
light Name Page
Charge warning
light 2-11
Electronic parking
brake warning
light (yellow)
(if so equipped)2-12
Engine oil pres-
sure warning light
2-12
Low tire pressure
warning light2-12
Master warning
light2-14
Power steering
warning light2-14
Rear Automatic
Braking (RAB)
warning light
(if so equipped)2-14
Warning
light Name Page
Seat belt warning
light and chime 2-14
Supplemental air
bag warning light 2-15
Indicator
light Name Page
Automatic brake
hold indicator
light (green) (if so
equipped) 2-15
Automatic brake
hold indicator
light (white) (if so
equipped)2-15
or
Electronic parking
brake indicator
light (red) (if so
equipped)2-15
WARNING AND INDICATOR LIGHTS
0-10Illustrated table of contents

WARNING
∙ Do not ride in a moving vehicle whenthe seatback is reclined. This can be
dangerous. The shoulder belt will not
be against your body. In an accident,
you could be thrown into it and re-
ceive neck or other serious injuries.
You could also slide under the lap belt
and receive serious internal injuries. ∙ For the most effective protection
when the vehicle is in motion, the seat
should be upright. Always sit well
back and upright in the seat with both
feet on the floor and adjust the seat
properly. For additional information,
refer to “Precautions on seat belt us-
age” in this section.
∙ Af ter adjustment, gently rock in the seat to make sure it is securely locked. ∙ Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls or
make the vehicle move. Unattended
children could become involved in se-
rious accidents.
∙ To help avoid risk of injury or death through unintended operation of the
vehicle and/or its systems, do not
leave children, people who require the
assistance of others or pets unat-
tended in your vehicle. Additionally,
the temperature inside a closed ve-
hicle on a warm day can quickly be-
come high enough to cause a signifi-
cant risk of injury or death to people
and pets.
∙ Do not adjust the driver’s seat while driving so full attention may be given
to vehicle operation. The seat may
move suddenly and could cause loss
of control of the vehicle.
∙ The seatback should not be reclined any more than needed for comfort.
Seat belts are most effective when the
passenger sits well back and straight
up in the seat. If the seatback is re-
clined, the risk of sliding under the lap
belt and being injured is increased.
ARS1152
SEATS
1-2Safety—Seats, seat belts and supplemental restraint system

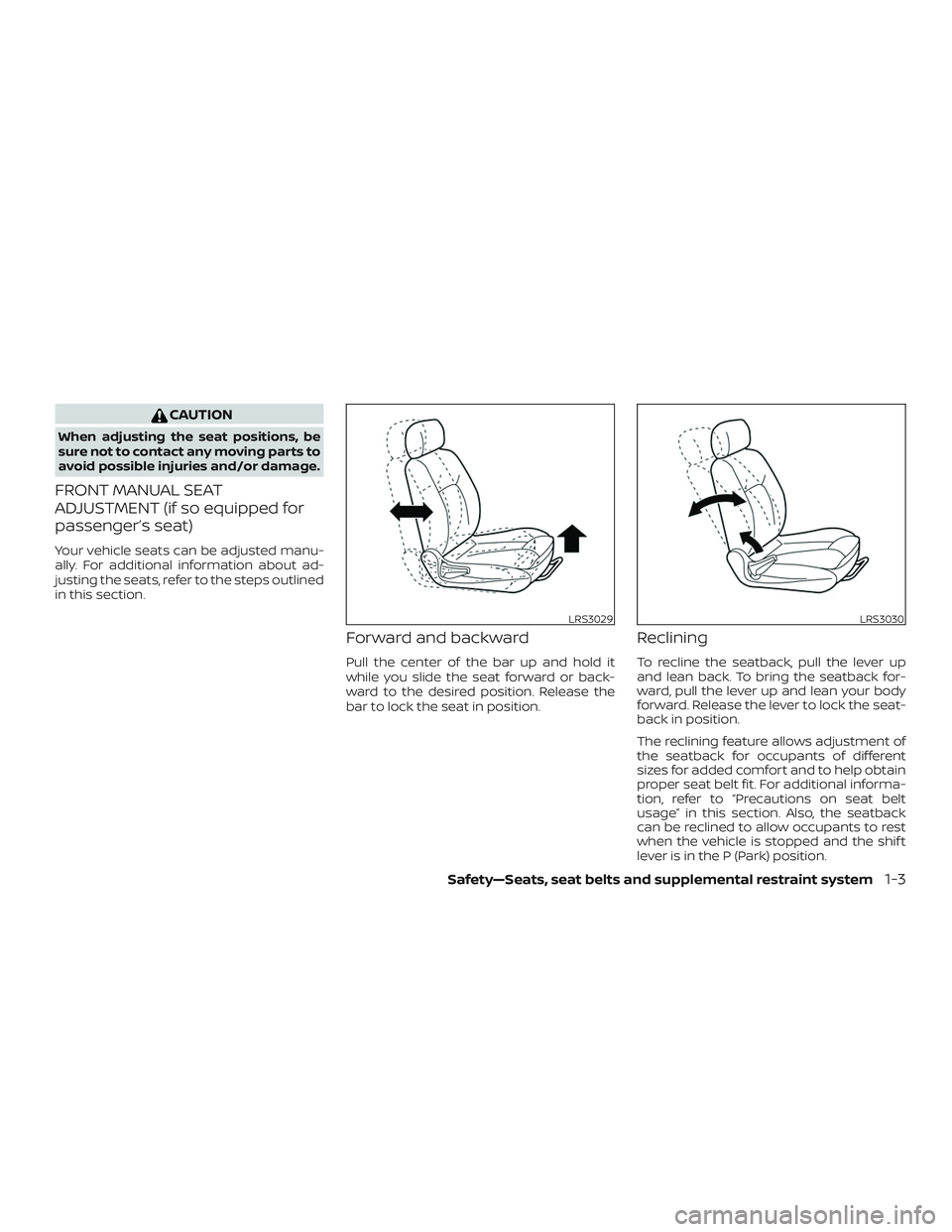

CAUTION
When adjusting the seat positions, be
sure not to contact any moving parts to
avoid possible injuries and/or damage.
FRONT MANUAL SEAT
ADJUSTMENT (if so equipped for
passenger’s seat)
Your vehicle seats can be adjusted manu-
ally. For additional information about ad-
justing the seats, refer to the steps outlined
in this section.
Forward and backward
Pull the center of the bar up and hold it
while you slide the seat forward or back-
ward to the desired position. Release the
bar to lock the seat in position.
Reclining
To recline the seatback, pull the lever up
and lean back. To bring the seatback for-
ward, pull the lever up and lean your body
forward. Release the lever to lock the seat-
back in position.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section. Also, the seatback
can be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS3029LRS3030
Safety—Seats, seat belts and supplemental restraint system1-3

FRONT POWER SEAT ADJUSTMENT
(for driver’s seat and if so
equipped for passenger’s seat)Operating tips
WARNING
Before driving the vehicle, return the
seatback to an upright seating position
af ter manually releasing it. Also, make
sure the seat is locked in place. Failure
to do so may cause the seat to move in a
collision or sudden stop. This may result
in damage to the seat or personal
injury. ∙ The power seat motor has an auto-
reset overload protection circuit. If the
motor stops during operation, wait
30 seconds then reactivate the switch.
∙ Do not operate the power seat switch for a long period of time when the en-
gine is off. This will discharge the bat-
tery.
Forward and backward
Moving the switch as shown will slide the
seat forward or backward to the desired
position.
Reclining
Move the recline switch as shown until the
desired angle is obtained.
The reclining feature allows adjustment of
the seatback for occupants of different
sizes for added comfort and to help obtain
proper seat belt fit. For additional informa-
tion, refer to “Precautions on seat belt
usage” in this section. Also, the seatback
can be reclined to allow occupants to rest
when the vehicle is stopped and the shif t
lever is in the P (Park) position.
LRS2662
1-4Safety—Seats, seat belts and supplemental restraint system

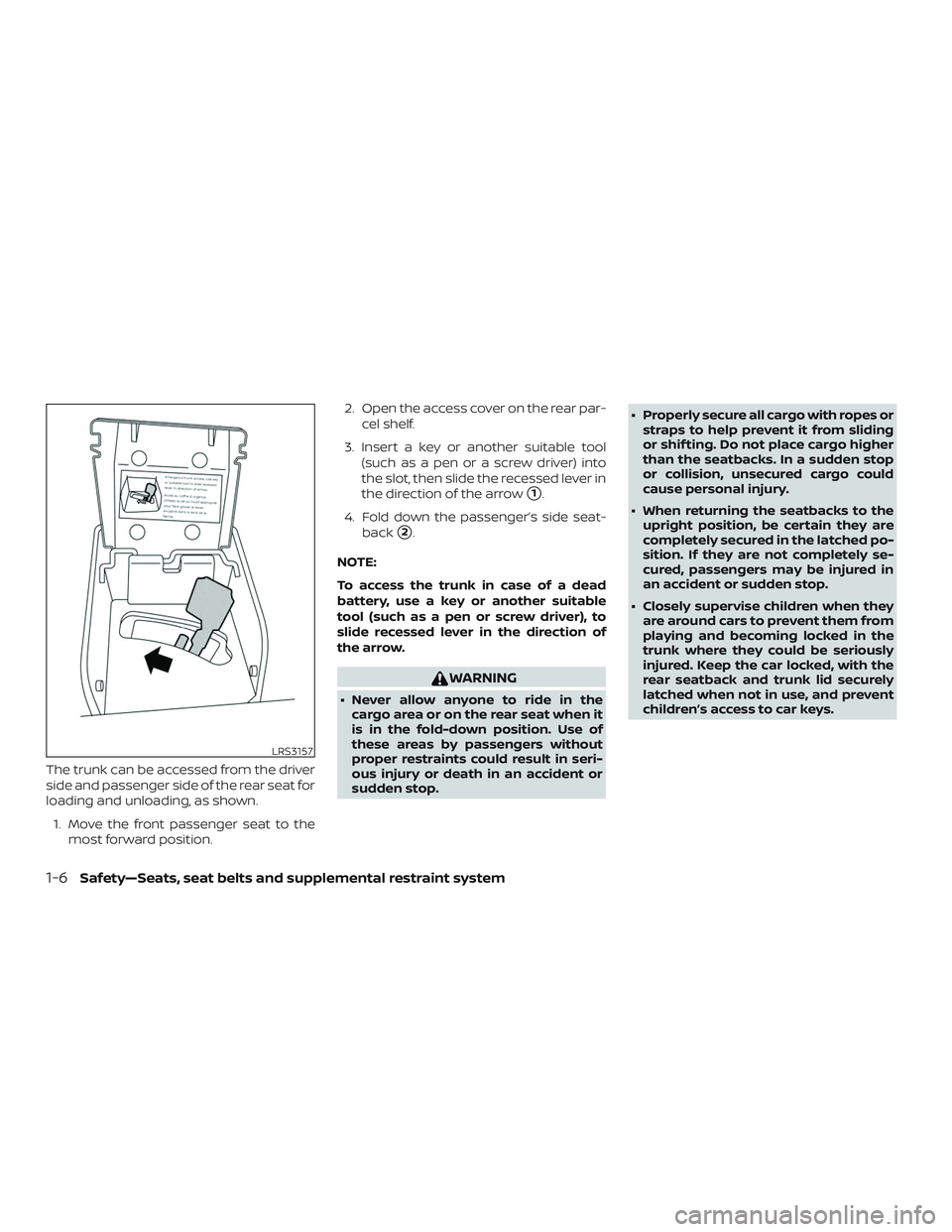

The trunk can be accessed from the driver
side and passenger side of the rear seat for
loading and unloading, as shown.1. Move the front passenger seat to the most forward position. 2. Open the access cover on the rear par-
cel shelf.
3. Insert a key or another suitable tool (such as a pen or a screw driver) into
the slot, then slide the recessed lever in
the direction of the arrow
1.
4. Fold down the passenger’s side seat- back
2.
NOTE:
To access the trunk in case of a dead
battery, use a key or another suitable
tool (such as a pen or screw driver), to
slide recessed lever in the direction of
the arrow.
WARNING
∙ Never allow anyone to ride in the cargo area or on the rear seat when it
is in the fold-down position. Use of
these areas by passengers without
proper restraints could result in seri-
ous injury or death in an accident or
sudden stop. ∙ Properly secure all cargo with ropes or
straps to help prevent it from sliding
or shif ting. Do not place cargo higher
than the seatbacks. In a sudden stop
or collision, unsecured cargo could
cause personal injury.
∙ When returning the seatbacks to the upright position, be certain they are
completely secured in the latched po-
sition. If they are not completely se-
cured, passengers may be injured in
an accident or sudden stop.
∙ Closely supervise children when they are around cars to prevent them from
playing and becoming locked in the
trunk where they could be seriously
injured. Keep the car locked, with the
rear seatback and trunk lid securely
latched when not in use, and prevent
children’s access to car keys.
LRS3157
1-6Safety—Seats, seat belts and supplemental restraint system

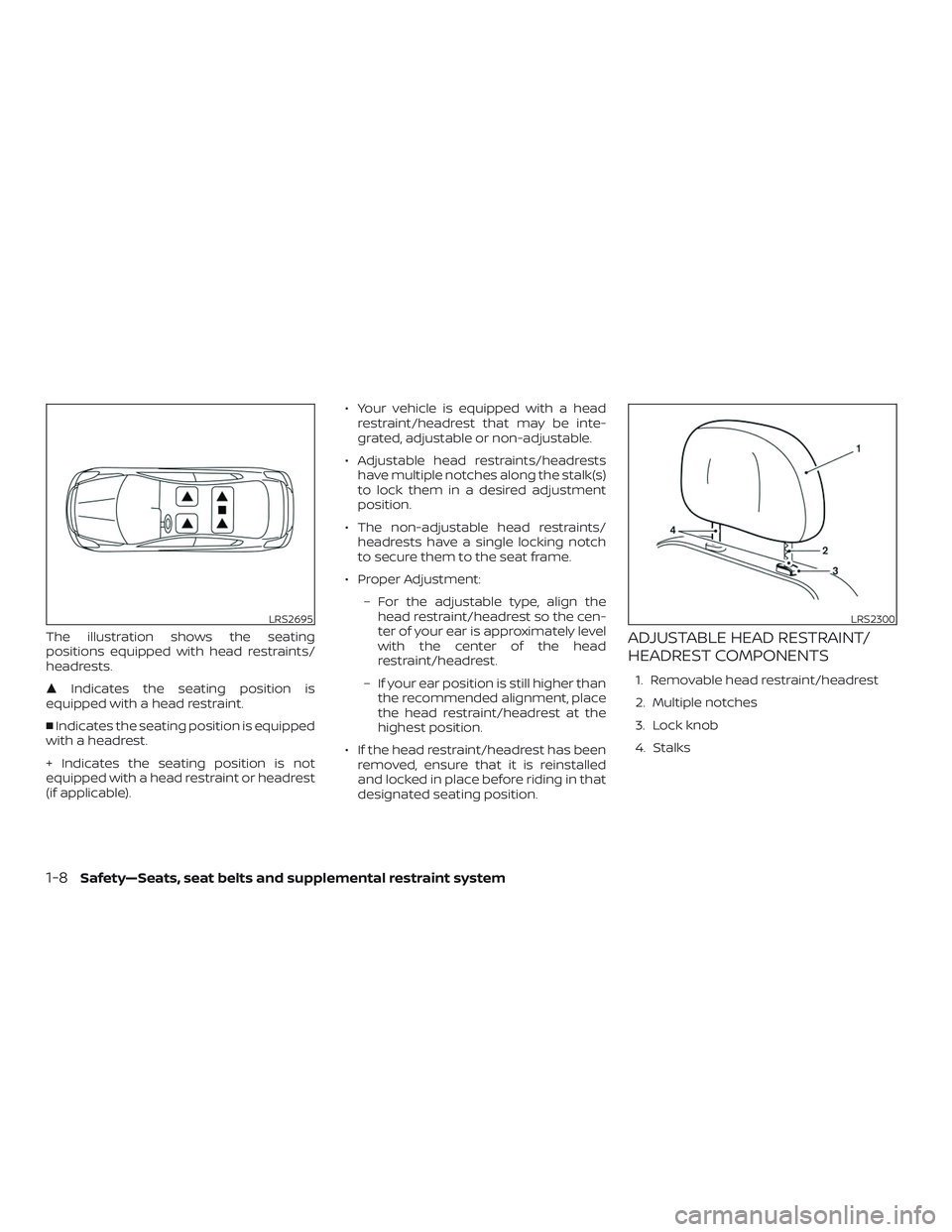

The illustration shows the seating
positions equipped with head restraints/
headrests.
Indicates the seating position is
equipped with a head restraint.
 Indicates the seating position is equipped
with a headrest.
+ Indicates the seating position is not
equipped with a head restraint or headrest
(if applicable). ∙ Your vehicle is equipped with a head
restraint/headrest that may be inte-
grated, adjustable or non-adjustable.
∙ Adjustable head restraints/headrests have multiple notches along the stalk(s)
to lock them in a desired adjustment
position.
∙ The non-adjustable head restraints/ headrests have a single locking notch
to secure them to the seat frame.
∙ Proper Adjustment: – For the adjustable type, align thehead restraint/headrest so the cen-
ter of your ear is approximately level
with the center of the head
restraint/headrest.
– If your ear position is still higher than the recommended alignment, place
the head restraint/headrest at the
highest position.
∙ If the head restraint/headrest has been removed, ensure that it is reinstalled
and locked in place before riding in that
designated seating position.ADJUSTABLE HEAD RESTRAINT/
HEADREST COMPONENTS
1. Removable head restraint/headrest
2. Multiple notches
3. Lock knob
4. Stalks
LRS2695LRS2300
1-8Safety—Seats, seat belts and supplemental restraint system
