2019 NISSAN ALTIMA Owner´s Manual

∙ Do not place reflective materials, such
as white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane mark-
ers.
∙ Do not strike or damage the areas
around the camera unit. Do not touch
the camera lens or remove the screw
located on the camera unit. If the cam-
era unit is damaged due to an accident,
it is recommended that you visit a
NISSAN dealer.
WARNING
Failure to follow the warnings and in-
structions for proper use of the Intelli-
gent Lane Intervention system could
result in serious injury or death.
∙ The Intelligent Lane Intervention sys-
tem will not steer the vehicle or pre-
vent loss of control. It is the driver’s
responsibility to stay alert, drive
safely, keep the vehicle in the travel-
ing lane, and be in control of the ve-
hicle at all times.∙ The Intelligent Lane Intervention sys-
tem is primarily intended for use on
well-developed freeways or high-
ways. It may not detect the lane mark-
ers in certain road, weather, or driving
conditions.
The Intelligent Lane Intervention system
must be turned on with the dynamic driver
assistance switch, every time the ignition is
placed in the ON position.
The Intelligent Lane Intervention system
will operate when the vehicle is driven at
speeds of approximately 70 km/h (45 mph)
and above, and only when the lane mark-
ings are clearly visible on the road.
The Intelligent Lane Intervention system
warns the driver when the vehicle has lef t
the center of the traveling lane with an in-
dicator and a steering wheel vibration. The
system helps assist the driver to return the
vehicle to the center of the traveling lane by
applying the brakes to the lef t or right
wheels individually (for a short period of
time).
The Intelligent Lane Intervention system
monitors the lane markers on the traveling
lane using the camera unit
Alocated
above the inside mirror.
LSD3213
INTELLIGENT LANE INTERVENTION (if
so equipped)

1Dynamic driver assistance switch
2Lane Departure Warning (LDW) indicator
3Intelligent Lane Intervention indicator
(if so equipped)
INTELLIGENT LANE INTERVENTION
SYSTEM OPERATION
The Intelligent Lane Intervention system
operates above approximately 70 km/h
(45 mph). When the vehicle approaches ei-
ther the lef t or the right side of the traveling
lane, the steering wheel will vibrate and the
LDW indicator (orange) on the instrument
panel will blink to alert the driver. Then, the
Intelligent Lane Intervention system will
automatically apply the brakes for a short
period of time to help assist the driver to
return the vehicle to the center of the trav-
eling lane.
To turn on the Intelligent Lane Intervention
system, push the dynamic driver assis-
tance switch af ter starting the
engine/motor. The Intelligent Lane Inter-
vention indicator on the instrument panel
will illuminate. Push the dynamic driver as-
sistance switch again to turn off the Intelli-
gent Lane Intervention system. The Intelli-
gent Lane Intervention indicator will turn
off.
LSD3312

HOW TO ENABLE/DISABLE THE
INTELLIGENT LANE INTERVENTION
SYSTEM
To turn on the Intelligent Lane Intervention
system, push the dynamic driver assis-
tance switch on the instrument panel af ter
starting the engine.
The Intelligent Lane Intervention indicator
in the vehicle information display will ap-
pear.
Push the dynamic driver assistance switch
again to turn off the Intelligent Lane Inter-
vention system.
The Intelligent Lane Intervention indicator
in the vehicle information display will turn
off.
The Intelligent Lane Intervention system
will be automatically turned off when the
engine is off.
LSD3401

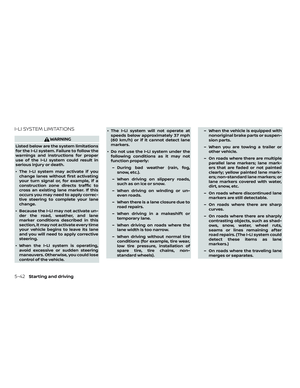

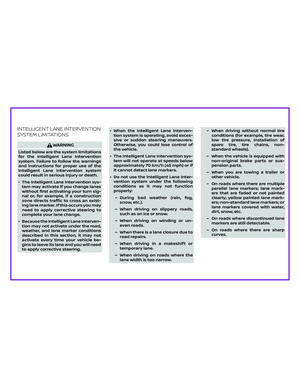

INTELLIGENT LANE INTERVENTION
SYSTEM LIMITATIONS
WARNING
Listed below are the system limitations
for the Intelligent Lane Intervention
system. Failure to follow the warnings
and instructions for proper use of the
Intelligent Lane Intervention system
could result in serious injury or death.
∙ The Intelligent Lane Intervention sys-
tem may activate if you change lanes
without first activating your turn sig-
nal or, for example, if a construction
zone directs traffic to cross an exist-
ing lane marker. If this occurs you may
need to apply corrective steering to
complete your lane change.
∙ Because the Intelligent Lane Interven-
tion may not activate under the road,
weather, and lane marker conditions
described in this section, it may not
activate every time your vehicle be-
gins to leave its lane and you will need
to apply corrective steering.∙ When the Intelligent Lane Interven-
tion system is operating, avoid exces-
sive or sudden steering maneuvers.
Otherwise, you could lose control of
the vehicle.
∙ The Intelligent Lane Intervention sys-
tem will not operate at speeds below
approximately 70 km/h (45 mph) or if
it cannot detect lane markers.
∙ Do not use the Intelligent Lane Inter-
vention system under the following
conditions as it may not function
properly:
– During bad weather (rain, fog,
snow, etc.).
– When driving on slippery roads,
such as on ice or snow.
– When driving on winding or un-
even roads.
– When there is a lane closure due to
road repairs.
– When driving in a makeshif t or
temporary lane.
– When driving on roads where the
lane width is too narrow.– When driving without normal tire
conditions (for example, tire wear,
low tire pressure, installation of
spare tire, tire chains, non-
standard wheels).
– When the vehicle is equipped with
non-original brake parts or sus-
pension parts.
– When you are towing a trailer or
other vehicle.
– On roads where there are multiple
parallel lane markers; lane mark-
ers that are faded or not painted
clearly; yellow painted lane mark-
ers; non-standard lane markers; or
lane markers covered with water,
dirt, snow, etc.
– On roads where discontinued lane
markers are still detectable.
– On roads where there are sharp
curves.

– On roads where there are sharply
contrasting objects, such as shad-
ows, snow, water, wheel ruts,
seams or lines remaining af ter
road repairs. (The Intelligent Lane
Intervention system could detect
these items as lane markers.)
– On roads where the traveling lane
merges or separates.
– When the vehicle’s traveling direc-
tion does not align with the lane
marker.
– When traveling close to the vehicle
in front of you, which obstructs the
lane camera unit detection range.
– When rain, snow or dirt adheres to
the windshield in front of the lane
camera unit.
– When the headlights are not bright
due to dirt on the lens or if the aim-
ing is not adjusted properly.
– When strong light enters the lane
camera unit. (For example, the light
directly shines on the front of the
vehicle at sunrise or sunset.)– When a sudden change in bright-
ness occurs. (For example, when
the vehicle enters or exits a tunnel
or under a bridge.)
While the Intelligent Lane Intervention sys-
tem is operating, you may hear a sound of
brake operation. This is normal and indi-
cates that the Intelligent Lane Intervention
system is operating properly.
SYSTEM TEMPORARILY
UNAVAILABLE
Condition A:
The warning and assist functions of the
Intelligent Lane Intervention system are
not designed to work under the following
conditions:
∙ When you operate the lane change sig-
nal and change the traveling lanes in
the direction of the signal. (The Intelli-
gent Lane Intervention system will be
deactivated for approximately 2 sec-
onds af ter the lane change signal is
turned off.)
∙ When the vehicle speed lowers to less
than approximately 70 km/h (45 mph).Af ter the above conditions have finished
and the necessary operating conditions
are satisfied, the warning and assist func-
tions will resume.
Condition B:
The assist function of the Intelligent Lane
Intervention system is not designed to
work under the following conditions (warn-
ing is still functional):
∙ When the brake pedal is depressed.
∙ When the steering wheel is turned as far
as necessary for the vehicle to change
lanes.
∙ When the vehicle is accelerated during
Intelligent Lane Intervention system
operation.
∙ When the Intelligent Cruise Control (ICC)
approach warning occurs.
∙ When the hazard warning flashers are
operated.
∙ When driving on a curve at high speed.
Af ter the above conditions have finished
and the necessary operating conditions
are satisfied, the Intelligent Lane Interven-
tion system application of the brakes will
resume.

Condition C:
If the following messages appear in the
vehicle information display, the Intelligent
Lane Intervention system will be turned off
automatically.
∙ “Not Available Poor Road Conditions”:
When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.
∙ “Currently unavailable”:
When the VDC system (except Traction
Control System [TCS] function) or ABS
operates.
∙ “Currently not available”:
When the VDC system is turned off.
Action to take:
When the above conditions no longer exist,
turn off the Intelligent Lane Intervention
system. Push the dynamic driver assis-
tance switch again to turn the Intelligent
Lane Intervention system back on.Temporary disabled status at high tem-
perature:
If the vehicle is parked in direct sunlight
under high temperature conditions (over
approximately 40°C [104°F]) and then the
Intelligent Lane Intervention system is
turned on, the Intelligent Lane Intervention
system may be deactivated automatically
and the following message will appear on
the vehicle information display: “Unavail-
able: High Cabin Temperature.” When the
interior temperature is reduced, the sys-
tem will resume operating automatically.
SYSTEM MALFUNCTION
If the Intelligent Lane Intervention system
malfunctions, it will cancel automatically.
The LDW indicator (orange) will illuminate in
the display.
If the LDW indicator (orange) illuminates in
the display, pull off the road to a safe loca-
tion and stop the vehicle. Turn the
engine/motor off and restart the
engine/motor. If the LDW indicator (orange)
continues to illuminate, have the Intelligent
Lane Intervention system checked. It is rec-
ommended that you visit a NISSAN dealer
for this service.SYSTEM MAINTENANCE
The lane camera unit1for the Intelligent
Lane Intervention system is located above
the inside mirror. To keep the proper opera-
tion of the Intelligent Lane Intervention sys-
tem and prevent a system malfunction, be
sure to observe the following:
∙ Always keep the windshield clean.
∙ Do not attach a sticker (including trans-
parent material) or install an accessory
near the camera unit.
LSD3216

∙ Do not place reflective materials, such
as white paper or a mirror, on the instru-
ment panel. The reflection of sunlight
may adversely affect the camera unit’s
capability of detecting the lane mark-
ers.
∙ Do not strike or damage the areas
around the camera unit. Do not touch
the camera lens or remove the screw
located on the camera unit. If the cam-
era unit is damaged due to an accident,
it is recommended that you visit a
NISSAN dealer.

CALIFORNIA PROPOSITION 65 WARNING
WARNING
Operating, servicing and maintaining a passenger
vehicle or off-highway motor vehicle can expose you to
chemicals including engine exhaust, carbon monoxide,
phthalates, and lead, which are known to the State of
California to cause cancer and birth defects or other
reproductive harm. To minimize exposure, avoid
breathing exhaust, do not idle the engine except as
necessary, service your vehicle in a well-ventilated area
and wear gloves or wash your hands frequently when
servicing your vehicle. For more information go to
www.P65Warnings.ca.gov/passenger-vehicle.
