2019 MERCEDES-BENZ SL CLASS Owners Manual

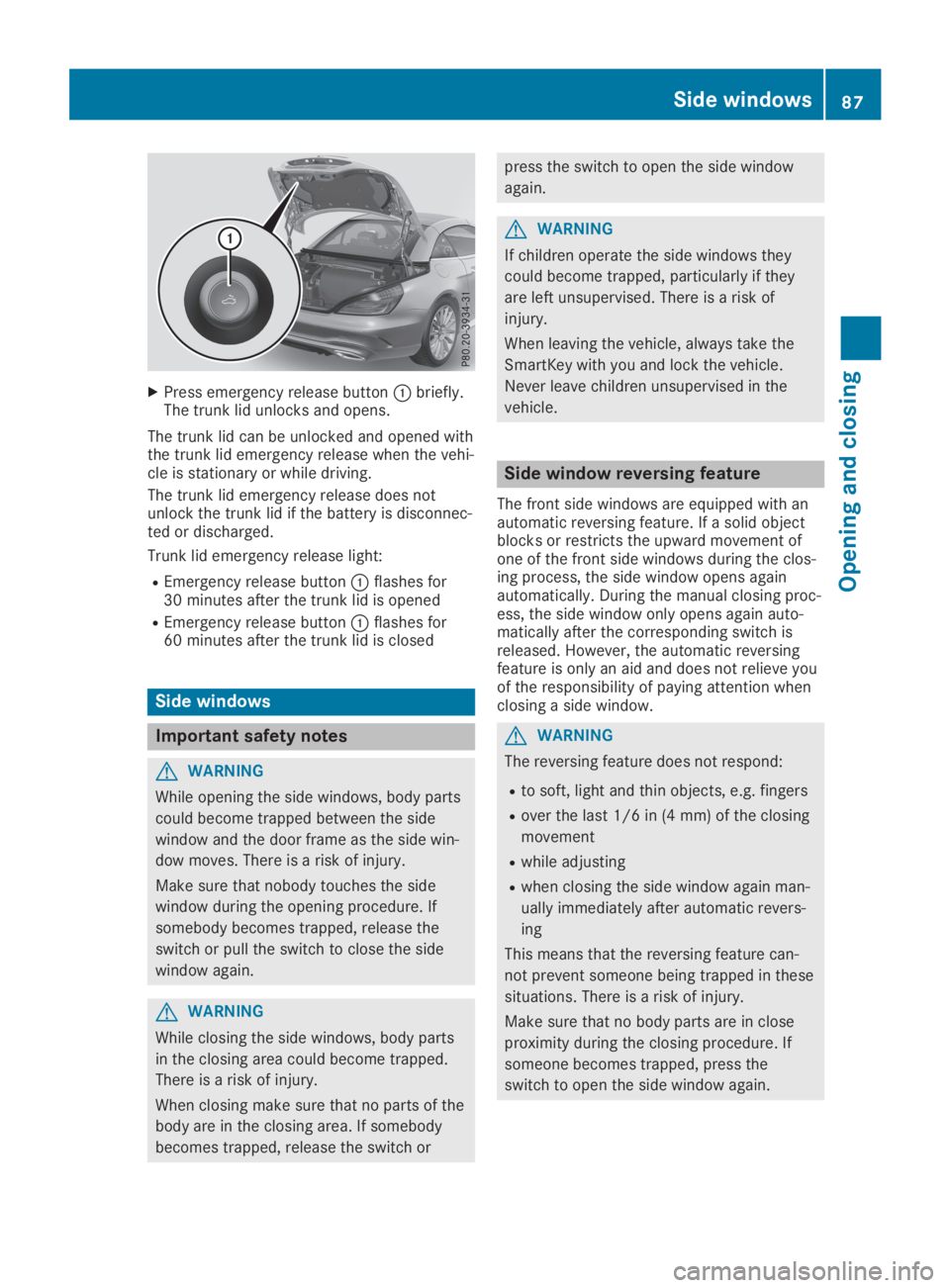

XPress emergency release buttonCbriefly.The trunk lid unlocks and opens.
The trunk lid can be unlocked and opened withthe trunk lid emergency release when the vehi-cle is stationary or while driving.
The trunk lid emergency release does notunlock the trunk lid if the battery is disconnec-ted or discharged.
Trunk lid emergency release light:
REmergency release buttonCflashes for30 minutes after the trunk lid is opened
REmergency release buttonCflashes for60 minutes after the trunk lid is closed
Side windows
Important safety notes
GWARNING
While opening the side windows, body parts
could become trapped between the side
window and the door frame as the side win-
dow moves. There is a risk of injury.
Make sure that nobody touches the side
window during the opening procedure. If
somebody becomes trapped, release the
switch or pull the switch to close the side
window again.
GWARNING
While closing the side windows, body parts
in the closing area could become trapped.
There is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody
becomes trapped, release the switch or
press the switch to open the side window
again.
GWARNING
If children operate the side windows they
could become trapped, particularly if they
are left unsupervised. There is a risk of
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle.
Never leave children unsupervised in the
vehicle.
Side window reversing feature
The front side windows are equipped with anautomatic reversing feature. If a solid objectblocks or restricts the upward movement ofone of the front side windows during the clos-ing process, the side window opens againautomatically. During the manual closing proc-ess, the side window only opens again auto-matically after the corresponding switch isreleased. However, the automatic reversingfeature is only an aid and does not relieve youof the responsibility of paying attention whenclosing a side window.
GWARNING
The reversing feature does not respond:
Rto soft, light and thin objects, e.g. fingers
Rover the last 1/6 in (4 mm) of the closing
movement
Rwhile adjusting
Rwhen closing the side window again man-
ually immediately after automatic revers-
ing
This means that the reversing feature can-
not prevent someone being trapped in these
situations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
someone becomes trapped, press the
switch to open the side window again.
Side windows87
Opening and closing
Z

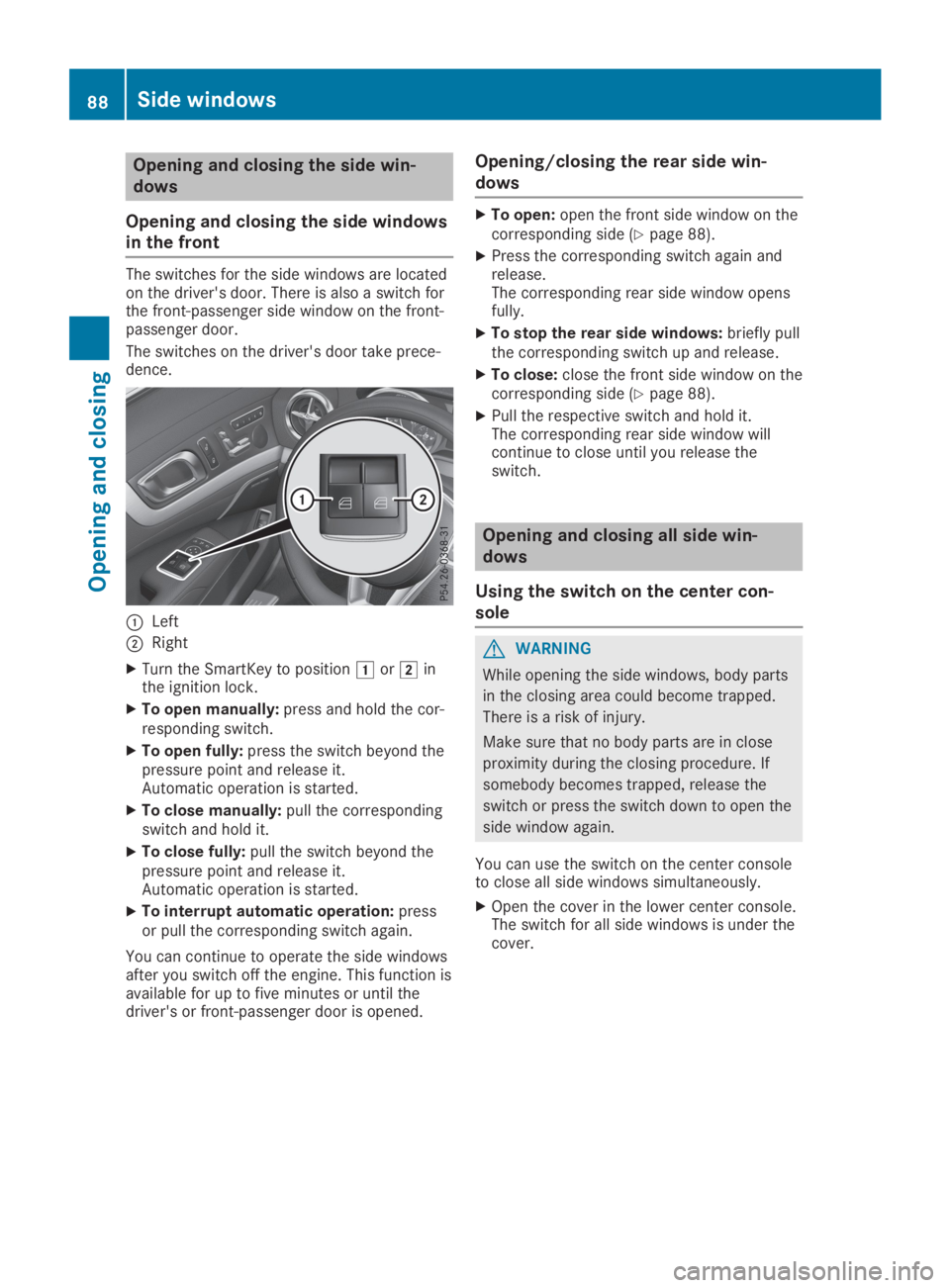

Opening and closing the side win-
dows
Opening and closing the side windows
in the front
The switches for the side windows are locatedon the driver's door. There is also a switch forthe front-passenger side window on the front-passenger door.
The switches on the driver's door take prece-dence.
CLeft
DRight
XTurn the SmartKey to positionGorHinthe ignition lock.
XTo open manually:press and hold the cor-responding switch.
XTo open fully:press the switch beyond thepressure point and release it.Automatic operation is started.
XTo close manually:pull the correspondingswitch and hold it.
XTo close fully:pull the switch beyond thepressure point and release it.Automatic operation is started.
XTo interrupt automatic operation:pressor pull the corresponding switch again.
You can continue to operate the side windowsafter you switch off the engine. This function isavailable for up to five minutes or until thedriver's or front-passenger door is opened.
Opening/closing the rear side win-
dows
XTo open:open the front side window on thecorresponding side (Ypage 88).
XPress the corresponding switch again andrelease.The corresponding rear side window opensfully.
XTo stop the rear side windows:briefly pullthe corresponding switch up and release.
XTo close:close the front side window on thecorresponding side (Ypage 88).
XPull the respective switch and hold it.The corresponding rear side window willcontinue to close until you release theswitch.
Opening and closing all side win-
dows
Using the switch on the center con-
sole
GWARNING
While opening the side windows, body parts
in the closing area could become trapped.
There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
somebody becomes trapped, release the
switch or press the switch down to open the
side window again.
You can use the switch on the center consoleto close all side windows simultaneously.
XOpen the cover in the lower center console.The switch for all side windows is under thecover.
88Side windows
Opening and closing

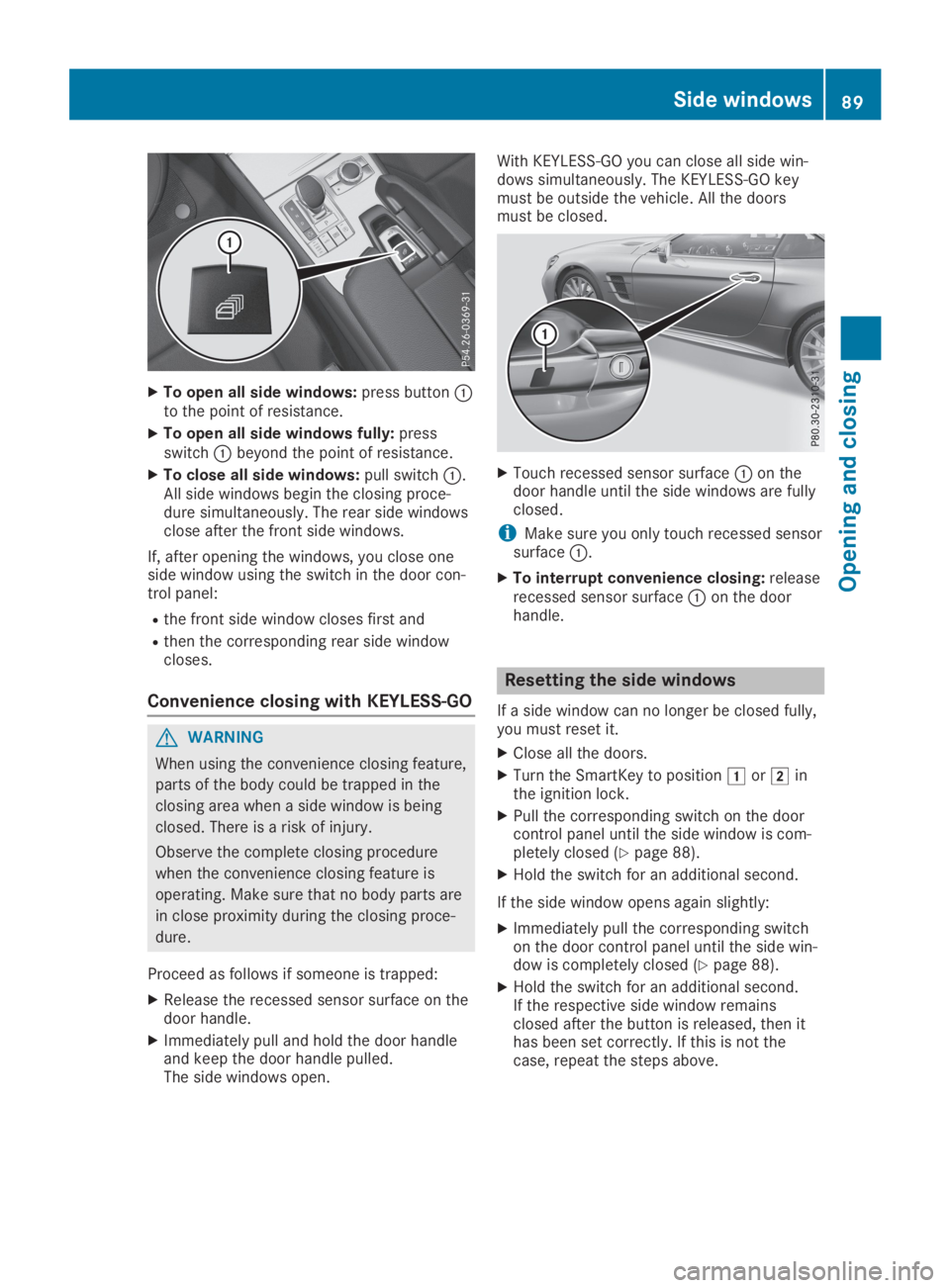

XTo open all side windows:press buttonCto the point of resistance.
XTo open all side windows fully:pressswitchCbeyond the point of resistance.
XTo close all side windows:pull switchC.All side windows begin the closing proce-dure simultaneously. The rear side windowsclose after the front side windows.
If, after opening the windows, you close oneside window using the switch in the door con-trol panel:
Rthe front side window closes first and
Rthen the corresponding rear side windowcloses.
Convenience closing with KEYLESS-GO
GWARNING
When using the convenience closing feature,
parts of the body could be trapped in the
closing area when a side window is being
closed. There is a risk of injury.
Observe the complete closing procedure
when the convenience closing feature is
operating. Make sure that no body parts are
in close proximity during the closing proce-
dure.
Proceed as follows if someone is trapped:
XRelease the recessed sensor surface on thedoor handle.
XImmediately pull and hold the door handleand keep the door handle pulled.The side windows open.
With KEYLESS-GO you can close all side win-dows simultaneously. The KEYLESS-GO keymust be outside the vehicle. All the doorsmust be closed.
XTouch recessed sensor surfaceCon thedoor handle until the side windows are fullyclosed.
iMake sure you only touch recessed sensorsurfaceC.
XTo interrupt convenience closing:releaserecessed sensor surfaceCon the doorhandle.
Resetting the side windows
If a side window can no longer be closed fully,you must reset it.
XClose all the doors.
XTurn the SmartKey to positionGorHinthe ignition lock.
XPull the corresponding switch on the doorcontrol panel until the side window is com-pletely closed (Ypage 88).
XHold the switch for an additional second.
If the side window opens again slightly:
XImmediately pull the corresponding switchon the door control panel until the side win-dow is completely closed (Ypage 88).
XHold the switch for an additional second.If the respective side window remainsclosed after the button is released, then ithas been set correctly. If this is not thecase, repeat the steps above.
Side windows89
Opening and closing
Z

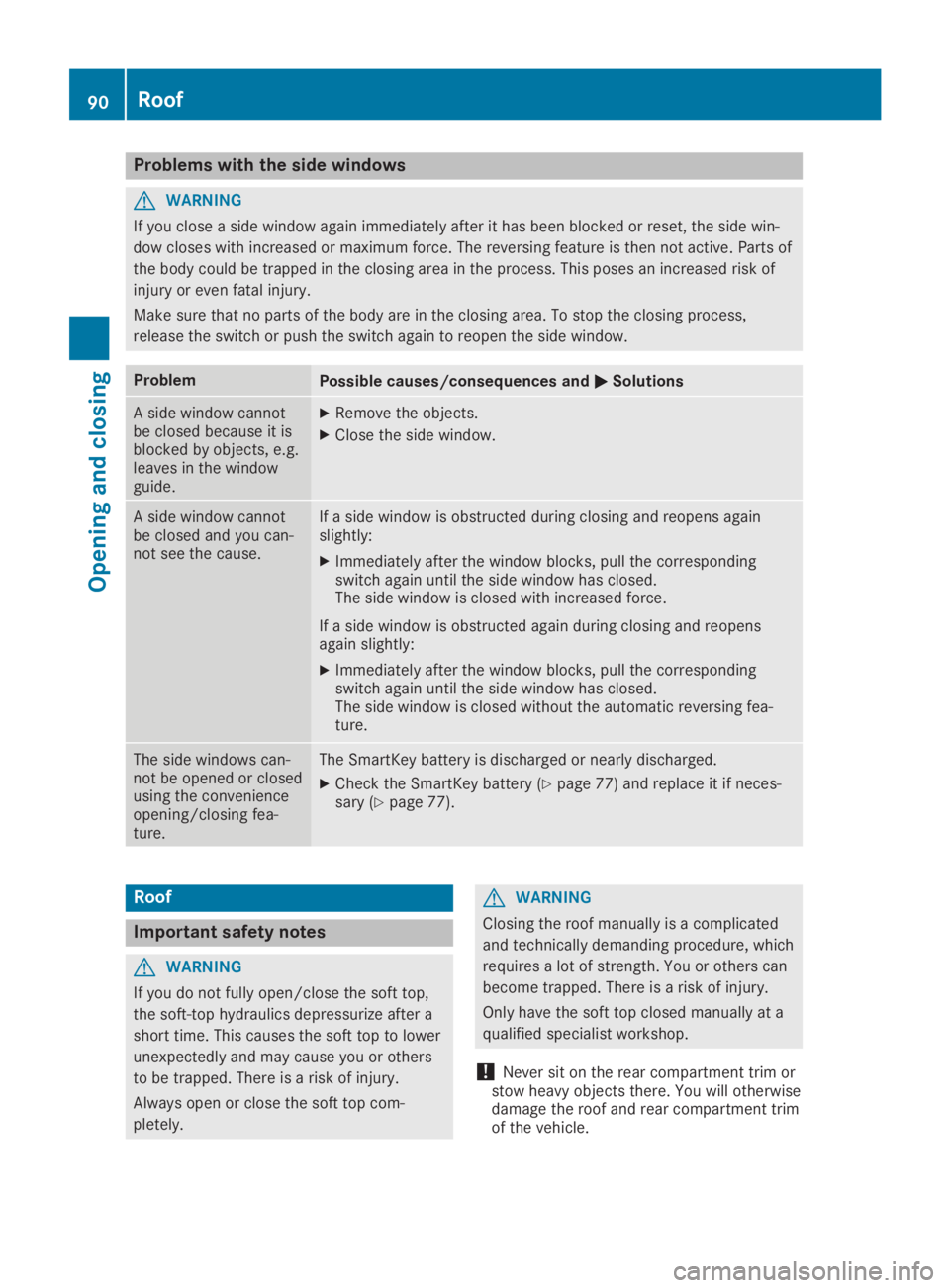

Problems with the side windows
GWARNING
If you close a side window again immediately after it has been blocked or reset, the side win-
dow closes with increased or maximum force. The reversing feature is then not active. Parts of
the body could be trapped in the closing area in the process. This poses an increased risk of
injury or even fatal injury.
Make sure that no parts of the body are in the closing area. To stop the closing process,
release the switch or push the switch again to reopen the side window.
ProblemPossible causes/consequences andPPSolutions
A side window cannotbe closed because it isblocked by objects, e.g.leaves in the windowguide.
XRemove the objects.
XClose the side window.
A side window cannotbe closed and you can-not see the cause.
If a side window is obstructed during closing and reopens againslightly:
XImmediately after the window blocks, pull the correspondingswitch again until the side window has closed.The side window is closed with increased force.
If a side window is obstructed again during closing and reopensagain slightly:
XImmediately after the window blocks, pull the correspondingswitch again until the side window has closed.The side window is closed without the automatic reversing fea-ture.
The side windows can-not be opened or closedusing the convenienceopening/closing fea-ture.
The SmartKey battery is discharged or nearly discharged.
XCheck the SmartKey battery (Ypage 77) and replace it if neces-sary (Ypage 77).
Roof
Important safety notes
GWARNING
If you do not fully open/close the soft top,
the soft-top hydraulics depressurize after a
short time. This causes the soft top to lower
unexpectedly and may cause you or others
to be trapped. There is a risk of injury.
Always open or close the soft top com-
pletely.
GWARNING
Closing the roof manually is a complicated
and technically demanding procedure, which
requires a lot of strength. You or others can
become trapped. There is a risk of injury.
Only have the soft top closed manually at a
qualified specialist workshop.
!Never sit on the rear compartment trim orstow heavy objects there. You will otherwisedamage the roof and rear compartment trimof the vehicle.
90Roof
Opening and closing

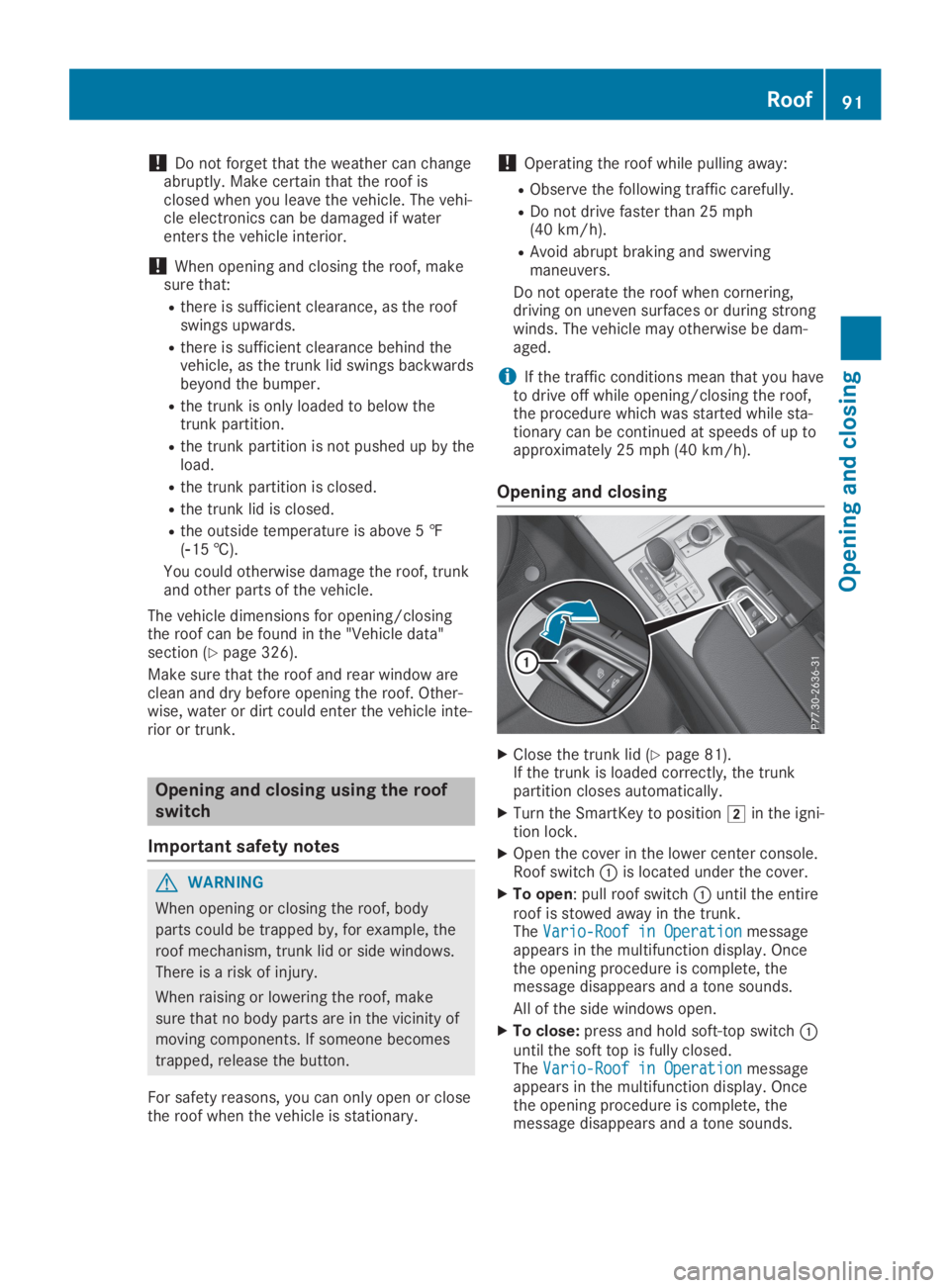

!Do not forget that the weather can changeabruptly. Make certain that the roof isclosed when you leave the vehicle. The vehi-cle electronics can be damaged if waterenters the vehicle interior.
!When opening and closing the roof, makesure that:
Rthere is sufficient clearance, as the roofswings upwards.
Rthere is sufficient clearance behind thevehicle, as the trunk lid swings backwardsbeyond the bumper.
Rthe trunk is only loaded to below thetrunk partition.
Rthe trunk partition is not pushed up by theload.
Rthe trunk partition is closed.
Rthe trunk lid is closed.
Rthe outside temperature is above 5 ‡(

All of the side windows open.
XTo close all side windows, pull the switchunder the cover of the center console(Ypage 88).
Opening/closing using the SmartKey
Important safety notes
GWARNING
When opening or closing the roof, body
parts could be trapped by, for example, the
roof mechanism, trunk lid or side windows.
There is a risk of injury.
When raising or lowering the roof, make
sure that no body parts are in the vicinity of
moving components. If someone becomes
trapped, release the button.
Opening and closing
This function is only available on vehicles withKEYLESS-GO or with roof comfort operation.
XClose the trunk lid (Ypage 81).If the trunk has been correctly loaded, thetrunk partition is automatically closed.
XVehicles with comfort operation:pointthe tip of the SmartKey at the driver's doorhandle.
XVehicles with KEYLESS-GO:the SmartKeymust be within 6 ft (2 m) of the vehicle.
XTo open:press and hold the6button onthe SmartKey until the roof is fully opened.The roof and the rear side windows open.The front side windows close.
XTo interrupt the opening procedure:release the6button.
XTo open the front side windows:press the6button on the SmartKey again.
XTo close:press and hold the7buttonon the SmartKey until the roof is fullyclosed.The roof and the side windows close.
XTo interrupt the closing procedure:release the7button.
Locking the roof again
Important safety notes
GWARNING
If you do not fully open/close the soft top,
the soft-top hydraulics depressurize after a
short time. This causes the soft top to lower
unexpectedly and may cause you or others
to be trapped. There is a risk of injury.
Always open or close the soft top com-
pletely.
The roof is not locked if:
RtheYsymbol and theVario-Roof inVario-Roof inOperationOperationmessage appear in the multi-function display
RtheYsymbol and theOpen/CloseOpen/CloseVario-Roof CompletelyVario-Roof Completelymessage appearin the multifunction display and you hear awarning tone
Ryou hear a warning tone for up to ten sec-onds when pulling away or while driving
Locking
You can lock the roof again if it is not lockedfully.
XPull over and stop the vehicle safely as soonas possible, paying attention to road andtraffic conditions.
XEnsure that the SmartKey is in positionHin the ignition lock.
XPress the roof switch (Ypage 91).
Trunk partition
General notes
!To avoid damaging the roof or luggagewhen folding back the roof, you should:
Ronly load the trunk to below the trunk par-tition
Rnot place any objects on or in front of thetrunk partition
Rnot place any objects on the cover behindthe roll bars
Rnot allow the cargo to push the trunk par-tition upwards
92Roof
Opening and closing

!Make sure the trunk separator is com-pletely closed. Otherwise, the roof can beblocked when it is opened or closed.
The trunk partition can be used to cover lug-gage and loads in the trunk.
Opening and closing
Trunk partitionCcan be opened and closedusing buttonD, e.g. to check correct loading.
XTo open:press buttonD.
XTo close:press buttonD.If the trunk is loaded correctly, trunk parti-tionCis automatically closed to the fullextent.
When the trunk lid is opened, trunk parti-tionCopens automatically.
Removing and installing
XTo remove:close trunk partitionC(Ypage 93).
XTo disconnect the electric plug connector,press the release catch on connectorDand remove connectorD.
XUnhook net

XPull the net forwards and hook into theretainers on both sides.
XPush trunk partition coverCback againstthe spring pressure and insert to the stopon both sides.
XReconnect connectorDof the electric plugconnector.
Wind screen
Electric wind screen
Important safety notes
GWARNING
If you use the wind screen in darkness or in
other conditions offering poor visibility, your
view to the rear is further impaired. There is
a risk of an accident.
Only use the wind screen when visibility con-
ditions are good.
!When extending or retracting the windscreen, make sure there are no objects onthe rear compartment trim. Otherwise, theobjects could damage the wind screen.
The wind screen offers protection from thewind when driving with the roof down. The roofmust be fully open before the wind screen canbe extended.
Extending and retracting
XOpen the roof (Ypage 90).
XOpen the cover in the lower center console.The switch for the electrical wind screen isunder the cover.
XTo extend:press buttonC.
XTo retract:press buttonCagain.
Roller sunblind for the panorama
roof
The roller sunblind protects you from exces-sive glare and heat caused by the sun shiningthrough the panorama glass roof.
XTo close:pull the roller sunblind in thedirection of the arrow using handleC.
XTo open:slide the roller sunblind in theopposite direction to the arrow using han-dleC.
MAGIC SKY CONTROL
General notes
MAGIC SKY CONTROL is a panorama roof, thetransparency of which can be changed byapplying electrical voltage.
MAGIC SKY CONTROL can be switchedbetween darkened and transparent states.
MAGIC SKY CONTROL darkens automaticallyafter a short period when you turn the Smart-
94Roof
Opening and closing
