2019 MERCEDES-BENZ SL CLASS Owners Manual

Problems with the "Cooling with air dehumidification" function
ProblemPossible causes/consequences andPPSolutions
The indicator lamp intheZbutton flashesthree times or remainsoff. The "Cooling withair dehumidification"function cannot beswitched on.
Cooling with air dehumidification has been deactivated due to amalfunction.
XVisit a qualified specialist workshop.
Setting climate control to automatic
General notes
In automatic mode, the set temperature ismaintained automatically at a constant level.The system automatically regulates the tem-perature of the dispensed air, the airflow andthe air distribution.
The automatic mode functions optimally whenthe "Cooling with air dehumidification" func-tion is activated. If necessary, cooling with airdehumidification can be deactivated.
If you deactivate the "Cooling with air-dehu-midification" function, the air inside the vehiclewill not be cooled. The air inside the vehiclewill also not be dehumidified. The windows canfog up more quickly. Therefore, deactivate thecooling with air-dehumidification function onlybriefly.
Automatic control
XTurn the SmartKey to positionHin the igni-tion lock (Ypage 126).
XSet the desired temperature.
XTo activate:press theXbutton.The indicator lamp in theXbutton lightsup. Automatic air distribution and airflow areactivated.
iWhen automatic mode is enabled, the cli-mate mode can be selected (Ypage 119).
XTo switch to manual mode:press the

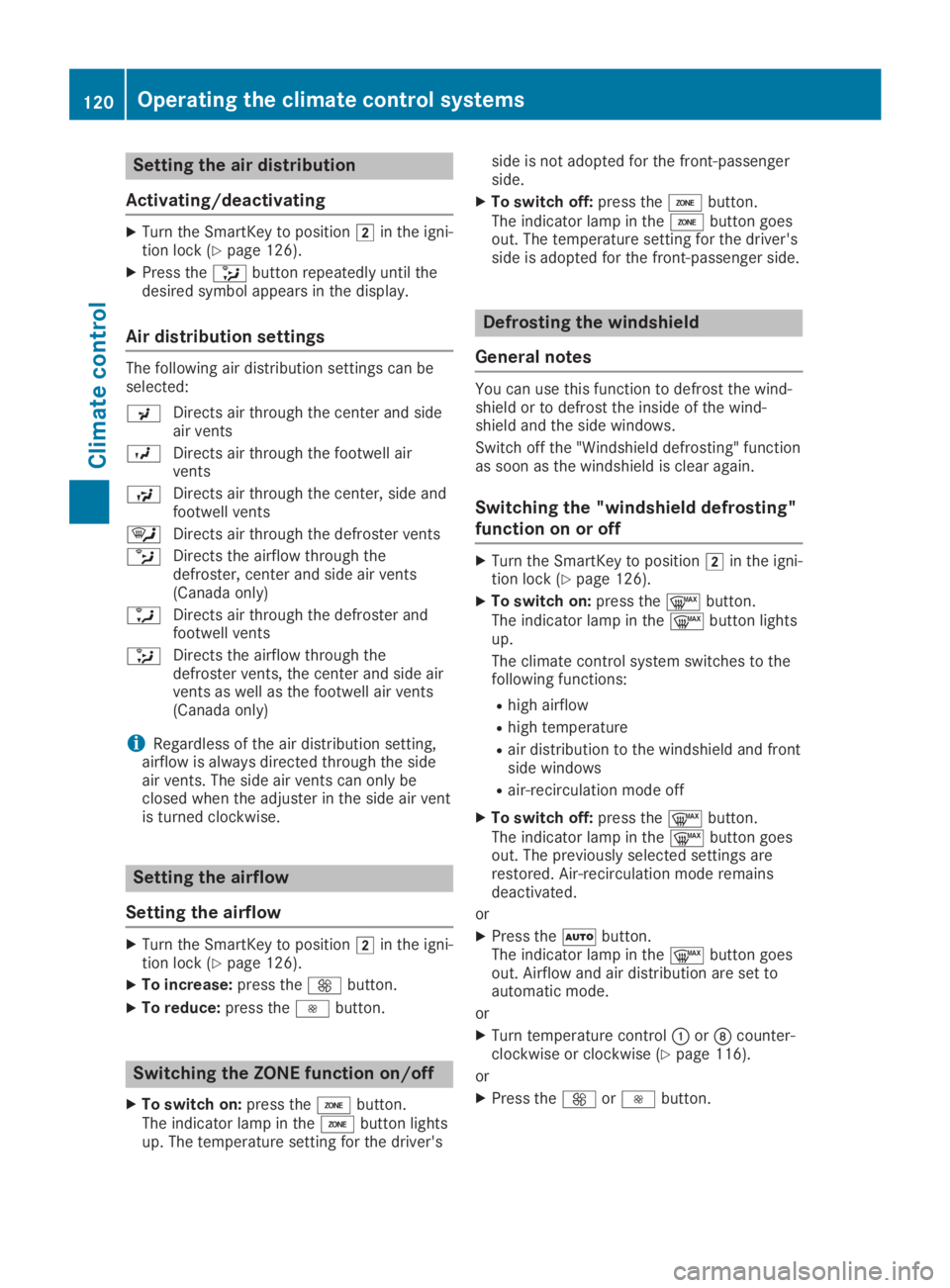

Setting the air distribution
Activating/deactivating
XTurn the SmartKey to positionHin the igni-tion lock (Ypage 126).
XPress the

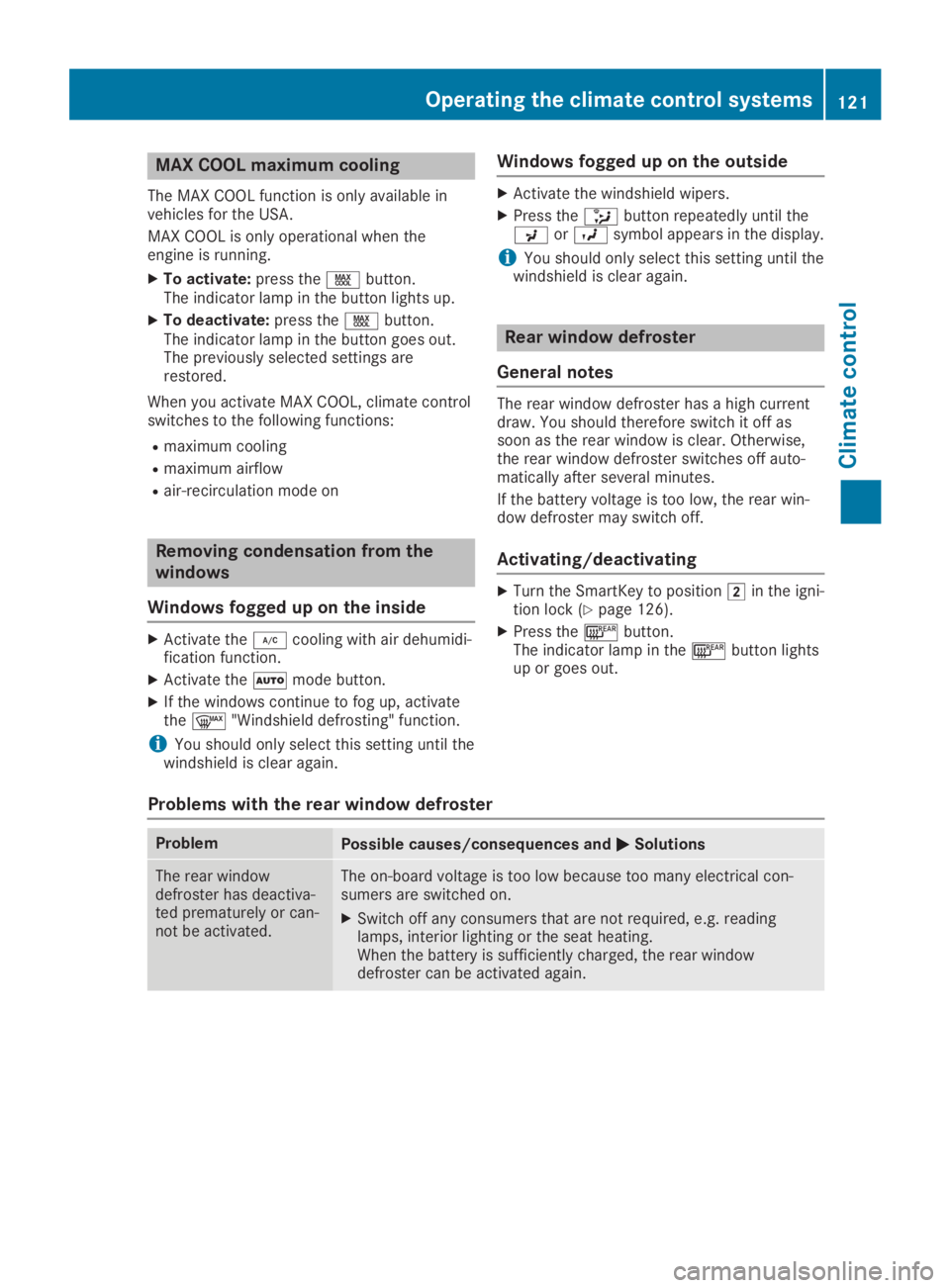

MAX COOL maximum cooling
The MAX COOL function is only available invehicles for the USA.
MAX COOL is only operational when theengine is running.
XTo activate:press the

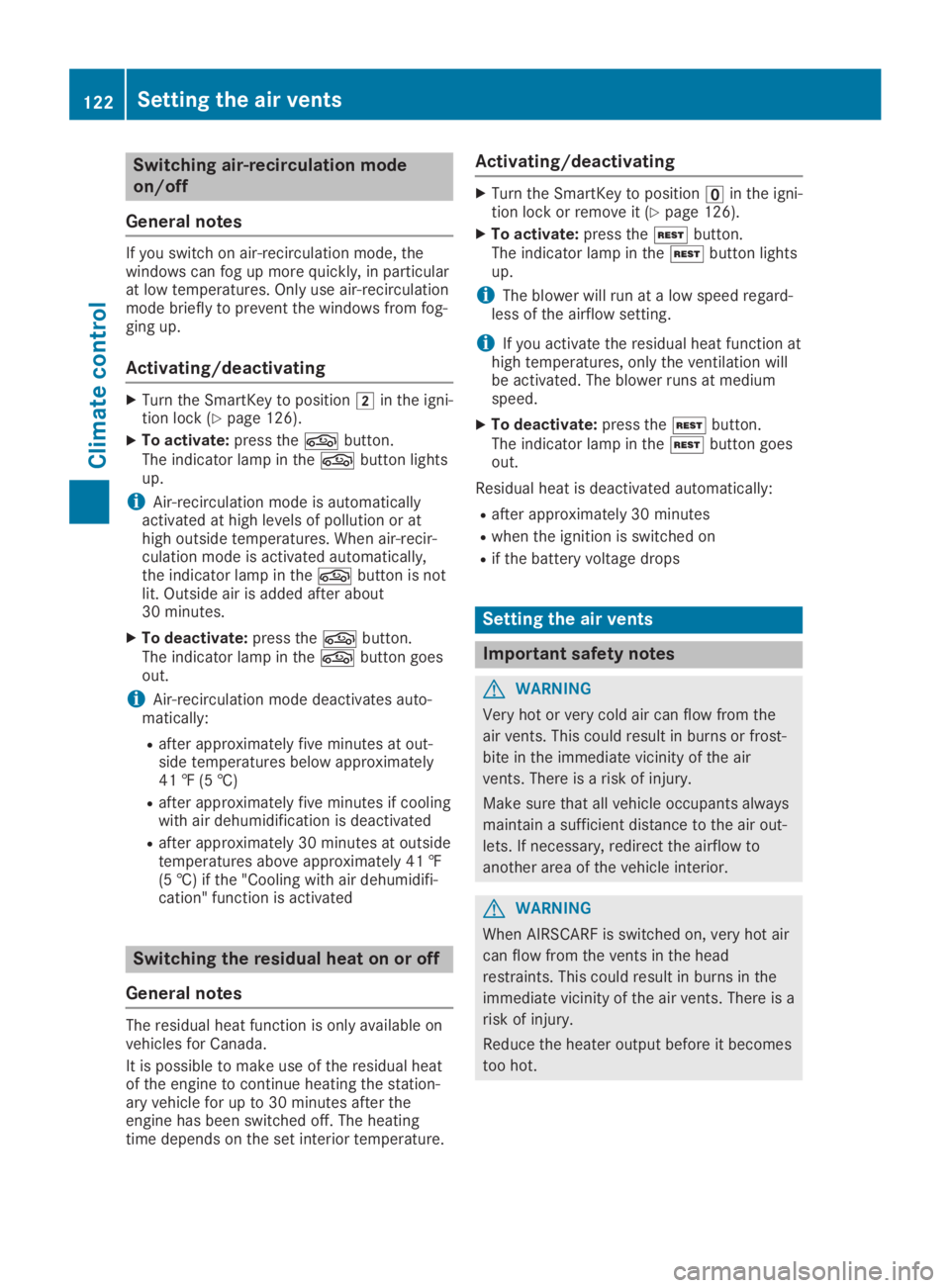

Switching air-recirculation mode
on/off
General notes
If you switch on air-recirculation mode, thewindows can fog up more quickly, in particularat low temperatures. Only use air-recirculationmode briefly to prevent the windows from fog-ging up.
Activating/deactivating
XTurn the SmartKey to positionHin the igni-tion lock (Ypage 126).
XTo activate:press therbutton.The indicator lamp in therbutton lightsup.
iAir-recirculation mode is automaticallyactivated at high levels of pollution or athigh outside temperatures. When air-recir-culation mode is activated automatically,the indicator lamp in therbutton is notlit. Outside air is added after about30 minutes.
XTo deactivate:press therbutton.The indicator lamp in therbutton goesout.
iAir-recirculation mode deactivates auto-matically:
Rafter approximately five minutes at out-side temperatures below approximately41 ‡ (5 †)
Rafter approximately five minutes if coolingwith air dehumidification is deactivated
Rafter approximately 30 minutes at outsidetemperatures above approximately 41 ‡(5 †) if the "Cooling with air dehumidifi-cation" function is activated
Switching the residual heat on or off
General notes
The residual heat function is only available onvehicles for Canada.
It is possible to make use of the residual heatof the engine to continue heating the station-ary vehicle for up to 30 minutes after theengine has been switched off. The heatingtime depends on the set interior temperature.
Activating/deactivating
XTurn the SmartKey to position

In order to ensure the direct flow of fresh airthrough the air vents into the vehicle interior,please observe the following notes:
Rkeep the air inlet grille on the hood and inthe engine compartment on the front-passenger side free of blockages, such asice, snow or leaves.
Rnever cover the air vents or air intake grillesin the vehicle interior.
iYou can move the adjusters for the airvents vertically or horizontally to set thedirection of the airflow.
iFor optimal climate control in the vehicle,open the air vents completely and set theadjusters to the central position.
Setting the center air vents
XTo open the center air vents:turn theadjuster in one of center air ventsCcoun-ter-clockwise.
XTo close the center air vents:turn theadjuster in one of center air ventsCclock-wise until it engages.
Setting the side air vents
CSide window defroster vent
DSide air vent
XTo open a side air vent:turn the adjusterin the side air ventDto the left.
XTo close a side air vent:turn the adjusterin the side air ventDto the right until itengages.
Setting the glove compartment air
vent
!Close the air vent when heating the vehi-cle.
At high outside temperatures, open the airvent and activate the "cooling with air dehu-midification" function. Otherwise, tempera-ture-sensitive items stored in the glove boxcould be damaged.
CAir vent control
DAir vent
When the climate control system is activated,the glove box can be ventilated, for instance tocool its contents. The level of airflow dependson the airflow and air distribution settings.
Setting the air vents123
Climate control
Z

XTo open or close:turn thumbwheelCtothe right or left.

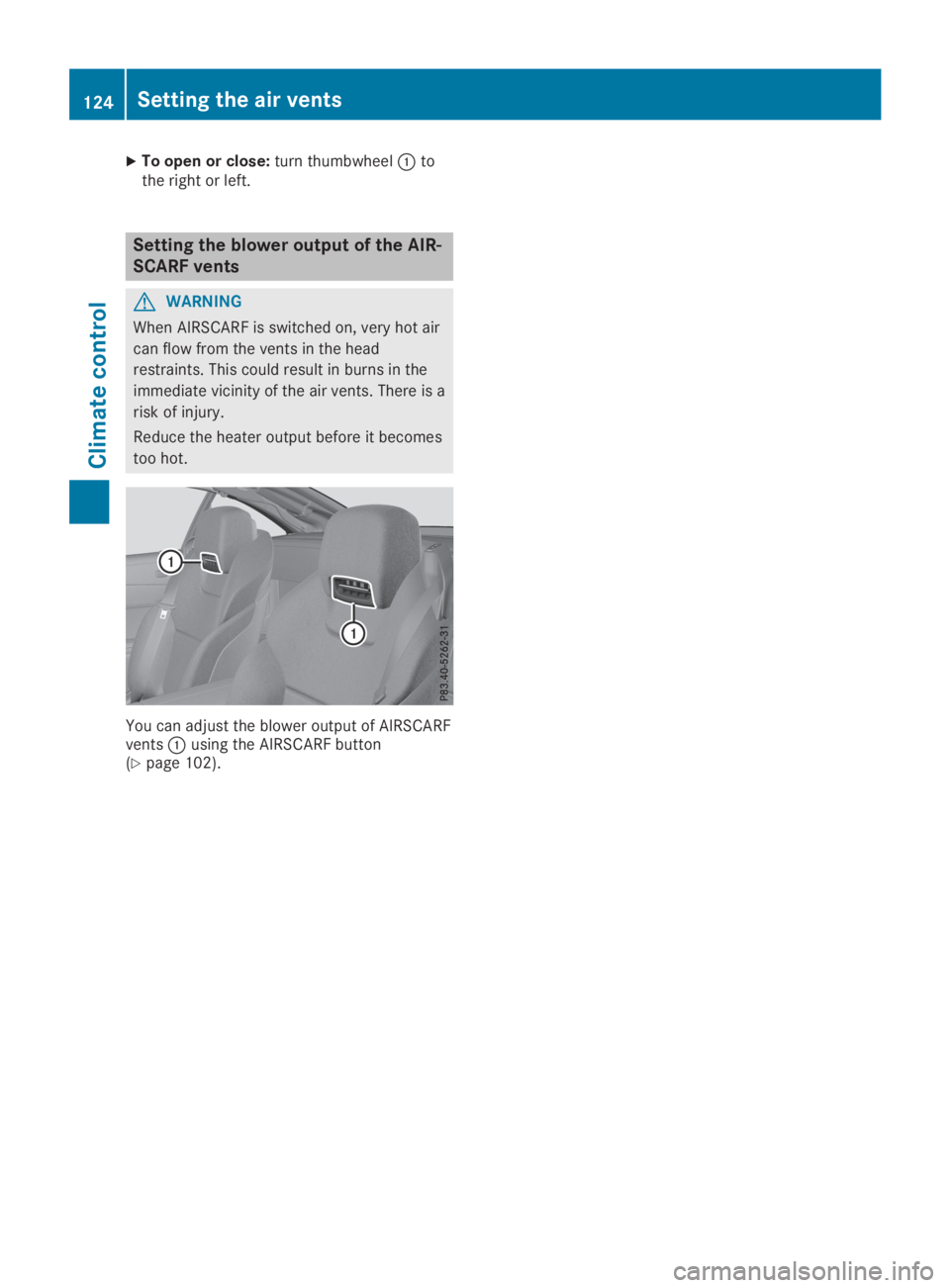

Setting the blower output of the AIR-
SCARF vents
GWARNING
When AIRSCARF is switched on, very hot air
can flow from the vents in the head
restraints. This could result in burns in the
immediate vicinity of the air vents. There is a
risk of injury.
Reduce the heater output before it becomes
too hot.
You can adjust the blower output of AIRSCARFventsCusing the AIRSCARF button(Ypage 102).
124Setting the air vents
Climate control

Notes on breaking-in a new vehicle
Important safety notes
The sensor system of some driving and drivingsafety systems adjusts automatically while acertain distance is being driven after the vehi-cle has been delivered or after repairs. Fullsystem effectiveness is not reached until theend of this teach-in procedure.
New and replaced brake pads and discs onlyreach their optimum braking effect after sev-eral hundred kilometers of driving. Compen-sate for this by applying greater force to thebrake pedal.
The first 1000 miles (1500 km)
The more you look after the engine when it isnew, the more satisfied you will be with itsperformance in the future.
RYou should therefore drive at varying vehicleand engine speeds for the first 1,000 miles(1,500 km).
RAvoid heavy loads, e.g. driving at full throt-tle, during this period.
RChange gear in good time, before the tach-ometer needle is

GWARNING
If you switch off the ignition while driving,
safety-relevant functions are only available
with limitations, or not at all. This could
affect, for example, the power steering and
the brake boosting effect. You will require
considerably more effort to steer and brake.
There is a risk of an accident.
Do not switch off the ignition while driving.
GWARNING
If the parking brake has not been fully
released when driving, the parking brake
can:
Roverheat and cause a fire
Rlose its hold function.
There is a risk of fire and an accident.
Release the parking brake fully before driv-
ing off.
!Do not warm up the engine while station-ary. Pull away immediately. Avoid highengine speeds and full throttle until theengine has reached its operating tempera-ture.
In vehicles with automatic transmission,engage positions P and R only when thevehicle is stationary.
Where possible, avoid spinning the drivewheels when pulling away on slippery roads.You could otherwise damage the drive train.
!Mercedes-AMG vehicles:at low engineoil temperatures below 68 ‡ (+20 †), themaximum engine speed is restricted inorder to protect the engine. To protect theengine and maintain smooth engine opera-tion, avoid driving at full throttle when theengine is cold.
Key positions
SmartKey
ZTo remove the SmartKey
GPower supply for some consumers, suchas the windshield wipers
HIgnition (power supply for all consumers)and drive position
ITo start the engine
iThe SmartKey can be turned in the ignitionlock even if it is not the correct SmartKeyfor the vehicle. The ignition is not switchedon. The engine cannot be started.
KEYLESS-GO
General notes
Vehicles with KEYLESS-GO are equipped witha SmartKey featuring an integrated KEYLESS-GO start function and a detachable Start/Stopbutton.
The Start/Stop button must be inserted in theignition lock and the SmartKey must be in thevehicle.
When you insert the Start/Stop button intothe ignition lock, the system needs approx-imately two seconds recognition time. You canthen use the Start/Stop button.
Pressing the Start/Stop button several timesin succession corresponds to the different keypositions in the ignition lock. This is only thecase if you are not depressing the brake pedal.
If you depress the brake pedal and press theStart/Stop button, the engine starts immedi-ately.
A check which periodically establishes a radioconnection between the vehicle and theSmartKey determines whether a valid Smart-
126Driving
Driving and parking
