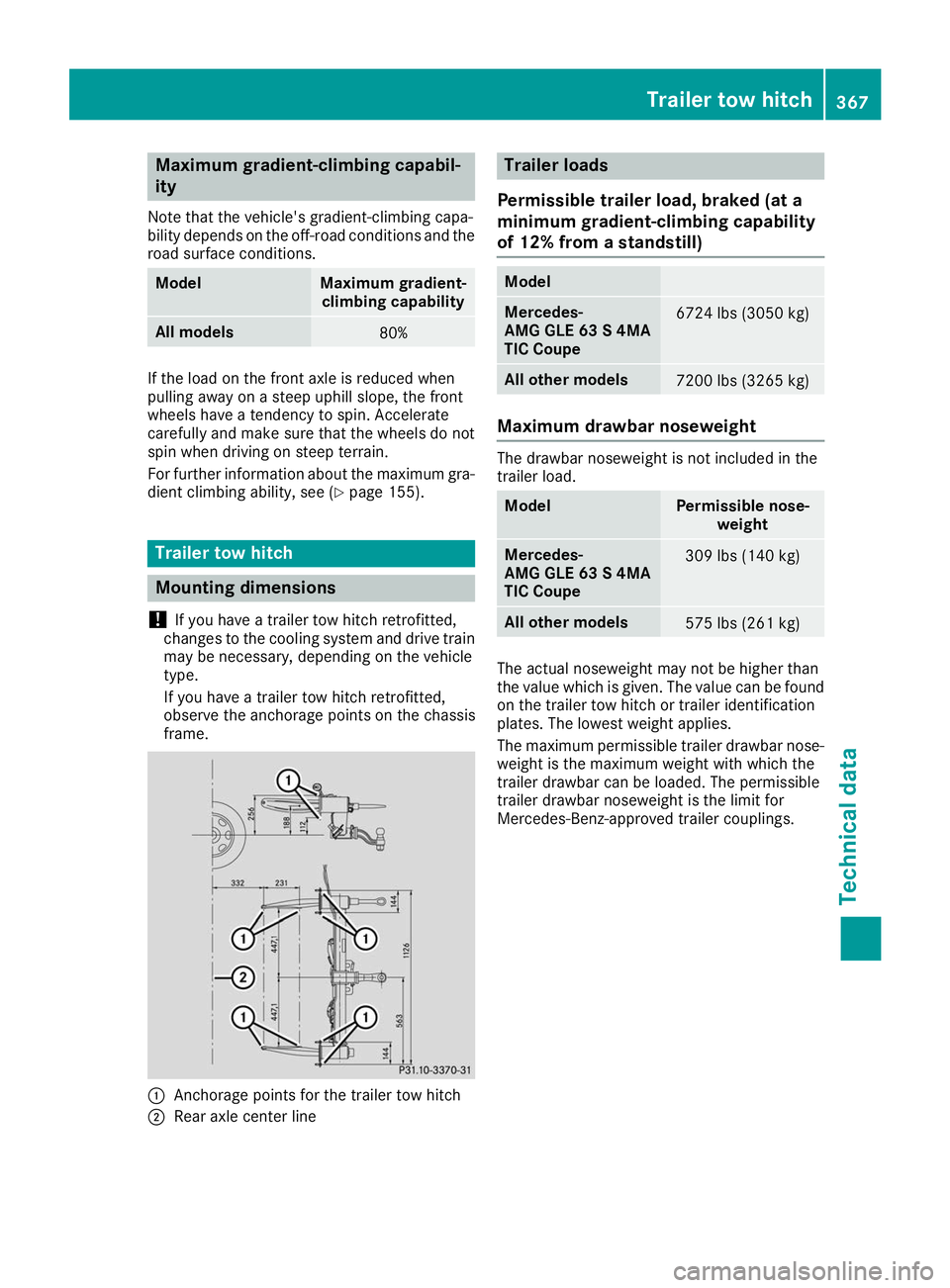

2019 MERCEDES-BENZ GLE COUPE Owner's Manual

Maximum gradient-climbing capabil-
ity
Note that the vehicle's gradient-climbing capa-
bility depends on the off-road conditions and the road surface conditions. Model Maximum gradient-
climbing capability All models
80%
If the load on the front axle is reduced when
pulling away on a steep uphill slope, the front
wheels have a tendency to spin. Accelerate
carefully and make sure that the wheels do not
spin when driving on steep terrain.
For further information about the maximum gra-
dient climbing ability, see (Y page 155).Trailer tow hitch
Mounting dimensions
! If you have a trailer tow hitch retrofitted,
changes to the cooling system and drive train
may be necessary, depending on the vehicle
type.
If you have a trailer tow hitch retrofitted,
observe the anchorage points on the chassis
frame. 0043
Anchorage points for the trailer tow hitch
0044 Rear axle center line Trailer loads
Permissible trailer load, braked (at a
minimum gradient-climbing capability
of 12% from a standstill) Model
Mercedes-
AMG GLE 63 S 4MA
TIC Coupe
6724 lbs (3050 kg)
All other models
7200 lbs (3265 kg)
Maximum drawbar noseweight
The drawbar noseweight is not included in the
trailer load.
Model Permissible nose-
weight Mercedes-
AMG GLE 63 S 4MA
TIC Coupe
309 lbs (140 kg)
All other models
575 lbs (261 kg)
The actual noseweight may not be higher than
the value which is given. The value can be found
on the trailer tow hitch or trailer identification
plates. The lowest weight applies.
The maximum permissible trailer drawbar nose-
weight is the maximum weight with which the
trailer drawbar can be loaded. The permissible
trailer drawbar noseweight is the limit for
Mercedes-Benz-approved trailer couplings. Trailer tow hitch
367Technical data Z

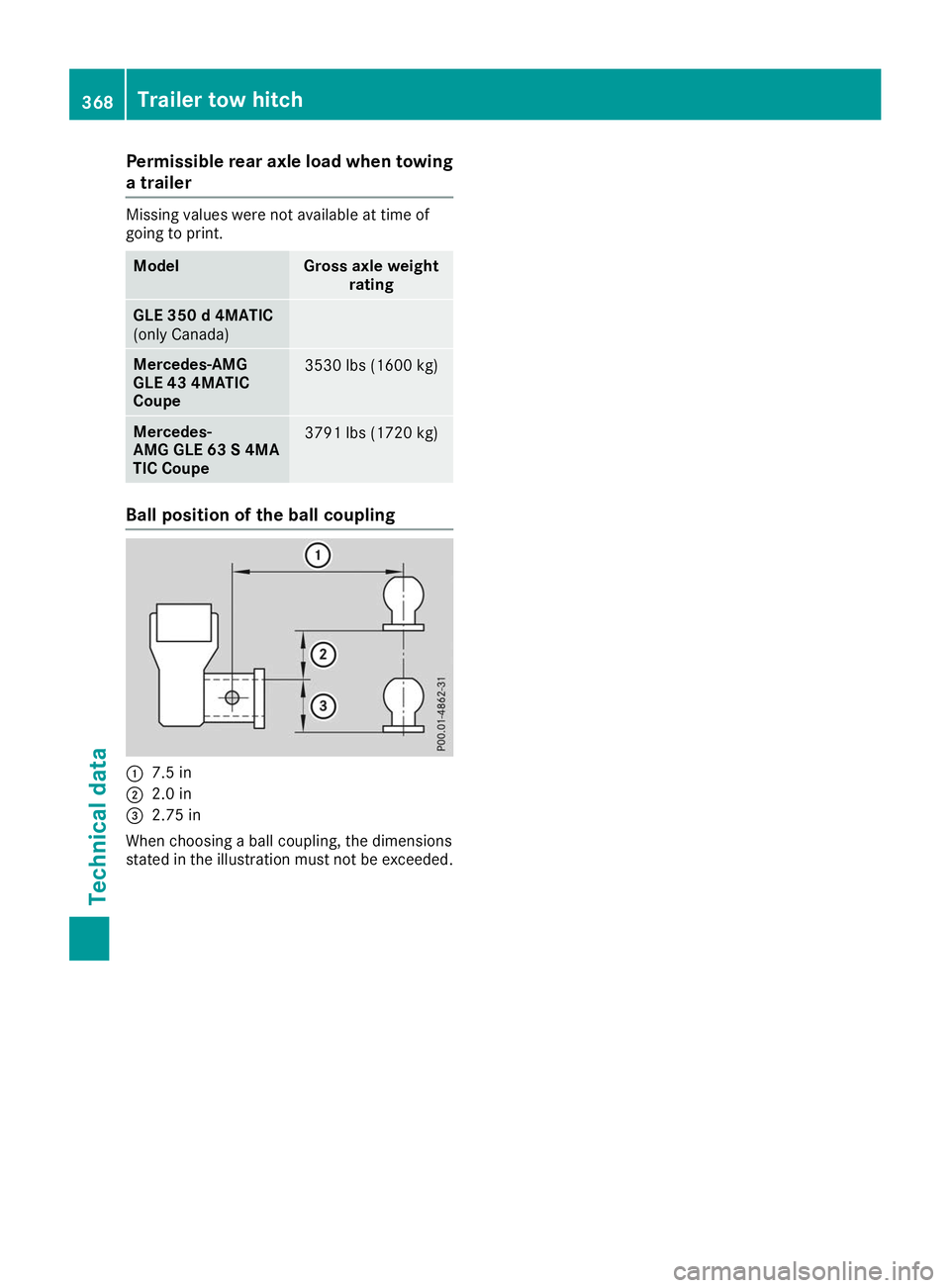

Permissible rear axle load when towing
a trailer Missing values were not available at time of
going to print.
Model Gross axle weight
rating GLE 350 d 4MATIC
(only Canada) Mercedes‑AMG
GLE 43 4MATIC
Coupe 3530 lbs (1600 kg)
Mercedes-
AMG GLE 63 S 4MA
TIC Coupe
3791 lbs (1720 kg)
Ball position of the ball coupling
0043
7.5 in
0044 2.0 in
0087 2.75 in
When choosing a ball coupling, the dimensions
stated in the illustration must not be exceeded. 368
Trailer tow hitchTechnical data
