Ve

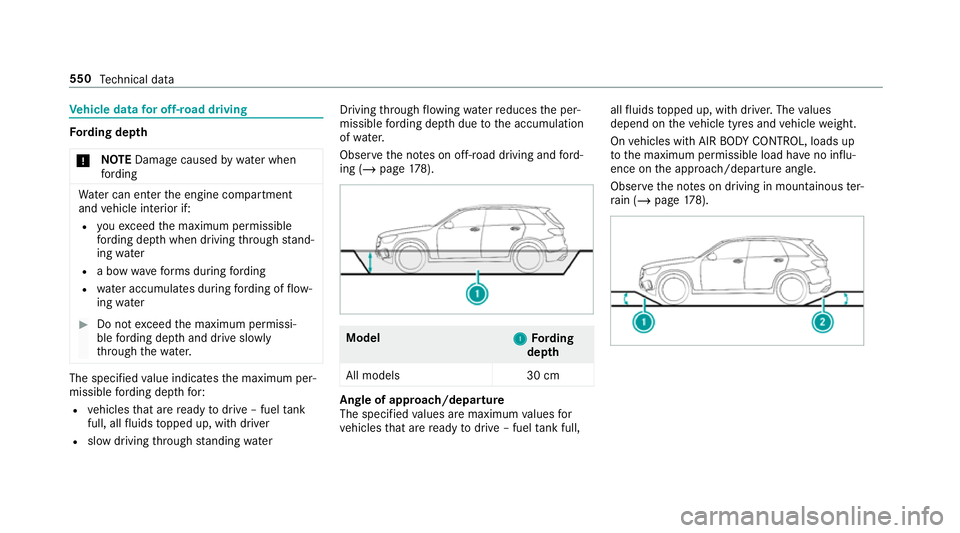

hicle data for off-road driving Fo
rding dep th
* NO
TEDama gecaused bywate r when
fo rd ing Wa
ter can enter the engine compartment
and vehicle interior if:
R youexc eed the maximum permissible
fo rd ing dep thwhen driving thro ugh stand‐
ing water
R a bow wavefo rm s during ford ing
R wate r accumulates during ford ing of flow‐
ing water #
Do not exceed the maximum permissi‐
ble ford ing dep thand drive slowly
th ro ugh thewa ter. The specified
value indicates the maximum per‐
missible ford ing dep thfor:
R vehicles that are ready todrive – fuel tank
full, all fluids topped up, with driver
R slow driving thro ugh standing water Driving
thro ugh flow ing waterre duces the per‐
missible ford ing dep thdue tothe accumulation
of wate r.
Obser vethe no tes on off-road driving and ford‐
ing (/ page178). Model
1
1Fording
dep th
Al l models 30 cm Angle of approach/departu
re
The specified values are maximum values for
ve hicles that are ready todrive – fuel tank full, all
fluids topped up, with driver. The values
depend on theve hicle tyres and vehicle weight.
On vehicles with AIR BODY CONTROL, loads up
to the maximum permissible load ha veno influ‐
ence on the approach/departure angle.
Obser vethe no tes on driving in mountainous ter‐
ra in (/ page178). 550
Tech nical da ta

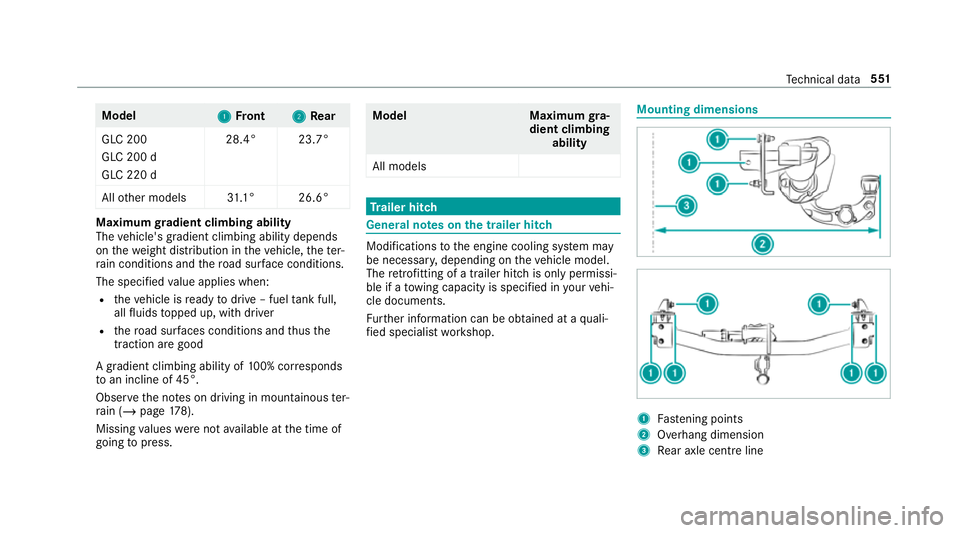

Model
1 1Front 2 2Rear
GLC 200
GLC 200 d
GLC 220 d 28.4° 23.7°
All other models 31.1°2 6.6° Maximum
gradient climbing ability
The vehicle's gradient climbing ability depends
on thewe ight distribution in theve hicle, thete r‐
ra in conditions and thero ad sur face conditions.
The specified value applies when:
R theve hicle is ready todrive – fuel tank full,
all fluids topped up, with driver
R thero ad sur faces conditions and thus the
traction are good
A gradient climbing ability of 100% cor responds
to an incline of 45°.
Obse rveth e no tes on driving in mountainous ter‐
ra in (/ page178).
Missing values werenot available at the time of
going topress. Model
Maximumgra‐
dient climbing ability
All models Tr
ailer hitch Gene
ral no tes on the trailer hit ch Modifications
tothe engine cooling sy stem may
be necessar y,depending on theve hicle model.
The retrofitting of a trailer hitch is only pe rmissi‐
ble if a towing capacity is specified in your vehi‐
cle documents.
Fu rther information can be obtained at a quali‐
fi ed specialist workshop. Mounting dimensions
1
Fastening points
2 Overhang dimension
3 Rear axle centre line Te
ch nical da ta551

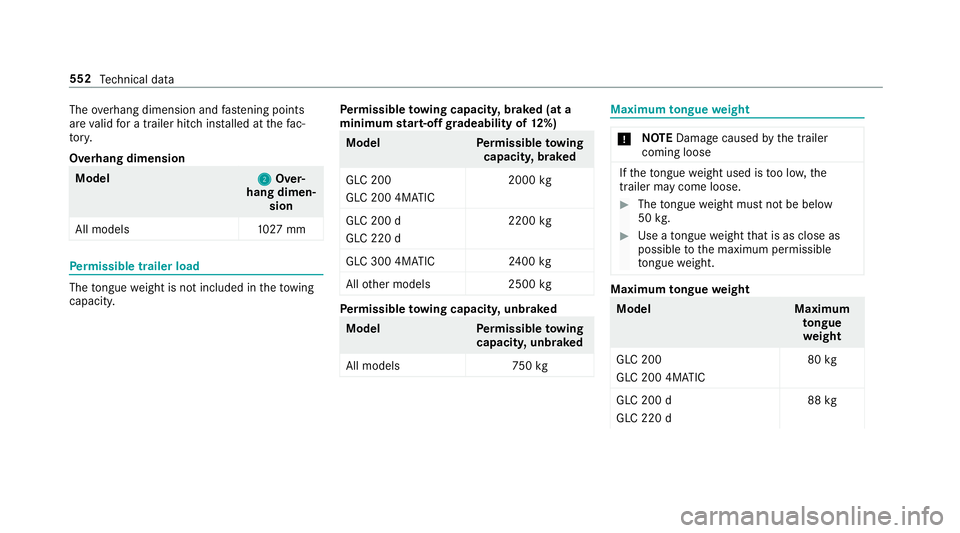

The
overhang dimension and fastening points
are valid for a trailer hitch ins talled at thefa c‐
to ry.
Overhang dimension Model
2 2Over‐
hang dimen‐ sion
All models 1027 mm Pe
rm issible trailer load The
tongue weight is not included in theto wing
capacity. Pe
rm issible towing capacit y,braked (at a
minimum start-off gradeability of 12%) Model
Perm issible towing
capacit y,braked
GLC 200
GLC 200 4MATIC 2000
kg
GLC 200 d
GLC 220 d 2200
kg
GLC 300 4MATIC 2400 kg
All other models 2500kg Pe
rm issible towing capacit y,unbraked Model
Perm issible towing
capacit y,unbraked
All model s7 50kg Maximum
tongue weight *
NO
TEDama gecaused bythe trailer
coming loose If
th eto ngue weight used is too lo w,the
trailer may come loose. #
The tongue weight must not be below
50 kg. #
Use a tongue weight that is as close as
possible tothe maximum permissible
to ngue weight. Maximum
tongue weight Model
Maximum
to ngue
we ight
GLC 200
GLC 200 4MATIC 80
kg
GLC 200 d
GLC 220 d 88
kg 552
Tech nical da ta

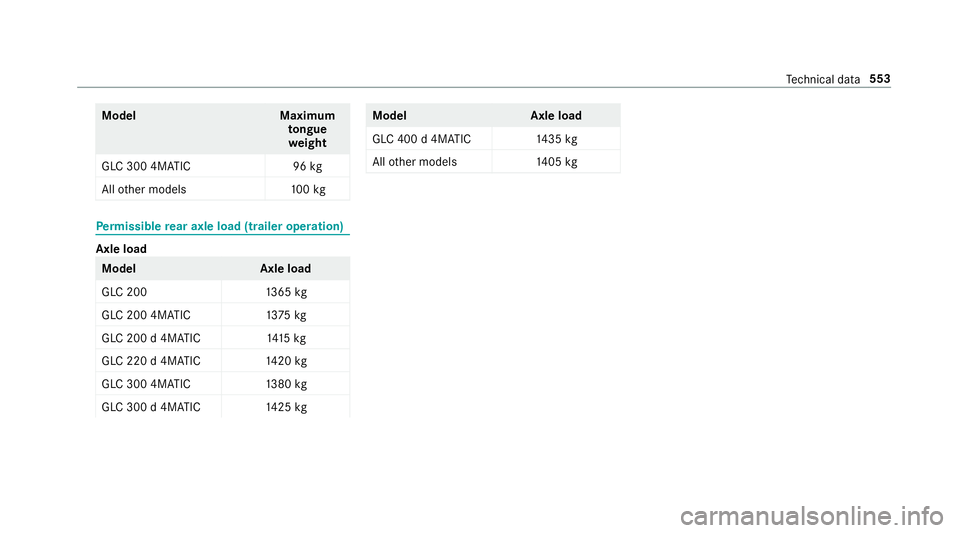

Model
Maximum
to ngue
we ight
GLC 300 4MATIC 96kg
All other models 100kg Pe
rm issible rear axle load (trailer operation) Axle load
Model
Axle load
GLC 200 1365 kg
GLC 200 4MATIC 1375 kg
GLC 200 d 4MATIC 1415 kg
GLC 220 d 4MATIC 1420 kg
GLC 300 4MATIC 1380 kg
GLC 300 d 4MATIC 1425 kg Model
Axle load
GLC 400 d 4MATIC 1435 kg
All other models 1405 kg Te
ch nical da ta553

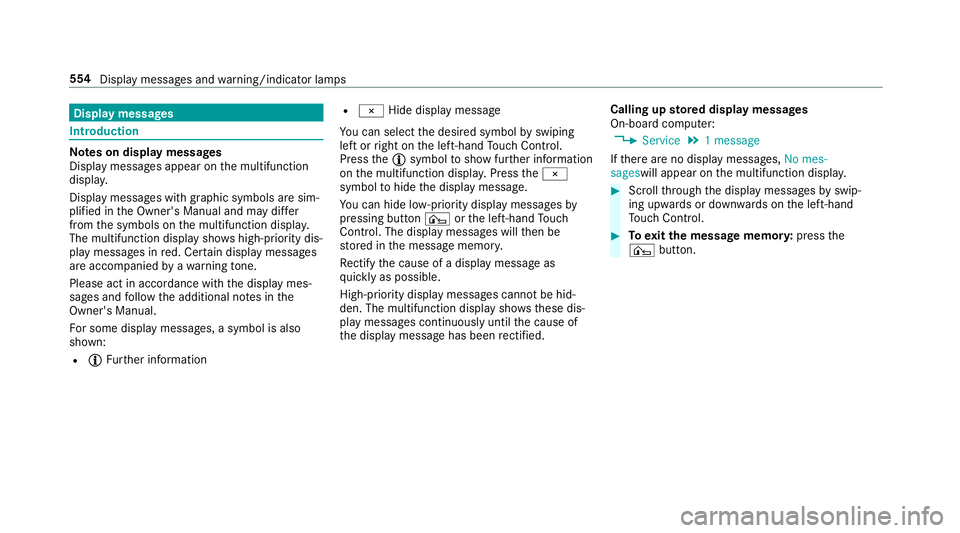

Display messages
Int
roduction Note
s on display messages
Display messages appear on the multifunction
displa y.
Displ aymessa ges with graphic symbols are sim‐
plified in the Owner's Manual and may dif fer
from the symbols on the multifunction displa y.
The multifunction display sho wshigh-priority dis‐
play messages in red. Cer tain display messages
are accompanied byawa rning tone.
Please act in acco rdance with the display mes‐
sages and follow the additional no tes in the
Owner's Manual.
Fo r some display messa ges, a symbol is also
shown:
R Õ Further information R
¨ Hide display message
Yo u can select the desired symbol byswiping
left or right on the left-hand Touch Control.
Press theÕ symbol toshow fur ther information
on the multifunction displa y.Press the¨
symbol tohide the display message.
Yo u can hide lo w-priority display messages by
pressing button ¤orthe left-hand Touch
Control. The displ aymessa ges will then be
st ored in the message memor y.
Re ctify the cause of a display message as
qu ickly as possible.
High-priority display messages cannot be hid‐
den. The multifunction display sho ws these dis‐
play messages continuously until the cause of
th e display message has been rectified. Calling up
stored displ aymessages
On-boa rdcompu ter:
4 Service 5
1 message
If th ere are no display messages, No mes-
sageswill appear on the multifunction displa y. #
Scroll thro ugh the display messages byswip‐
ing upwards or down wards on the left-hand
To uch Control. #
Toexitth e message memor y:press the
¤ button. 554
Display messages and warning/indicator lamps

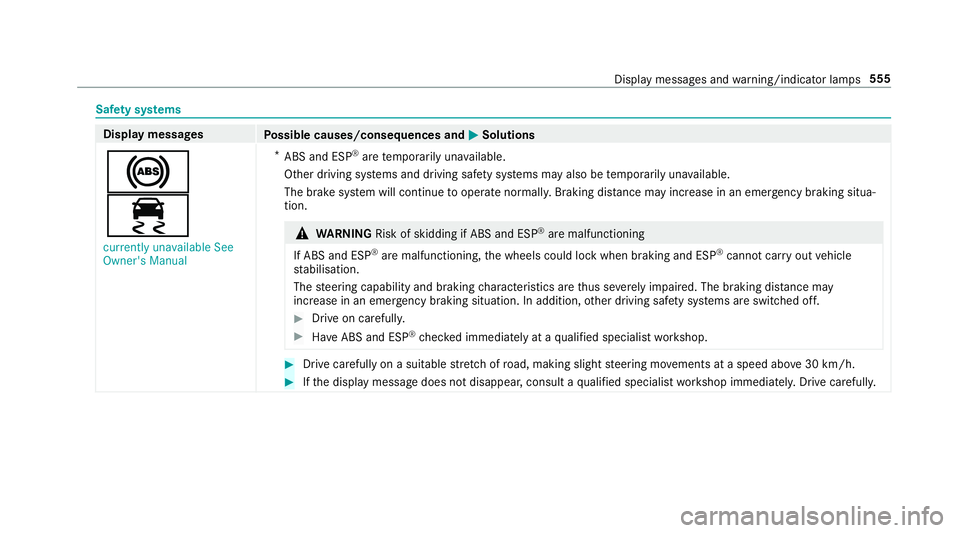

Saf
ety sy stems Display messages
Possible causes/consequences and M
MSolutions
!
÷ currently unavailable See
Owner's Manual *
ABS and ESP ®
are temp orarily una vailable.
Other driving sy stems and driving saf ety sy stems may also be temp orarily una vailable.
The brake sy stem will continue tooperate normally. Braking dis tance may increase in an emergency braking situa‐
tion. &
WARNING Risk of skidding if ABS and ESP ®
are malfunctioning
If ABS and ESP ®
are malfunctioning, the wheels could lock when braking and ESP ®
cann otcar ryout vehicle
st abilisation.
The steering capability and braking characteristics are thus se verely impaired. The br aking distance may
increase in an emergency braking situation. In addition, other driving saf ety sy stems are switched off. #
Drive on carefull y. #
Have ABS and ESP ®
ch ecked immediately at a qualified specialist workshop. #
Drive carefully on a suitable stre tch of road, making slight steering mo vements at a speed abo ve30 km/h. #
Ifth e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully. Display messages and
warning/indicator lamps 555

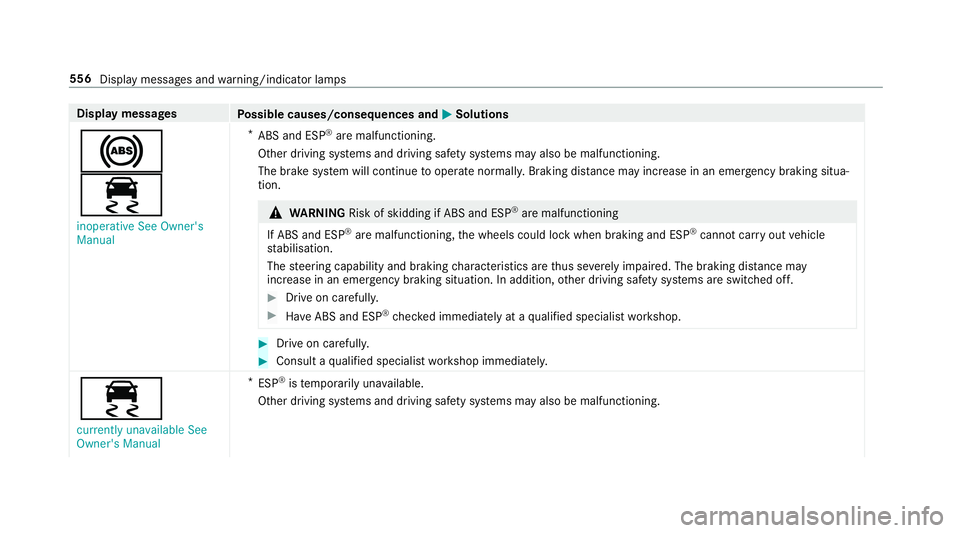

Display messages
Possible causes/consequences and M
MSolutions
!
÷ inoperative See Owner's
Manual *
ABS and ESP ®
are malfunctioning.
Other driving sy stems and driving saf ety sy stems may also be malfunctioning.
The brake sy stem will continue tooperate normally. Braking dis tance may increase in an emergency braking situa‐
tion. &
WARNING Risk of skidding if ABS and ESP ®
are malfunctioning
If ABS and ESP ®
are malfunctioning, the wheels could lock when braking and ESP ®
cann otcar ryout vehicle
st abilisation.
The steering capability and braking characteristics are thus se verely impaired. The br aking distance may
increase in an emergency braking situation. In addition, other driving saf ety sy stems are switched off. #
Drive on carefull y. #
Have ABS and ESP ®
ch ecked immediately at a qualified specialist workshop. #
Drive on carefully. #
Consult a qualified specialist workshop immediatel y.
÷
currently unavailable See
Owner's Manual *
ESP ®
is temp orarily una vailable.
Other driving sy stems and driving saf ety sy stems may also be malfunctioning. 556
Display messages and warning/indicator lamps

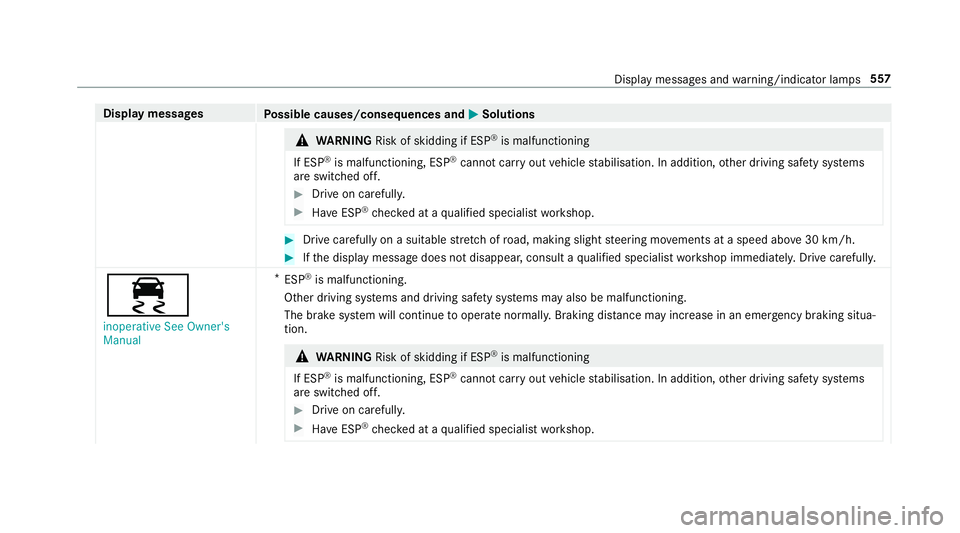

Display messages
Possible causes/consequences and M
MSolutions &
WARNING Risk of skidding if ESP ®
is malfunctioning
If ESP ®
is malfunctioning, ESP ®
cannot car ryout vehicle stabilisation. In addition, other driving saf ety sy stems
are switched off. #
Drive on carefull y. #
Have ESP ®
ch ecked at a qualified specialist workshop. #
Drive carefully on a suitable stre tch of road, making slight steering mo vements at a speed abo ve30 km/h. #
Ifth e display message does not disappear, consult a qualified specialist workshop immediately. Drive carefully.
÷
inoperative See Owner's
Manual *
ESP ®
is malfunctioning.
Other driving sy stems and driving saf ety sy stems may also be malfunctioning.
The brake sy stem will continue tooperate normally. Braking dis tance may increase in an eme rgency braking situa‐
tion. &
WARNING Risk of skidding if ESP ®
is malfunctioning
If ESP ®
is malfunctioning, ESP ®
cannot car ryout vehicle stabilisation. In addition, other driving saf ety sy stems
are switched off. #
Drive on carefull y. #
Have ESP ®
ch ecked at a qualified specialist workshop. Display messages and
warning/indicator lamps 557
