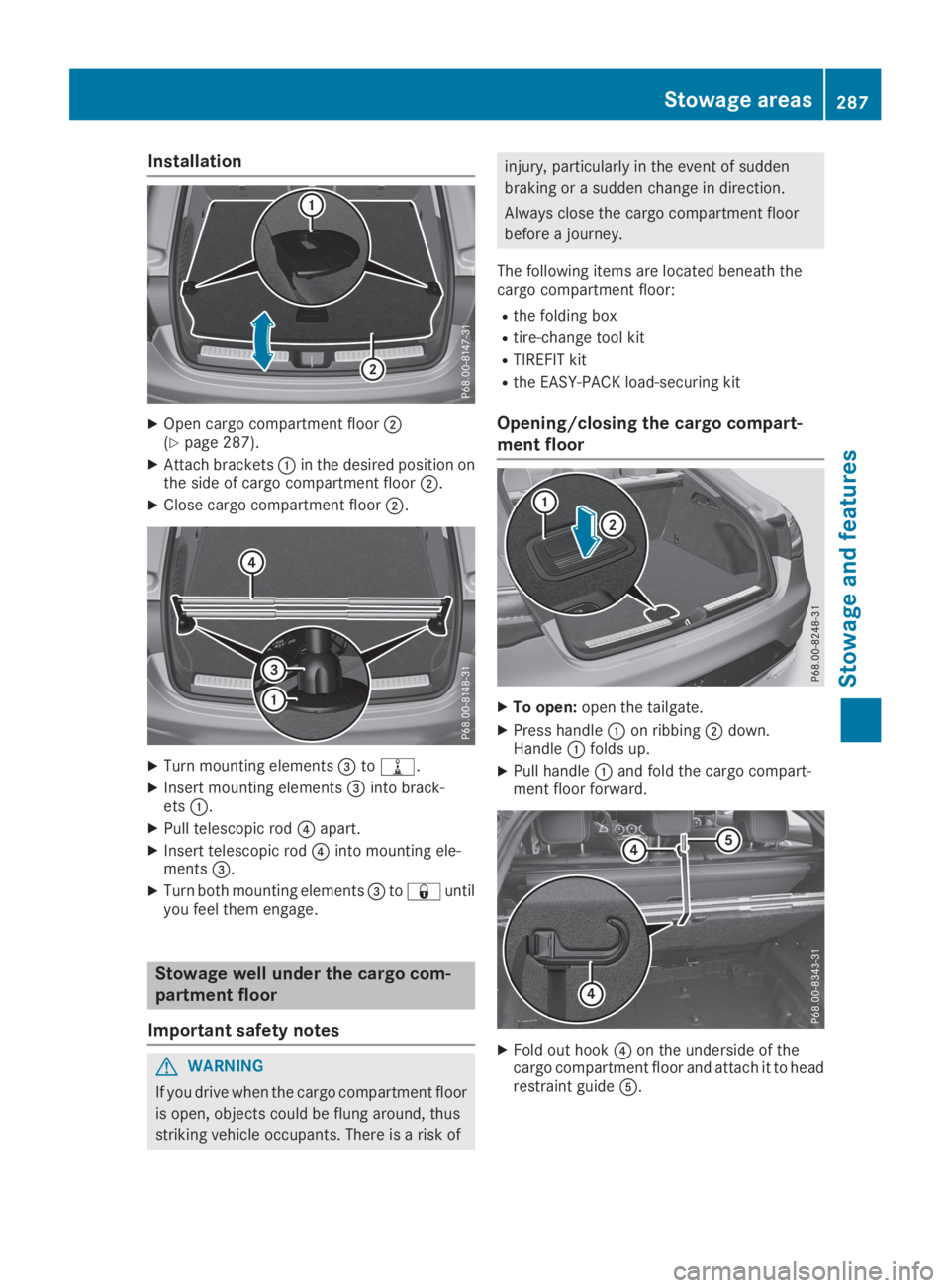

Installation
XOpen cargo compartment floorD(Ypage 287).
XAttach bracketsCin the desired position onthe side of cargo compartment floorD.
XClose cargo compartment floorD.
XTurn mounting elements

XTo close:unclip the hook

XCarefully open coversCin the direction ofthe arrow and fold upwards.
XOnly secure the roof carrier to the anchoragepoints under coversC.
XObserve the manufacturer's installationinstructions.
Features
Cup holder
Important safety notes
GWARNING
If you transport objects in the vehicle interior
and these are not adequately secured, they
could slip or be flung around and thereby
strike vehicle occupants. In addition, cup
holders, open stowage spaces and mobile
phone brackets may not always be able to
hold the objects placed in them in the event of
an accident. There is a risk of injury, particu-
larly in the event of sharp braking or sudden
changes of direction.
RAlways stow objects in such a way that they
cannot be tossed about in these or similar
situations.
RAlways make sure that objects do not pro-
trude out of the stowage spaces, luggage
nets or stowage nets.
REnsure that closable stowage spaces are
shut before beginning your journey.
RAlways stow and secure heavy, hard, poin-
ted, sharp-edged, fragile or large objects in
the cargo compartment.
!Only use the cup holders for containers ofthe right size and which have lids. The drinkscould otherwise spill.
!Do not expose drinks bottles in the cupholder in the center console to continuous,strong and direct sunlight. The passengercompartment in the area of the center con-sole can otherwise be damaged by the con-centrated and reflected sunlight.
Observe the loading guidelines (Ypage 278).
Cup holder in the front center console
XTo open:open the stowage compartment(Ypage 279).
XTo remove:slide catch

XTo fold out:place a container in the cupholder.The cup holderCorDfolds down automat-ically.
XTo fold in:remove the container.The cup holderCorDfolds in automati-cally.
XTo close:slide cup holderCorDback untilit engages.

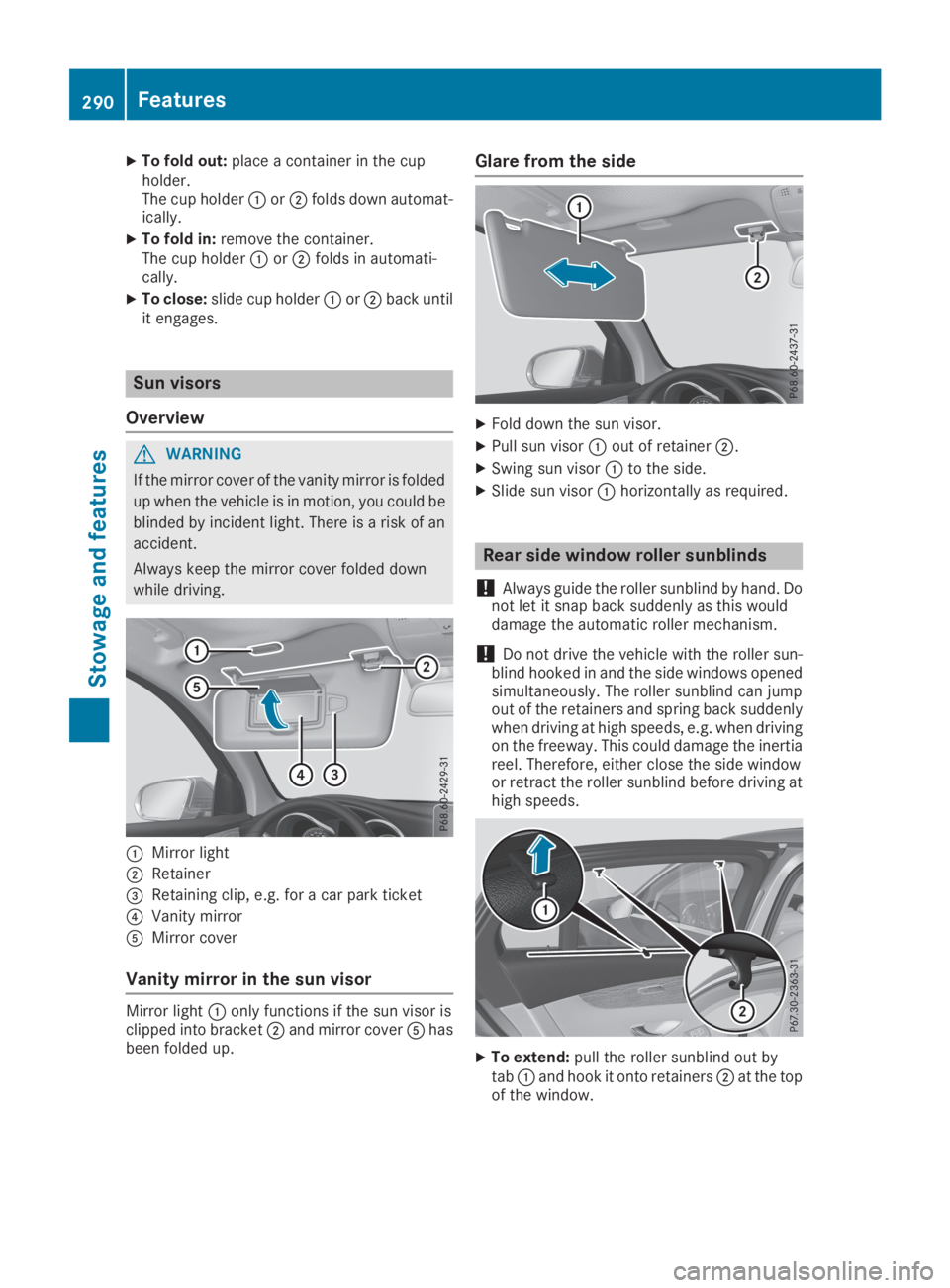

Sun visors
Overview
GWARNING
If the mirror cover of the vanity mirror is folded
up when the vehicle is in motion, you could be
blinded by incident light. There is a risk of an
accident.
Always keep the mirror cover folded down
while driving.
CMirror light
DRetainer

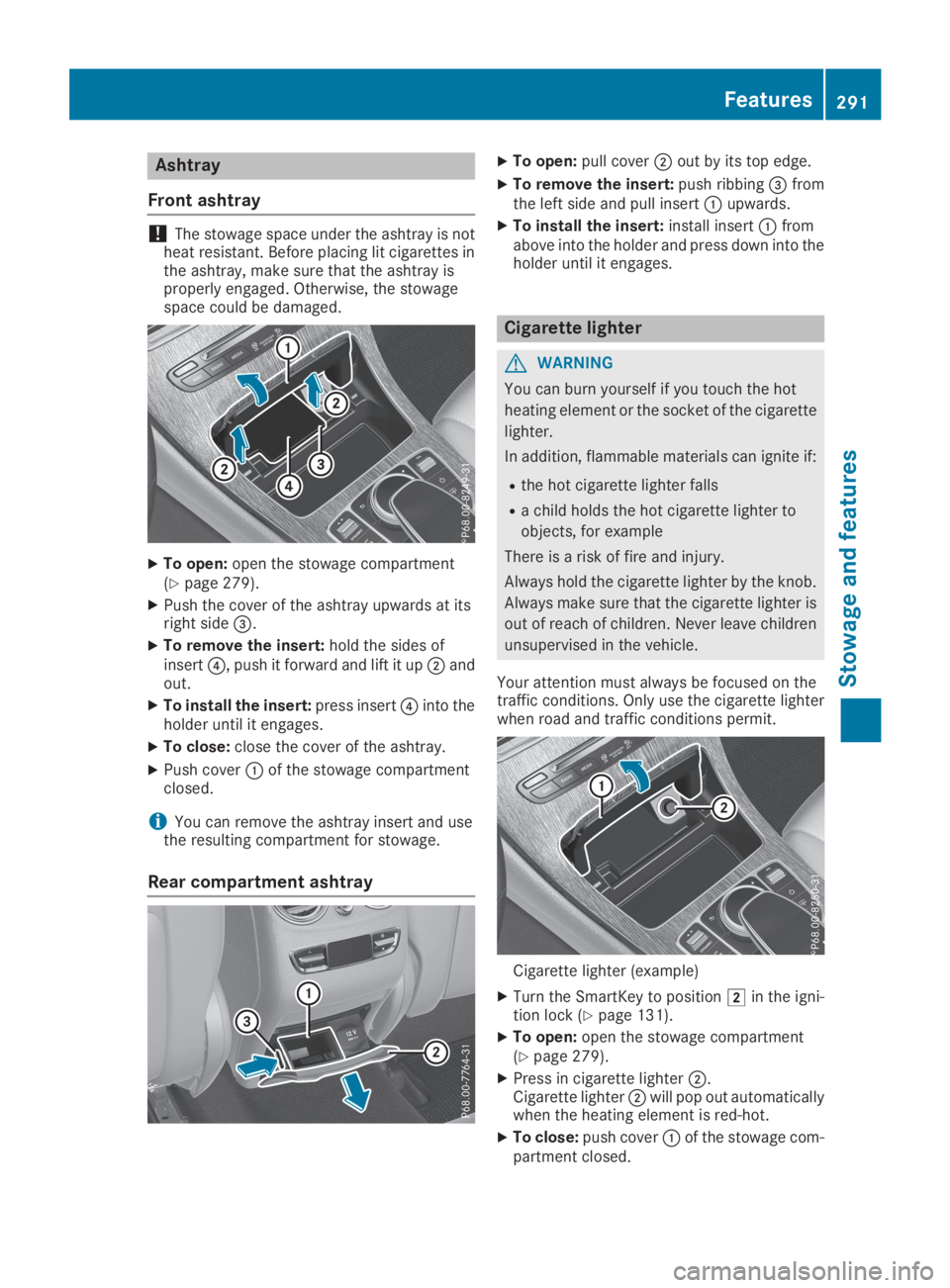

Ashtray
Front ashtray
!The stowage space under the ashtray is notheat resistant. Before placing lit cigarettes inthe ashtray, make sure that the ashtray isproperly engaged. Otherwise, the stowagespace could be damaged.
XTo open:open the stowage compartment(Ypage 279).
XPush the cover of the ashtray upwards at itsright side

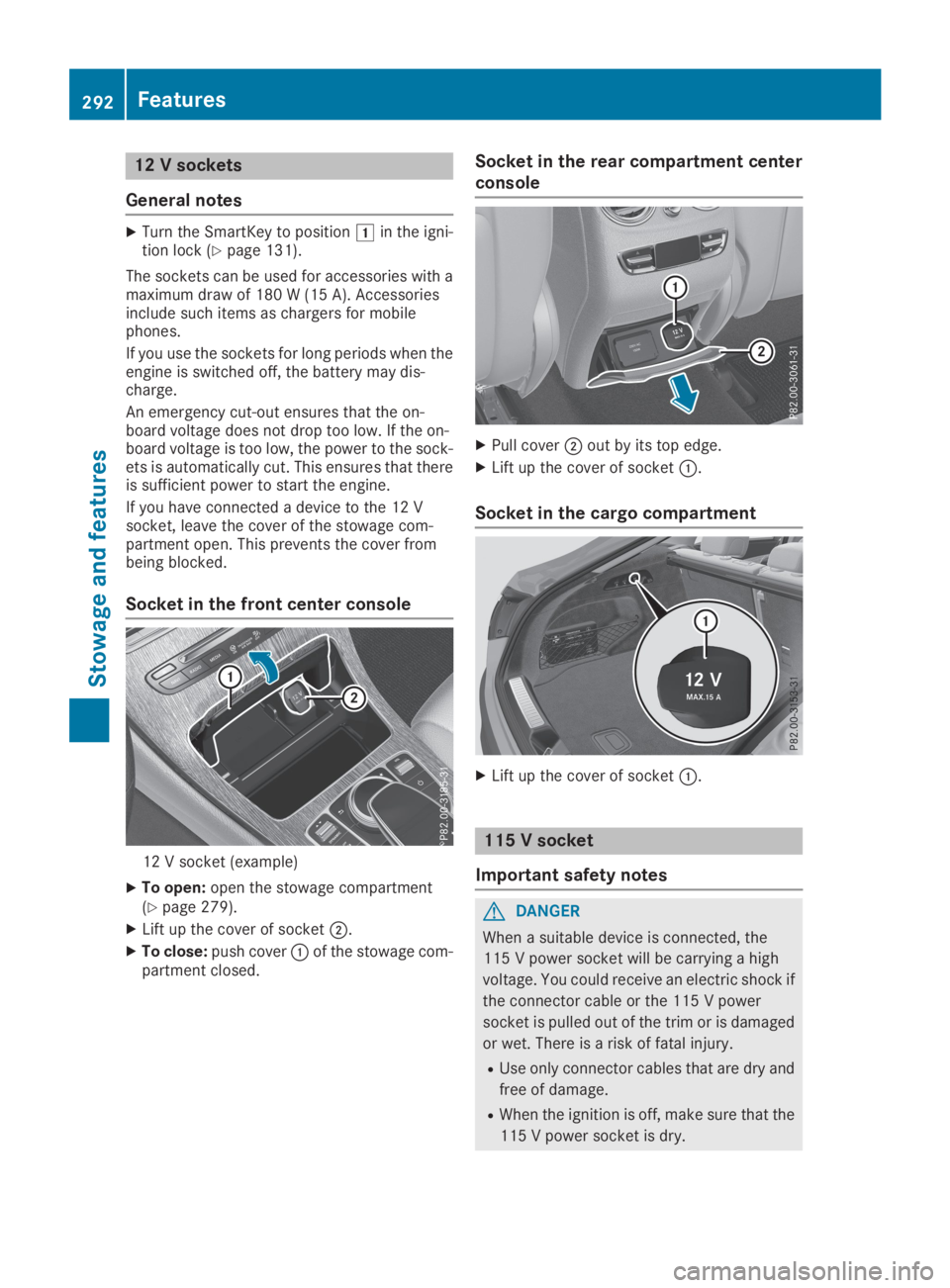

12 V sockets
General notes
XTurn the SmartKey to positionGin the igni-tion lock (Ypage 131).
The sockets can be used for accessories with amaximum draw of 180 W (15 A). Accessoriesinclude such items as chargers for mobilephones.
If you use the sockets for long periods when theengine is switched off, the battery may dis-charge.
An emergency cut-out ensures that the on-board voltage does not drop too low. If the on-board voltage is too low, the power to the sock-ets is automatically cut. This ensures that thereis sufficient power to start the engine.
If you have connected a device to the 12 Vsocket, leave the cover of the stowage com-partment open. This prevents the cover frombeing blocked.
Socket in the front center console
12 V socket (example)
XTo open:open the stowage compartment(Ypage 279).
XLift up the cover of socketD.
XTo close:push coverCof the stowage com-partment closed.
Socket in the rear compartment center
console
XPull coverDout by its top edge.
XLift up the cover of socketC.
Socket in the cargo compartment
XLift up the cover of socketC.
115 V socket
Important safety notes
GDANGER
When a suitable device is connected, the
115 V power socket will be carrying a high
voltage. You could receive an electric shock if
the connector cable or the 115 V power
socket is pulled out of the trim or is damaged
or wet. There is a risk of fatal injury.
RUse only connector cables that are dry and
free of damage.
RWhen the ignition is off, make sure that the
115 V power socket is dry.
292Features
Stowage and features

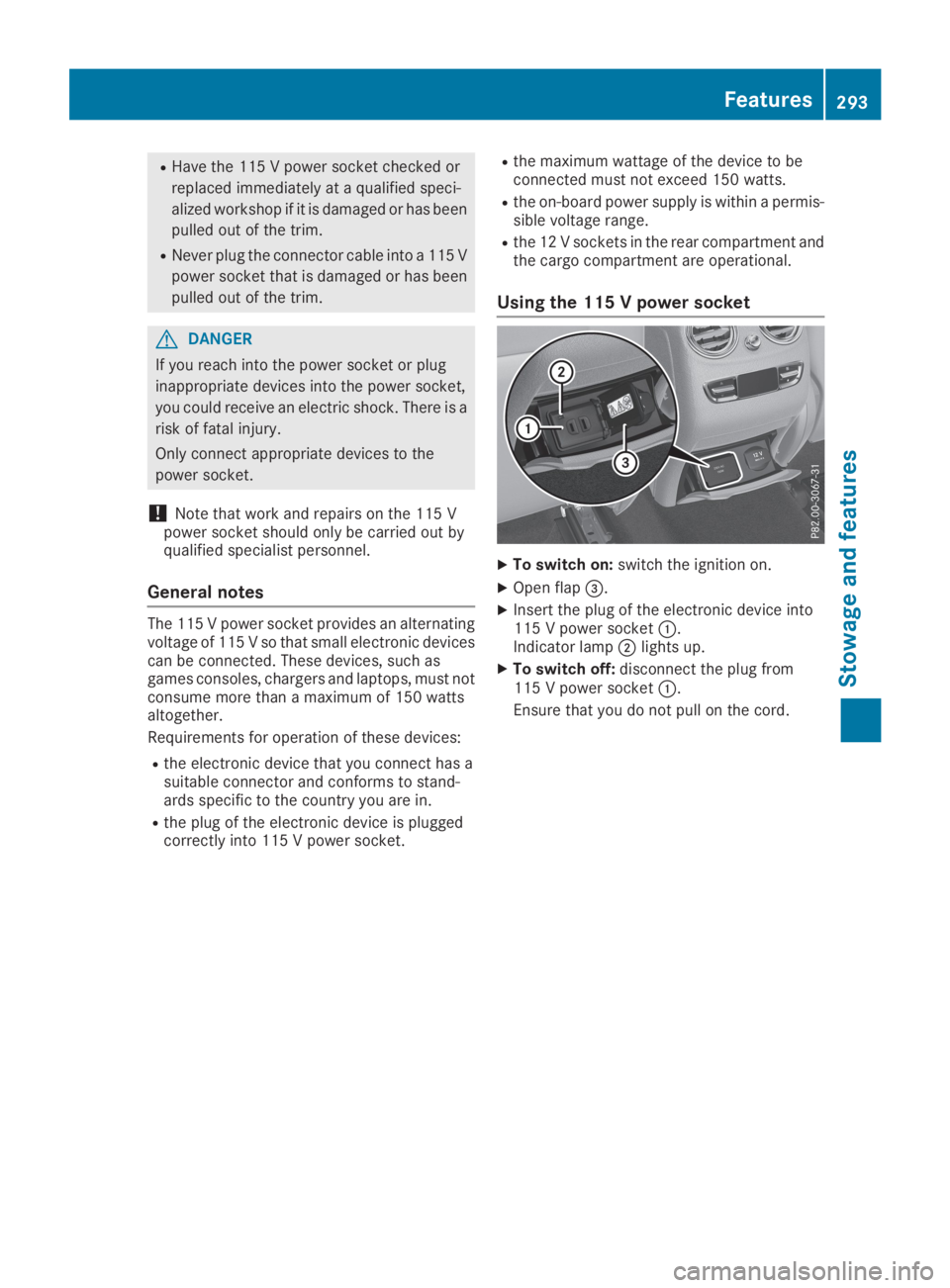

RHave the 115 V power socket checked or
replaced immediately at a qualified speci-
alized workshop if it is damaged or has been
pulled out of the trim.
RNever plug the connector cable into a 115 V
power socket that is damaged or has been
pulled out of the trim.
GDANGER
If you reach into the power socket or plug
inappropriate devices into the power socket,
you could receive an electric shock. There is a
risk of fatal injury.
Only connect appropriate devices to the
power socket.
!Note that work and repairs on the 115 Vpower socket should only be carried out byqualified specialist personnel.
General notes
The 115 V power socket provides an alternatingvoltage of 115 V so that small electronic devicescan be connected. These devices, such asgames consoles, chargers and laptops, must notconsume more than a maximum of 150 wattsaltogether.
Requirements for operation of these devices:
Rthe electronic device that you connect has asuitable connector and conforms to stand-ards specific to the country you are in.
Rthe plug of the electronic device is pluggedcorrectly into 115 V power socket.
Rthe maximum wattage of the device to beconnected must not exceed 150 watts.
Rthe on-board power supply is within a permis-sible voltage range.
Rthe 12 V sockets in the rear compartment andthe cargo compartment are operational.
Using the 115 V power socket
XTo switch on:switch the ignition on.
XOpen flap

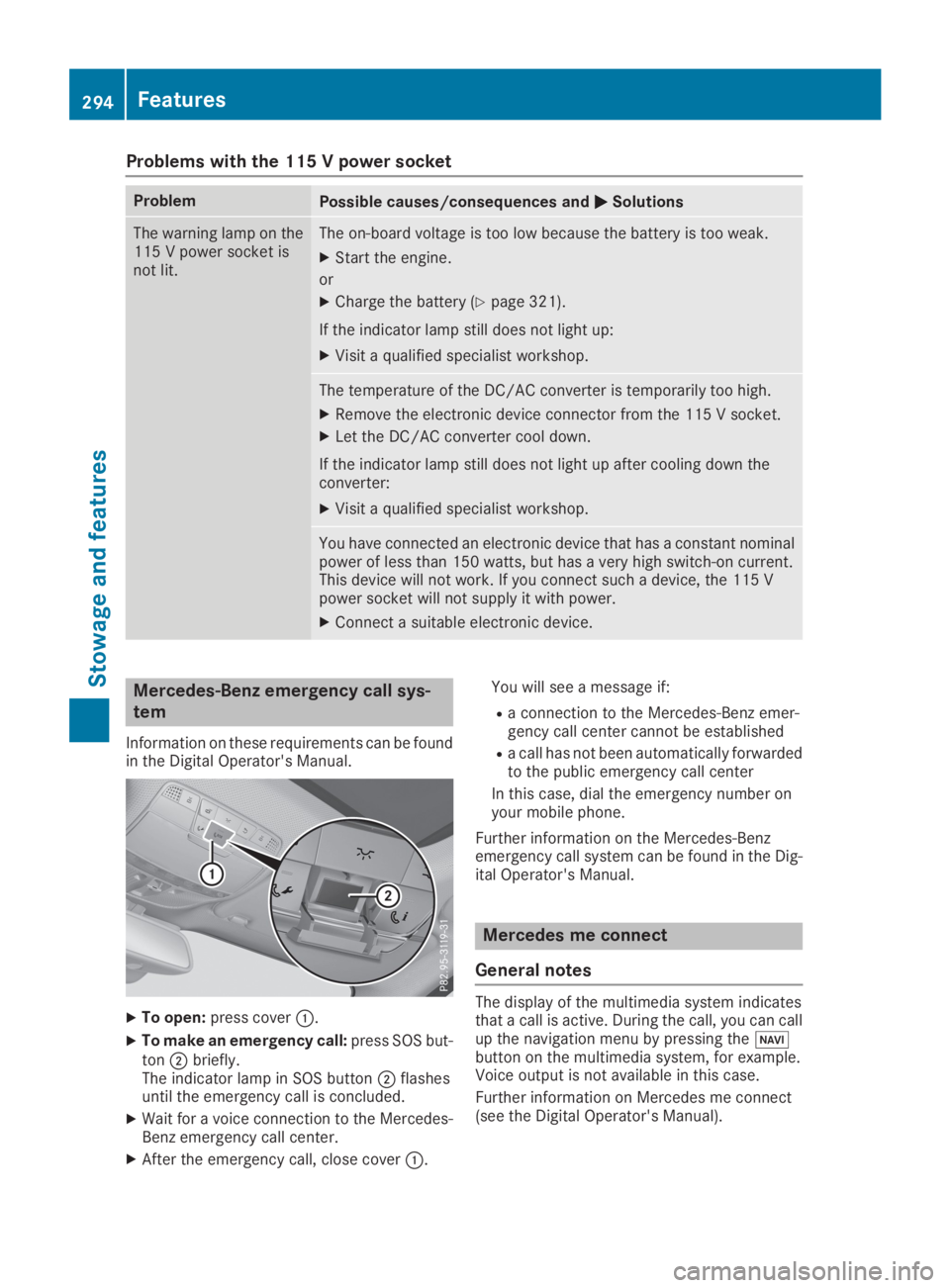

Problems with the 115 V power socket
ProblemPossible causes/consequences andPPSolutions
The warning lamp on the115 V power socket isnot lit.
The on-board voltage is too low because the battery is too weak.
XStart the engine.
or
XCharge the battery (Ypage 321).
If the indicator lamp still does not light up:
XVisit a qualified specialist workshop.
The temperature of the DC/AC converter is temporarily too high.
XRemove the electronic device connector from the 115 V socket.
XLet the DC/AC converter cool down.
If the indicator lamp still does not light up after cooling down theconverter:
XVisit a qualified specialist workshop.
You have connected an electronic device that has a constant nominalpower of less than 150 watts, but has a very high switch-on current.This device will not work. If you connect such a device, the 115 Vpower socket will not supply it with power.
XConnect a suitable electronic device.
Mercedes-Benz emergency call sys-
tem
Information on these requirements can be foundin the Digital Operator's Manual.
XTo open:press coverC.
XTo make an emergency call:press SOS but-tonDbriefly.The indicator lamp in SOS buttonDflashesuntil the emergency call is concluded.
XWait for a voice connection to the Mercedes-Benz emergency call center.
XAfter the emergency call, close coverC.
You will see a message if:
Ra connection to the Mercedes-Benz emer-gency call center cannot be established
Ra call has not been automatically forwardedto the public emergency call center
In this case, dial the emergency number onyour mobile phone.
Further information on the Mercedes-Benzemergency call system can be found in the Dig-ital Operator's Manual.
Mercedes me connect
General notes
The display of the multimedia system indicatesthat a call is active. During the call, you can callup the navigation menu by pressing the
