2019 MERCEDES-BENZ GLC Owners Manual

ProblemPossible causes/consequences andPPSolutions
The sliding sunroof can-not be closed and youcannot see the cause.
If the sliding sunroof is obstructed during closing and reopens againslightly:
XImmediately after it blocks, pull theWswitch down again to thepoint of resistance until the sliding sunroof is closed.The sliding sunroof is closed with increased force.
If the sliding sunroof is obstructed again during closing and thenreopens slightly:
XImmediately after it blocks, pull theWswitch down again to thepoint of resistance until the sliding sunroof is closed.The sliding sunroof is closed without the automatic reversing fea-ture.
Sliding sunroof95
Opening and closing
Z

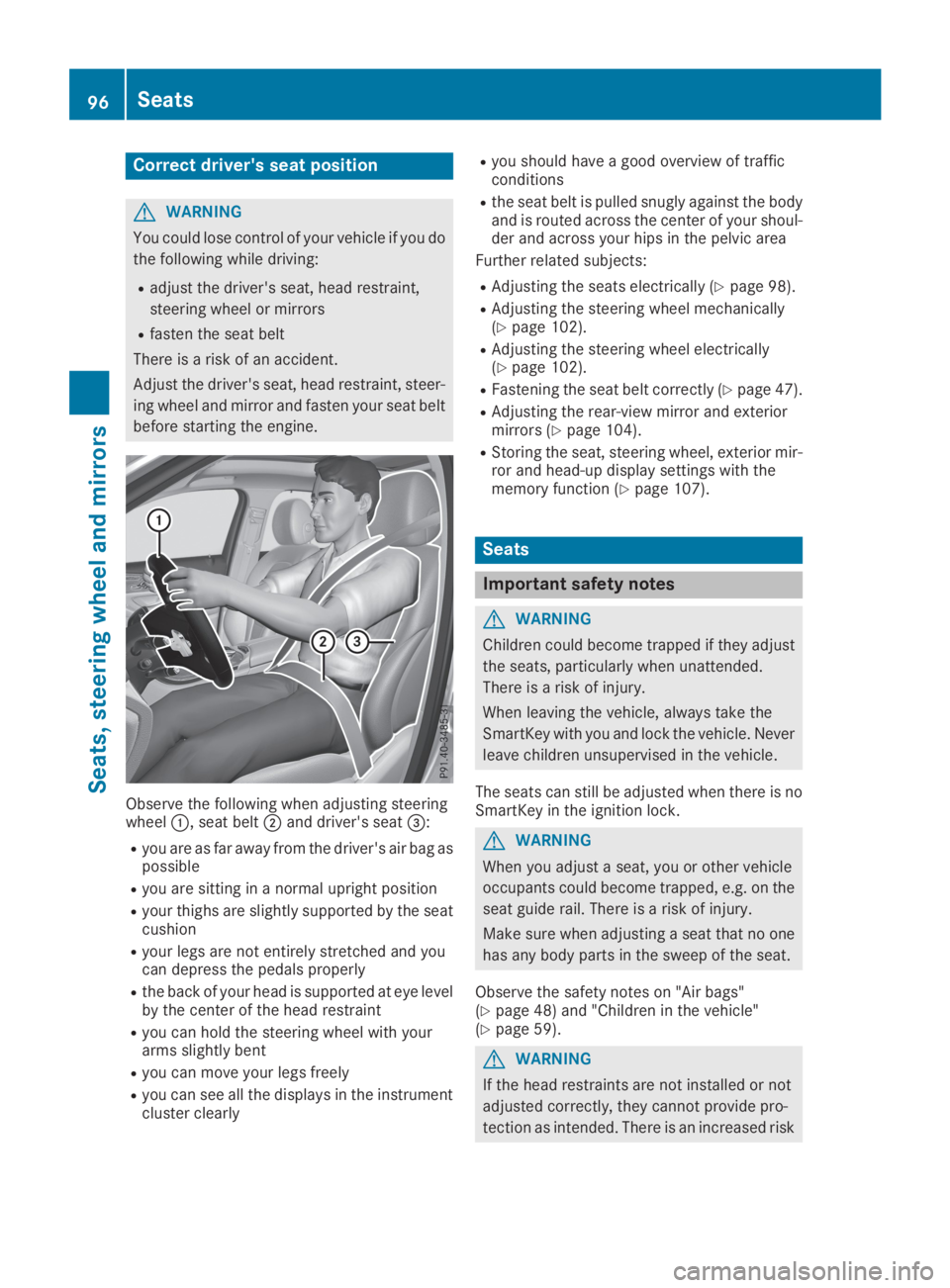

Correct driver's seat position
GWARNING
You could lose control of your vehicle if you do
the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt
before starting the engine.
Observe the following when adjusting steeringwheelC, seat beltDand driver's seat

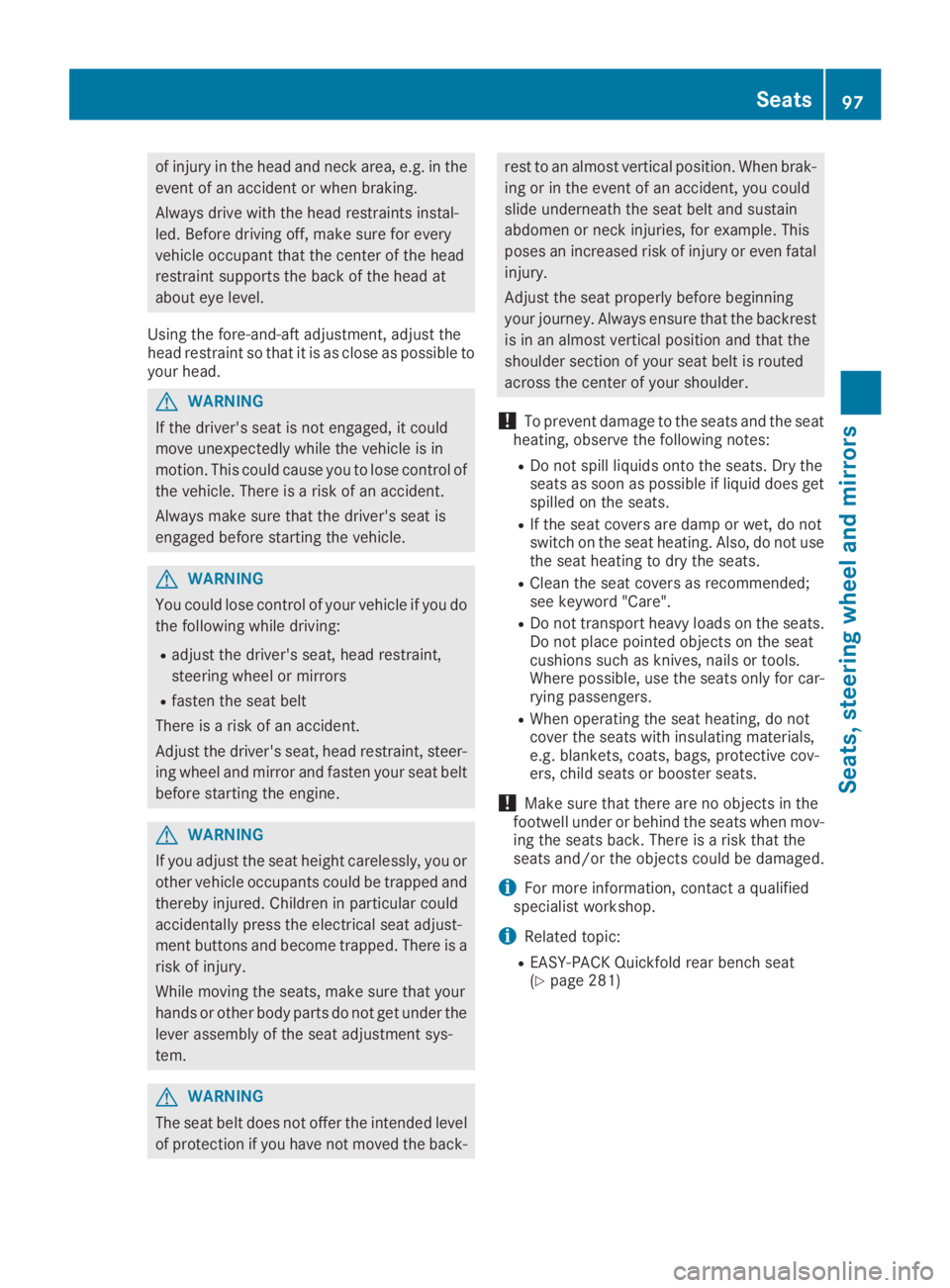

of injury in the head and neck area, e.g. in the
event of an accident or when braking.
Always drive with the head restraints instal-
led. Before driving off, make sure for every
vehicle occupant that the center of the head
restraint supports the back of the head at
about eye level.
Using the fore-and-aft adjustment, adjust thehead restraint so that it is as close as possible toyour head.
GWARNING
If the driver's seat is not engaged, it could
move unexpectedly while the vehicle is in
motion. This could cause you to lose control of
the vehicle. There is a risk of an accident.
Always make sure that the driver's seat is
engaged before starting the vehicle.
GWARNING
You could lose control of your vehicle if you do
the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt
before starting the engine.
GWARNING
If you adjust the seat height carelessly, you or
other vehicle occupants could be trapped and
thereby injured. Children in particular could
accidentally press the electrical seat adjust-
ment buttons and become trapped. There is a
risk of injury.
While moving the seats, make sure that your
hands or other body parts do not get under the
lever assembly of the seat adjustment sys-
tem.
GWARNING
The seat belt does not offer the intended level
of protection if you have not moved the back-
rest to an almost vertical position. When brak-
ing or in the event of an accident, you could
slide underneath the seat belt and sustain
abdomen or neck injuries, for example. This
poses an increased risk of injury or even fatal
injury.
Adjust the seat properly before beginning
your journey. Always ensure that the backrest
is in an almost vertical position and that the
shoulder section of your seat belt is routed
across the center of your shoulder.
!To prevent damage to the seats and the seatheating, observe the following notes:
RDo not spill liquids onto the seats. Dry theseats as soon as possible if liquid does getspilled on the seats.
RIf the seat covers are damp or wet, do notswitch on the seat heating. Also, do not usethe seat heating to dry the seats.
RClean the seat covers as recommended;see keyword "Care".
RDo not transport heavy loads on the seats.Do not place pointed objects on the seatcushions such as knives, nails or tools.Where possible, use the seats only for car-rying passengers.
RWhen operating the seat heating, do notcover the seats with insulating materials,e.g. blankets, coats, bags, protective cov-ers, child seats or booster seats.
!Make sure that there are no objects in thefootwell under or behind the seats when mov-ing the seats back. There is a risk that theseats and/or the objects could be damaged.
iFor more information, contact a qualifiedspecialist workshop.
iRelated topic:
REASY-PACK Quickfold rear bench seat(Ypage 281)
Seats97
Seats, steering wheel and mirrors
Z

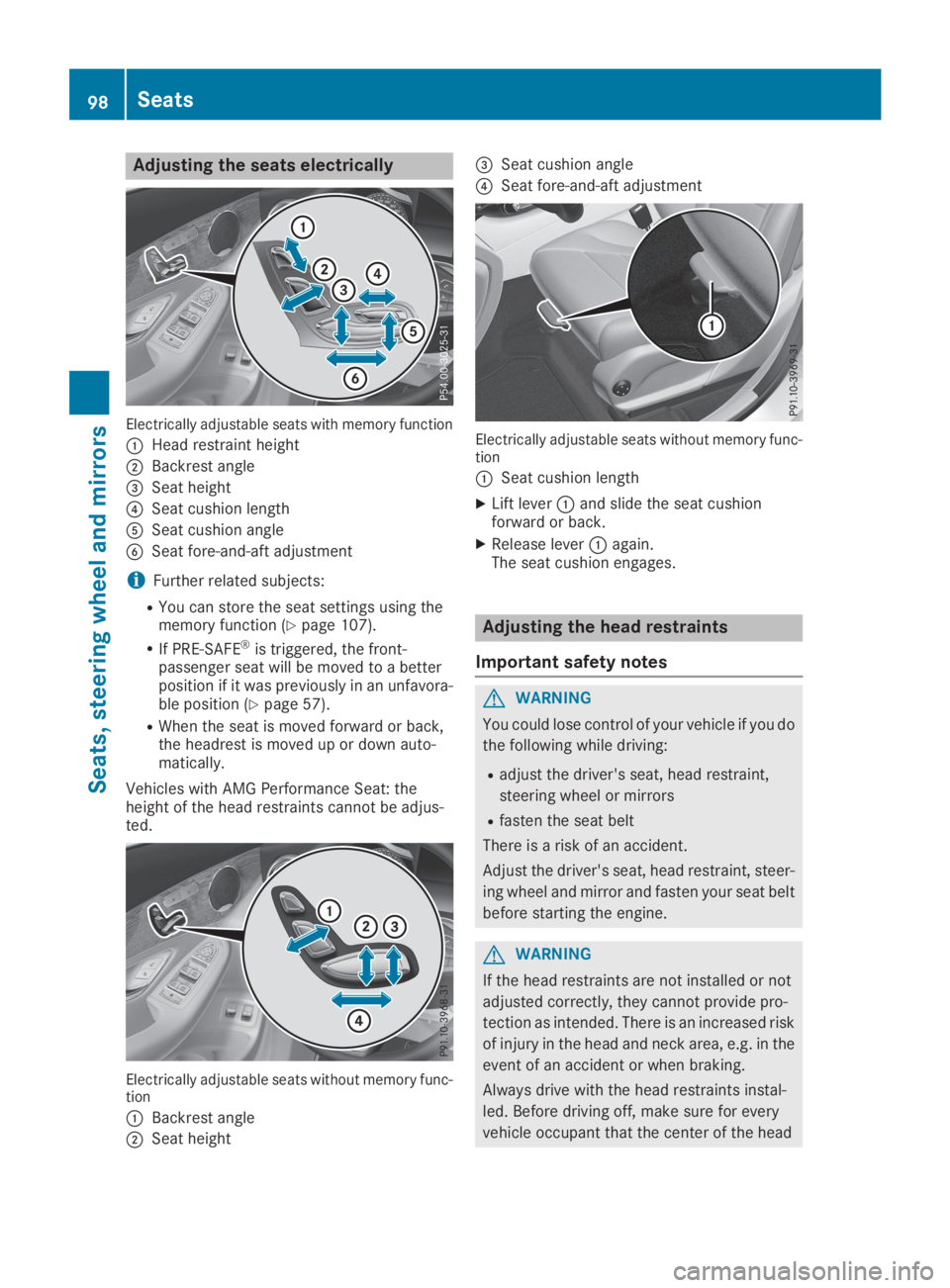

Adjusting the seats electrically
Electrically adjustable seats with memory function
CHead restraint height
DBackrest angle

restraint supports the back of the head at
about eye level.
Adjusting the head restraint height
manually
XTo raise:pull the head restraint up to thedesired position.
XTo lower:press release catchCin the direc-tion of the arrow and push the head restraintdown to the desired position.
Adjusting the head restraint fore-and-
aft position manually
With this function you can adjust the distancebetween the head restraint and the back of theseat occupant's head.
XTo move forward:pull the head restraintforward in the direction of the arrow until itengages in the desired position.
XTo move back:press and hold the releasecatchC.
XPush the head restraint back.
XRelease the release button once the headrestraint is in the desired position.
XEnsure that the head restraint has engagedproperly.
Using the fore-and-aft adjustment, adjust thehead restraint so that it is as close as possible toyour head.
Adjusting the height of the head
restraints electrically
XTo adjust the head restraint height:slidethe switch for the head restraint adjustment(Ypage 98) up or down in the direction of thearrow.
Adjusting the rear seat head restraint
height
XOnce the head restraint is fully lowered, pressrelease catchC.
XTo raise:pull the head restraint up to thedesired height.
XTo lower:press release catchCand pushthe head restraint down until it is in thedesired position.
Seats99
Seats, steering wheel and mirrors
Z

Adjusting the 4-way lumbar support
CRaises the backrest contour
DSoftens the backrest contour

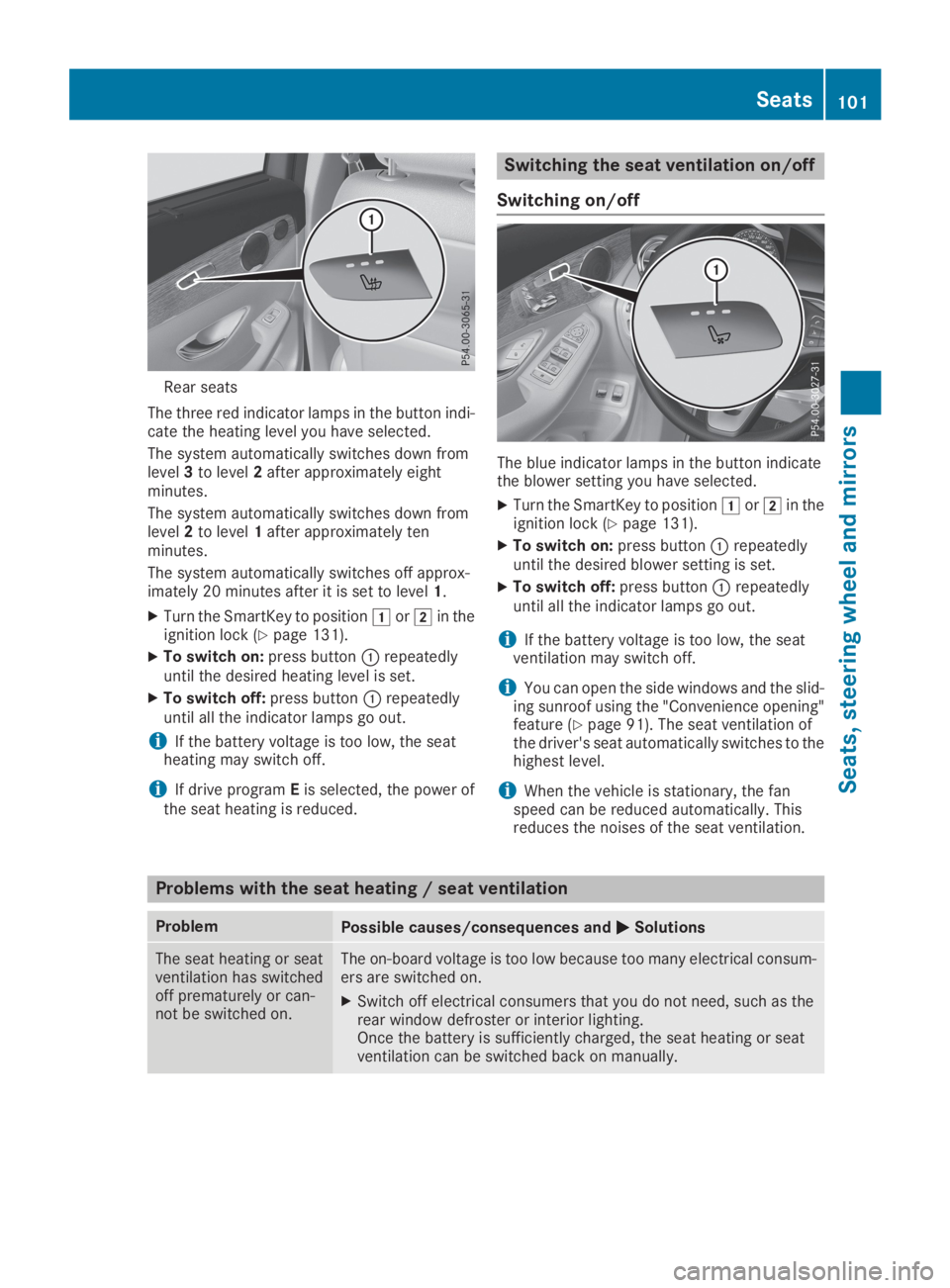

Rear seats
The three red indicator lamps in the button indi-cate the heating level you have selected.
The system automatically switches down fromlevel3to level2after approximately eightminutes.
The system automatically switches down fromlevel2to level1after approximately tenminutes.
The system automatically switches off approx-imately 20 minutes after it is set to level1.
XTurn the SmartKey to positionGorHin theignition lock (Ypage 131).
XTo switch on:press buttonCrepeatedlyuntil the desired heating level is set.
XTo switch off:press buttonCrepeatedlyuntil all the indicator lamps go out.
iIf the battery voltage is too low, the seatheating may switch off.
iIf drive programEis selected, the power ofthe seat heating is reduced.
Switching the seat ventilation on/off
Switching on/off
The blue indicator lamps in the button indicatethe blower setting you have selected.
XTurn the SmartKey to positionGorHin theignition lock (Ypage 131).
XTo switch on:press buttonCrepeatedlyuntil the desired blower setting is set.
XTo switch off:press buttonCrepeatedlyuntil all the indicator lamps go out.
iIf the battery voltage is too low, the seatventilation may switch off.
iYou can open the side windows and the slid-ing sunroof using the "Convenience opening"feature (Ypage 91). The seat ventilation ofthe driver's seat automatically switches to thehighest level.
iWhen the vehicle is stationary, the fanspeed can be reduced automatically. Thisreduces the noises of the seat ventilation.
Problems with the seat heating / seat ventilation
ProblemPossible causes/consequences andPPSolutions
The seat heating or seatventilation has switchedoff prematurely or can-not be switched on.
The on-board voltage is too low because too many electrical consum-ers are switched on.
XSwitch off electrical consumers that you do not need, such as therear window defroster or interior lighting.Once the battery is sufficiently charged, the seat heating or seatventilation can be switched back on manually.
Seats101
Seats , ste ering wheel and mirrors
Z

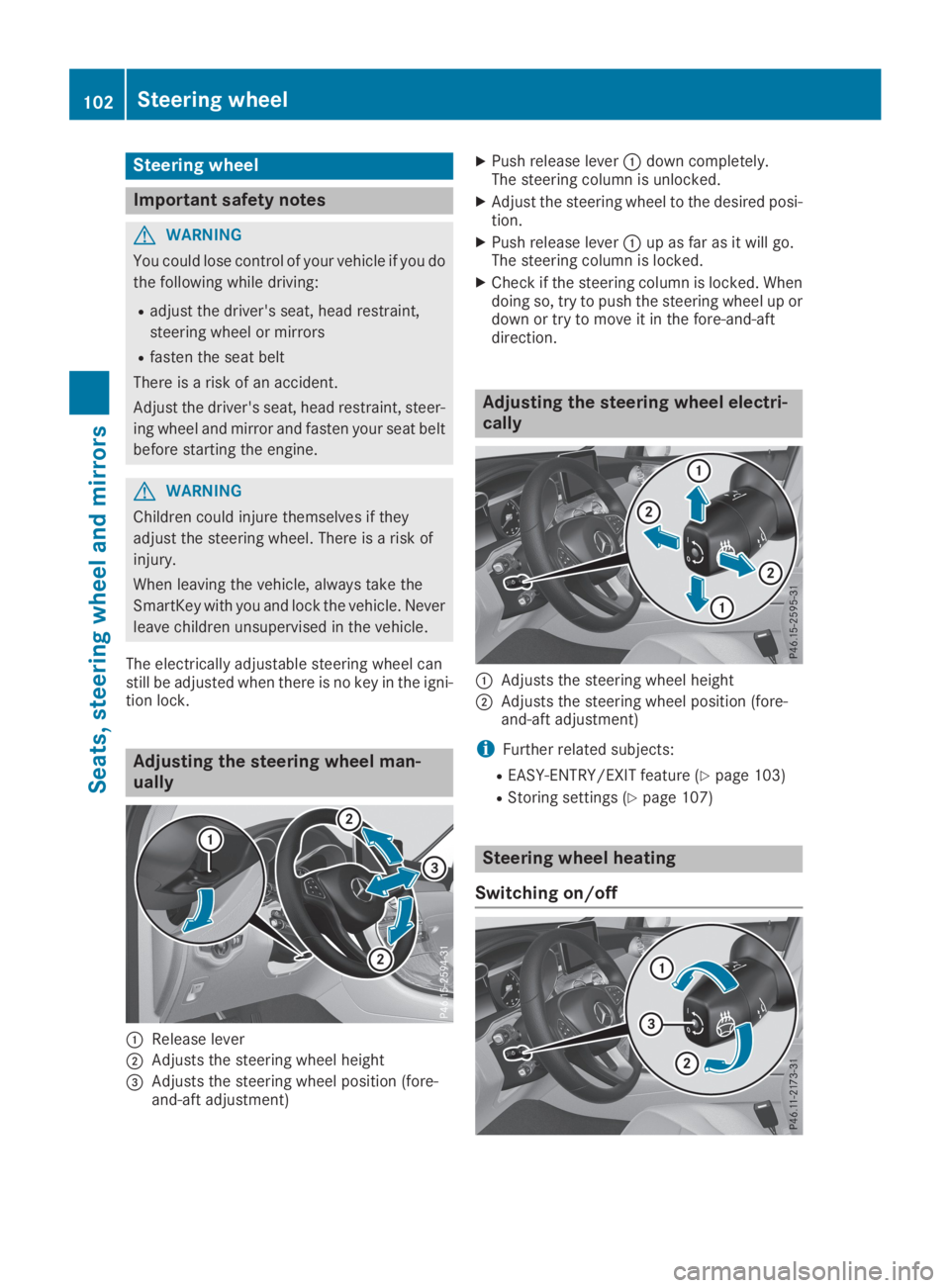

Steering wheel
Important safety notes
GWARNING
You could lose control of your vehicle if you do
the following while driving:
Radjust the driver's seat, head restraint,
steering wheel or mirrors
Rfasten the seat belt
There is a risk of an accident.
Adjust the driver's seat, head restraint, steer-
ing wheel and mirror and fasten your seat belt
before starting the engine.
GWARNING
Children could injure themselves if they
adjust the steering wheel. There is a risk of
injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
The electrically adjustable steering wheel canstill be adjusted when there is no key in the igni-tion lock.
Adjusting the steering wheel man-
ually
CRelease lever
DAdjusts the steering wheel height
