2019 MERCEDES-BENZ GLC Owners Manual

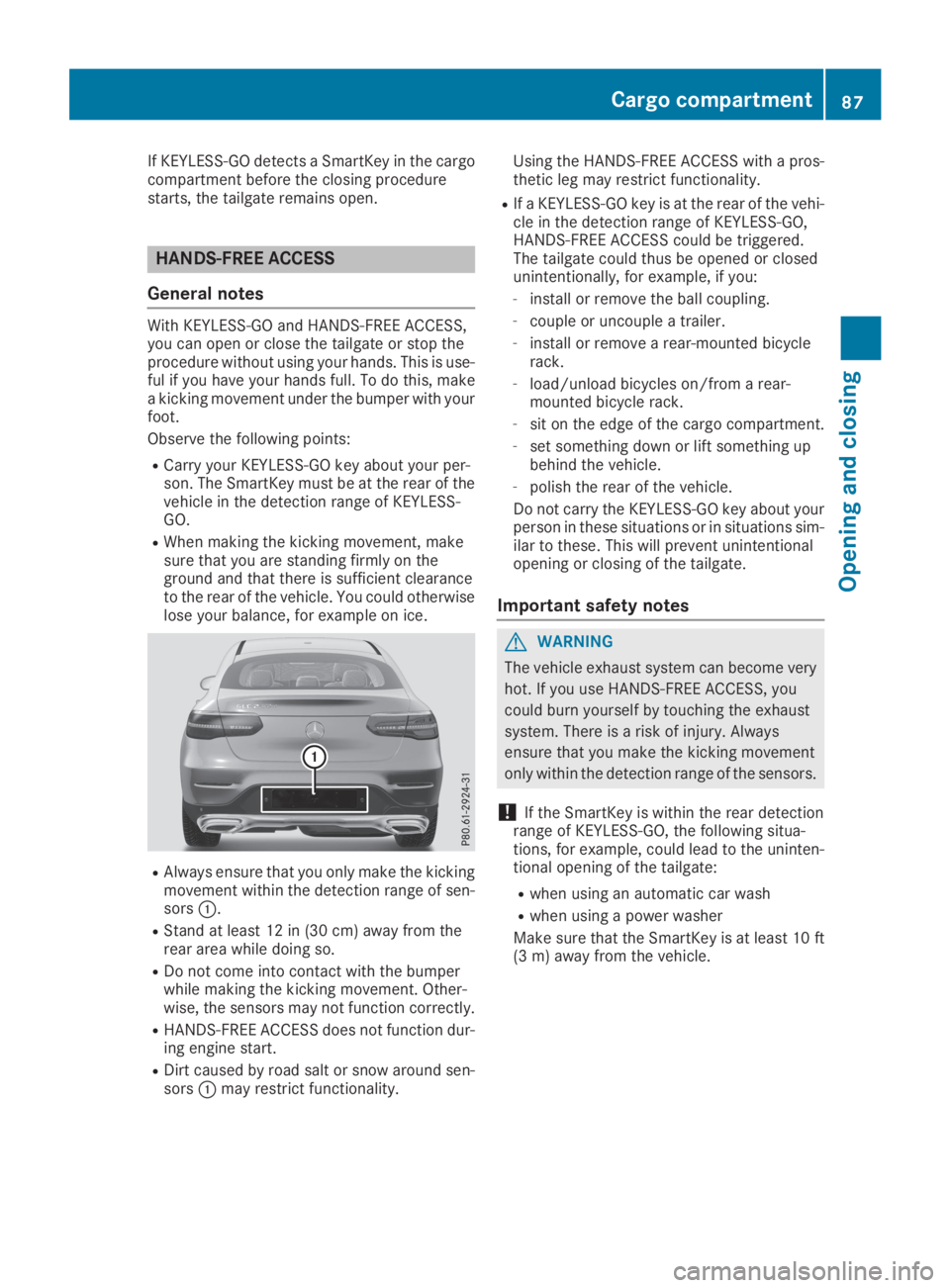

If KEYLESS-GO detects a SmartKey in the cargocompartment before the closing procedurestarts, the tailgate remains open.
HANDS-FREE ACCESS
General notes
With KEYLESS-GO and HANDS-FREE ACCESS,you can open or close the tailgate or stop theprocedure without using your hands. This is use-ful if you have your hands full. To do this, makea kicking movement under the bumper with yourfoot.
Observe the following points:
RCarry your KEYLESS-GO key about your per-son. The SmartKey must be at the rear of thevehicle in the detection range of KEYLESS-GO.
RWhen making the kicking movement, makesure that you are standing firmly on theground and that there is sufficient clearanceto the rear of the vehicle. You could otherwiselose your balance, for example on ice.
RAlways ensure that you only make the kickingmovement within the detection range of sen-sorsC.
RStand at least 12 in (30 cm) away from therear area while doing so.
RDo not come into contact with the bumperwhile making the kicking movement. Other-wise, the sensors may not function correctly.
RHANDS-FREE ACCESS does not function dur-ing engine start.
RDirt caused by road salt or snow around sen-sorsCmay restrict functionality.
Using the HANDS-FREE ACCESS with a pros-thetic leg may restrict functionality.
RIf a KEYLESS-GO key is at the rear of the vehi-cle in the detection range of KEYLESS-GO,HANDS-FREE ACCESS could be triggered.The tailgate could thus be opened or closedunintentionally, for example, if you:
-install or remove the ball coupling.
-couple or uncouple a trailer.
-install or remove a rear-mounted bicyclerack.
-load/unload bicycles on/from a rear-mounted bicycle rack.
-sit on the edge of the cargo compartment.
-set something down or lift something upbehind the vehicle.
-polish the rear of the vehicle.
Do not carry the KEYLESS-GO key about yourperson in these situations or in situations sim-ilar to these. This will prevent unintentionalopening or closing of the tailgate.
Important safety notes
GWARNING
The vehicle exhaust system can become very
hot. If you use HANDS-FREE ACCESS, you
could burn yourself by touching the exhaust
system. There is a risk of injury. Always
ensure that you make the kicking movement
only within the detection range of the sensors.
!If the SmartKey is within the rear detectionrange of KEYLESS-GO, the following situa-tions, for example, could lead to the uninten-tional opening of the tailgate:
Rwhen using an automatic car wash
Rwhen using a power washer
Make sure that the SmartKey is at least 10 ft(3 m) away from the vehicle.
Cargo compartment87
Opening and closing
Z

Operation
XTo open or close:kick with your foot intosensor detection rangeCbeneath thebumper.Two warning tones sound while the tailgate isopening or closing.
XIf the tailgate does not open or close afterseveral attempts:wait at least ten secondsthen kick under the bumper once again.
If you hold your foot under the bumper for toolong, the tailgate does not open or close. Repeatthe leg movement more quickly if this occurs.
To stop the opening or closing procedure, youhave the following options:
RKick with your foot into sensor detectionrangeCbeneath the bumper.
RPress the top of the star on the tailgate.
RPress the closing button on the tailgate.
RPress theTbutton on the SmartKey.
If the tailgate closing procedure has been stop-ped:
RMove your foot under the bumper again andthe tailgate will open.
If the tailgate opening procedure has been stop-ped:
RKick with your foot under the bumper againand the tailgate will close.
Opening/closing automatically from
inside
Important safety notes
GDANGER
Combustion engines emit poisonous exhaust
gases such as carbon monoxide. Exhaust
gases can enter the vehicle interior if the tail-
gate is open while the engine is running, espe-
cially if the vehicle is in motion. There is a risk
of poisoning.
Always switch off the engine before opening
the tailgate. Never drive with the tailgate
open.
GWARNING
Parts of the body could become trapped dur-
ing automatic closing of the tailgate. In addi-
tion, people may be standing in the closing
area or may enter the closing area, e.g. chil-
dren, during the closing procedure. There is a
risk of injury.
Make sure that nobody is in the vicinity of the
closing area during the closing process.
Release the remote operating switch imme-
diately if somebody becomes trapped. To re-
open the tailgate pull on the remote operating
switch.
Vehicles with HANDS-FREE ACCESS:
You can also stop the closing process by per-forming a kicking movement under the rearbumper.
!The tailgate swings upwards and to the rearwhen opened. Therefore, make sure thatthere is sufficient clearance above and behindthe tailgate.
Two warning tones sound while the tailgate isopening or closing.
The opening dimensions of the tailgate can befound in the "Vehicle data" section(Ypage 363).
Opening and closing
88Cargo compartment
Opening and closing

XTo open:pull remote operating switchCforthe tailgate until the tailgate opens.
XTo close:turn the SmartKey to positionGorHin the ignition lock.
XPress and hold remote operating switch fortailgateCuntil the tailgate is completelyclosed.
When the vehicle is stationary, you can close thetailgate from the driver's seat. When the vehicleis also unlocked, you can also open the tailgatefrom inside.
Limiting the opening angle of the tail-
gate
General notes
!Make sure there is sufficient clearance toopen the tailgate fully when setting the open-ing angle. The tailgate could otherwise bedamaged. Ideally, set the opening angle out-side.
You can limit the opening angle of the tailgate.This is possible in the top half of its openingrange, up to approximately 8 in (20 cm) beforethe stop.
To open the tailgate fully, push the top of the staron the tailgate again after it has stopped auto-matically. This does not delete the stored posi-tion.
Activating
XTo open the tailgate:push the top of the staron the tailgate.
XTo stop the opening process at thedesired position:press the closing button onthe tailgate or push the top of the star on thetailgate again.
XTo store the position:press and hold theclosing button in the tailgate until you hear ashort tone.The opening angle limiter is activated. Thetailgate will now stop in the stored positionwhen opening.
Deactivating
XPress and hold the closing button on the tail-gate until two short tones sound.
Unlocking the tailgate using the
mechanical key
General notes
Use the mechanical key if the tailgate can nolonger be unlocked:
Rusing the SmartKey
Rusing HANDS-FREE ACCESS
Rusing the remote operating switch on the doorcontrol panel
!The tailgate swings upwards and to the rearwhen opened. Therefore, make sure thatthere is sufficient clearance above and behindthe tailgate.
Unlocking
XRemove the cargo compartment cover(Ypage 284).
XFold the rear seat backrest forward(Ypage 281).
XInsert mechanical keyDinto openingCinthe paneling and push it in.
XOpen the tailgate.
When you lock the vehicle, the cargo compart-ment is also locked again.
Side windows
Important safety notes
GWARNING
While opening the side windows, body parts
could become trapped between the side win-
dow and the door frame as the side window
moves. There is a risk of injury.
Side windows89
Opening and closing
Z

Make sure that nobody touches the side win-
dow during the opening procedure. If some-
body becomes trapped, release the switch or
pull the switch to close the side window again.
GWARNING
While closing the side windows, body parts in
the closing area could become trapped. There
is a risk of injury.
When closing make sure that no parts of the
body are in the closing area. If somebody
becomes trapped, release the switch or press
the switch to open the side window again.
GWARNING
If children operate the side windows they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
Activate the override feature for the rear side
windows. When leaving the vehicle, always
take the SmartKey with you and lock the vehi-
cle. Never leave children unsupervised in the
vehicle.
Side window reversing feature
The side windows are equipped with an auto-matic reversing feature. If a solid object blocksor restricts a side window from travelingupwards during the automatic closing process,the side window opens again automatically. Dur-ing the manual closing process, the side windowonly opens again automatically after the corre-sponding switch is released. The automaticreversing feature is only an aid and does notrelieve you of the responsibility of paying atten-tion when closing a side window.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small fin-
gers
Rwhile adjusting
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure. If
someone becomes trapped, press theb
button to open the side window again.
Opening and closing the side win-
dows
The switches for all side windows are located onthe driver's door. There is also a switch on eachdoor for the corresponding side window.
The switches on the driver's door take prece-dence.
CFront left
DFront right

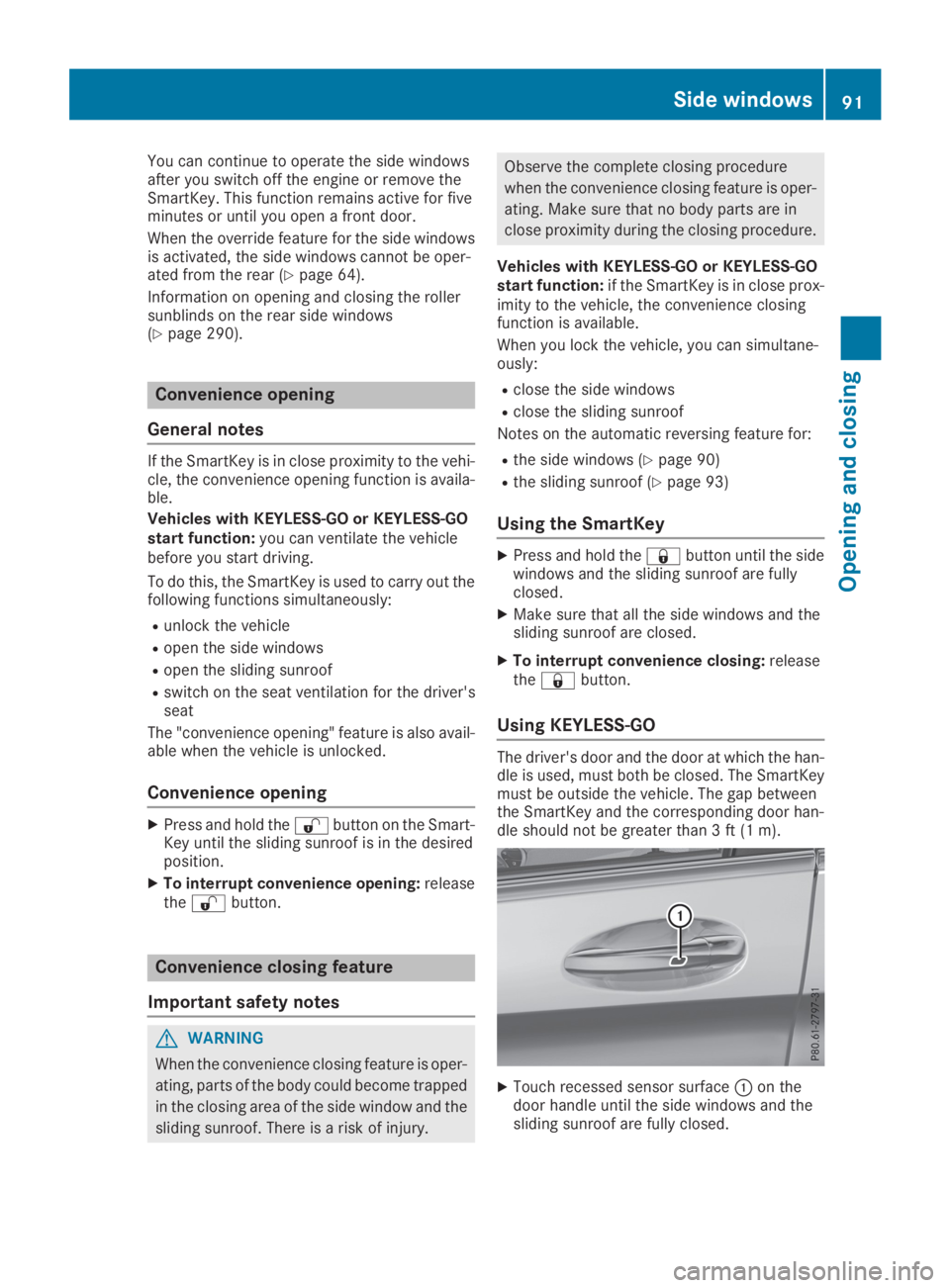

You can continue to operate the side windowsafter you switch off the engine or remove theSmartKey. This function remains active for fiveminutes or until you open a front door.
When the override feature for the side windowsis activated, the side windows cannot be oper-ated from the rear (Ypage 64).
Information on opening and closing the rollersunblinds on the rear side windows(Ypage 290).
Convenience opening
General notes
If the SmartKey is in close proximity to the vehi-cle, the convenience opening function is availa-ble.
Vehicles with KEYLESS-GO or KEYLESS-GOstart function:you can ventilate the vehiclebefore you start driving.
To do this, the SmartKey is used to carry out thefollowing functions simultaneously:
Runlock the vehicle
Ropen the side windows
Ropen the sliding sunroof
Rswitch on the seat ventilation for the driver'sseat
The "convenience opening" feature is also avail-able when the vehicle is unlocked.
Convenience opening
XPress and hold the6button on the Smart-Key until the sliding sunroof is in the desiredposition.
XTo interrupt convenience opening:releasethe6button.
Convenience closing feature
Important safety notes
GWARNING
When the convenience closing feature is oper-
ating, parts of the body could become trapped
in the closing area of the side window and the
sliding sunroof. There is a risk of injury.
Observe the complete closing procedure
when the convenience closing feature is oper-
ating. Make sure that no body parts are in
close proximity during the closing procedure.
Vehicles with KEYLESS-GO or KEYLESS-GOstart function:if the SmartKey is in close prox-imity to the vehicle, the convenience closingfunction is available.
When you lock the vehicle, you can simultane-ously:
Rclose the side windows
Rclose the sliding sunroof
Notes on the automatic reversing feature for:
Rthe side windows (Ypage 90)
Rthe sliding sunroof (Ypage 93)
Using the SmartKey
XPress and hold the7button until the sidewindows and the sliding sunroof are fullyclosed.
XMake sure that all the side windows and thesliding sunroof are closed.
XTo interrupt convenience closing:releasethe7button.
Using KEYLESS-GO
The driver's door and the door at which the han-dle is used, must both be closed. The SmartKeymust be outside the vehicle. The gap betweenthe SmartKey and the corresponding door han-dle should not be greater than 3 ft (1 m).
XTouch recessed sensor surfaceCon thedoor handle until the side windows and thesliding sunroof are fully closed.
Side windows91
Opening and closing
Z

Make sure you only touch recessed sensorsurfaceC.
XMake sure that all the side windows and thesliding sunroof are closed.
XTo interrupt convenience closing:releaserecessed sensor surfaceCon the door han-dle.
Resetting the side windows
If a side window can no longer be closed fully,you must reset it.
XClose all the doors.
XTurn the SmartKey to positionGorHin theignition lock.
XPull the corresponding switch on the doorcontrol panel until the side window is com-pletely closed (Ypage 90).
XHold the switch for an additional second.
If the side window opens again slightly:
XImmediately pull the corresponding switch onthe door control panel until the side window iscompletely closed (Ypage 90).
XHold the switch for an additional second.
XIf the respective side window remains closedafter the button is released, then it has beenset correctly. If this is not the case, repeat thesteps above.
Problems with the side windows
GWARNING
If you close a side window again immediately after it has been blocked or reset, the side window
closes with increased or maximum force. The reversing feature is then not active. Parts of the
body could be trapped in the closing area in the process. This poses an increased risk of injury or
even fatal injury.
Make sure that no parts of the body are in the closing area. To stop the closing process, release
the switch or push the switch again to reopen the side window.
ProblemPossible causes/consequences andPPSolutions
A side window cannot beclosed because it isblocked by objects, e.g.leaves in the windowguide.
XRemove the objects.
XClose the side window.
A side window cannot beclosed and you cannotsee the cause.
If a side window is obstructed during closing and reopens againslightly:
XImmediately after the window blocks, pull the corresponding switchagain until the side window has closed.The side window is closed with increased force.
If a side window is obstructed again during closing and reopens againslightly:
XImmediately after the window blocks, pull the corresponding switchagain until the side window has closed.The side windows are closed without the automatic reversing fea-ture.
92Side windows
Opening and closing

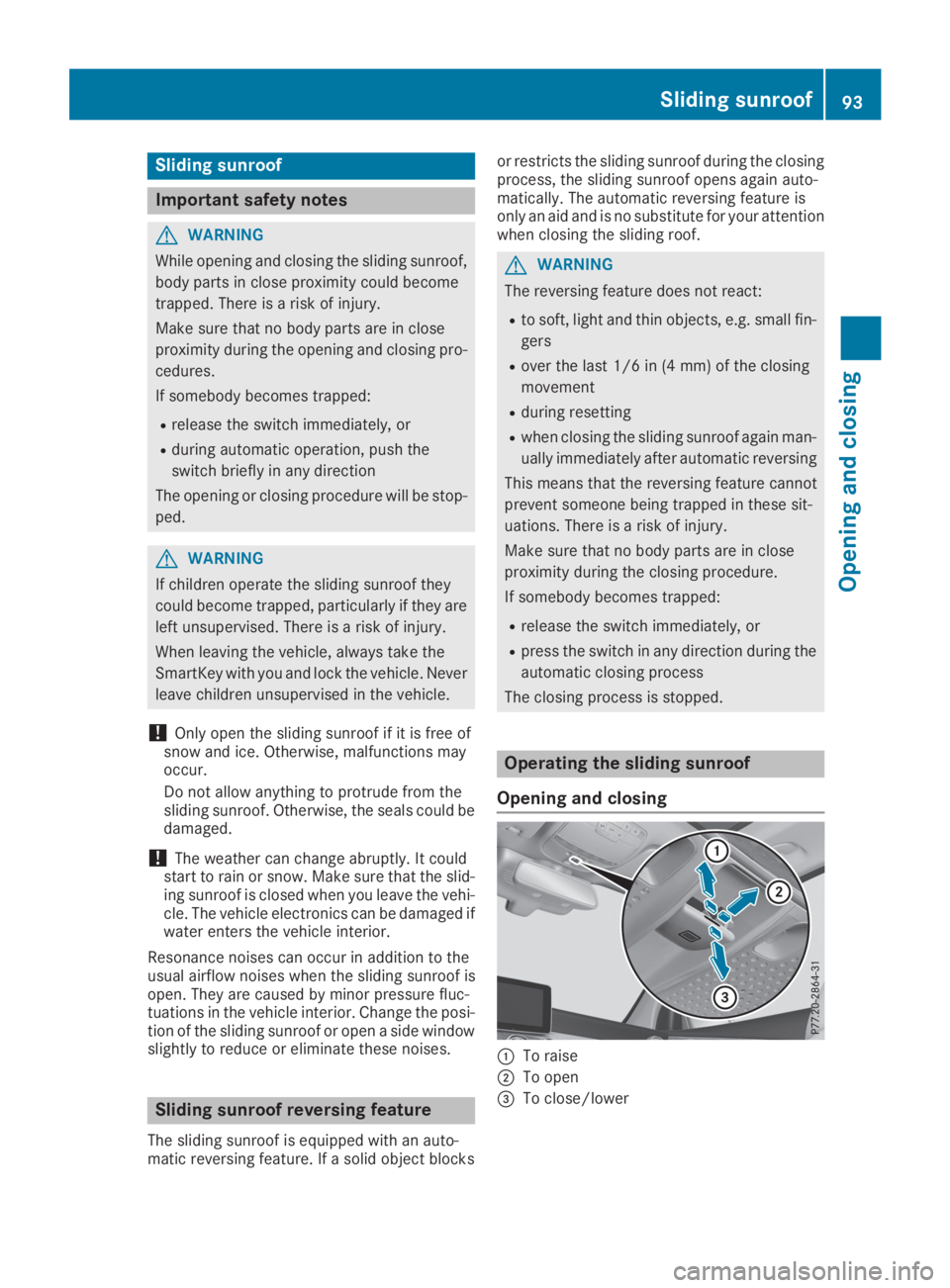

Sliding sunroof
Important safety notes
GWARNING
While opening and closing the sliding sunroof,
body parts in close proximity could become
trapped. There is a risk of injury.
Make sure that no body parts are in close
proximity during the opening and closing pro-
cedures.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rduring automatic operation, push the
switch briefly in any direction
The opening or closing procedure will be stop-
ped.
GWARNING
If children operate the sliding sunroof they
could become trapped, particularly if they are
left unsupervised. There is a risk of injury.
When leaving the vehicle, always take the
SmartKey with you and lock the vehicle. Never
leave children unsupervised in the vehicle.
!Only open the sliding sunroof if it is free ofsnow and ice. Otherwise, malfunctions mayoccur.
Do not allow anything to protrude from thesliding sunroof. Otherwise, the seals could bedamaged.
!The weather can change abruptly. It couldstart to rain or snow. Make sure that the slid-ing sunroof is closed when you leave the vehi-cle. The vehicle electronics can be damaged ifwater enters the vehicle interior.
Resonance noises can occur in addition to theusual airflow noises when the sliding sunroof isopen. They are caused by minor pressure fluc-tuations in the vehicle interior. Change the posi-tion of the sliding sunroof or open a side windowslightly to reduce or eliminate these noises.
Sliding sunroof reversing feature
The sliding sunroof is equipped with an auto-matic reversing feature. If a solid object blocks
or restricts the sliding sunroof during the closingprocess, the sliding sunroof opens again auto-matically. The automatic reversing feature isonly an aid and is no substitute for your attentionwhen closing the sliding roof.
GWARNING
The reversing feature does not react:
Rto soft, light and thin objects, e.g. small fin-
gers
Rover the last 1/6 in (4 mm) of the closing
movement
Rduring resetting
Rwhen closing the sliding sunroof again man-
ually immediately after automatic reversing
This means that the reversing feature cannot
prevent someone being trapped in these sit-
uations. There is a risk of injury.
Make sure that no body parts are in close
proximity during the closing procedure.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rpress the switch in any direction during the
automatic closing process
The closing process is stopped.
Operating the sliding sunroof
Opening and closing
CTo raise
DTo open

XTurn the SmartKey to positionGorHin theignition lock.
XPress or pull theWswitch in the corre-sponding direction.

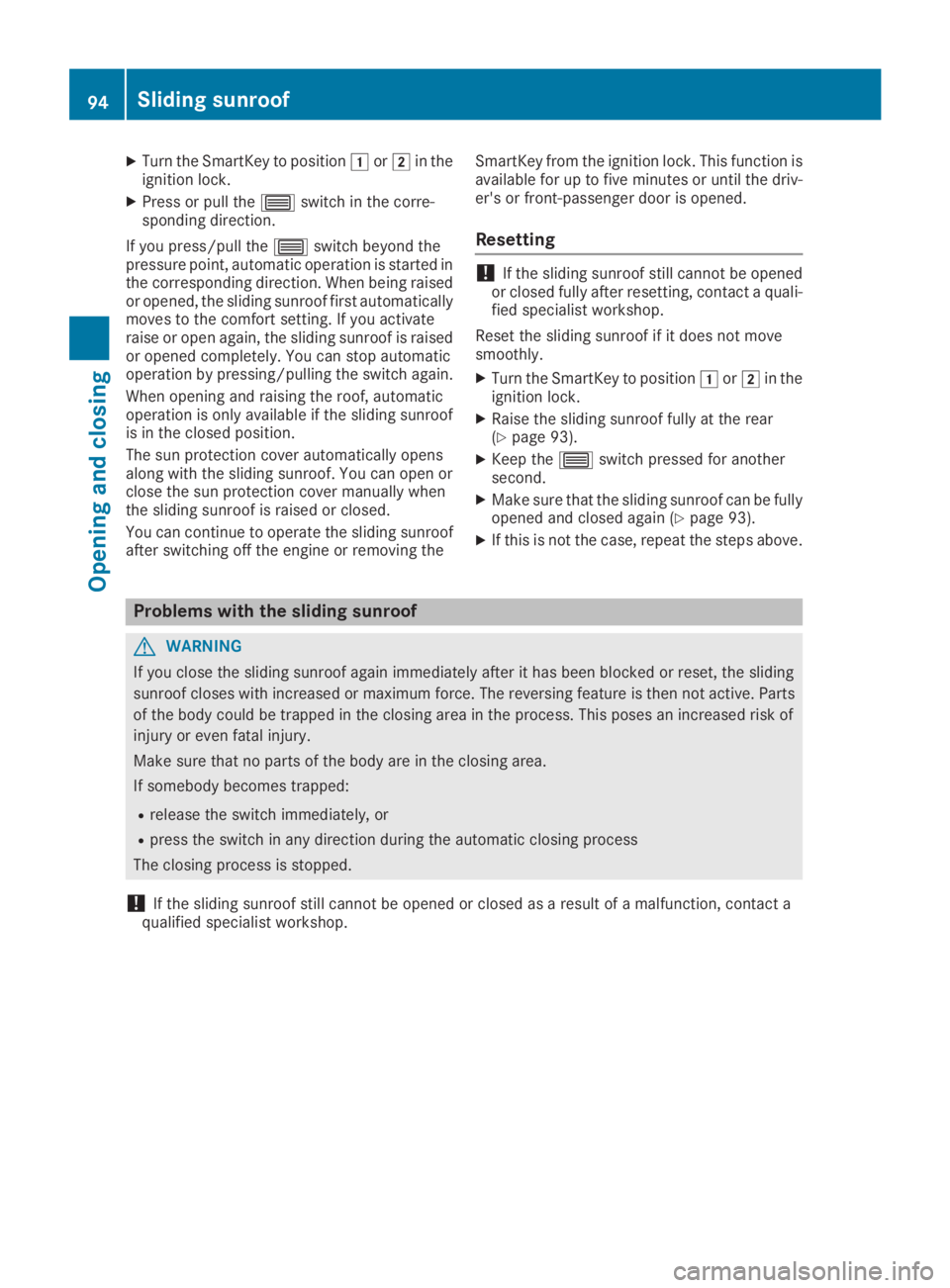

If you press/pull theWswitch beyond thepressure point, automatic operation is started inthe corresponding direction. When being raisedor opened, the sliding sunroof first automaticallymoves to the comfort setting. If you activateraise or open again, the sliding sunroof is raisedor opened completely. You can stop automaticoperation by pressing/pulling the switch again.
When opening and raising the roof, automaticoperation is only available if the sliding sunroofis in the closed position.
The sun protection cover automatically opensalong with the sliding sunroof. You can open orclose the sun protection cover manually whenthe sliding sunroof is raised or closed.
You can continue to operate the sliding sunroofafter switching off the engine or removing the
SmartKey from the ignition lock. This function isavailable for up to five minutes or until the driv-er's or front-passenger door is opened.
Resetting
!If the sliding sunroof still cannot be openedor closed fully after resetting, contact a quali-fied specialist workshop.
Reset the sliding sunroof if it does not movesmoothly.
XTurn the SmartKey to positionGorHin theignition lock.
XRaise the sliding sunroof fully at the rear(Ypage 93).
XKeep theWswitch pressed for anothersecond.
XMake sure that the sliding sunroof can be fullyopened and closed again (Ypage 93).
XIf this is not the case, repeat the steps above.
Problems with the sliding sunroof
GWARNING
If you close the sliding sunroof again immediately after it has been blocked or reset, the sliding
sunroof closes with increased or maximum force. The reversing feature is then not active. Parts
of the body could be trapped in the closing area in the process. This poses an increased risk of
injury or even fatal injury.
Make sure that no parts of the body are in the closing area.
If somebody becomes trapped:
Rrelease the switch immediately, or
Rpress the switch in any direction during the automatic closing process
The closing process is stopped.
!If the sliding sunroof still cannot be opened or closed as a result of a malfunction, contact aqualified specialist workshop.
94Sliding sunroof
Opening and closing
