2019 MERCEDES-BENZ AMG GT ROADSTER Owner's Manual

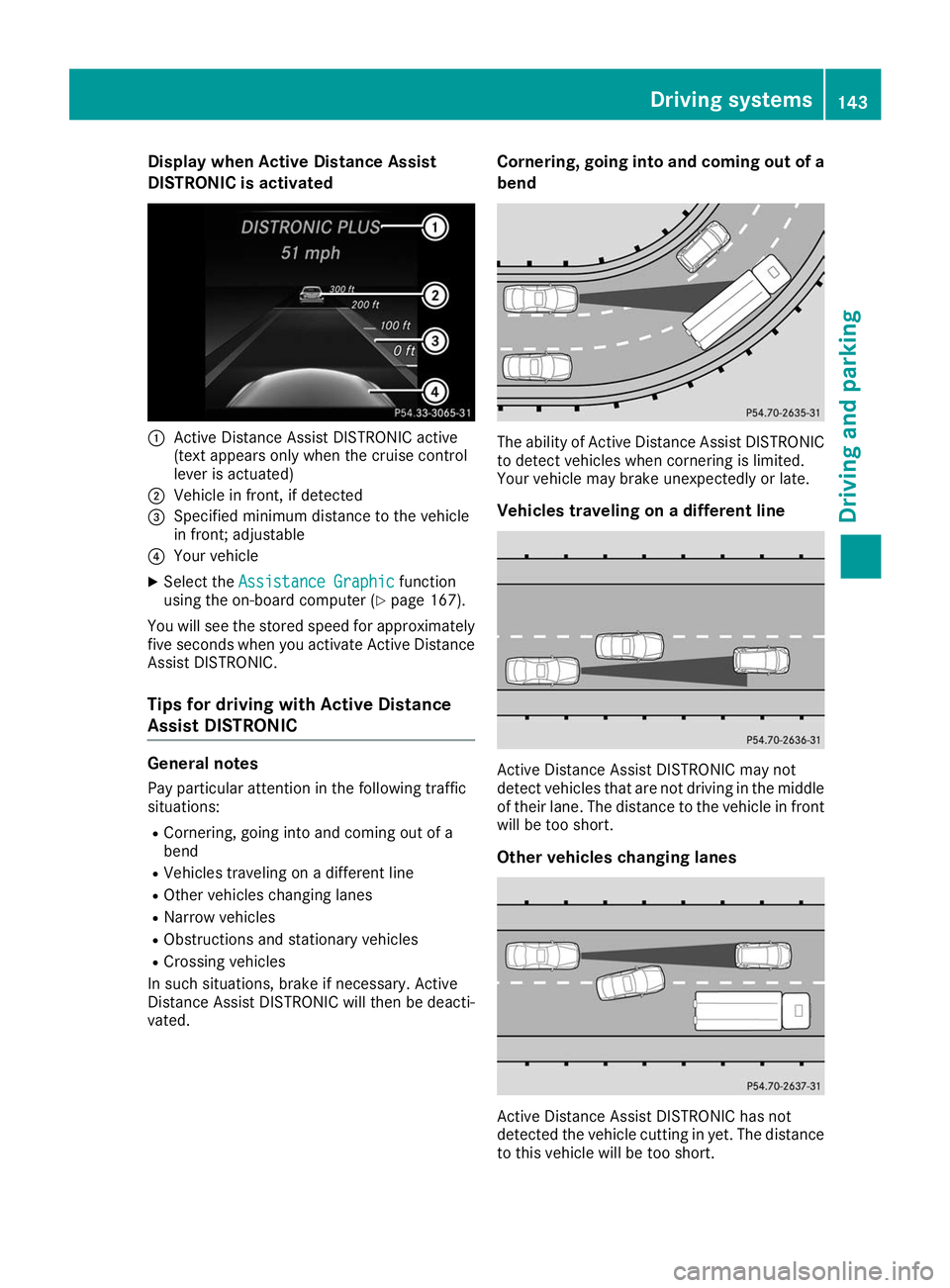

Display when Active Distance Assist
DISTRONIC is activated 0043
Active Distance Assist DISTRONIC active
(text appears only when the cruise control
lever is actuated)
0044 Vehicle in front, if detected
0087 Specified minimum distance to the vehicle
in front; adjustable
0085 Your vehicle
X Select the Assistance Graphic Assistance Graphic function
using the on-board computer (Y page 167).
You will see the stored speed for approximately five seconds when you activate Active Distance
Assist DISTRONIC.
Tips for driving with Active Distance
Assist DISTRONIC General notes
Pay particular attention in the following traffic
situations:
R Cornering, going into and coming out of a
bend
R Vehicles traveling on a different line
R Other vehicles changing lanes
R Narrow vehicles
R Obstructions and stationary vehicles
R Crossing vehicles
In such situations, brake if necessary. Active
Distance Assist DISTRONIC will then be deacti-
vated. Cornering, going into and coming out of a
bend The ability of Active Distance Assist DISTRONIC
to detect vehicles when cornering is limited.
Your vehicle may brake unexpectedly or late.
Vehicles traveling on a different line Active Distance Assist DISTRONIC may not
detect vehicles that are not driving in the middle of their lane. The distance to the vehicle in frontwill be too short.
Other vehicles changing lanes Active Distance Assist DISTRONIC has not
detected the vehicle cutting in yet. The distance
to this vehicle will be too short. Driving syste
ms
143Driving an d parking Z

Narrow vehicles
Active Distance Assist DISTRONIC has not yet
detected the vehicle in front on the edge of the
road because of its narrow width. The distance
to the vehicle in front will be too short.
Obstructions and stationary vehicles Active Distance Assist DISTRONIC does not
brake for obstacles or stationary vehicles. If, for
example, the detected vehicle turns a corner
and an obstacle or stationary vehicle is revealed, Active Distance Assist DISTRONIC will not brake
for them.
Crossing vehicles Active Distance Assist DISTRONIC may mistak-
enly detect vehicles that are crossing your lane. Activating Active Distance Assist DISTRONIC at,
for example, a traffic light with crossing traffic
could cause your vehicle to pull away at the
wrong time. HOLD
General notes The HOLD function can assist the driver in the
following situations:
R when pulling away, especially on steep slopes
R when maneuvering on steep slopes
R when waiting in traffic
The vehicle is kept stationary without the driver having to depress the brake pedal.
The braking effect is canceled and the HOLD
function deactivated when you depress the
accelerator pedal to pull away.
Important safety notes G
WARNING
If the vehicle is only braked using the HOLD
function, the vehicle may roll away in the fol-
lowing situations when you leave the vehicle:
R if there is a malfunction in the system or in
the voltage supply
R if the HOLD function is deactivated by
depressing the accelerator pedal or brake
pedal, e.g. by a vehicle occupant
R if the electrical system in the engine com-
partment, the battery or the fuses are tam-
pered with or the battery is disconnected
There is a risk of an accident.
Always deactivate the HOLD function and
secure the vehicle against rolling away before
you leave it.
! When Active Distance Assist DISTRONIC or
the HOLD function is activated, the vehicle
brakes automatically in certain situations. 144
Driving systemsDriving an
d parking

To avoid damage to the vehicle, deactivate
Active Distance Assist DISTRONIC and the
HOLD function in the following or similar sit-
uations:
R when towing the vehicle
R in the car wash
Deactivate the HOLD function (Y page 145).
Activation conditions You can activate the HOLD function if all of the
following conditions are fulfilled:
R
the vehicle is stationary.
R the engine is running or if it has been auto-
matically switched off by the ECO start/stop
function.
R the driver's door is closed or your seat belt is
fastened.
R the electric parking brake is released.
R the transmission is in position 005B,005Eor005C.
Activating the HOLD function X
Make sure that the activation conditions are
met.
X Depress the brake pedal.
X Quickly depress the brake pedal further until
HOLD HOLD 0043appears in the multifunction display.
The HOLD function is activated. You can
release the brake pedal.
i If depressing the brake pedal the first time
does not activate the HOLD function, wait
briefly and then try again. Deactivating the HOLD function The HOLD function is deactivated if:
R you depress the accelerator and the trans-
mission is in position 005Bor005E
R you shift the transmission to position 005D
R you apply the brakes again with a certain
amount of pressure until the HOLD
HOLD display dis-
appears from the multifunction display
R you secure the vehicle using the electric park-
ing brake
i After a time, the electric parking brake
secures the vehicle and relieves the service
brake.
The electric parking brake secures the vehicle
automatically if the HOLD function is activated
when the vehicle is stationary and:
R the driver's seat belt is not fastened and the
driver's door is open
R the engine is switched off, unless it is auto-
matically switched off by the ECO start/stop
function
R a system malfunction occurs
R the power supply is not sufficient
If the electric parking brake is not operational, a
horn will sound at regular intervals. The HOLD
function must then be deactivated.
If a malfunction occurs, the transmission may
also be shifted to position 005Dautomatically.
The Brake Immediately Brake Immediately message may also
appear in the multifunction display.
X Immediately depress the brake firmly until the
warning message in the multifunction display
goes out.
The HOLD function is deactivated. If you turn off the engine, take off your seat belt or open the
driver's door when the HOLD function is activa- ted, a horn will sound at regular intervals. The
sounding of the horn alerts you to the fact that
the HOLD function is still activated. If you
attempt to lock the vehicle, the tone becomes
louder. The vehicle cannot be locked until you
have deactivated the HOLD function.
i After switching off the engine, it can only be
started again once you have deactivated the
HOLD function. Driving systems
145Driving and parking Z

RACE START
Important safety notes i
RACE START must not be used on normal
roads. RACE START must only be activated
and used on dedicated road circuits, outside
of public road use.
RACE START enables optimal acceleration from
a standing start. For this, a suitably high-grip
road surface is required and the vehicle and tires must be in good working order. G
WARNING
If you use RACE START, individual tires may
start to spin and the vehicle could skid.
Depending on the selected ESP ®
mode, there
is an increased risk of skidding and having an accident. Make sure that no persons, animals
or obstacles are within range of the vehicle.
i Observe the safety notes on driving safety
systems (Y page 58).
Be sure to read the safety notes and informa-
tion on ESP ®
(Y page 62).
i Observe the specific service requirements
for racetrack mode operation (Y page 241).
Activation conditions You can activate RACE START under the follow-
ing conditions:
R the doors are closed
R the engine is running and the engine and
transmission are at operating temperature.
This is the case when the oil temperature dis- play in the multifunction display is shown in
white (Y page 170).
R ESP ®
is functioning correctly (Y page 62)
R the steering wheel is in the straight-ahead
position
R the vehicle is stationary and the brake pedal is
depressed sufficiently (left foot)
R the transmission is in position 005B
R drive program S,S+ orRACE is selected
(Y page 116). Activating RACE START (AMG GT S) i
When manual mode (Y
page 123) is active,
the transmission automatically shifts up in
the RACE START drive program. This function supports maximum acceleration with RACE
START. After going through an accelerating
process once from a stationary position, this
function is automatically deactivated.
X Depress the brake pedal with your left foot
and keep it depressed.
X Pull and hold both steering wheel paddle shift-
ers.
The RACE START Confirm: Paddle UP RACE START Confirm: Paddle UP
Cancel: Paddle DOWN
Cancel: Paddle DOWN message appears in
the multifunction display.
X Release both steering wheel paddle shifters.
i If the activation conditions are no longer ful-
filled, RACE START is canceled. The RACE
RACE
START Not Possible See Operator's
START Not Possible See Operator's
Manual Manual message appears on the multifunc-
tion display.
X To cancel: pull the left-hand steering wheel
paddle shifter (Y page 121).
or
X To confirm: pull the right-hand steering
wheel paddle shifter (Y page 121).
The RACE
RACE START
START Available
Available Depress
Depressgas
gas
pedal.
pedal. message appears on the multifunc-
tion display.
i If you do not depress the accelerator pedal
within a few seconds, RACE START is can-
celed. The RACE START Canceled
RACE START Canceled message
appears on the multifunction display.
X Fully depress the accelerator pedal.
The engine speed is increased.
The RACE RACE START
START Release
Release brake
braketo
tostart
start
message appears in the multifunction display.
i If you do not release the brake pedal within
a short time, RACE START will be canceled.
The RACE START Canceled RACE START Canceled message
appears on the multifunction display.
X Take your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum acceler-
ation.
The RACE
RACE START START Active
Active message appears in
the multifunction display.
RACE START is deactivated when the vehicle
reaches a speed of approximately 30 mph (Can-
ada: 50 km/h). 146
Driving systemsDriving and parking

RACE START is deactivated immediately if you
release the accelerator pedal during RACE
START or if any of the activation conditions are
no longer fulfilled. The RACE START Not Pos‐
RACE START Not Pos‐
sible See Operator's Manual
sible See Operator's Manual orRACE RACE
START Canceled
START Canceled message appears in the mul-
tifunction display.
i If RACE START is used repeatedly within a
short period of time, it is only available again
after the vehicle has been driven a certain
distance.
Activating RACE START (AMG GT C) i
When manual mode (Y
page 123) is active,
the transmission automatically shifts up in
the RACE START drive program. This function supports maximum acceleration with RACE
START. After going through an accelerating
process once from a stationary position, this
function is automatically deactivated.
X Depress the brake pedal with your left foot
and keep it depressed.
X Fully depress the accelerator pedal.
The engine speed is increased.
The RACE
RACE START START Release
Release brake
braketo
tostart
start
message appears in the multifunction display.
X To adjust RACE START: pull the left-hand or
right-hand steering wheel gearshift paddle.
RACE START adjustment:
R left-hand steering wheel gearshift paddle:
to reduce engine speed
R right-hand steering wheel gearshift paddle:
to increase engine speed
The engine speed is adjusted.
The segments in the multifunction display
flicker rapidly.
i If you do not release the brake pedal within
a short time, RACE START will be canceled.
The RACE START Canceled RACE START Canceled message
appears in the multifunction display.
X Take your foot off the brake, but keep the
accelerator pedal depressed.
The vehicle pulls away at maximum acceler-
ation.
The RACE START Active RACE START Active message appears
on the multifunction display.
RACE START is deactivated when the vehicle
reaches a speed of approximately 30 mph (Can- ada: 50 km/h). RACE START is deactivated immediately if you
release the accelerator pedal during RACE
START or if any of the activation conditions are
no longer fulfilled. The RACE START Not Pos‐
RACE START Not Pos‐
sible See Operator's Manual
sible See Operator's Manual orRACE
RACE
START Canceled
START Canceled message appears in the mul-
tifunction display.
i If RACE START is used repeatedly within a
short period of time, it is only available again
after the vehicle has been driven a certain
distance. AMG adaptive sport suspension sys-
tem
General notes The electronically controlled damping system
works continuously. This improves driving
safety and ride comfort.
The damping is tuned individually to each wheel
and depends on:
R your driving style, e.g. sporty
R the road surface condition, e.g. bumps
R your individual selection of Sport, Sport+ or
Comfort
Each time you start the engine with the Smart-
Key or the Start/Stop button, Comfort mode is
activated. For further information about starting
the engine, see (Y page 111).
Adjusting the suspension settings 0043
Adjusts AMG adaptive sport suspension sys-
tem
0044 Right indicator lamp
0087 Left indicator lamp
The suspension setting is adjusted using but-
ton 0043on the center console. Driving systems
147Driving and parking Z

i
The suspension setting can also be adjusted
using the DYNAMIC SELECT controller
(Y page 116).
Setting "Sport" mode
X Press button 0043repeatedly until left indicator
lamp 0087lights up.
You have selected Sport mode.
The AMG Suspension System SPORT
AMG Suspension System SPORT mes-
sage appears on the multifunction display.
The firmer setting of the suspension tuning in
Sport mode ensures even better contact with
the road. Select this mode when employing a
sporty driving style, e.g. on winding country
roads.
Setting "Sport +" mode
X Press button 0043repeatedly until indicator
lamps 0044and 0087light up.
You have selected Sport + mode.
The AMG
AMG Suspension Suspension System
SystemSPORT +
SPORT + mes-
sage appears on the multifunction display.
The very firm setting of the suspension setting in Sport + mode ensures the best possible contact
with the road. Select this mode only when driv-
ing on race circuits.
Setting "Comfort" mode
X Press button 0043repeatedly until indicator
lamps 0044and 0087go out.
You have selected Comfort mode.
The AMG AMG Suspension
Suspension System
SystemCOMFORT
COMFORT mes-
sage appears on the multifunction display.
In Comfort mode, the driving characteristics of
your vehicle are more comfortable. Select this
mode if you prefer a more comfortable driving
style, but also when driving at speed on straight
roads, e. g. highways. Parking Assist PARKTRONIC
Important safety notes Parking Assist PARKTRONIC is an electronic
parking aid with ultrasound. It monitors the area around your vehicle using six sensors in the
front bumper and four sensors in the rear
bumper. Parking Assist PARKTRONIC shows you
the distance between your vehicle and a detec-
ted obstacle visually and audibly.
Parking Assist PARKTRONIC is only an aid. It is
not a replacement for your attention to your
immediate surroundings. You are always responsible for safe maneuvering, parking and
exiting a parking space. Make sure that there
are no persons, animals or objects etc., in the
maneuvering area while maneuvering and park-
ing or exiting parking spaces.
! When parking, pay particular attention to
objects above or below the sensors, such as
flower pots or trailer drawbars. Parking Assist
PARKTRONIC does not detect such objects
when they are in the immediate vicinity of the vehicle. You could damage the vehicle or the
objects.
The sensors may not detect snow and other
objects that absorb ultrasonic waves.
Ultrasonic sources such as an automatic car
wash, the compressed-air brakes of a truck or
a pneumatic drill could cause Parking Assist
PARKTRONIC to malfunction.
Parking Assist PARKTRONIC may not function
correctly on uneven terrain.
Parking Assist PARKTRONIC is activated auto-
matically when you:
R switch on the ignition
R shift the transmission to position 005B,005Eor
005C
Parking Assist PARKTRONIC is deactivated at
speeds above approx. 11 mph (18 km/h). It is
reactivated at lower speeds.
Range of the sensors General notes
Parking Assist PARKTRONIC does not take into
account obstacles located:
R below the detection range, e.g. people, ani-
mals or objects.
R above the detection range, e.g. overhanging
loads, truck overhangs or loading ramps. 148
Driving systemsDriving and parking

0043
Sensors in the front bumper, left-hand side
(example)
The sensors must be free from dirt, ice or slush. They can otherwise not function correctly. Clean
the sensors regularly, taking care not to scratch
or damage them (Y page 246).
Range 0043
Approx. 24 in (approx. 60 cm) (corners)
0044 Approx. 32 in (approx. 80 cm) (corners)
0087 Approx. 48 in (approx. 120 cm) (center)
0085 Approx. 40 in (approx. 100 cm) (center)
Minimum distance Center Approx. 8 in (approx. 20 cm)
Corners Approx. 6 in (approx. 15 cm) If there is an obstacle within this range, the rel-
evant warning displays light up and a warning
tone sounds. If the distance falls below the min- imum, the distance may no longer be shown.
Warning displays 0043
Segments on the left-hand side of the vehi-
cle
0044 Segments on the right-hand side of the vehi-
cle
0087 Segments showing operational readiness
The warning displays show the distance
between the sensors and the obstacle. The
warning display for the front area is in the instru- ment cluster. The warning display for the rear
area is located on the cover behind the seats in the rear compartment.
The warning display for each side of the vehicle
is divided into five yellow and two red segments.
Parking Assist PARKTRONIC is operational if
operational readiness indicator 0087lights up.
The selected transmission position and the
direction in which the vehicle is rolling deter-
mine which warning display is active when the
engine is running. Transmission posi-
tion Warning display
005B
Front area activated
005E,
005Cor the vehicle
is rolling backwards Rear and front areas
activated
005D
No areas activated
One or more segments light up as the vehicle
approaches a detected obstacle, depending on
the vehicle's distance from the obstacle:
From the:
R sixth segment onwards, you will hear an inter-
mittent warning tone for approximately two
seconds.
R seventh segment onwards, you will hear a
warning tone for approximately two seconds. Driving systems
149Driving and parking Z

This indicates that you have now reached the
minimum distance.
Deactivating or activating Parking
Assist PARKTRONIC 0043
Indicator lamp
0044 Deactivates or activates Parking Assist
PARKTRONIC If indicator lamp
0043lights up, Parking Assist
PARKTRONIC is deactivated.
i Parking Assist PARKTRONIC is automati-
cally activated when you set the Start/Stop
button to key position 0048.
Problems with Parking Assist PARKTRONIC Problem
Possible causes/consequences and
0050 0050Solutions Only the red segments in
the Parking Assist
PARKTRONIC warning
displays are lit. You also
hear a warning tone for
approximately two sec-
onds.
Parking Assist
PARKTRONIC is then
deactivated and the indi-
cator lamp on the
PARKTRONIC button
lights up. Parking Assist PARKTRONIC has malfunctioned and has been deacti-
vated.
X If problems persist, have Parking Assist PARKTRONIC checked at a
qualified specialist workshop. Only the red segments in
the Parking Assist
PARKTRONIC warning
displays are lit. Parking
Assist PARKTRONIC is
then deactivated. The Parking Assist PARKTRONIC sensors are dirty or there is inter-
ference.
X Clean the Parking Assist PARKTRONIC sensors (Y page 246).
X Switch the ignition back on. The problem may be caused by an external source of radio or ultra-
sound waves.
X Check to see if Parking Assist PARKTRONIC works at a different
location. 150
Driving systemsDriving and parking
