2019 MAZDA MODEL CX-3 Owners Manual (in English)

▼Mazda Radar Cruise Control with
Stop & Go function (MRCC with
Stop & Go function) System
Wa r n i n g s
*
The Mazda Radar Cruise Control with
Stop & Go function (MRCC with Stop &
Go function) system w
arnings notify the
driver of system malfunctions and
cautions on use when required.
Check based on the beep sound.
Cautions What to check
The beep sounds 1 time
while the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) is operating The Mazda Radar Cruise
Control with Stop & Go
function (MRCC with
Stop & Go function) sys-
tem has been canceled.
The beep continues to
sound while the vehicle
is being driven. The distance between
your vehicle and the ve-
hicle ahead is too close.
Verify the safety of the
surrounding area and re-
duce vehicle speed.
When the Mazda Radar
Cruise Control with Stop
& Go function (MRCC
with Stop & Go func-
tion) is operating, the
beep sounds and the
Mazda Radar Cruise
Control with Stop & Go
function (MRCC with
Stop & Go function)
warning light (amber) in
the instrument cluster
turns on. A malfunction in the
system may be indicated.
Have your vehicle in-
spected at an Authorized
Mazda Dealer.
▼
Excessive Speed Warning*
If the vehicle speed exceeds the speed
limit sign displayed
on the active driving
display, the warning sound is activated and
the area around the speed limit sign
displayed on the active driving display
flashes 3 times in amber, and if the vehicle
speed continues to exceed the displayed
speed limit sign, the indication stops
flashing and remains on.
▼ Collision warning*
If there is a possibility
of a collision with a
vehicle ahead, a warning sound is
activated intermittently at the same time as
the warning light fla shes and the warning
indication is displayed in the active
driving display (With active driving
display).
If Trouble Arises
Warning/Indicator Lights and Warning Sounds
*Some models.7-47
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

When Liftgate Cannot beOpened
If the vehicle battery is dead, the liftgate
cannot be unlocked and opened.
In this case, the liftgate can be unlocked
by taking care of the dead battery
situation.
Refer to Jump-Star ting on page 7-18.
If the liftgate cannot be unlocked even if
the dead battery situation has been
resolved, the electrical system may have a
malfunction.
In this case, the liftgate can be opened
using the following procedure as an
emergency measure.
1. Fold down the rear seatbacks. Refer to Split Folding the Seatbacks on
page 2-9.
2. Remove cover on the interior surface of the liftgate using a flathead
screwdriver.
Cover
3. Using a flathead screwdriver, open theinner cover.
4. Using a flathead screwdriver, turn thelever to the right to unlock the liftgate.
Lever
After performing this emergency measure,
have the vehicle inspected at an
Authorized Mazda Dealer as soon as
possible.
If Trouble Arises
When Liftgate Cannot be Opened
7-48
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

If the Active Driving
Display Does Not Operate
If the active driving display does not
operate, switch the ignition off and then
restart the engine. If the active driving
display does not operate even with the
engine restarted, have the vehicle
inspected at an Autho rized Mazda Dealer.
If Trouble Arises
Active Driving Display Does Not Operate
7-49
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

MEMO
7-50
CX-3_8GR7-EA-18B_Edition12017-12-20 16:18:14

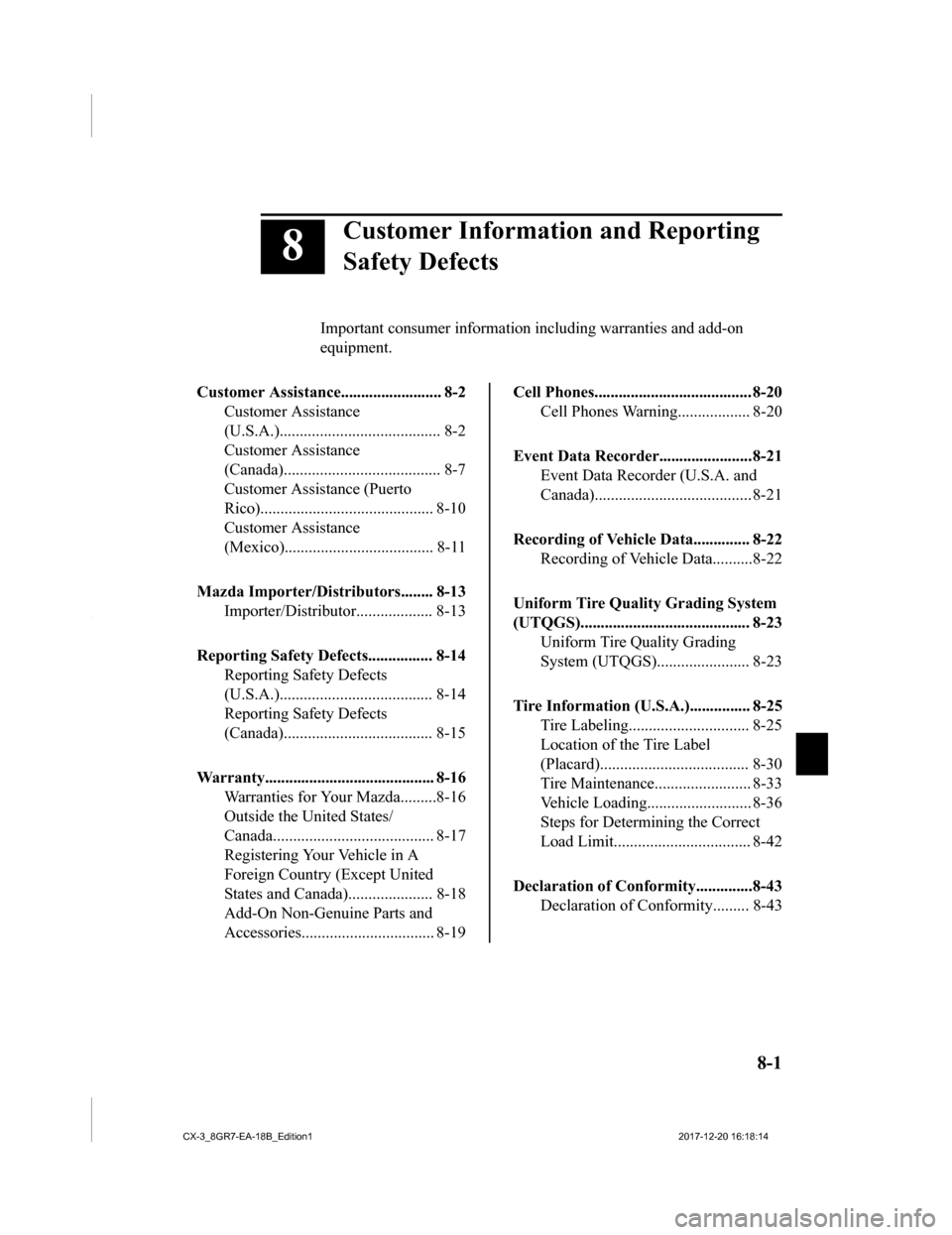

8
Customer Information and Reporting
Safety Defects
Important consumer information including warranties and add-on
equipment.
Customer Assistance......................... 8-2 Customer Assistance
(U.S.A.)........................................ 8-2
Customer Assistance
(Canada)....................................... 8-7
Customer Assistance (Puerto
Rico)........................................... 8-10
Customer Assistance
(Mexico)..................................... 8-11
Mazda Importer/Distributors........ 8-13 Importer/Distributor................... 8-13
Reporting Safety Def ects................ 8-14
Reporting Safety Defects
(U.S.A.)...................................... 8-14
Reporting Safety Defects
(Canada)..................................... 8-15
Warranty.......................................... 8-16 Warranties for Your Mazda.........8-16
Outside the United States/
Canada........................................ 8-17
Registering Your Vehicle in A
Foreign Country (Except United
States and Canada)..................... 8-18
Add-On Non-Genuine Parts and
Accessories................................. 8-19
Cell Phones....................................... 8-20
Cell Phones Warning.................. 8-20
Event Data Recorder. ......................8-21
Event Data Recorder (U.S.A. and
Canada)....................................... 8-21
Recording of Vehicle Data.............. 8-22 Recording of Vehicle Data..........8-22
Uniform Tire Quality Grading System
(UTQGS).......................................... 8-23 Uniform Tire Quality Grading
System (UTQGS)....................... 8-23
Tire Information (U.S.A.)............... 8-25 Tire Labeling.............................. 8-25
Location of the Tire Label
(Placard)..................................... 8-30
Tire Maintenance........................ 8-33
Vehicle Loading.......................... 8-36
Steps for Determining the Correct
Load Limit.................................. 8-42
Declaration of Confo rmity..............8-43
Declaration of Conformity......... 8-43
8-1
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Customer Assistance (U.S.A.)
Your complete and permanent satisfaction is our business. We are here to serve you. All
Authorized Mazda Dealers have the knowledge and the tools to ke ep your Mazda vehicle in
top condition.
If you have any questions or recommendations for improvement re garding the service of
your Mazda vehicle or servicing by Mazda Dealer personnel, we r ecommend that you take
the following steps:
NOTE
If it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, contact an Authorized Mazda Dealer. For more
information, go to NHTSA website www.safercar.gov (VEHICLE SHOPPERS > Air Bags >
Air Bag FAQs > Air Bag Deactivation).
▼ STEP 1: Contact Your Mazda Dealer
Discuss the matter wi
th an Authorized Mazda Dealer. This is the quickest and best way to
address the issue.
•If your concern has not been resolved by the CUSTOMER RELATIONS , SALES,
SERVICE, or PARTS MANAGER, then please contact the GENERAL MANAGER of
the dealership or the OWNER.
•If it becomes necessary to have the components or wiring system for the supplementary
restraint system modified to accommodate a person with certain medical conditions in
accordance with a certified physician, go to STEP 2.
Customer Information and Reporting Safety Defects
Customer Assistance
8-2
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼STEP 2: Contact Mazda No
rth American Operations
If for any reason you feel the need for further assistance afte r contacting your dealership
management or it becomes necessary to have the components or wi ring system for the
supplementary restraint system m odified to accommodate a person with certain medical
conditions in accordance with a certified physician, you can re ach Mazda North American
Operations by one of the following ways.

Log on: at www.MazdaUSA.com

Answers to many questions, including how to locate or contact a local Mazda dealership in
the U.S., can be found here.

E-mail: click on “Contact Us” lo cated on the bottom of the page at www.mazdausa.com
under “Help”

By phone at: 1 (800) 222-5500

By letter at:
ATTN: Customer Experience Center
Mazda North American Operations
200 Spectrum Center Drive Suite 100
Irvine, California 92618
P.O. Box 19734
Irvine, CA 92623-9734

In order to serve you efficiently and effectively, please help us by providing the following
information:
1. Your name, address, and telephone number
2. Year and model of vehicle
3. Vehicle Identification Number (17 digits, noted on your regis tration or title or located on
the upper driver's side corner of the dash)
4. Purchase date and current mileage
5. Your dealer's name and location
6. Your question(s)

If you live outside the U.S.A., please contact your nearest Maz da Distributor.
Customer Information and Reporting Safety Defects
Customer Assistance
8-3
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼STEP 3: Contact Better Business Bureau (BBB)
Mazda North American Operations realizes that mutual agreement
on some issues may not
be possible. As a final step to ensure that your concerns are b eing fairly considered, Mazda
North American Operations has agr eed to participate in a dispute settlement program
administered by the Better Business Bureau (BBB) system, at no cost to you the consumer.

BBB AUTO LINE works with consumers and the manufacturer in an a ttempt to reach a
mutually acceptable resolution of any warranty related concerns . If the BBB is not able to
facilitate a settlement they will provide an informal hearing b efore an arbitrator.

You are required to resort to BBB AUTO LINE before exercising r ights or seeking remedies
under the Federal Magnuson-Moss Warranty Act, 15 U.S.C. § 2301 et seq. To the extent
permitted by the applicable state “Lemon Law”, you are also req uired to resort to BBB
AUTO LINE before exercising any rights or seeking remedies unde r the “Lemon Law”. If
you choose to seek remedies that are not created by the Magnuso n-Moss Warranty Act or
the applicable state “Lemon Law”, you are not required to first use BBB AUTO LINE.

The whole process normally takes 40 days or less. The arbitrati on decision is not binding on
you or Mazda unless you accept th e decision. For more information about BBB AUTO
LINE, including current eligibil ity standards, please call 1-800-955-5100 or visit the BBB
website at www.bbb.org/autoline.

Being truly committed to custome r satisfaction is more than a phrase with Mazda. We hope
to satisfy every customer direct ly, but if there is ever a question about our decision, Mazda
believes in providing a fast, fa ir and free method such as the BBB AUTO LINE to ensure
Mazda delivers on our commitment to do the right thing for our customers!
Customer Information and Reporting Safety Defects
Customer Assistance
8-4
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
