NOTE
•The pretensioner system may not
operate depending on the type of the
collision. For details, refer to the SRS
Air Bag Deployment Criteria (page 2-
58).
•Some smoke (non-toxic gas) will be
released when the air bags and
pretensioners deploy. This does not
indicate a fire. This gas normally has no
effect on occupants, however, those with
sensitive skin may experience light skin
irritation. If residue from the
deployment of the air bags or the front
pretensioner system gets on the skin or
in the eyes, wash it off as soon as
possible.
Seat Belt Extender
If your seat belt is not long enough, even
when fully extended, a seat belt extender
may be available to you at no charge from
your Authorized Mazda Dealer.
This extender will be only for you and for
the particular vehicle and seat. Even if it
plugs into other seat belts, it may not hold
in the critical moment of a crash.
When ordering an extender, only order one
that provides the necessary additional
length to fasten the seat belt properly.
Please contact your Authorized Mazda
Dealer for more information.
WA R N I N G
Do not use a seat belt extender unless it is
necessary:
Using a seat belt extender when not
necessary is dangerous. The seat belt will
be too long and not fit properly. In an
accident, the seat belt will not provide
adequate protection and you could be
seriously injured. Only use the extender
when it is required to fasten the seat belt
properly.
Essential Safety Equipment
Seat Belt Systems
2-21
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Do not use an improper extender:
Using a seat belt extender that is for
another person or a different vehicle or seat
is dangerous. The seat belt will not provide
adequate protection and the user could be
seriously injured in an accident. Only use
the extender provided for you and for the
particular vehicle and seat. NEVER use the
extender in a different vehicle or seat. If you
sell your Mazda, do not leave your seat belt
extender in the vehicle. It could be used
accidentally by the new owner of the
vehicle. After removing the seat belt
extender, discard it. Never use the seat belt
extender in any other vehicle you may own
in the future.
Do not use an extender that is too long:
Using an extender that is too long is
dangerous. The seat belt will not fit
properly. In an accide nt, the seat belt will
not provide adequate protection and you
could be seriously injured. Do not use the
extender or choose one shorter in length if
the distance between the extender's buckle
and the center of the user's body is less
than 15 cm (6 in).Do not leave a seat belt extender
connected to the buckle:
Leaving a seat belt extender connected to
the buckle without using the seat belt is
dangerous. When the seat belt extender is
connected to the driver's seat belt buckle
(or front passenger's seat belt buckle), the
SRS driver's (or front passenger's) air bag
system will determine that the driver (or
front passenger) is wearing the seat belt
even if the driver (or front passenger) is not
wearing it. This condition could cause the
driver's (or front passenger's) air bag to not
activate correctly and result in death or
serious injury in the event of collision.
Always wear the seat belt with the seat belt
extender.
Do not use the seat belt extender when
installing a child-restraint system on the
front or rear passenger seat:
Using a seat belt extender to fasten a
child-restraint system on any seat is
dangerous. Always follow the
child-restraint system manufacturer's
installation instructions and never use a
seat belt extender.
NOTE
When not in use, remove the seat belt
extender and store it in the vehicle. If the
seat belt extender is left connected, the
seat belt extender might get damaged as it
will not retract with the rest of the seat belt
and can easily fall out of the door when
not in use and be damaged. In addition,
the seat belt warning light will not
illuminate and function properly.
Essential Safety Equipment
Seat Belt Systems
2-22
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Child-Restraint Precautions
Mazda strongly urges the use of child-restraint systems for children small enough to use
them.

You are required by law to use a child-restraint system for children in the U.S. and Canada.
Check your local and state or pro vincial laws for specific requirements regarding the safety
of children riding in your vehicle.

Whatever child-restraint system you consider, please pick the a ppropriate one for the age
and size of the child, obey the law and follow the instructions that come with the individual
child-restraint system.

A child who has outgrown child-re straint systems should sit in the rear and use seat belts,
both lap and shoulder. If the shoulder belt crosses the neck or face, move the child closer to
the center of the vehicle in the outboard seats, and towards the buckle on th e right if the
child is seated on the center seat.

Statistics confirm that the rear seat is the best place for all children up to 12 years of age,
and more so with a supplementa l restraint system (air bags).

A rear-facing child-restraint system should NEVER be used on the front seat with the air
bag system activated. The front passenger's seat is also the least preferred seat for other
child-restraint systems.

(With Front Passenger Occupa nt Classification System)
To reduce the chance of injuries caused by deployment of the front passenger air bag, the
front passenger occupant classification sensor works as a part of the supplemental restraint
system. This system deactivates the front passenger front and s ide air bags and also the front
passenger seat belt pretensioner system when the front passenge r air bag deactivation
indicator light illuminates.

When an infant or small child si ts on the front passenger seat, the system shuts off the front
passenger front and side air bags and seat belt pretensioner sy stem, so make sure the front
passenger air bag deactivation indicator light illuminates.

Even if the fron t passenger air bag is shut off, Mazda strongly recommends that children be
properly restrained and child-restraint systems of all kinds are properly secured on the rear
seats which are the best place for children.

For more details, re fer to "Front passeng er occupant classifica tion sensor" (page 2-61).

Essential Safety Equipment
Child Restraint
2-23
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

WA R N I N G
Use the correct size child-restraint system:
For effective protection in vehicle accidents and sudden stops, a child must be properly
restrained using a seat belt or child-restraint system depending on age and size. If not, the
child could be seriously injured or even killed in an accident.
Follow the manufacturer's instructions and always keep the child-restraint system buckled
down:
An unsecured child-restraint system is dangerous. In a sudden stop or a collision it could move
causing serious injury or death to the child or other occupants. Make sure any child-restraint
system is properly secured in place according to the child-restraint system manufacturer's
instructions. When not in use, remove it from the ve hicle or fasten it with a seat belt, or latch it
down to BOTH LATCH lower anchors for LATCH child-restraint systems and the corresponding
tether anchor.
Always secure a child in a proper child-restraint system:
Holding a child in your arms while the vehicle is moving is extremely dangerous. No matter
how strong the person may be, he or she cannot hold onto a child in a sudden stop or collision
and it could result in serious injury or death to the child or other occupants. Even in a
moderate accident, the child may be exposed to air bag forces that could result in serious
injury or death to the child, or the child may be slammed into an adult, causing injury to both
child and adult.
Never use a rear-facing child-restraint system in the front seat with an air bag that could
deploy:
Rear-facing child-restraint systems on the front seat are particularly dangerous even though
you may feel assured that a front passenger air ba g will not deploy based on the fact that the
front passenger air bag deactivation indicator light illuminates. The child-restraint system
can be hit by a deploying air bag and moved viol ently backward resulting in serious injury or
death to the child.
Essential Safety Equipment
Child Restraint
2-24
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

(Except Mexico)
Vehicles with a front passenger air bag have the following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.
(Mexico)
NEVER use a rearward facing child restraint on a seat protected by an ACTIVE AIRBAG in front
of it, DEATH or SERIOUS INJURY to the CHILD can occur.
Vehicles with a front passenger air bag have th e following warning label. The warning label
reminds you not to put a rear-facing child-restraint system on the front passenger seat at any
time.

Do not install a front-facing child-restraint system on the front passenger seat unless it is
unavoidable:
In a collision, the force of a deploying air bag co uld cause serious injury or death to the child. If
installing a front-facing child-restraint syst em on the front passenger seat is unavoidable,
move the front passenger seat as far back as possible and adjust the seat bottom (height
adjustable seat bottom) to the highest position at which the seat belt fastening the
child-restraint system is securely tightened.
Essential Safety Equipment
Child Restraint
2-25
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Seating a child in a child-restraint system on the front passenger seat is dangerous under
certain conditions (With Front Passenger Occupant Classification System):
Your vehicle is equipped with front passenger occupant classification sensor. Even with the
front passenger occupant classification sensor, if you must use the front passenger seat to
seat a child, using a child-restraint system on the front passenger seat under the following
conditions increases the danger of the front passenger air bag deploying and could result in
serious injury or death to the child.
 The front passenger air bag deactivation indica tor light does not illuminate when seating a
child in the child-restraint system.
 Luggage or other items are placed on the seat with the child in the child-restraint system.
 A rear passenger or luggage pushing or pulling down on the front passenger seatback.
 Luggage or other items are placed on the seatback or hung on the head restraint.
 The seat is washed.
 Liquids are spilled on the seat.
 The front passenger seat is moved backward, pushing into luggage or other items placed
behind it.
 The front passenger seatback contacts the rear seat.
 Luggage or other items are placed between the front passenger seat and driver seat.
 An electric device is put on the front passenger's seat.
 An additional electrical device, such as a seat warmer is installed to the surface of the front
passenger seat.
The designated positions with seat belts on the rear seats are the safest places for children.
Always use seat belts and child restraints.
Do not allow a child or anyone to lean over or against the side window of a vehicle with side
and curtain air bags:
It is dangerous to allow anyone to lean over or against the side window, the area of the front
passenger seat, the front and rear window pilla rs and the roof edge along both sides from
which the side and curtain air bags deploy, even if a child-restraint system is used. The impact
of inflation from a side or curtain air bag could ca
use serious injury or death to an out of
position child. Furthermore, leaning over or against the front door could block the side and
curtain air bags and eliminate the advantages of supplemental protecti on. With the front air
bag and the additional side air bag that comes out of the front seat, the rear seat is always a
better location for children. Take special care no t to allow a child to lean over or against the
side window, even if the child is seated in a child-restraint system.
Essential Safety Equipment
Child Restraint
2-26
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

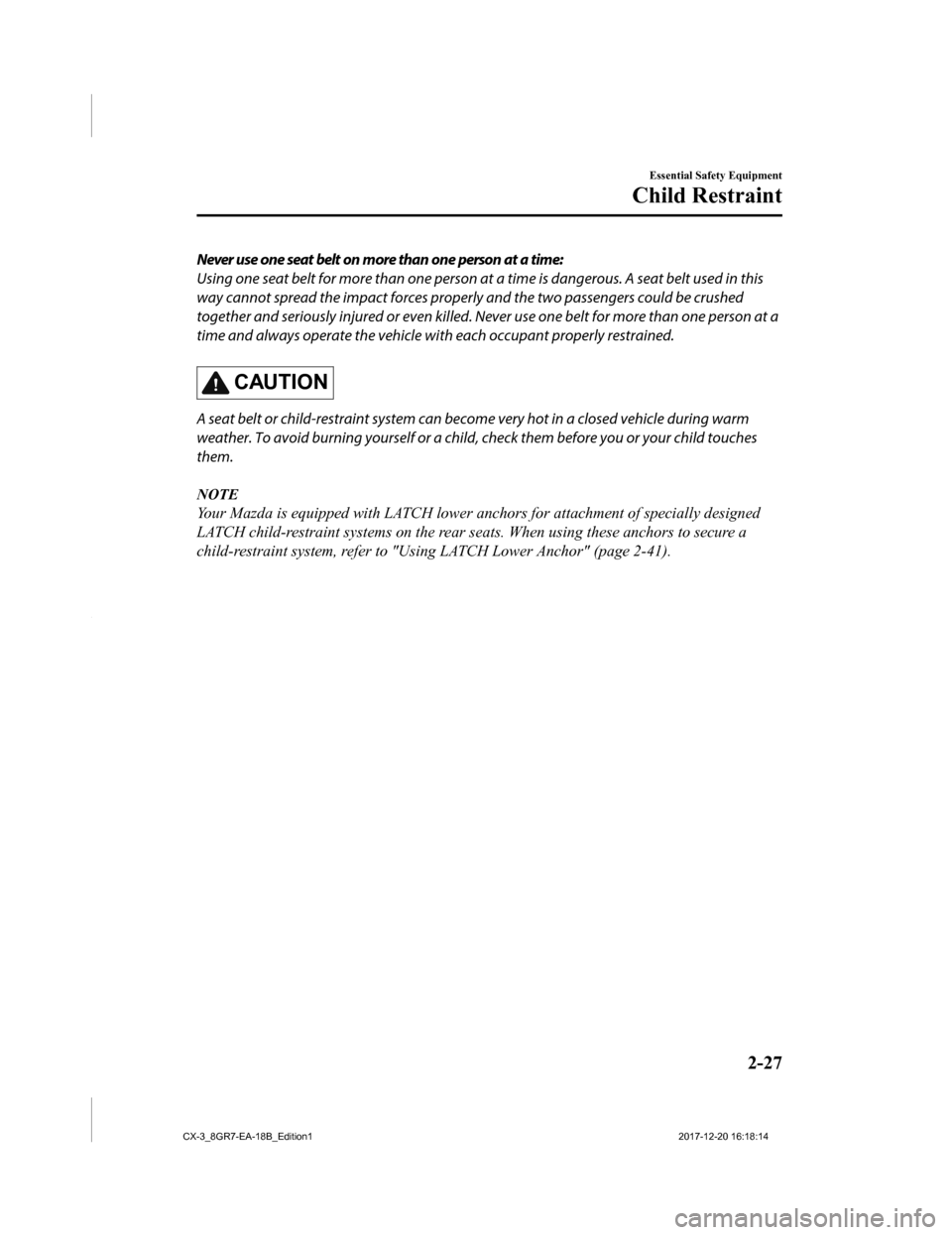

Never use one seat belt on more than one person at a time:
Using one seat belt for more than one person at a time is dangerous. A seat belt used in this
way cannot spread the impact forces properly and the two passengers could be crushed
together and seriously injured or even killed. Ne ver use one belt for more than one person at a
time and always operate the vehicle wi th each occupant properly restrained.
CAUTION
A seat belt or child-restraint system can beco me very hot in a closed vehicle during warm
weather. To avoid burning yourself or a child, check them before you or your child touches
them.
NOTE
Your Mazda is equipped with LATCH lower anchors for attachment of specially designed
LATCH child-restraint systems on the rear seats. When using these anchors to secure a
child-restraint system, refer to "Using LATCH Lower Anchor" (page 2-41).
Essential Safety Equipment
Child Restraint
2-27
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Child-Restraint System Installation
▼Categories of Child-Restraint Systems
NOTE
When purchasing, ask the manufacturer of the child-restraint system which type of
child-restraint system is appropriate for your child and vehicle.
(Mexico)
Child-restraint systems are classified into the following 5 gro
ups according to the UNECE
44 regulation.
Group Age Weight
0 Up to about 9 months old Up to 10 kg (up to 22 lb)
0
Up to about 2 years old Up to 13 kg (up to 29 lb)
1 About 8 months to 4 years old 9 kg ― 18 kg (20 lb ― 40 lb)
2 About 3 to 7 years old 15 kg ― 25 kg (33 lb ― 55 lb)
3 About 6 to 12 years old 22 kg ― 36 kg (48 lb ― 79 lb)
(Except Mexico)
Please comply with the legal regulations concerning the use of child-restraint systems in
your country.
▼ Child-Restraint System Types
In this owner's manual, explanation of
child-restraint system
s is provided for the
following three types of popular
child-restraint system s: infant seat, child
seat, booster seat.
NOTE
•Installation position is determined by
the type of child-restraint system.
Always read the manufacturer's
instructions and this owner's manual
carefully.
•Due to variations in the design of
child-restraint systems, vehicle seats
and seat belts, all child-restraint systems
may not fit all seating positions. Before
purchasing a child-restraint system, it
should be tested in the specific vehicle
seating position (or positions) where it
is intended to be used. If a previously
purchased child-restraint system does
not fit, you may need to purchase a
different one that will.
Essential Safety Equipment
Child Restraint
2-28
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14
