Stop sign
WA R N I N G
Always check the traffic signs visually while driving.
The TSR helps prevent the driver from overlookin g traffic signs and provides support for safer
driving. Depending on the weath er conditions or problems with
traffic signs, a
traffic sign
may not be recognized or a traffic sign different from the actual traffic sign may be displayed.
Always make it your responsibility as a driver to check the actual
traffic signs. Otherwise, it
could result in an accident.
NOTE
•The TSR does not operate if there is a malf unction in the Forward Sensing Camera (FSC).
•Under the following conditions, the TSR may not operate normally.
•An object placed on the dashboard is reflected in the windshield and picked up by the
camera.
•Heavy luggage is loaded in the luggage compartment or on the rear seat and the
vehicle is tilted.
•The tire pressures are not adjusted to the specified pressure.
•Tires other than standard tires are equipped.
•The vehicle is driven on the ramp and surrounding area to or from a rest area or a
tollgate on a highway.
•When surrounding brightness suddenly changes such as when entering or exiting a
tunnel.
•The illumination of the headlights is weakened because of dirt or the optical axis is
deviated.
•The windshield is dirty or foggy.
•The windshield and camera are fogged (water droplets).
When Driving
i-ACTIVSENSE
4-97
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

•Strong light is directed at the front of the vehicle (such as backlight or high-beam
headlights of on-coming vehicles).
•The vehicle is making a sharp turn.
•Strong light reflects off the road.
•A traffic sign is in a position which makes it difficult to reflect the light from the
vehicle's headlights, such as when the vehicle is driven at night or in a tunnel.
•The vehicle is driven under weather conditions such as rain, fog, or snow.
•The stored map data for the navigation system is not current.
•A traffic sign is obscured by mud or snow.
•A traffic sign is concealed by trees or a vehicle.
•A traffic sign is partially shaded.
•A traffic sign is bent or warped.
•A traffic sign is too low or too high.
•A traffic sign is too bright or too da rk (including electronic traffic signs).
•A traffic sign is too big or too small.
•There is an object similar to the traffic sign being read (such as another traffic sign or
other signs resembling it).
•The TSR does not operate if the active dr iving display is set to non-display.
•The TSR can be set to inoperable.
Refer to Personalization Features on page 9-9.
▼Traffic Sign Display Indication
The following traffic signs are d
isplayed on the active driving display.
Speed limit signs
Do not enter signs
Stop signs
When Driving
i-ACTIVSENSE
4-98
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

NOTE
Speed limit signs
•When the vehicle speed is about 1 km/h (0.6 mph) or faster, the speed limit sign is
displayed when any one of the following conditions are met.
•The Forward Sensing Camera (FSC) recognizes a speed limit sign as a sign targeted for
your vehicle and the vehicle passes it.
•The speed limit sign stored in the navigation system is read (if the Forward Sensing
Camera (FSC) does not recognize a speed limit sign).
•In the following cases, display of the speed limit sign stops.
•The Forward Sensing Camera (FSC) recognizes the speed limit sign and the vehicle is
driven for a certain distance after passing the sign.
•Each sensor determines that the vehicle has changed direction of travel.
•The Forward Sensing Camera (FSC) recognizes a new speed limit sign which differs
from the previous one (displays the new speed limit sign).
•The speed limit sign stored in the navigation system is not read within a certain period
of time (if the Forward Sensing Camera (FSC) does not recognize a speed limit sign,
the speed limit sign stored in the navigation system is displayed).
•The vehicle speed exceeds the displayed speed limit sign by 30 km/h (19 mph) or more
after a certain period of time has elapsed since the speed limit sign was displayed.
(Except when there is information for the speed limit sign in the navigation system)
Do not enter signs
•A do not enter sign is displayed when all of the following conditions are met.
•The vehicle speed is about 60 km/h (37 mph) or slower.
•The Forward Sensing Camera (FSC) recognizes a do not enter sign as a sign targeted
for your vehicle and the vehicle passes it.
•When the Forward Sensing Camera (FSC) recognizes the do not enter sign and a certain
period of time has elapsed since the vehicle passed the sign, display of the do not enter
sign stops.
Stop sign
•A stop sign is displayed when all of the following conditions are met:
•The vehicle speed is about 30 km/h (19 mph) or slower.
•The Forward Sensing Camera (FSC) recognizes a stop sign as a sign targeted for your
vehicle.
•When a certain period of time has elapsed since the stop sign was displayed, display of
the stop sign stops.
When Driving
i-ACTIVSENSE
4-99
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Excessive Speed Warning
If the vehicle speed exceeds the speed limit sign displayed in the active driving display, the
area around the speed limit sign flashes three times in amber a nd the warning sound is
activated three times at the same time. If the vehicle speed co ntinues to exceed the displayed
speed limit sign, the indication stops flashing and remains on. Check the surrounding
conditions and adjust the vehicle speed to the legal speed using the appropriate operation
such as depressing the brake pedal.
The excessive speed warning is initially set to inoperable. If you want to activate the
excessive speed warning, change the setting in the personalizat ion features. In addition, the
warning pattern and the warning activation timing differ depend ing on the setting contents.
Refer to Personalization Features on page 9-9.
Warning pattern
•Off: The excessive speed warning is not activated.
•Visual: The area around the speed limit sign displayed in the d isplay flashes three times in
amber, and if the vehicle speed continues to exceed the display ed speed limit sign, the
indication stops flashing and remains on.
•Audio & Visual: The area around the speed limit sign displayed in the display flashes
three times in amber and the warning sound is activated three t imes at the same time. If
the vehicle speed continues to exceed the displayed speed limit sign, the indication stops
flashing and remains on.
When Driving
i-ACTIVSENSE
4-100
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Warning activation timing
• 0: If the vehicle speed exceeds the speed limit sign displayed in the display, the
excessive speed warning is activated.
• 5: If the vehicle speed exceeds the speed limit sign displayed in the display by 5 km/h
(3 mph), the excessive speed warning is activated.
• 10: If the vehicle speed exceed s the speed limit sign displayed in the display by 10
km/h (5 mph), the excessive speed warning is activated.
NOTE
•In the following cases, the excessive speed warning stops operating.
•The vehicle speed is less than the speed of the displayed speed limit sign. (If the
activation timing for the exce ssive speed warning is changed in the personalization
features, the excessive speed warning stops operating when the vehicle speed is less
than the changed vehicle speed.
•A speed limit sign indication has been updated and the vehicle speed is lower than the
updated indication.
•Display of the speed limit sign stops.
•The warning indication is displayed at the same time the excessive speed warning sound
is activated if the vehicle speed exceeds the speed indicated on the speed limit sign.
Refer to Warning Sound is Activated on page 7-43.
•If the Forward Sensing Camera (FSC) incorrectly recognizes the actual speed limit sign
at a lower speed, the excessive speed alarm is activated even if the vehicle is driven at the
legal speed.
When Driving
i-ACTIVSENSE
4-101
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

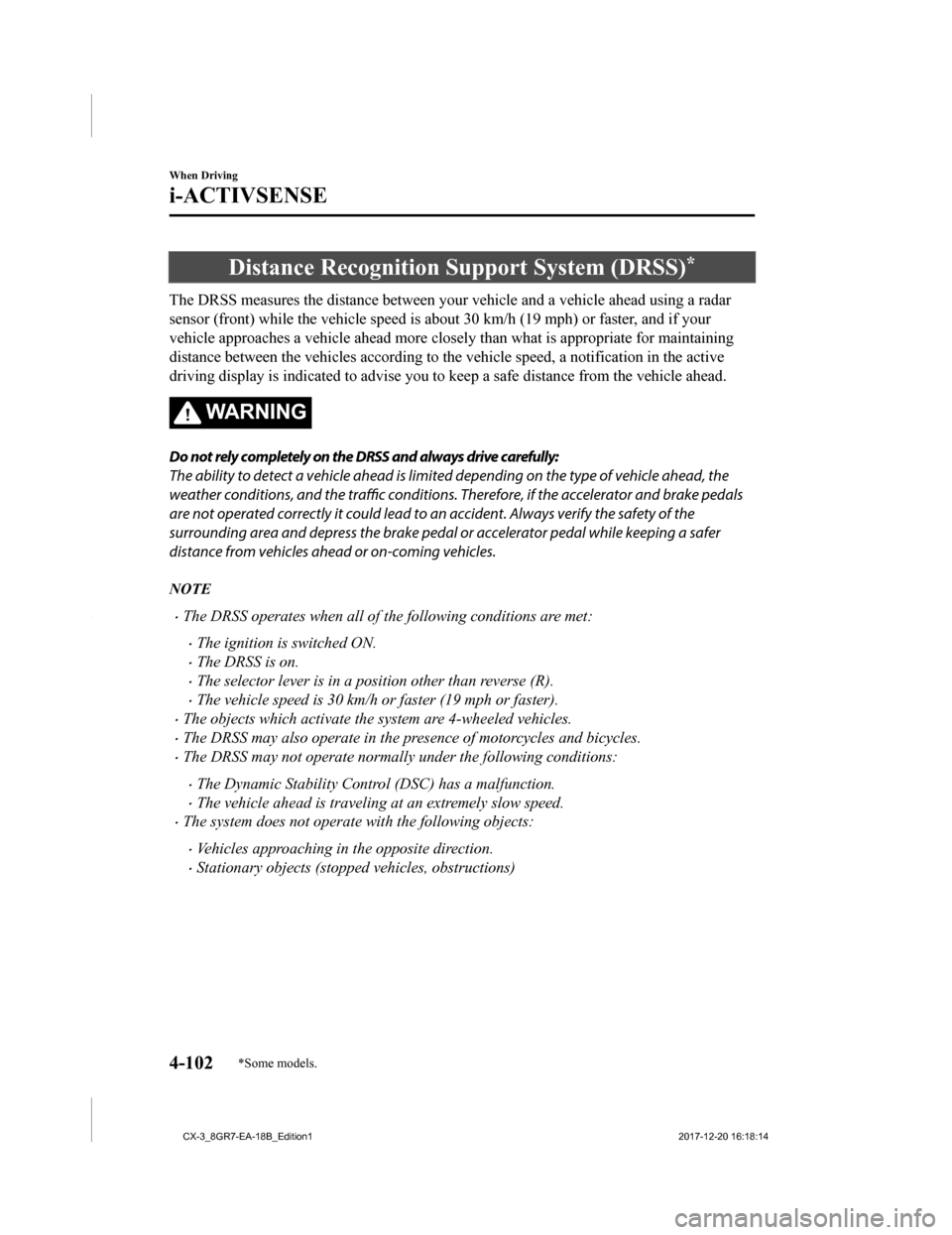

Distance Recognition Support System (DRSS)*
The DRSS measures the distance between your vehicle and a vehicle ahead using a radar
sensor (front) while the vehicle speed is about 30 km/h (19 mph ) or faster, and if your
vehicle approaches a vehicle ahead more closely than what is ap propriate for maintaining
distance between the vehicles according to the vehicle speed, a notification in the active
driving display is indicated to advise you to keep a safe dista nce from the vehicle ahead.
WA R N I N G
Do not rely completely on the DRSS and always drive carefully:
The ability to detect a vehicle ahead is limite d depending on the type of vehicle ahead, the
weather conditions, and the traffic conditions. Therefore, if the accelerator and brake pedals
are not operated correctly it could lead to an accident. Always verify the safety of the
surrounding area and depress the brake pedal or accelerator pedal while keeping a safer
distance from vehicles ahead or on-coming vehicles.
NOTE
•The DRSS operates when all of the following conditions are met:
•The ignition is switched ON.
•The DRSS is on.
•The selector lever is in a position other than reverse (R).
•The vehicle speed is 30 km/h or faster (19 mph or faster).
•The objects which activate the system are 4-wheeled vehicles.
•The DRSS may also operate in the presence of motorcycles and bicycles.
•The DRSS may not operate normally under the following conditions:
•The Dynamic Stability Control (DSC) has a malfunction.
•The vehicle ahead is traveling at an extremely slow speed.
•The system does not operate with the following objects:
•Vehicles approaching in the opposite direction.
•Stationary objects (stopped vehicles, obstructions)
When Driving
i-ACTIVSENSE
4-102*Some models.
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

▼Indication on Display
The DRSS operation status is indi
cated in the active driving display. Regarding
malfunctions, check the vehicle c onditions or have it inspected by an Authorized Mazda
Dealer according to the conte nt of the displayed message.
Refer to Warning/Indicator Lights on page 4-24.
NOTE
•When the ignition is sw itched off, the operation status be fore the system was turned off is
maintained. For example, if the ignition is switched off with the DRSS operable, the
system will be operable when the ignition is switched ON the next time.
•The DRSS can be turned on/off and the system's sensitivity can be changed.
Refer to Personalization Features on page 9-9.

Vehicle ahead
display
Distance-between-veh icles guidelines*1
Display Distance between vehicles guide-
lines
(During travel at about 40 km/h (25 mph) Distance between vehicles guide-
lines
(During travel at about 80 km/h (50 mph)
Illuminated in
amber
About 10 m (32 ft) or less About 20 m (65 ft) or less
*1 The distance between vehicles differs depending on vehicle spe ed.
When Driving
i-ACTIVSENSE
4-103
CX-3_8GR7-EA-18B_Edition1 2017-12-20 16:18:14

Rear Cross Traffic Alert (RCTA)*
The RCTA system is designed to assist the driver in checking the area to the rear of the
vehicle on both sides while the vehicle is reversing by alertin g the driver to the presence of
vehicles approaching the rear of the vehicle.
The RCTA system detects vehicles approaching from the rear left and right sides of the
vehicle, and the rear of the vehicle while the vehicle is being reversed out of a parking
space, and notifies the driver of possible danger using the Blind Spot Monitoring (BSM)
warning indicator lights and the warning buzzer.
Detection areas
Your vehicle
RCTA operation
1. The RCTA system operates when the shift lever (manual transax le) or the selector lever
(automatic transaxle) is shifted to the reverse (R) position.
2. If there is the possibility of a collision with an approaching vehicle, the Blind Spot
Monitoring (BSM) warning indicato r lights flashes and the warning beep is activated
simultaneously.
When Driving
i-ACTIVSENSE
4-104*Some models.
