2019 LEXUS LS500 Owners Manual

651-4. Theft deterrent system
LS500_OM_(U)_1810 1
For safety and security
■
Items to check before locking the
vehicle
To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows, moon roof (if
equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.
 No valuables or other personal
items are left in the vehicle. ■
Setting
Close the doors, trunk and hood, and
lock all the doors. The system will be
set automatically after 30 seconds. The indicator light changes from being on
to flashing when the system is set. ■
Canceling or stopping
Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-
SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.) ■
System maintenance
The vehicle has a maintenance-free type
alarm system. ■
Triggering of the alarm
The alarm may be triggered in the following
situations:
(Stopping the alarm deactivates the alarm
system.) ●
The trunk is opened using the mechanical
key.
●
A person inside the vehicle opens a door,
the trunk or hood, or unlocks the vehicle.Alarm The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:
 A locked door or trunk is
unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)
 The hood is opened.
Setting/canceling/stopping the
alarm system

66 1-4. Theft deterrent system
LS500_OM_(U)_1810 ●
The battery is rech arged or replaced
when the vehicle is locked. (  P.438)
■
Alarm-operated door lock
In the following cases, depending on the sit-
uation, the door may automatically lock to
prevent improper entry into the vehicle: ●
When a person remaining in the vehicle
unlocks the door and the alarm is acti-
vated.●
While the alarm is activated, a person
remaining in the vehicle unlocks the door.
NOTICE■
To ensure the system operates cor-
rectly
Do not modify or remove the system. If
modified or removed, the proper opera-
tion of the system cannot be guaranteed.

67
LS500_OM_(U)_1810 2 2
Vehicle status information and indicators Vehicle status information
and indicators .
2-1. Instrument cluster
Warning lights and indicators
........................................................... 68
Gauges and meters (except F
SPORT models) ........................ 73
Gauges and meters (F SPORT
models) .......................................... 76
Multi-information display.......... 80
Head-up display ........................... 87
Fuel consumption information
............................................................ 91

68 2-1. Instrument cluster
LS500_OM_(U)_1810 2-1.Instrument cluster
For the purpose of explanatio n, the following illustrations display all warning lights
and indicators illuminated. 
Except F SPORT models

F SPORT modelsWarning lights and indicators The warning lights and indicators on th e instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.
Warning lights and indicators displayed on the instrument cluster

692-1. Instrument cluster
LS500_OM_(U)_1810 2

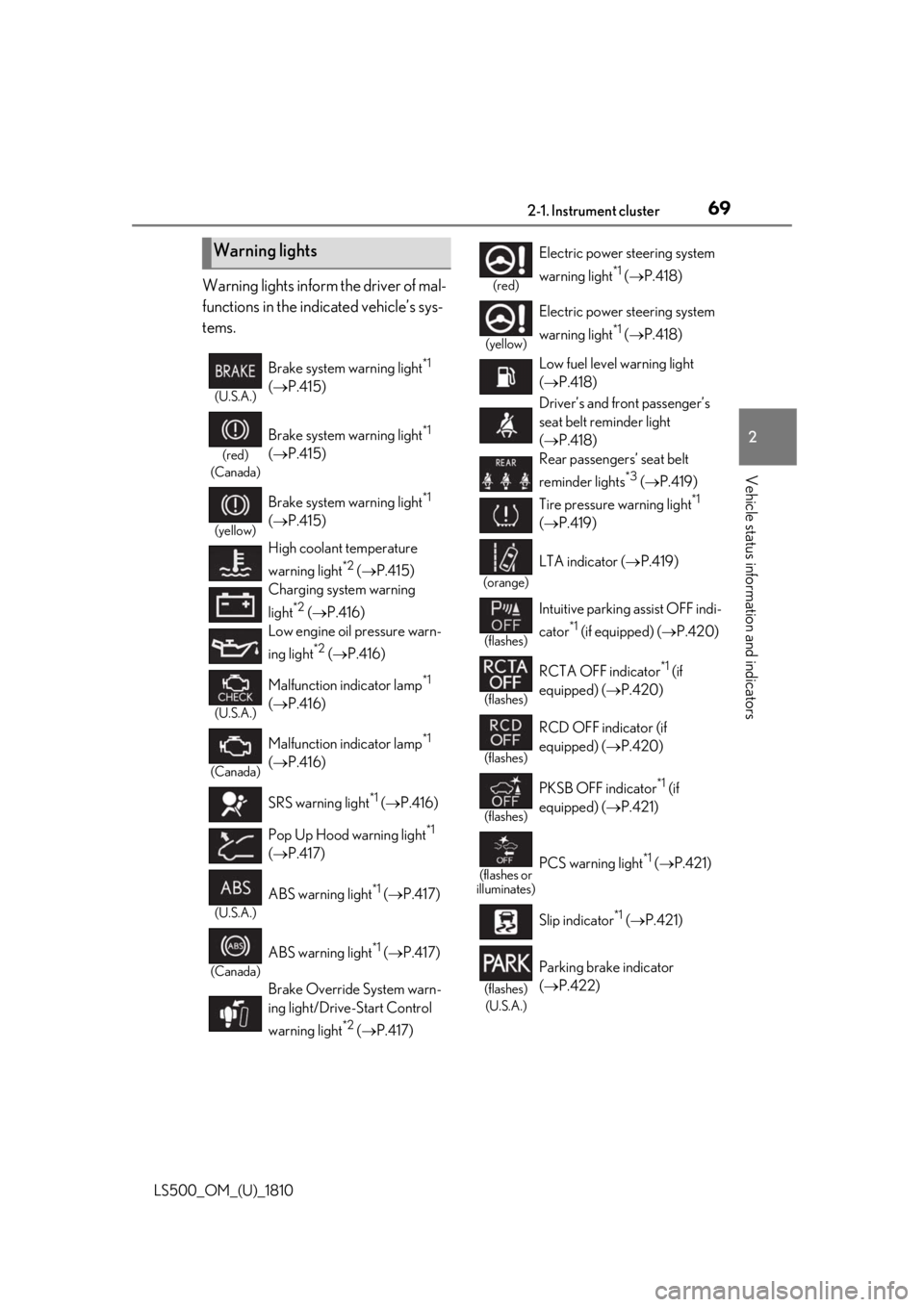

Vehicle status information and indicators Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.
Warning lights (U.S.A.)
Brake system warning light *1

(  P.415)(red)
(Canada)
Brake system warning light *1

(  P.415)(yellow)
Brake system warning light *1

(  P.415)
High coolant temperature
warning light *2
(  P.415)
Charging system warning
light *2
(  P.416)
Low engine oil pressure warn-
ing light *2
(  P.416)(U.S.A.)
Malfunction indicator lamp *1

(  P.416)
(Canada)
Malfunction indicator lamp *1

(  P.416)
SRS warning light *1
(  P.416)
Pop Up Hood warning light *1

(  P.417)
(U.S.A.)
ABS warning light *1
(  P.417)
(Canada)
ABS warning light *1
(  P.417)
Brake Override System warn-
ing light/Drive-Start Control
warning light *2
(  P.417) (red)
Electric power steering system
warning light *1
(  P.418)(yellow)
Electric power steering system
warning light *1
(  P.418)
Low fuel level warning light
(  P.418)
Driver’s and front passenger’s
seat belt reminder light
(  P.418)
Rear passengers’ seat belt
reminder lights *3
(  P.419)
Tire pressure warning light *1

(  P.419)(orange)
LTA indicator (  P.419)
(flashes)
Intuitive parking assist OFF indi-
cator *1
(if equipped) (  P.420)
(flashes)
RCTA OFF indicator *1
(if
equipped) (  P.420)
(flashes)
RCD OFF indicator (if
equipped) (  P.420)
(flashes)
PKSB OFF indicator *1
(if
equipped) (  P.421)
(flashes or
illuminates)
PCS warning light *1
(  P.421)
Slip indicator *1
(  P.421)
(flashes)
(U.S.A.) Parking brake indicator
(  P.422)

70 2-1. Instrument cluster
LS500_OM_(U)_1810 *1
: These lights come on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer. *2
: This light illuminates on the multi-infor-
mation display. *3
: This light illuminates on the center
panel. *4
: F SPORT models: This light comes on
when the engine switch is turned to
IGNITION ON mode to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer. The indicators inform the driver of the
operating state of the vehicle’s various
systems.(flashes)
(Canada)
Parking brake indicator
(  P.422)(flashes)
Brake hold operated indicator *1

(  P.422)
Master warning light *4

(  P.422)
WARNING
■
If a safety system warning light does
not come on
Should a safety system light such as the
ABS and SRS warning light not come on
when you start the engine, this could
mean that these systems are not available
to help protect you in an accident, which
could result in death or serious injury.
Have the vehicle inspected by your
Lexus dealer immediately if this occurs. Indicators Turn signal indicator (  P.173)(U.S.A.)
Headlight indicator (  P.179)(Canada)
Tail light indicator (  P.179)
Headlight high beam indicator
(  P.180)
AHB indicator (  P.182)
PCS warning light *1, 2

(  P.207, 217)
Cruise control indicator
(  P.244)
Dynamic radar cruise control
indicator (  P.237)
Cruise control “SET” indicator
(  P.237)
(white)
LTA indicator (  P.231)
(green)
LTA indicator (  P.231)
(orange)
(flashes)
LTA indicator (  P.231)
BSM outside rear view mirror
indicators *1, 3
(if equipped)
(  P.250, 263)
BSM indicator (if equipped)
(  P.250)

712-1. Instrument cluster
LS500_OM_(U)_1810 2

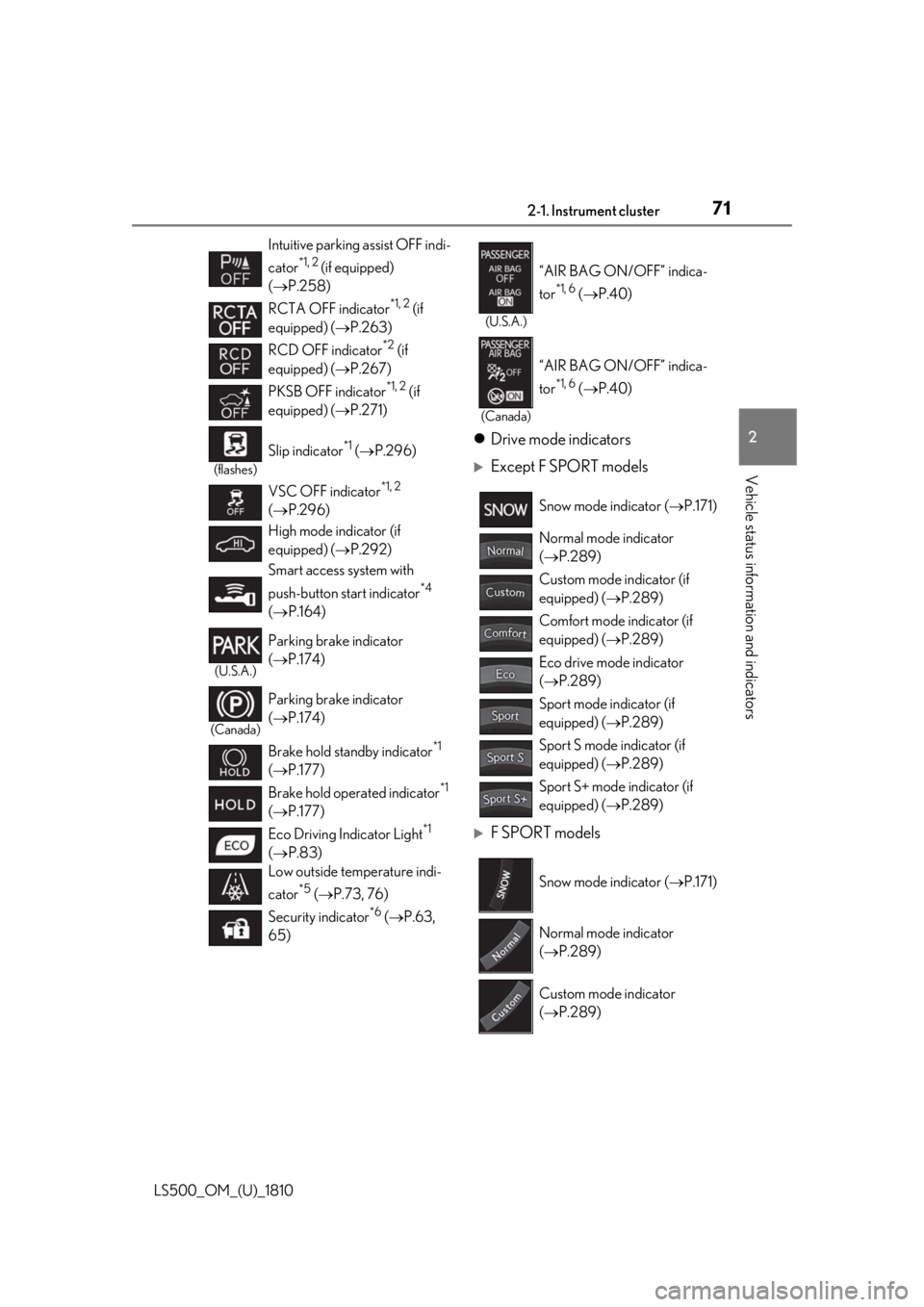

Vehicle status information and indicators  Drive mode indicators 
Except F SPORT models

F SPORT modelsIntuitive parking assist OFF indi-
cator *1, 2
(if equipped)
(  P.258)
RCTA OFF indicator *1, 2
(if
equipped) (  P.263)
RCD OFF indicator *2
(if
equipped) (  P.267)
PKSB OFF indicator *1, 2
(if
equipped) (  P.271)(flashes)
Slip indicator *1
(  P.296)
VSC OFF indicator *1, 2

(  P.296)
High mode indicator (if
equipped) (  P.292)
Smart access system with
push-button start indicator *4

(  P.164)(U.S.A.)
Parking brake indicator
(  P.174)
(Canada)
Parking brake indicator
(  P.174)
Brake hold standby indicator *1

(  P.177)
Brake hold operated indicator *1

(  P.177)
Eco Driving Indicator Light *1

(  P.83)
Low outside temperature indi-
cator *5
(  P.73, 76)
Security indicator *6
(  P.63,
65) (U.S.A.)
“AIR BAG ON/OFF” indica-
tor *1, 6
(  P.40)
(Canada)
“AIR BAG ON/OFF” indica-
tor *1, 6
(  P.40)
Snow mode indicator (  P.171)
Normal mode indicator
(  P.289)
Custom mode indicator (if
equipped) (  P.289)
Comfort mode indicator (if
equipped) (  P.289)
Eco drive mode indicator
(  P.289)
Sport mode indicator (if
equipped) (  P.289)
Sport S mode indicator (if
equipped) (  P.289)
Sport S+ mode indicator (if
equipped) (  P.289)
Snow mode indicator (  P.171)
Normal mode indicator
(  P.289)
Custom mode indicator
(  P.289)

72 2-1. Instrument cluster
LS500_OM_(U)_1810 *1
: These lights come on when the engine
switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer. *2
: This light comes on when the system is
turned off. *3
: This light illuminates on the outside rear
view mirrors. *4
: This light illuminates on the multi-infor-
mation display. *5
: When the outside temperature is
approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on. *6
: This light illuminates on the center
panel. Comfort mode indicator
(  P.289)
Eco drive mode indicator
(  P.289)
Sport S mode indicator
(  P.289)
Sport S+ mode indicator
(  P.289)
