2019 KIA FORTE Owners Manual

Specifications, Consumer information, Reporting safety defects
48

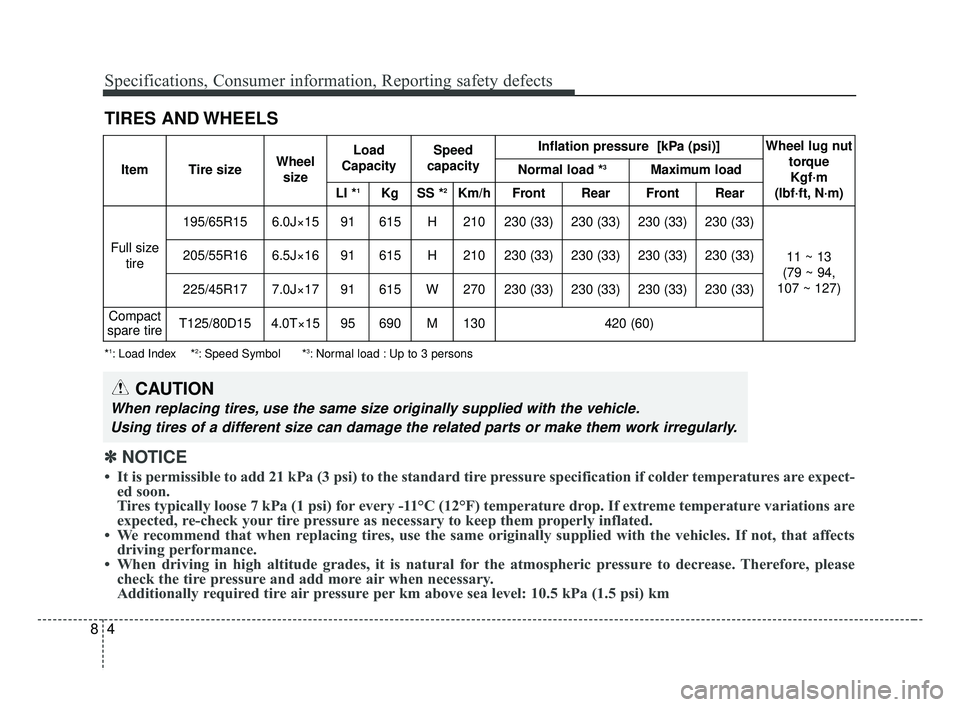

TIRES AND WHEELS
*1: Load Index *2: Speed Symbol *3: Normal load : Up to 3 persons
CAUTION
When replacing tires, use the same size originally supplied with the vehicle.Using tires of a different size can damage the related parts or make them work irregularly.
✽ ✽ NOTICE
• It is permissible to add 21 kPa (3 psi) to the standard tire pressure specification if colder temperatures are expect-
ed soon.
Tires typically loose 7 kPa (1 psi) for every -11°C (12°F) temperature drop. If extreme temperature variations are
expected, re-check your tire pressure as necessary to keep them properly inflated.
• We recommend that when replacing tires, use the same originally supplied with the vehicles. If not, that aff\
ects driving performance.
• When driving in high altitude grades, it is natural for the atmospheric pressure to decrease. Therefore, please check the tire pressure and add more air when necessary.
Additionally required tire air pressure per km above sea level: 10.5 kPa (1.5 psi) km
ItemTire sizeWheel
sizeLoad
CapacitySpeed
capacityInflation pressure [kPa (psi)]Wheel lug nut torque Kgf·m
(lbf·ft, N·m)
Normal load *3Maximum load
LI *1KgSS *2Km/hFront RearFront Rear
Full size tire
195/65R156.0J×1591615H210230 (33)230 (33)230 (33)230 (33)
11 ~ 13
(79 ~ 94,
107 ~ 127)205/55R166.5J×1691615H210230 (33)230 (33)230 (33)230 (33)
225/45R177.0J×1791615W270230 (33)230 (33)230 (33)230 (33)
Compact
spare tireT125/80D154.0T×1595690M130420 (60)
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 4

85
Specifications, Consumer information, Reporting safety defects

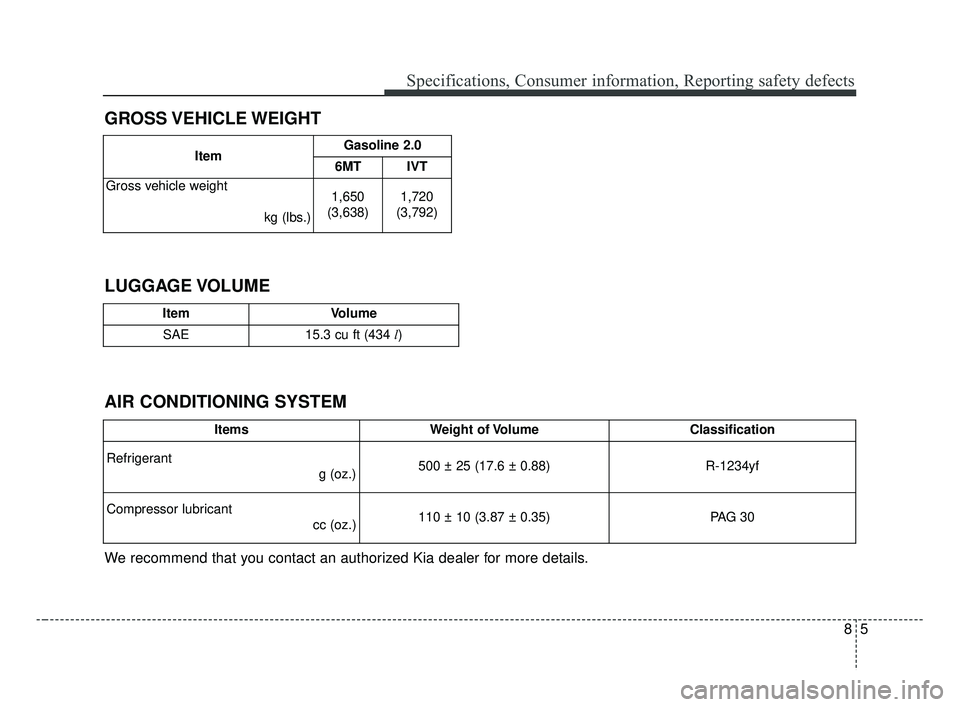

GROSS VEHICLE WEIGHT
AIR CONDITIONING SYSTEM LUGGAGE VOLUME
We recommend that you contact an authorized Kia dealer for more details.
ItemVolume
SAE15.3 cu ft (434 l)
ItemsWeight of VolumeClassification
Refrigerant g (oz.) 500 ± 25 (17.6 ± 0.88)R-1234yf
Compressor lubricantcc (oz.) 110 ± 10 (3.87 ± 0.35)PAG 30
ItemGasoline 2.0
6MT IVT
Gross vehicle weight
kg (lbs.)
1,650
(3,638)1,720
(3,792)
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 5

Specifications, Consumer information, Reporting safety defects
68
RECOMMENDED LUBRICANTS AND CAPACITIES
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality.
The correct lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
*1Refer to the recommended SAE viscosity numbers on the next page.
*2Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
*
3If the API SM engine oil is not available, you can use API SN or above.
*4If the ILSAC GF-4 engine oil is not available, you can use ILSAC GF-5 or above.
LubricantVolume Classification
Engine oil *
1*2
(drain and refill)
Recommends
4.0 l(4.2 US qt.) SAE 5W20 / API Latest (ILSAC Latest) *4
ACEA A5 (or ABOVE) / 5W 20 *4
Manual transmission fluid1.7 ~ 1.8 l
(1.6 ~ 1.7 US qt.) API Service GL-4 SAE 70W
- HK SYN MTF 70W
- SPIRAX S6 GHME 70W MTF - GS MTF HD 70W
Intelligent Variable Transmission (IVT)
6.7 l(7.1 US qt.)
IVTF SP-CVT1
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 6

87
Specifications, Consumer information, Reporting safety defects

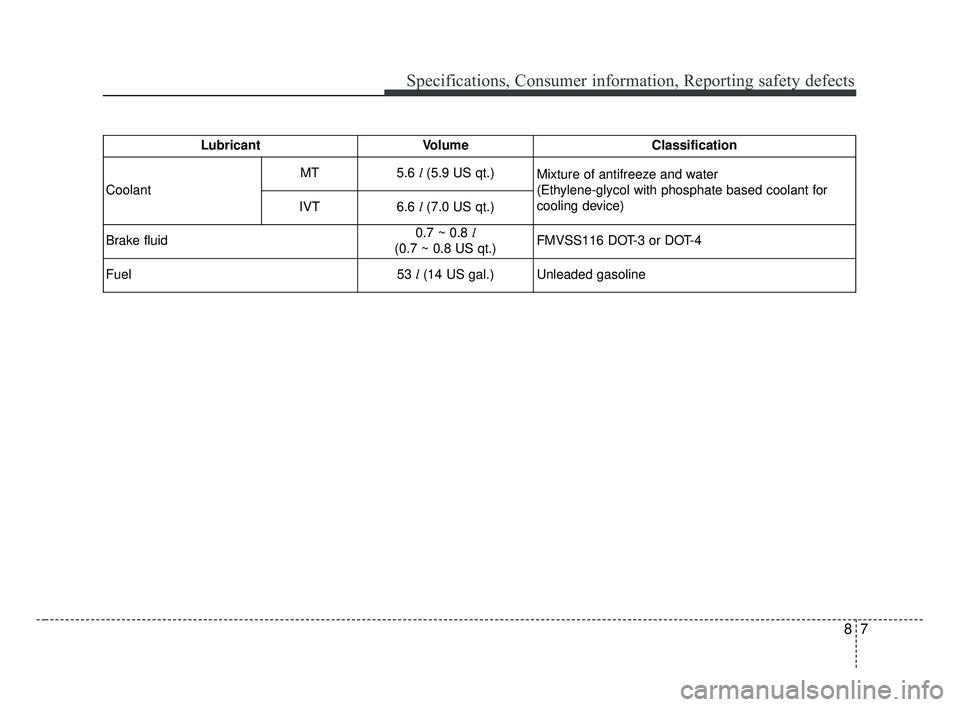

LubricantVolumeClassification
Coolant MT
5.6
l(5.9 US qt.)
Mixture of antifreeze and water
(Ethylene-glycol with phosphate based coolant for
cooling device)
IVT
6.6 l(7.0 US qt.)
Brake fluid
0.7 ~ 0.8 l
(0.7 ~ 0.8 US qt.) FMVSS116 DOT-3 or DOT-4
Fuel53
l(14 US gal.)Unleaded gasoline
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 7

Specifications, Consumer information, Reporting safety defects
88
Recommended SAE viscosity
number
Engine oil viscosity (thickness) has an
effect on fuel economy and cold
weather operating (engine start and
engine oil flowability). Lower viscosity
engine oils can provide better fuel
economy and cold weather perform-
ance; however, higher viscosity
engine oils are required for satisfacto-
ry lubrication in hot weather. Using
oils of any viscosity other than those
recommended could result in engine
damage. When choosing an oil, con-
sider the range of temperature your
vehicle will be operated in before the
next oil change. Proceed to select the
recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
An engine oil displaying this API Certification Mark con-
forms to the international Lubricant Specification
Advisory Commmittee (ILSAC). It is recommended to
only use engine oils that uphold this API Certification
Mark
Temperature°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Gasoline Engine Oil
(
2.0 MPI)
10W-30
5W-20, 5W-30
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 8

89
Specifications, Consumer information, Reporting safety defects
The VIN is also on a plate attached
to the top of the dashboard. The
number on the plate can easily be
seen through the windshield from
outside.The vehicle certification label
attached on the driver’s side center
pillar gives the vehicle identification
number (VIN).
The tires supplied on your new vehi-
cle are chosen to provide the best
performance for normal driving.
The tire label located on the driver's
side center pillar gives the tire pres-
sures recommended for your vehicle.
VEHICLE CERTIFICATION
LABEL
OUM084005
■
VIN label
OJF085003
VEHICLE IDENTIFICATION
NUMBER (VIN) TIRE SPECIFICATION AND
PRESSURE LABEL
OJF085012
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 9

Specifications, Consumer information, Reporting safety defects
10
8
The engine number is stamped on the
engine block as shown in the drawing.
ENGINE NUMBER
OBD088001L
■ Gasoline engine (2.0 MPI)
BDm CAN (ENG) 8.qxp 7/4/2018 5:40 PM Page 10
