Maintenance
66
7
Engine room compartment fuse panel
Fuse Name Fuse ratingCircuit Protected
MULTI
FUSE-1ALTERNATOR
200A
(NU 2.0L AKS) 150A
(GAMMA 1.6L T-GDI)
Fuse : BURGLAR ALARM, ABS1, ABS2, POWER OUTLET1, Alternator
MDPS80AMDPS (Motor Driven Power Steering) Unit
MULTI
FUSE-2
B+560AFuse : ECU 3, ECU 4, HORN, WIPER, A/C, Engine Control Relay
B+260AInstrument Panel Junction Block
B+360AInstrument Panel Junction Block
B+450AInstrument Panel Junction Block (Fuse : POWER WINDOW LH, POWER WINDOW RH,
TRUNK, SUNROOF 1, SEAT HEATER FRONT, AMP, POWER SEAT DRIVER)
COOLING FAN 160A[GAMMA 1.6L T-GDI] Cooling Fan 1 Relay
REAR HEATED40ARear Heated Relay
BLOWER40ABLOWER Relay
IG140AIgnition Switch, PDM #2 (ACC) Relay, PDM #3 (IG1) Relay
IG240AIgnition Switch, PDM #4 (IG2) Relay
MULTI
FUSE-3PTC HEATER50APTC Heater Relay
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 66

767
Maintenance
Fuse Name Fuse ratingCircuit Protected
FUSE
POWER OUTLET 220AFront Power Outlet
TCU 115A [GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
VACUUM PUMP20A[GAMMA 1.6L T-GDI] Vacuum Pump
FUEL PUMP20AFuel Pump Relay
COOLING FAN 230A[NU 2.0L AKS] Cooling Fan 2 Relay, Cooling Fan 3 Relay
B+140AInstrument Panel Junction Block (Long Term Load Latch Relay, Fuse : (BRAKE SWITCH, IBU
1, AIR BAG 2, DOOR LOCK, SEAT HEATER REAR, MODULE 1))
DCT 140A[GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
DCT 240A[GAMMA 1.6L T-GDI] TCM (Transmission Control Module)
ABS 140AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module, Multipurpose
Check Connector
ABS 230AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
POWER OUTLET 140APower Outlet Relay
SENSOR 210A
[NU 2.0L AKS] Purge Control Solenoid Valve, Oil Control Valve #1/#2/#3, Canister Close
Valve, Mass Air Folw Sensor, Fuel Filter Warning Sensor, A/Con Relay
[GAMMA 1.6L T-GDI] Purge Control Solenoid Valve, Oil Control Valve #1/#2, Canister Close
Valve, RCV Control Solenoid Valve, E/R Junction Block (Cooling Fan Relay 1)
ECU 210A[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
ECU 120A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
INJECTOR15A[NU 2.0L AKS] Injector #1~#4
Engine room compartment fuse panel
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 67

Maintenance
68
7
Fuse Name Fuse ratingCircuit Protected
FUSE
SENSOR 115A[NU 2.0L AKS] Oxygen Sensor (Up), Oxygen Sensor (Down)
[GAMMA 1.6L T-GDI] Oxygen Sensor (Up), Oxygen Sensor (Down)
IGN COIL20A[NU 2.0L AKS] Ignition Coil #1~#4
[GAMMA 1.6L T-GDI] Ignition Coil #1~#4
ECU 315A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
A/C10A[NU 2.0L AKS] A/Con Relay
ECU 510A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
SENSOR 415A[GAMMA 1.6L T-GDI] Vacuum Pump
ABS 310AABS (Anti-lock brake system) Module, ESC (Electronic Stability Control) Module
TCU 215A[NU 2.0L AKS] Transaxle Range Switch
[GAMMA 1.6L T-GDI] Transaxle Range Switch, TCM
SENSOR 310A[NU 2.0L AKS] Fuel Pump Relay
[GAMMA 1.6L T-GDI] Fuel Pump Relay
ECU 415A[NU 2.0L AKS] PCM (Power train Control Module)
[GAMMA 1.6L T-GDI] ECM (Engine Control Module)
WIPER25A[NU 2.0L AKS] Wiper Relay
[GAMMA 1.6L T-GDI] Wiper Relay
HORN15A[NU 2.0L AKS] Horn Relay
[GAMMA 1.6L T-GDI] Horn Relay
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 68

769
Maintenance
Relay
Relay NameType
COOLING FAN 3 RelayMICRO
COOLING FAN 2 RelayMICRO
PDM 3 (IG1) RelayMICRO
START RelayMICRO
PDM 4 (IG2) RelayMICRO
FUEL PUMP RelayMICRO
PDM 2 (ACC) RelayMICRO
COOLING FAN 1 RelayMINI
BLOWER RelayMINI
PTC HEATER RelayMICRO
REAR HEATED RelayMICRO
POWER OUTLET RelayMICRO
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 69

Maintenance
70
7

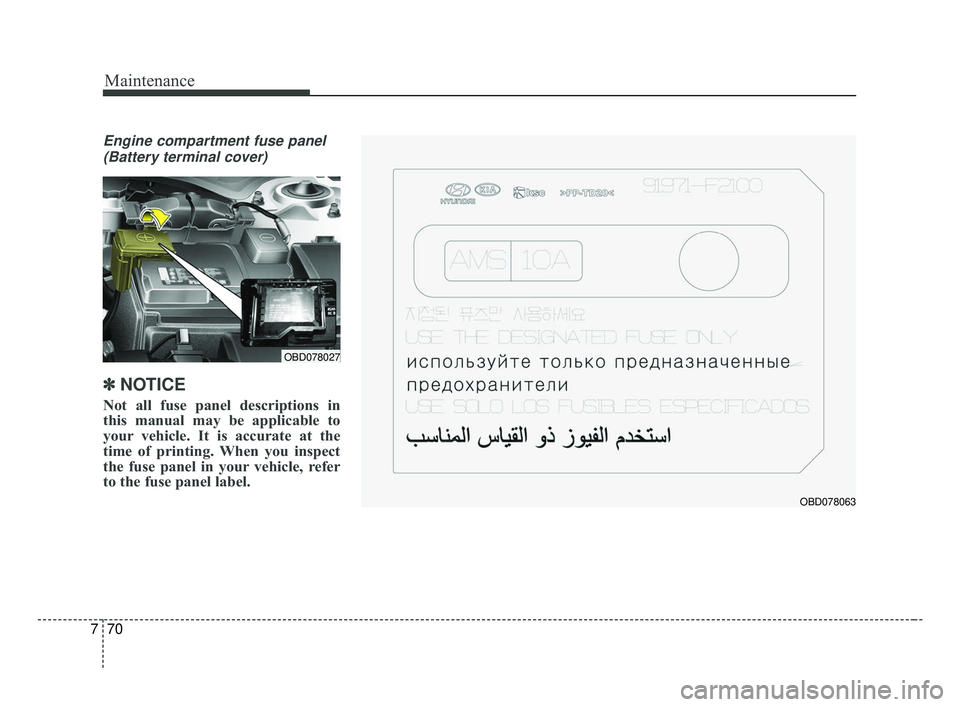

Engine compartment fuse panel
(Battery terminal cover)
✽ ✽ NOTICE
Not all fuse panel descriptions in
this manual may be applicable to
your vehicle. It is accurate at the
time of printing. When you inspect
the fuse panel in your vehicle, refer
to the fuse panel label.
OBD078027
OBD078063
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 70

771
Maintenance
LIGHT BULBS
Bulb replacement precaution
Please keep extra bulbs on hand
with appropriate wattage ratings in
case of emergencies.
Refer to “Bulb Wattage” in chapter 8.
When changing lamps, first turn off
the engine at a safe place, firmly
apply the parking brake and detach
the battery’s negative (-) terminal.
net-work failure
The headlamp, taillight, and fog light
may light up when the head lamp
switch is turned ON, and not light up
when the taillight or for light switch is
turned ON. This may be cause by
network failure or vehicle electrical
control system malfunction. If there is
a problem, we recommend the sys-
tem be serviced by an authorized Kia
dealer.
trical control system stabilization
A normally functioning lamp may
flicker momentarily. This momentary
occurrence is due to the stabilization
function of the vehicle's electrical
control system. If the lamp stops
flickering after a few moments, the
vehicle does not require service.
However, if the lamp goes out after
the momentary flickering, or the flick-
ering continues, we recommend the
system be serviced by an authorized
Kia dealer.
WARNING- Working on the lights
Prior to working on the light,
firmly apply the parking brake,
ensure that the ignition switch
is turned to the LOCK position
and turn off the lights to avoid
sudden movement of the vehi-
cle , burns to your skin for fin-
gers, or an electric shock.
CAUTION -Light replace-
ment
Be sure to replace the burned- out bulb with one of the samewattage rating. Otherwise, itmay cause damage to the fuseor electric wiring system.
CAUTION -Headlamp
Lens
To prevent damage, do notclean the headlamp lens withchemical solvents or strongdetergents.
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 71

Maintenance
72
7
✽ ✽
NOTICE
• If the light bulb or lamp connector
is removed while the lamp is still
on, the fuse box's electronic sys-
tem may log it as a malfunction.
Therefore, a lamp malfunction
incident may be recorded as a
Diagnostic Trouble Code (DTC) in
the fuse box.
• It is normal for an operating lamp to flicker momentarily. This is due
to a stabilization function of the
vehicle’s electronic control device.
If the lamp lights up normally
after momentarily blinking, then
it is functioning as normal.
However, if the lamp continues to
flicker several times or turns off
completely, there may be an error
in the vehicle’s electronic control
device. Please have the vehicle
checked by an authorized Kia
dealer immediately.
✽ ✽ NOTICE
We recommend that the headlight
aiming be adjusted after an accident
or after the headlight assembly is rein-
stalled at an authorized Kia dealer.
✽ ✽NOTICE
After driving in heavy rain or wash-
ing, headlamp and taillight lenses
could appear frosty. This condition
is caused by the temperature differ-
ence between the lamp inside and
outside. This is similar to the con-
densation on your windows inside
your vehicle during the rain and
doesn’t indicate a problem with
your vehicle. If the water leaks into
the lamp bulb circuitry, we recom-
mend that you have the vehicle
checked by an authorized Kia deal-
er.
If you don’t have the necessary tools,
the correct bulbs and the expertise,
consult an authorized Kia dealer. In
many cases, it is difficult to replace
vehicle light bulbs because other
parts of the vehicle must be removed
before you can get to the bulb. This is
especially true if you have to remove
the headlamp assembly to get to the
bulb(s).
Removing/installing the headlamp
assembly can result in damage to
the vehicle.
If non-genuine parts or substandard
bulbs are used, it may lead to blow-
ing a fuse or other wiring damages.
Do not install extra lamps or LEDs to
the vehicle. If additional lights are
installed, it may lead to lamp mal-
functions and flickering. Additionally,
the fuse box and other writing may
be damaged.
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 72

773
Maintenance
Light bulb position (Front)
(1) Headlamp (Low) (Bulb type)
(2) Headlamp (High) (Bulb type)
(3) Side marker (Bulb type)
(4) Day time running lamp / Positionlamp (LED type)
(5) Headlamp (Low/High) (LED type) (6) Side marker (LED type)
(7) Front turn signal lamp (Bulb type)
(8) Front fog lamp (Bulb type)
■
Head lamp - Type B
■
Head lamp - Type AOBDM078028N
OBDM078029N■Head lamp – Type C
OBDM078030N
OBDM078031N
OBDM078032N
■Front turn signal lamp
■Fog lamp
