2019 KIA FORTE Owners Manual

Maintenance
74
7

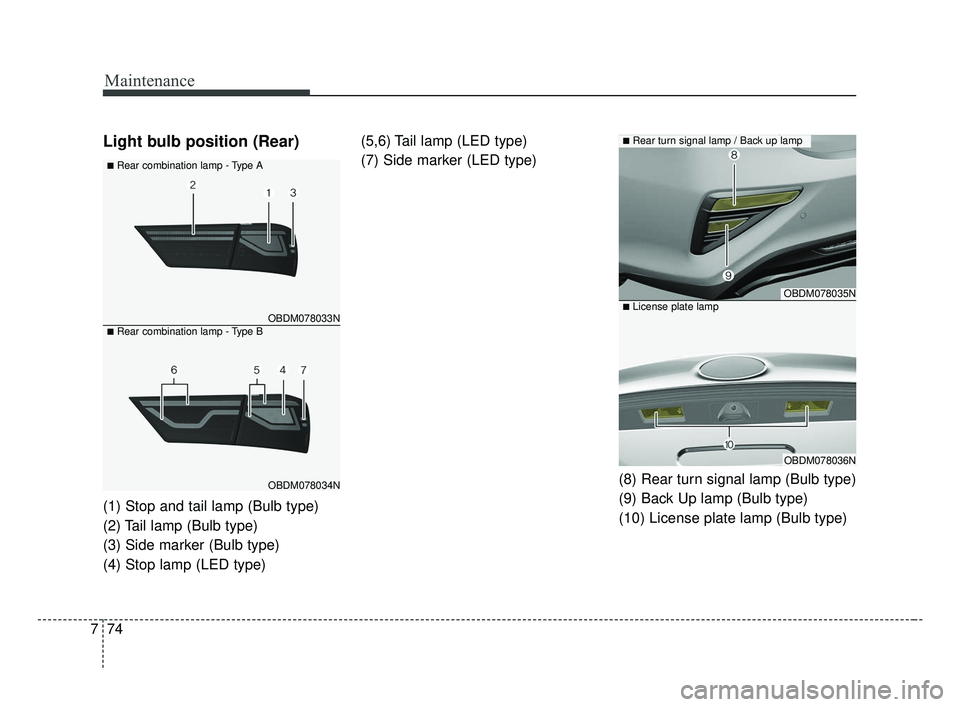

Light bulb position (Rear)
(1) Stop and tail lamp (Bulb type)
(2) Tail lamp (Bulb type)
(3) Side marker (Bulb type)
(4) Stop lamp (LED type) (5,6) Tail lamp (LED type)
(7) Side marker (LED type)
(8) Rear turn signal lamp (Bulb type)
(9) Back Up lamp (Bulb type)
(10) License plate lamp (Bulb type)
OBDM078033N
OBDM078034N
■Rear combination lamp - Type A
■Rear combination lamp - Type B
OBDM078035N
OBDM078036N
■Rear turn signal lamp / Back up lamp
■License plate lamp
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 74

775
Maintenance
(11) High mounted stop lamp(Bulb or LED type)
Light bulb position (Side)
(1) Side repeater lamp (LED type)
(2) Side repeater lamp (bulb type)
Headlamp (Low beam) bulb
replacement (Headlamp Type
A,B)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Disconnect the headlamp bulb socket-connector.
4. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
OBDM078037N
■High mounted stop lamp
OBD078038
OBD078062
■Type A
■Type B
OBDM078039N
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 75

Maintenance
76
7
5. Install a new bulb-socket assem-
bly in the headlamp assembly by
aligning the tabs on the bulb-sock-
et with the slots in the headlamp
assembly. Push the bulb-socket
into the headlamp assembly and
turn the bulb-socket clockwise.
6. Connect the headlamp bulb sock- et-connector.
7. Install the headlamp bulb cover by turning it clockwise.Headlamp bulb
OQL075058
WARNING- Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
(Continued)
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated
only when installed in a head-
light.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 76

777
Maintenance
Headlamp (High beam) bulb
replacement (Headlamp Type
A,B)
1. Open the hood.
2. Remove the headlamp bulb coverby turning it counterclockwise.
3. Remove the bulb-socket from the headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly. 4. Remove the bulb from bulb-socket
by pulling it out.
5. Insert a new bulb by inserting it into the bulb-socket.
6. Install the bulb-socket in the head- lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
7. Install the headlamp bulb cover by turning it clockwise.
Headlamp bulb
OBDM078040N
OHD076046
WARNING- Halogen
bulbs
Halogen bulbs contain pres- surized gas that will produce
flying pieces of glass if broken.
(Continued)
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 77

Maintenance
78
7
Side marker bulb replacement
(Headlamp Type A,B)
1. Open the hood.
2. Remove the bulb-socket from the
headlamp assembly by turning the
bulb-socket counterclockwise until
the tabs on the bulb-socket align
with the slots on the headlamp
assembly.
3. Remove the bulb from bulb-socket by pulling it out.
4. Insert a new bulb by inserting it into the bulb-socket. 5. Install the bulb-socket in the head
lamp assembly by aligning the
tabs on the bulb-socket with the
slots in the headlamp assembly.
Push the bulb-socket into the
headlamp assembly and turn the
bulb-socket clockwise.
(Continued)
Always handle them carefully,and avoid scratches and abra-
sions. If the bulbs are lit, avoid
contact with liquids. Never
touch the glass with bare
hands. Residual oil may cause
the bulb to overheat and burst
when lit.
A bulb should be operated
only when installed in a head-
light.
If a bulb becomes damaged or cracked, replace it immediate-
ly and carefully dispose of it.
Wear eye protection when changing a bulb. Allow the
bulb to cool down before han-
dling it.
OBDM078122N
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 78

779
Maintenance
Position lamp / Day time run-
ning lamp (LED type) replace-
ment (Headlamp Type B)
If the position lamp + DRL (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the position lamp + DRL
(LED), for it may damage related
parts of the vehicle.
Headlamp (LED type) replace-
ment (Headlamp Type C)
If the Low/High beam lamp(1), Day
time running lamp/Position lamp(2),
side marker(3) do not operate, have
the vehicle checked by an authorized
Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the head lamp (LED), for it
may damage related parts of the
vehicle.
Front turn signal lamp bulb
replacement
If the front turn signal lamp (1) does
not operate, have the vehicle
checked by an authorized Kia dealer.OBDM078041N
OBDM078042NOBD078043
BDm CAN (ENG) 7.qxp 7/4/2018 10:26 AM Page 79

Maintenance
80
7

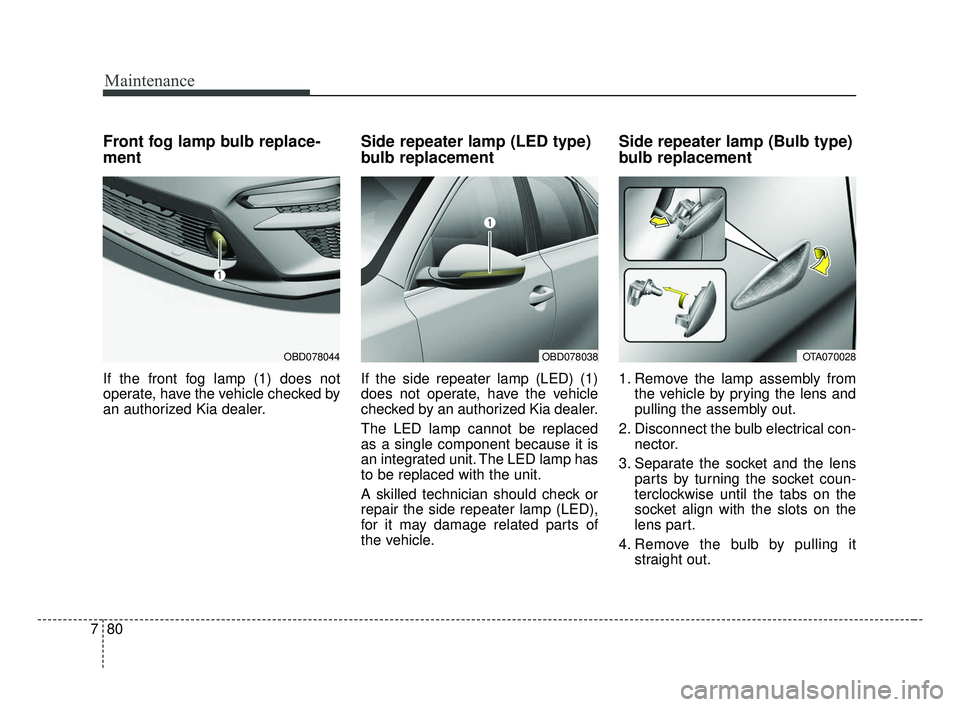

Front fog lamp bulb replace-
ment
If the front fog lamp (1) does not
operate, have the vehicle checked by
an authorized Kia dealer.
Side repeater lamp (LED type)
bulb replacement
If the side repeater lamp (LED) (1)
does not operate, have the vehicle
checked by an authorized Kia dealer.
The LED lamp cannot be replaced
as a single component because it is
an integrated unit. The LED lamp has
to be replaced with the unit.
A skilled technician should check or
repair the side repeater lamp (LED),
for it may damage related parts of
the vehicle.
Side repeater lamp (Bulb type)
bulb replacement
1. Remove the lamp assembly from
the vehicle by prying the lens and
pulling the assembly out.
2. Disconnect the bulb electrical con- nector.
3. Separate the socket and the lens parts by turning the socket coun-
terclockwise until the tabs on the
socket align with the slots on the
lens part.
4. Remove the bulb by pulling it straight out.
OBD078038OTA070028OBD078044
BDm CAN (ENG) 7.qxp 7/4/2018 10:27 AM Page 80

781
Maintenance
5. Insert a new bulb in the socket.
6. Reassemble the socket and thelens part.
7. Connect the bulb electrical con- nector.
8. Reinstall the lamp assembly to the body of the vehicle.Stop and tail lamp/side marker
(Bulb type) bulb replacement
(Rear combination lamp Type A)
1. Open the trunk lid.
2. Open the service cover.
3. Remove the nuts from the vehicle. 4. Remove the rear combination
lamp assembly from the body of
the vehicle.
5. Remove the socket from the assembly by turning the socket
counterclockwise until the tabs on
the socket align with the slots on
the assembly.
OBD078045
OBD078046
OBD078047
OBD078048
BDm CAN (ENG) 7.qxp 7/4/2018 10:27 AM Page 81
