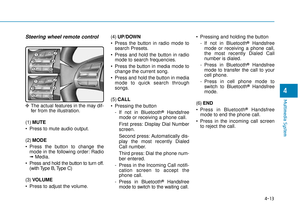

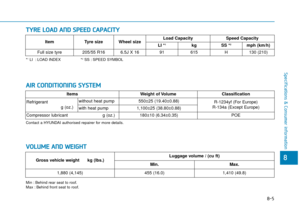

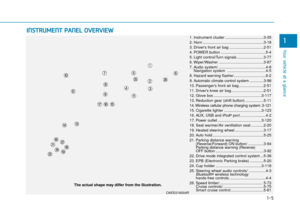

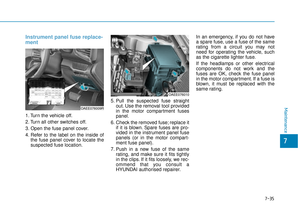

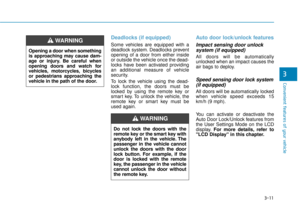

2019 Hyundai Ioniq Electric Owner's Manual - RHD (UK, Australia)

H
Hy
yb
br
ri
id
d
s
s y
y s
st
te
e m
m
o
o v
ve
e r
rv
v i
ie
e w
w
Electric vehicle.........................................................H3
Characteristics of electric vehicles ......................H3
Battery information ................................................H3
Main components of electric vehicle ...................H4
High voltage battery (lithium-ion polymer) ........H5
High voltage battery warmer system ...................H6

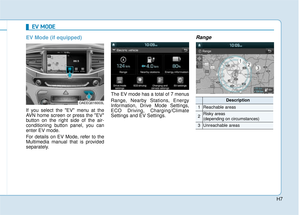

EV mode ....................................................................H7
Range ........................................................................\
.............H7
Nearby by stations .............................................................H8
Energy Information ............................................................H8
ECO Driving ........................................................................\
...H9

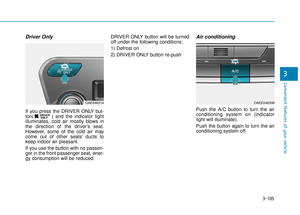

Charging and Climate Settings.........................................H9

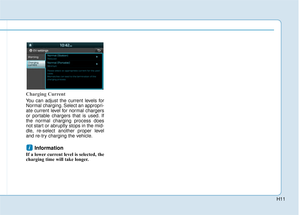

EV Settings ........................................................................\
.H10

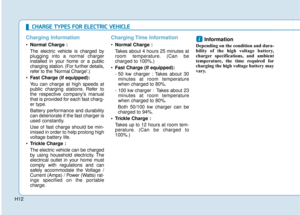

Charging information ............................................H12
Charging time information ...................................H12

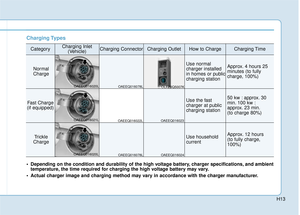

Charging types .......................................................H13
Charging status ......................................................H14

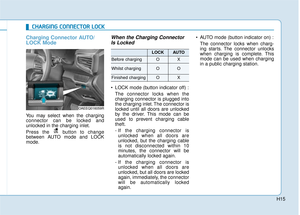

Charging connector auto/ lock mode ................H15
When the Charging Connector Is Locked ...................H15

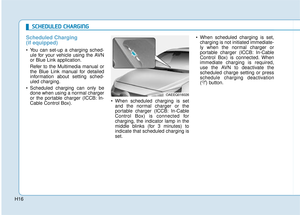

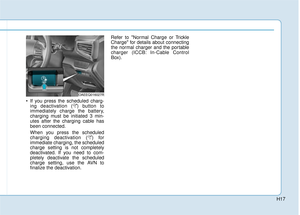

Scheduled charging ...............................................H16

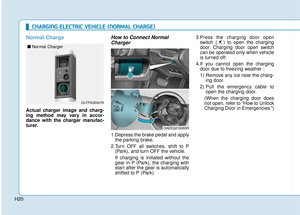

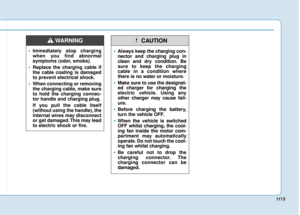

Charging precautions ............................................H18 Normal charge........................................................H20

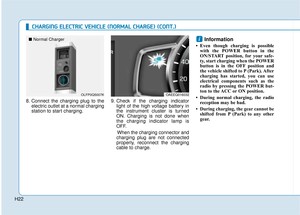

How to Connect Normal Charger..................................H20

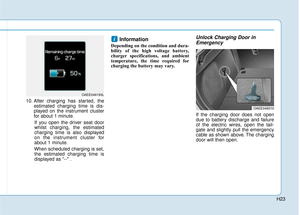

Unlock Charging Door in Emergency ..........................H23

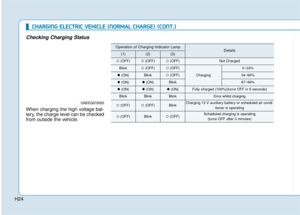

Checking Charging Status ...............................................H24

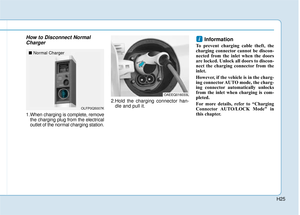

How to Disconnect Normal Charger ............................H25

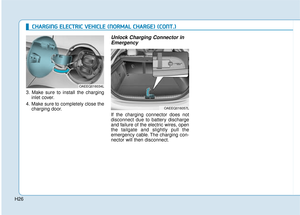

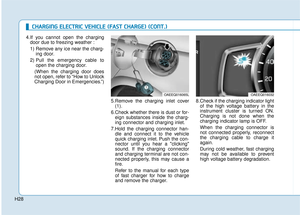

Unlock Charging Connector in Emergency ................H26

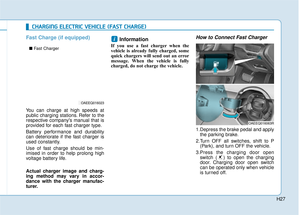

Fast charge.............................................................H27
How to Connect Fast Charger .......................................H27

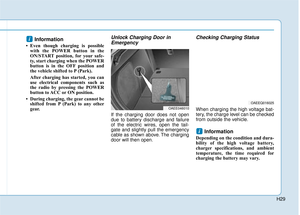

Unlock Charging Door in Emergency ..........................H29
Checking Charging Status ...............................................H29

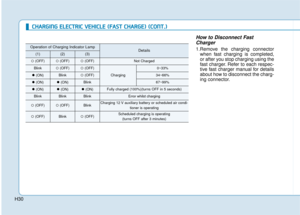

How to Disconnect Fast Charger ..................................H30

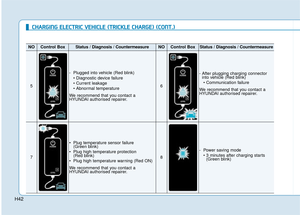

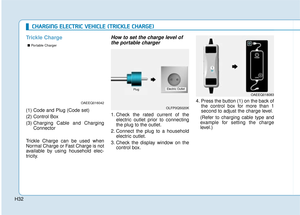

Trickle charge ........................................................H32

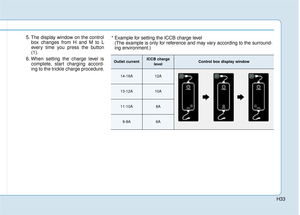

How to set the charge level of the
portable charger ...............................................................H32

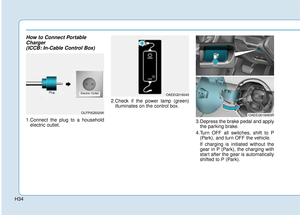

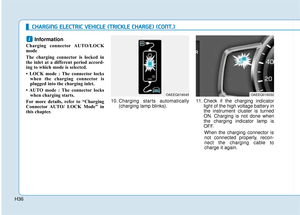

How to Connect Portable Charger
(ICCB: In-Cable Control Box) ..........................................H34

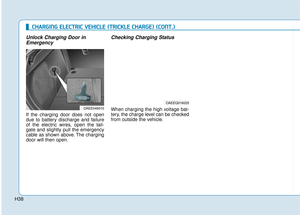

Unlock Charging Door in Emergency ..........................H38
Checking Charging Status ...............................................H38

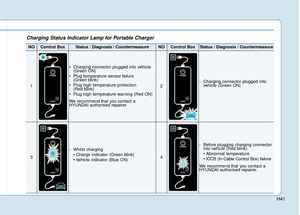

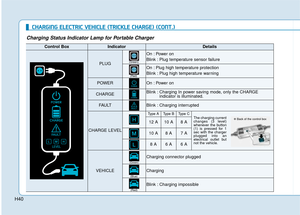

Charging Status Indicator Lamp for
Portable Charger ...............................................................H40

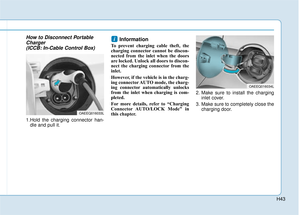

How to Disconnect Portable Charger
(ICCB: In-Cable Control Box) ..........................................H43

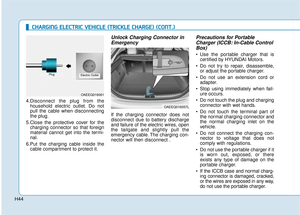

Unlock Charging Connector in Emergency ................H44

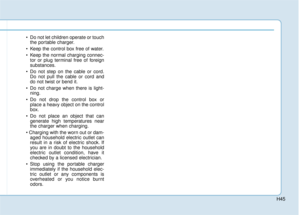

Precautions for Portable Charger
(ICCB: In-Cable Control Box) ..........................................H44

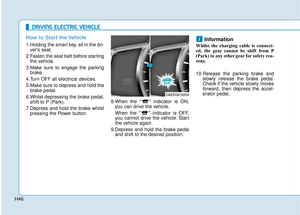

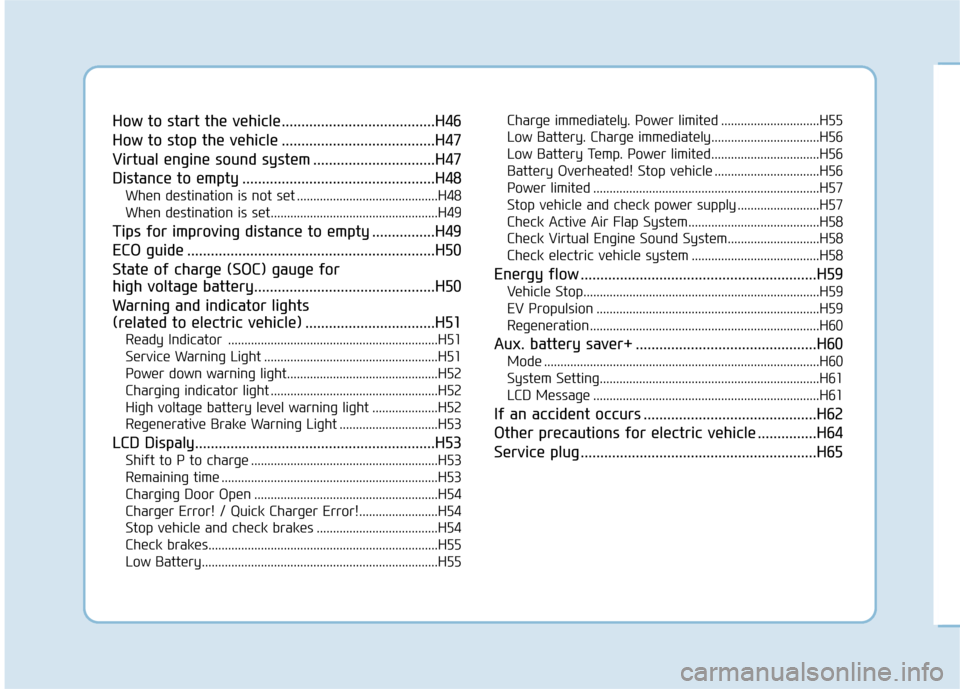

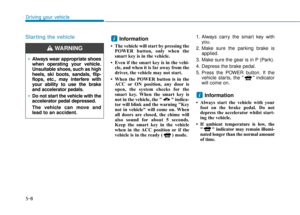

How to start the vehicle.......................................H46

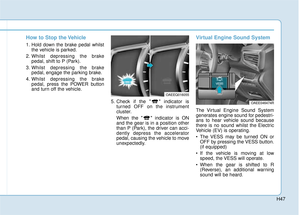

How to stop the vehicle .......................................H47
Virtual engine sound system ...............................H47

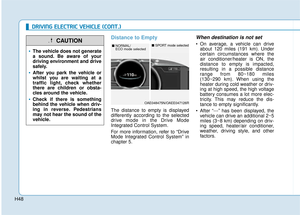

Distance to empty .................................................H48
When destination is not set ...........................................H48
When destination is set...................................................H49
Tips for improving distance to empty ................H49

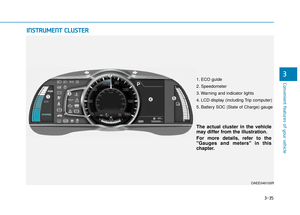

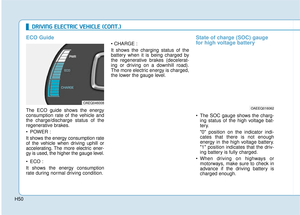

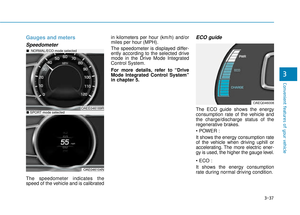

ECO guide ...............................................................H50

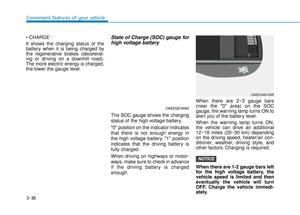

State of charge (SOC) gauge for
high voltage battery..............................................H50

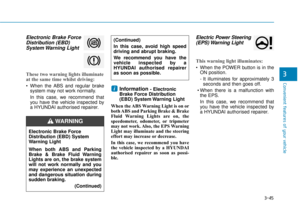

Warning and indicator lights
(related to electric vehicle) .................................H51
Ready Indicator ................................................................H51
Service Warning Light .....................................................H51

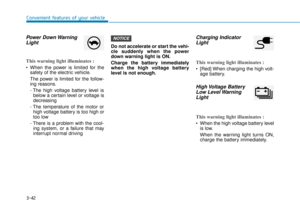

Power down warning light..............................................H52
Charging indicator light ...................................................H52
High voltage battery level warning light ....................H52
Regenerative Brake Warning Light ..............................H53

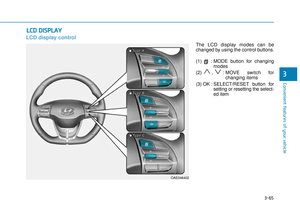

LCD Dispaly.............................................................H53

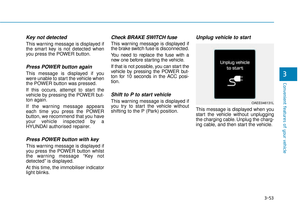

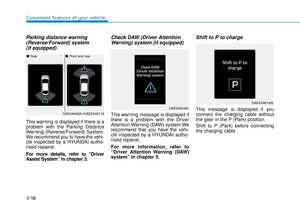

Shift to P to charge .........................................................H53

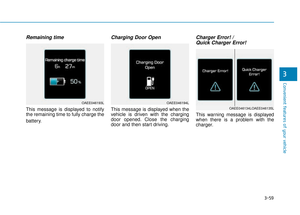

Remaining time ..................................................................H53

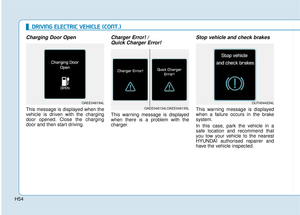

Charging Door Open ........................................................H54
Charger Error! / Quick Charger Error!........................H54

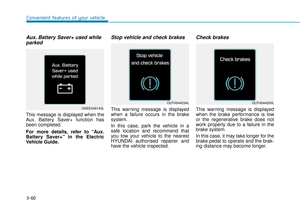

Stop vehicle and check brakes .....................................H54

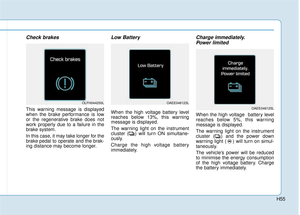

Check brakes......................................................................H5\
5
Low Battery........................................................................\
H55Charge immediately. Power limited ..............................H55

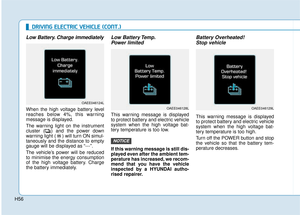

Low Battery. Charge immediately.................................H56

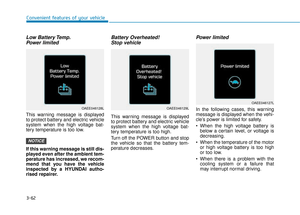

Low Battery Temp. Power limited.................................H56
Battery Overheated! Stop vehicle ................................H56

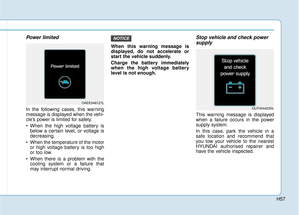

Power limited .....................................................................H57\

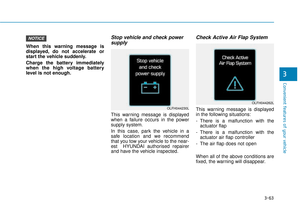

Stop vehicle and check power supply .........................H57

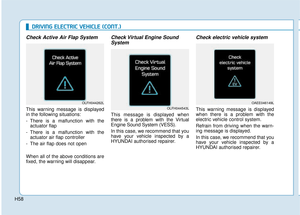

Check Active Air Flap System........................................H58

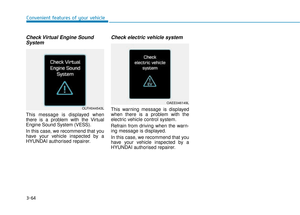

Check Virtual Engine Sound System............................H58
Check electric vehicle system .......................................H58

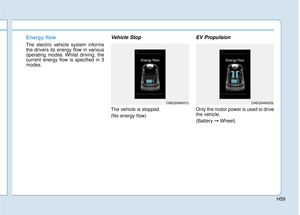

Energy flow ............................................................H59
Vehicle Stop........................................................................\
H59
EV Propulsion ....................................................................H59

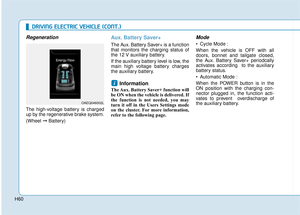

Regeneration......................................................................H6\
0
Aux. battery saver+ ..............................................H60
Mode ........................................................................\
............H60

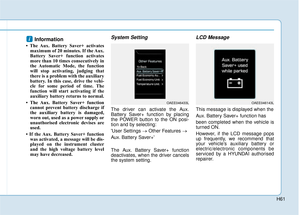

System Setting...................................................................H61
LCD Message .....................................................................H61\

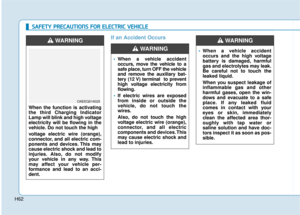

If an accident occurs ............................................H62

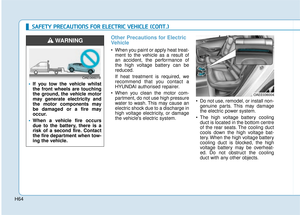

Other precautions for electric vehicle ...............H64

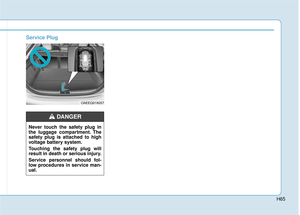

Service plug ............................................................H65

H3
E
EL
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E

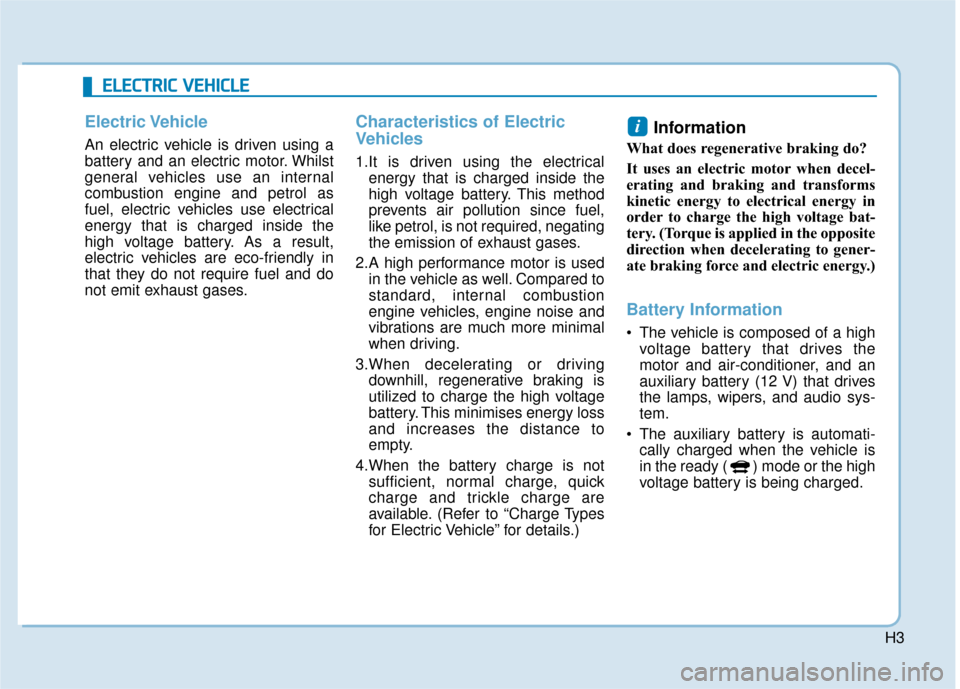

Electric Vehicle
An electric vehicle is driven using a
battery and an electric motor. Whilst
general vehicles use an internal
combustion engine and petrol as
fuel, electric vehicles use electrical
energy that is charged inside the
high voltage battery. As a result,
electric vehicles are eco-friendly in
that they do not require fuel and do
not emit exhaust gases.
Characteristics of Electric
Vehicles
1.It is driven using the electrical
energy that is charged inside the
high voltage battery. This method
prevents air pollution since fuel,
like petrol, is not required, negating
the emission of exhaust gases.
2.A high performance motor is used in the vehicle as well. Compared to
standard, internal combustion
engine vehicles, engine noise and
vibrations are much more minimal
when driving.
3.When decelerating or driving downhill, regenerative braking is
utilized to charge the high voltage
battery. This minimises energy loss
and increases the distance to
empty.
4.When the battery charge is not sufficient, normal charge, quick
charge and trickle charge are
available. (Refer to “Charge Types
for Electric Vehicle” for details.)
Information

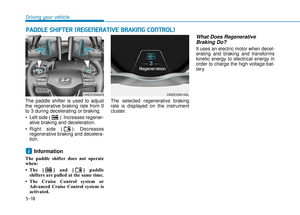

What does regenerative braking do?
It uses an electric motor when decel-
erating and braking and transforms
kinetic energy to electrical energy in
order to charge the high voltage bat-
tery. (Torque is applied in the opposite
direction when decelerating to gener-
ate braking force and electric energy.)
Battery Information
The vehicle is composed of a highvoltage battery that drives the
motor and air-conditioner, and an
auxiliary battery (12 V) that drives
the lamps, wipers, and audio sys-
tem.
The auxiliary battery is automati- cally charged when the vehicle is
in the ready ( ) mode or the high
voltage battery is being charged.
i

H4
M
MA
AI
IN
N
C
C O
O M
M P
PO
O N
NE
EN
N T
TS
S
O
O F
F
E
E L
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E

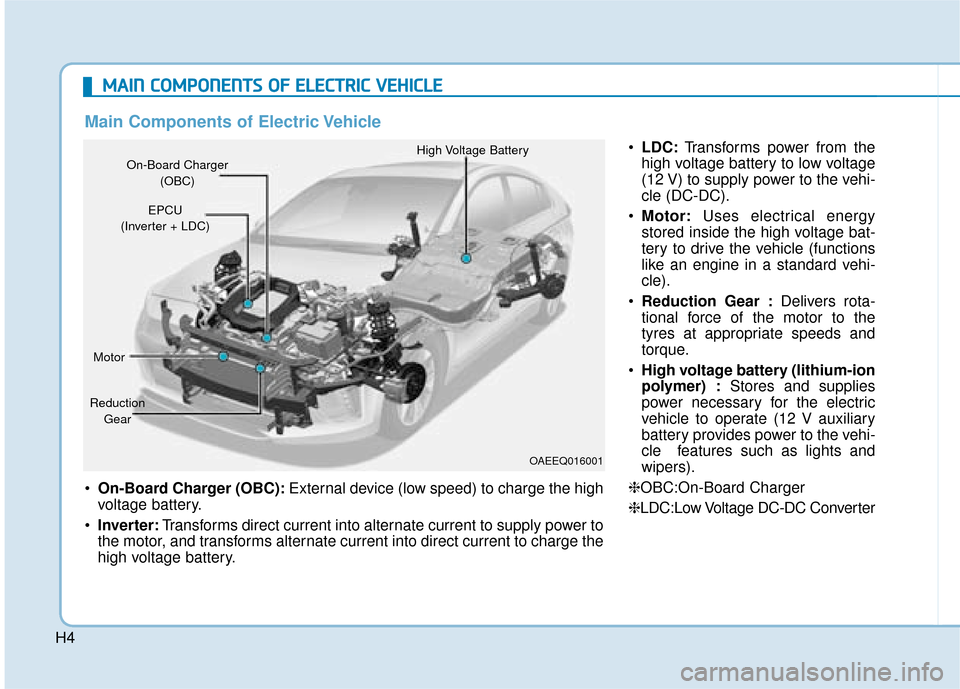

On-Board Charger (OBC): External device (low speed) to charge the high
voltage battery.
Inverter: Transforms direct current into alternate current to supply power to
the motor, and transforms alternate current into direct current to charge the
high voltage battery.
OAEEQ016001
On-Board Charger
(OBC) High Voltage Battery
EPCU
(Inverter + LDC)
Motor
Reduction Gear

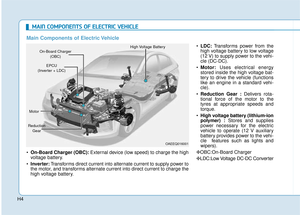

Main Components of Electric Vehicle
LDC: Transforms power from the
high voltage battery to low voltage
(12 V) to supply power to the vehi-
cle (DC-DC).
Motor: Uses electrical energy
stored inside the high voltage bat-
tery to drive the vehicle (functions
like an engine in a standard vehi-
cle).
Reduction Gear : Delivers rota-
tional force of the motor to the
tyres at appropriate speeds and
torque.
High voltage battery (lithium-ion
polymer) : Stores and supplies
power necessary for the electric
vehicle to operate (12 V auxiliary
battery provides power to the vehi-
cle features such as lights and
wipers).
❈OBC:On-Board Charger
❈ LDC:Low Voltage DC-DC Converter

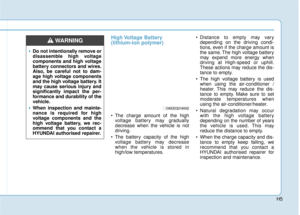

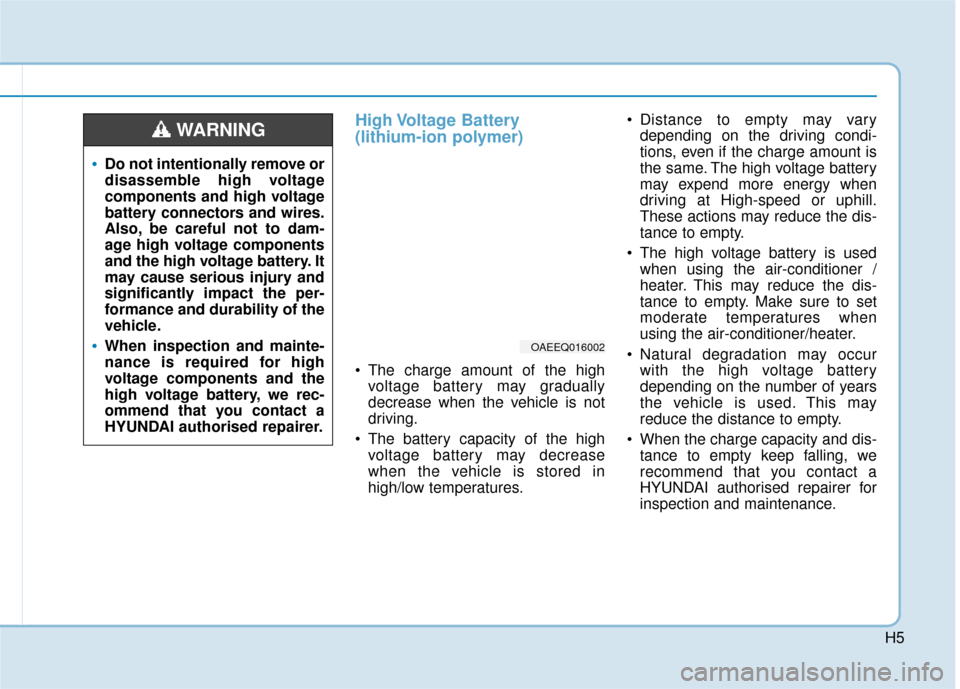

H5
High Voltage Battery
(lithium-ion polymer)
The charge amount of the highvoltage battery may gradually
decrease when the vehicle is not
driving.
The battery capacity of the high voltage battery may decrease
when the vehicle is stored in
high/low temperatures. Distance to empty may vary
depending on the driving condi-
tions, even if the charge amount is
the same. The high voltage battery
may expend more energy when
driving at High-speed or uphill.
These actions may reduce the dis-
tance to empty.
The high voltage battery is used when using the air-conditioner /
heater. This may reduce the dis-
tance to empty. Make sure to set
moderate temperatures when
using the air-conditioner/heater.
Natural degradation may occur with the high voltage battery
depending on the number of years
the vehicle is used. This may
reduce the distance to empty.
When the charge capacity and dis- tance to empty keep falling, we
recommend that you contact a
HYUNDAI authorised repairer for
inspection and maintenance.
•Do not intentionally remove or
disassemble high voltage
components and high voltage
battery connectors and wires.
Also, be careful not to dam-
age high voltage components
and the high voltage battery. It
may cause serious injury and
significantly impact the per-
formance and durability of the
vehicle.
When inspection and mainte-
nance is required for high
voltage components and the
high voltage battery, we rec-
ommend that you contact a
HYUNDAI authorised repairer.
WARNING
OAEEQ016002

H6

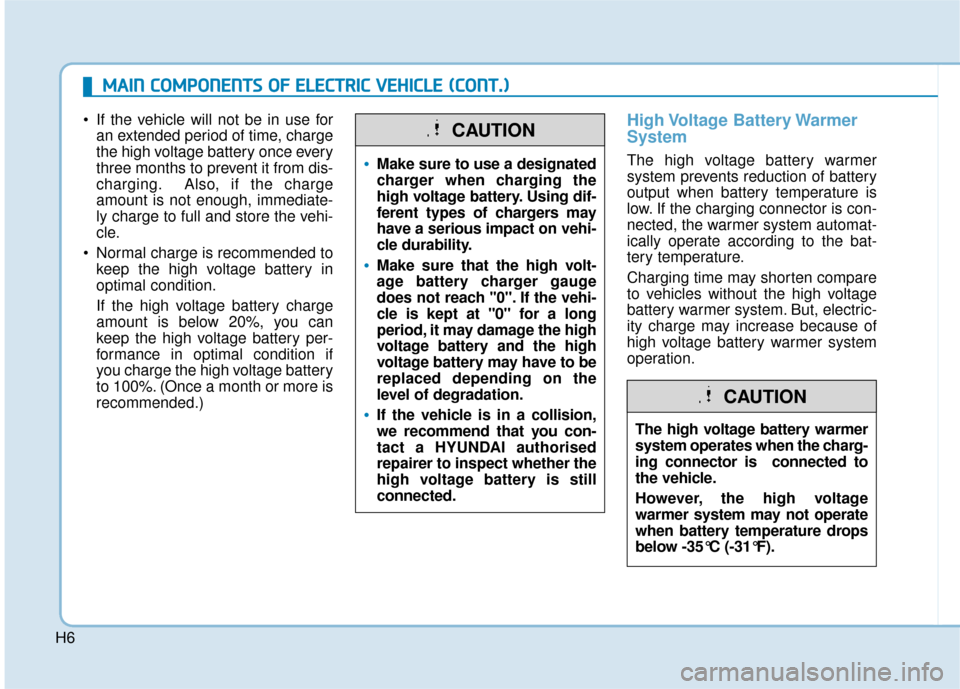

If the vehicle will not be in use foran extended period of time, charge
the high voltage battery once every
three months to prevent it from dis-
charging. Also, if the charge
amount is not enough, immediate-
ly charge to full and store the vehi-
cle.
Normal charge is recommended to keep the high voltage battery in
optimal condition.
If the high voltage battery charge
amount is below 20%, you can
keep the high voltage battery per-
formance in optimal condition if
you charge the high voltage battery
to 100%. (Once a month or more is
recommended.)High Voltage Battery Warmer
System
The high voltage battery warmer
system prevents reduction of battery
output when battery temperature is
low. If the charging connector is con-
nected, the warmer system automat-
ically operate according to the bat-
tery temperature.
Charging time may shorten compare
to vehicles without the high voltage
battery warmer system. But, electric-
ity charge may increase because of
high voltage battery warmer system
operation.Make sure to use a designated
charger when charging the
high voltage battery. Using dif-
ferent types of chargers may
have a serious impact on vehi-
cle durability.
Make sure that the high volt-
age battery charger gauge
does not reach ''0". If the vehi-
cle is kept at ''0" for a long
period, it may damage the high
voltage battery and the high
voltage battery may have to be
replaced depending on the
level of degradation.
If the vehicle is in a collision,
we recommend that you con-
tact a HYUNDAI authorised
repairer to inspect whether the
high voltage battery is still
connected.
CAUTION
The high voltage battery warmer
system operates when the charg-
ing connector is connected to
the vehicle.
However, the high voltage
warmer system may not operate
when battery temperature drops
below -35°C (-31°F).
CAUTION
M M A
AI
IN
N
C
C O
O M
M P
PO
O N
NE
EN
N T
TS
S
O
O F
F
E
E L
LE
E C
CT
T R
R I
IC
C
V
V E
EH
H I
IC
C L
LE
E
(
( C
C O
O N
NT
T.
.)
)

H7

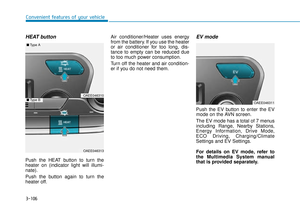

EV Mode (if equipped)

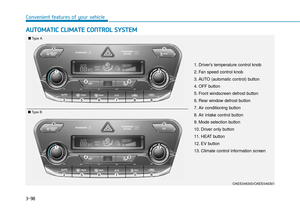

If you select the "EV" menu at the
AVN home screen or press the "EV"
button on the right side of the air-
conditioning button panel, you can
enter EV mode.

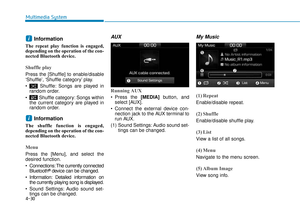

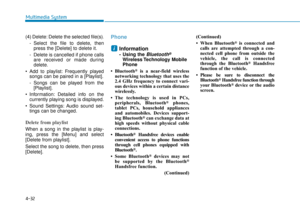

For details on EV Mode, refer to the
Multimedia manual that is provided
separately.The EV mode has a total of 7 menus
Range, Nearby Stations, Energy
Information, Drive Mode Settings,
ECO Driving, Charging/Climate
Settings and EV Settings.
Range
E E
V
V
M
M O
OD
DE
E

OAEEQ016003LDescription
1Reachable areas
2Risky areas
(depending on circumstances)
3Unreachable areas

H8
E
EV
V
M
M O
OD
DE
E
(
( C
C O
O N
NT
T.
.)
)

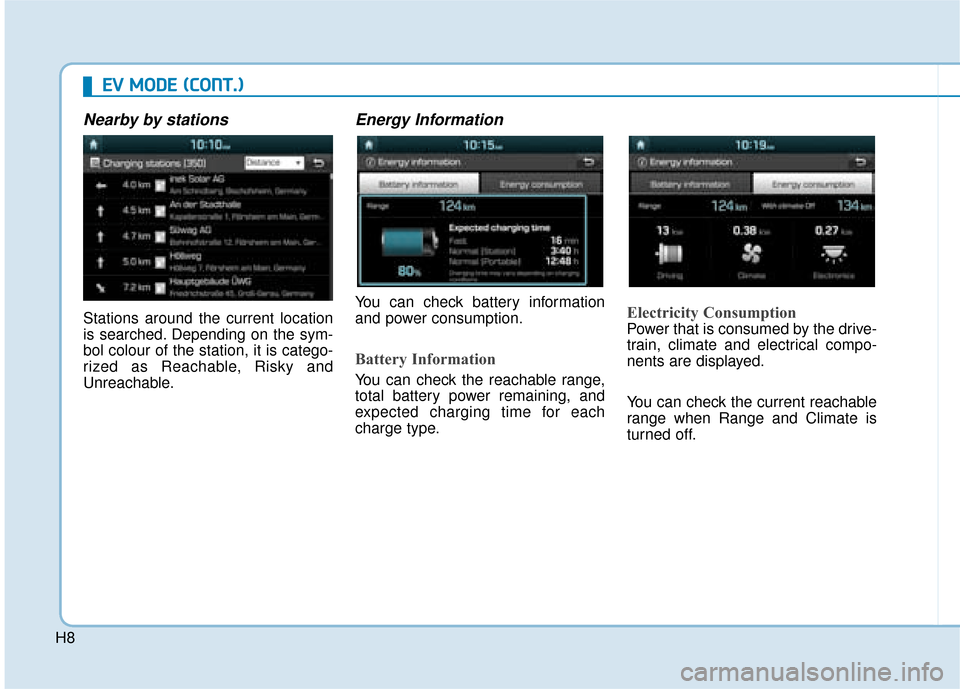

Nearby by stations
Stations around the current location
is searched. Depending on the sym-
bol colour of the station, it is catego-
rized as Reachable, Risky and
Unreachable.
Energy Information
You can check battery information
and power consumption.
Battery Information
You can check the reachable range,
total battery power remaining, and
expected charging time for each
charge type.
Electricity Consumption
Power that is consumed by the drive-
train, climate and electrical compo-
nents are displayed.
You can check the current reachable
range when Range and Climate is
turned off.
