2019 HONDA CLARITY FUEL CELL keyless

127
uuGauges and Driver Information Interface uHead-Up Display
Continued
Instrument Panel

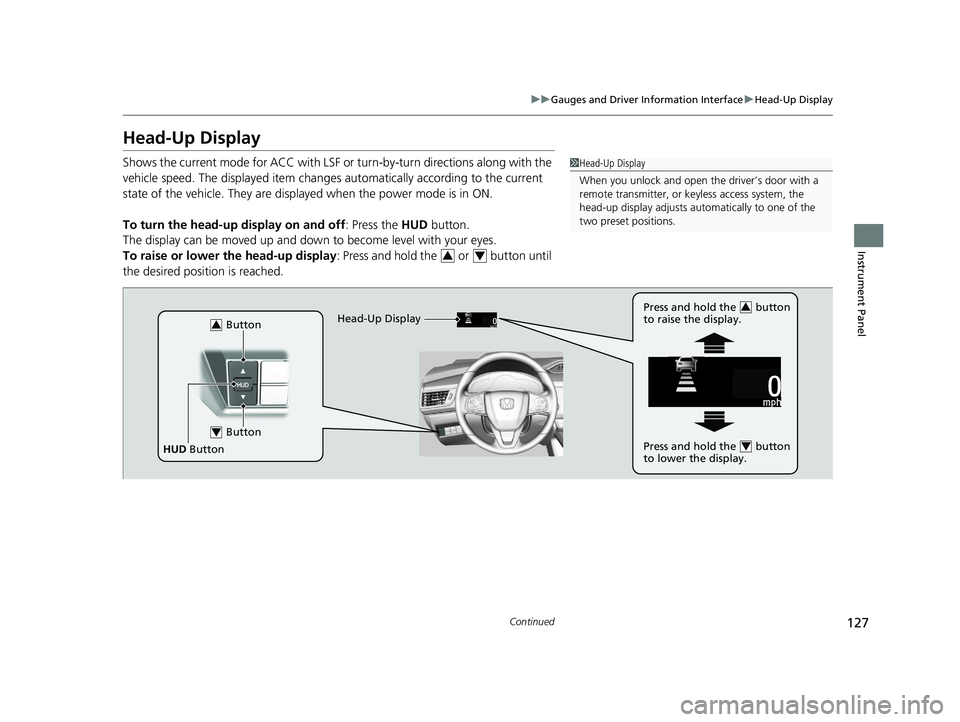

Head-Up Display
Shows the current mode for ACC with LSF or turn-by-turn directions along with the
vehicle speed. The displaye d item changes automaticall y according to the current
state of the vehicle. They are displa yed when the power mode is in ON.
To turn the head-up display on and off: Press the HUD button.
The display can be moved up and down to become level with your eyes.
To raise or lower the head-up display : Press and hold the or button until
the desired position is reached.1 Head-Up Display
When you unlock and open the driver’s door with a
remote transmitter, or keyless access system, the
head-up display adjusts auto matically to one of the
two preset positions.
34
Button3
Button4
HUD Button Head-Up Display
Press and hold the button
to raise the display.
3
Press and hold the button
to lower the display.4
19 CLARITY FCV CSS-31TRT6200.book 127 ページ ２０１９年１月１７日　木曜日　午前１１
時５４分

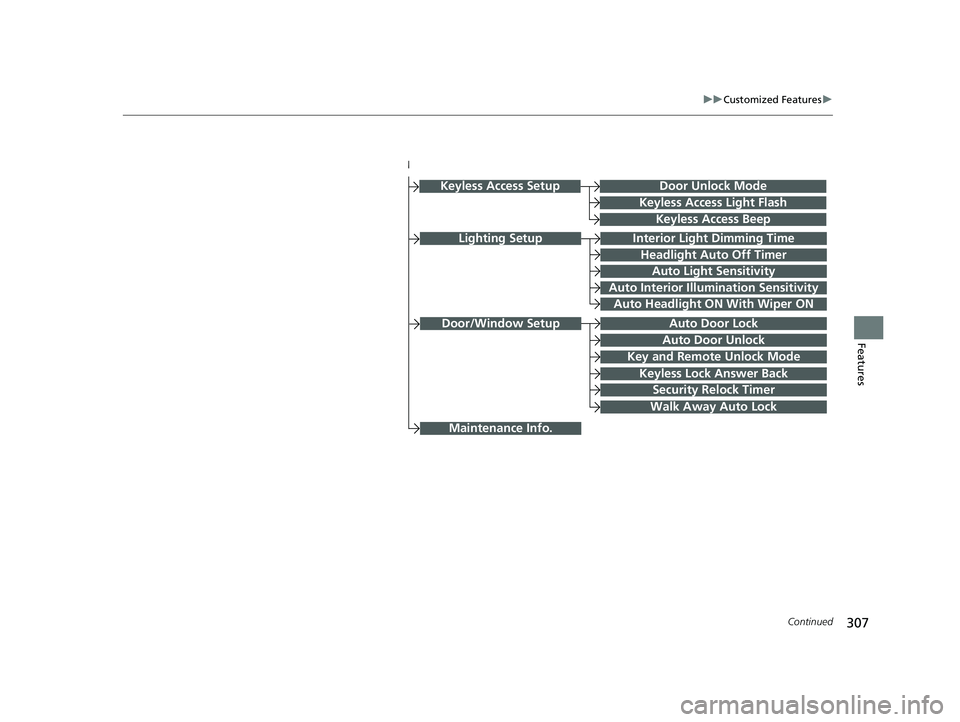

307
uuCustomized Features u
Continued
Features
Lighting SetupInterior Light Dimming Time
Headlight Auto Off Timer
Auto Light Sensitivity
Auto Interior Illumination Sensitivity
Auto Door Lock
Key and Remote Unlock Mode
Door/Window Setup
Maintenance Info.
Auto Headlight ON With Wiper ON
Keyless Lock Answer Back
Security Relock Timer
Walk Away Auto Lock
Keyless Access Setup
Keyless Access Light Flash
Keyless Access Beep
Door Unlock Mode
Auto Door Unlock
19 CLARITY FCV CSS-31TRT6200.book 307 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

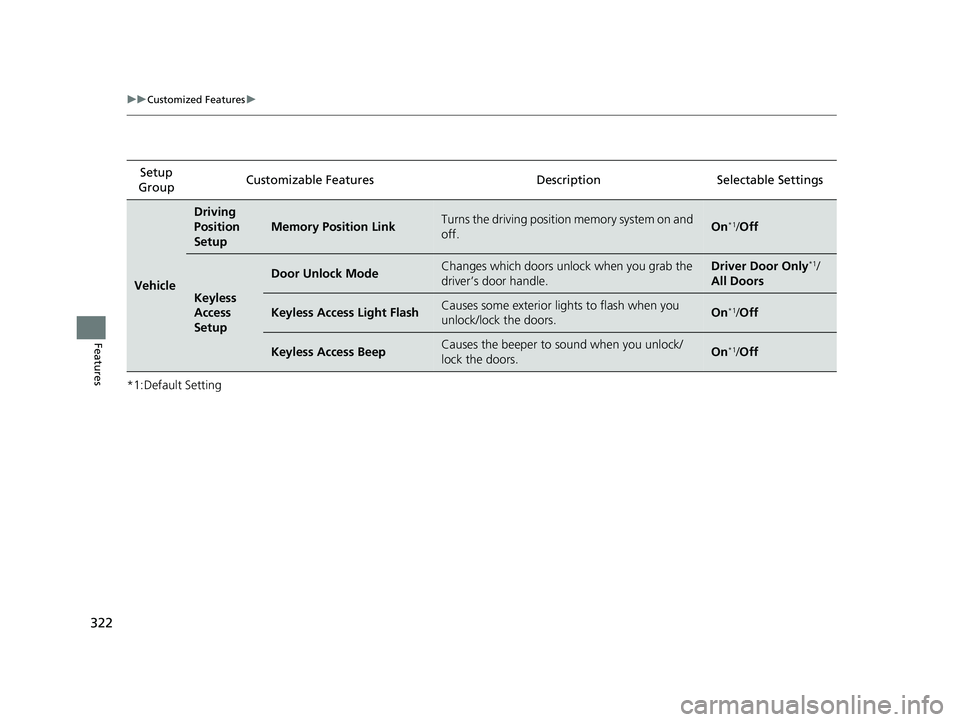

322
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Driving
Position
Setup
Memory Position LinkTurns the driving position memory system on and
off.On*1/Off
Keyless
Access
Setup
Door Unlock ModeChanges which doors unlock when you grab the
driver’s door handle.Driver Door Only*1/
All Doors
Keyless Access Light FlashCauses some exterior lig hts to flash when you
unlock/lock the doors.On*1/ Off
Keyless Access BeepCauses the beeper to sound when you unlock/
lock the doors.On*1/Off
19 CLARITY FCV CSS-31TRT6200.book 322 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

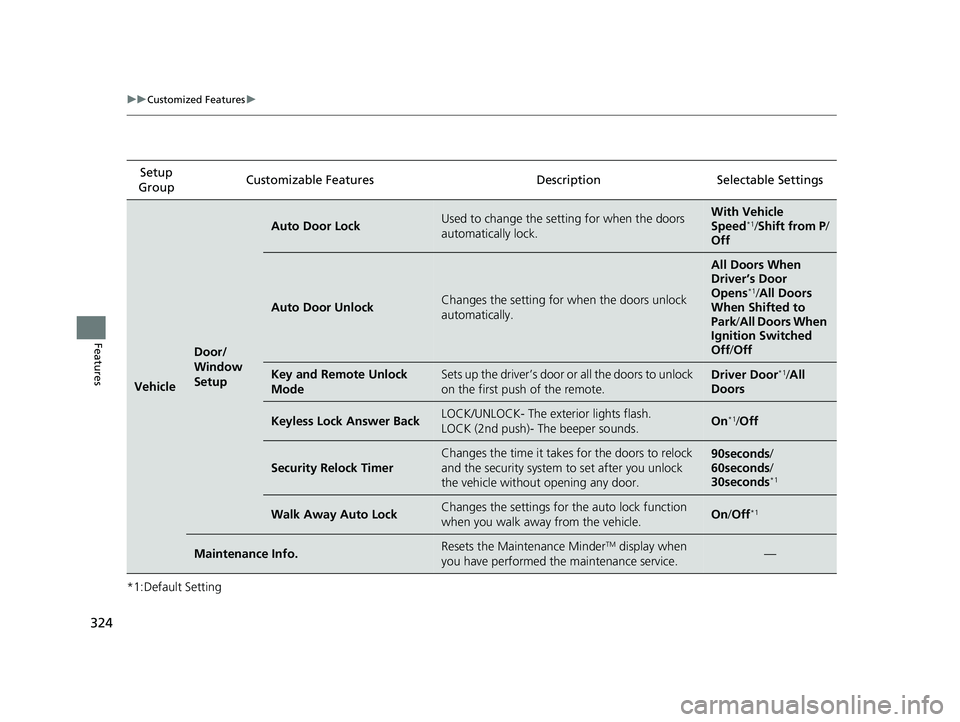

324
uuCustomized Features u
Features
*1:Default SettingSetup
Group Customizable Features Desc
ription Selectable Settings
Vehicle
Door/
Window
Setup
Auto Door LockUsed to change the setting for when the doors
automatically lock.With Vehicle
Speed*1/ Shift from P /
Off
Auto Door UnlockChanges the setting for when the doors unlock
automatically.
All Doors When
Driver’s Door
Opens
*1/ All Doors
When Shifted to
Park/ All Doors When
Ignition Switched
Off /Off
Key and Remote Unlock
ModeSets up the driver’s door or all the doors to unlock
on the first push of the remote.Driver Door*1/All
Doors
Keyless Lock Answer BackLOCK/UNLOCK- The exterior lights flash.
LOCK (2nd push)- The beeper sounds.On*1/ Off
Security Relock Timer
Changes the time it takes for the doors to relock
and the security system to set after you unlock
the vehicle without opening any door.90seconds/
60seconds/
30seconds
*1
Walk Away Auto LockChanges the settings for the auto lock function
when you walk away from the vehicle.On /Off*1
Maintenance Info.Resets the Maintenance MinderTM display when
you have performed the maintenance service.—
19 CLARITY FCV CSS-31TRT6200.book 324 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分

544
Index
Inverter Coolant........................................ 459
Adding to the Radiator ............................ 460
Adding to the Reserve Tank ..................... 459
Overheating............................................. 509
iPod ............................................................ 248
J
Jacking Points ........................................... 502
Jump Starting ............................................ 506
K
Key Number Tag ....................................... 134
Keyless Lockout Prevention ..................... 141
Keys ........................................................... 133
Lockout Prevention .................................. 141
Number Tag ............................................ 134
Rear Door Won’t Open ............................ 144
Remote Transmitter ................................. 139
Types and Functions ................................ 133
L
Lane Keeping Assist System (LKAS) ......... 405
LaneWatchTM............................................. 422
Language (HFL) ......................................... 331
LATCH (Child Seats) .................................... 75
Lights ................................................. 158, 463
Automatic ............................................... 159
Bulb Replacement .................................... 463
Daytime Running Lights ........................... 161 High Beam Indicator .................................. 96
Interior .................................................... 178
Light Switches ......................................... 158
Lights On Indicator .................................... 96
Turn Signals ............................................ 157
Load Limits ................................................ 367
Locking/Unlocking .................................... 133
Auto Door Locking/Unlocking.................. 145
Childproof Door Locks............................. 144
From Inside ............................................. 142
From Outside .......................................... 135
Keys ........................................................ 133
Using a Key ............................................. 140
Lockout Prevention System ..................... 141
Low Battery Charge (12-Volt) .................. 513
Low Smart Entry Remote Signal Strength .................................................. 134
Lower Anchors ............................................ 75
Luggage (Maximum Load Limit) ............. 367
M
Maintenance............................................. 449
12-Volt Battery ........................................ 477
Brake Fluid .............................................. 461
Cleaning ................................................. 481
Climate Control System ........................... 480
Coolant ................................................... 459
Maintenance Minder
TM............................ 453
Precautions ............................................. 450
Radiator .................................................. 460 Remote Transmitter ................................ 479
Replacing Light Bulbs .............................. 463
Safety ..................................................... 451
Service Items ........................................... 455
Tires........................................................ 468
Transmission Fluid ................................... 461
Under the Hood ...................................... 457
Map Lights ................................................ 179
Maximum Load Limit ............................... 367
Meters, Gauges ........................................ 116
Mirrors ...................................................... 170
Adjusting ................................................ 170
Door ....................................................... 171
Exterior ................................................... 171
Interior Rearview ..................................... 170
Modifications (and Accessories) .............. 487
Motor ........................................................ 532
Coolant .................................................. 459
Jump Starting ......................................... 506
MP3 ........................................................... 257
Multi-View Rear Camera ......................... 442
N
Numbers (Identification)......................... 532
O
Odometer................................................. 121
Open Source Licences .............................. 298
19 CLARITY FCV CSS-31TRT6200.book 544 ページ ２０１９年１月１７日　木曜日　午前１１ 時５４分
