2019 HONDA CIVIC HATCHBACK Owner's Manual (in English)

615
uuCleaning uInterior Care
Maintenance
To properly clean leather:
1. Use a vacuum or soft dry cloth first to remove any dirt or dust.
2. Clean the leather with a soft cloth dampen ed with a solution comprised of 90%
water and 10% neutral soap.
3. Wipe away any soap residu e with a clean damp cloth.
4. Wipe away residual water and allo w leather to air dry in the shade.
■Maintaining Genuine Leather*1Maintaining Genuine Leather*
It is important to clean or wipe away dirt or dust as
soon as possible. Spills can soak into leather resulting
in stains. Dirt or dust ca n cause abrasions in the
leather. In addition, pl ease note that some dark
colored clothing can rub onto the leather seats
resulting in discol oration or stains.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 615 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

616
uuCleaning uExterior Care
Maintenance
Exterior Care
Dust off the vehicle body after you drive. Regularly inspect your vehicle for scratches
on painted surfaces. A scratch on a painted surface can result in body rust. If you
find a scratch, promptly repair it.
Wash the vehicle regularly. Wash more frequently when driving in the following
conditions:
• If driving on roads with road salt.
• If driving in coastal areas.
• If tar, soot, bird droppings, insects, or tree sap are stuck to painted surfaces.
• Make sure to follow the instructions indicated on the automated car wash.
• Fold in the door mirrors.
• For models equipped with automatic inte rmittent wipers, turn the wipers off.
• Keep sufficient distance between the cleaning nozzl e and the vehicle body.
• Take particular care around the windows. St anding too close may cause water to
enter the vehicle interior.
• Do not spray high pressure water directly into the engine compartment. Instead,
use low pressure water and a mild detergent.
■Washing the Vehicle
■Using an Automated Car Wash
■Using High Pressure Cleaners
1 Washing the Vehicle
Do not spray water into the air intake and hood
intake
* vents. It can cause a malfunction.
Do not spray water onto the fuel fill door directly. A
high-pressure spray ma y cause it to open.
Air Intake Vents
1.5 L engine models
Hood
Intake Vent2.0 L engine models
Air Intake
Vents
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 616 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

Continued617
uuCleaning uExterior Care
Maintenance
A good coat of automotive body wax helps protect your vehicle’s paint from the
elements. Wax will wear off over time and expose your vehicle’s paint to the
elements, so reapply as necessary.
If you get gasoline, oil, engine coolant, or battery fluid on resi n coated parts, they
may be stained or the coating may peel. Prom ptly wipe it away using a soft cloth and
clean water.
Wipe using a glass cleaner.
Aluminum is susceptible to deterioration caused by salt and other road
contaminants. When necessary, as early as possible use a sponge and mild detergent
to wipe away these contaminants. Do no t use a stiff brush or harsh chemicals
(including some commercial wheel cleaners). These can damage the protective finish
on aluminum alloy wheels, resulting in corrosion. Depending on the type of finish,
the wheels also may lo se their luster or appear burn ished. To avoid water stains,
wipe the wheels dry with a cloth while they are still wet.
■Applying Wax
■Maintaining the Bumpers and Other Resin Coated Parts
■Cleaning the Window
■Maintaining Aluminum Wheels
1 Washing the Vehicle
If you need to lift the wiper arms away from the
windshield, first set the wiper arms to the
maintenance position.
2 Changing the Front Wiper Blade Rubber
P. 592
Do not spray water on to the capless unit when the
fuel fill door is open. It ca n cause damage to the fuel
system or engine.
1 Applying Wax
NOTICE
Chemical solvents and st rong cleaners can damage
the paint, metal, and plasti c on your vehicle. Wipe
away spills immediately.
1 Maintaining the Bumpers an d Other Resin Coated Parts
Ask a dealer about the corr ect coating material when
you want to repair the painted surface of the parts
made of resin.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 617 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

618
uuCleaning uExterior Care
Maintenance
The inside lenses of exterior lights (headlig hts, brake lights, etc.) may fog temporarily
if you have driven in the rain, or after the vehicle has been run through a car wash.
Dew condensation also may build up inside the lenses when there is a significant
enough difference between the ambient and inside-lens temperatures (similar to
vehicle windows fogging up in rainy conditions). These conditions are natural
processes, not structural design problems in the exterior lights.
Lens design characteristics may result in mo isture developing on the light lens frame
surfaces. This also is not a malfunction.
However, if you see large amounts of wa ter accumulation, or large water drops
building up inside the lenses, have your vehicle inspected by a dealer.

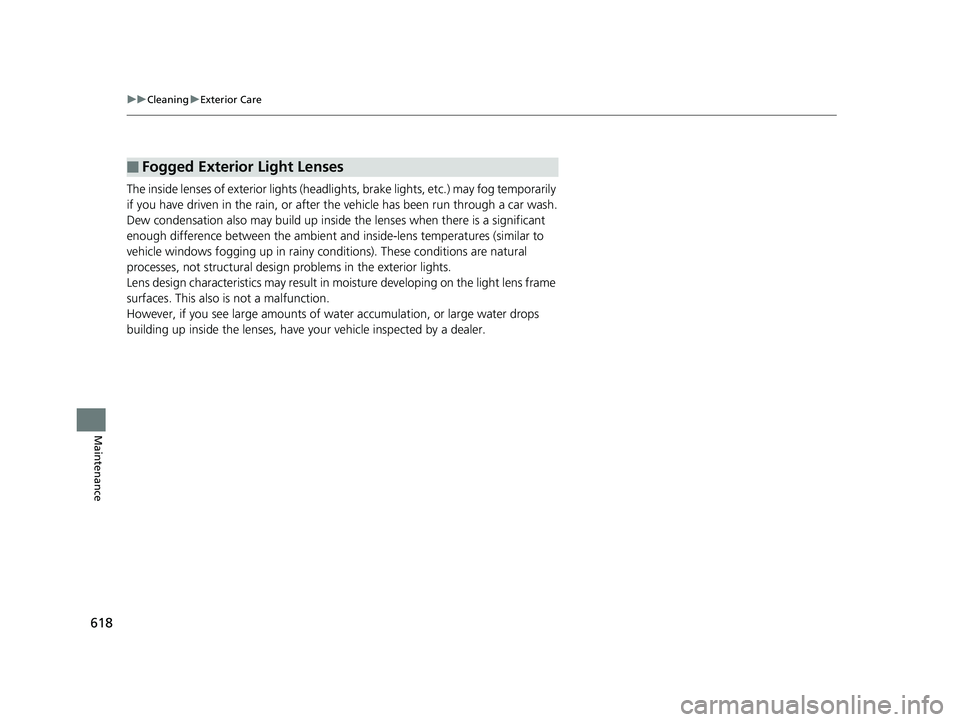

■Fogged Exterior Light Lenses
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 618 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

619
Maintenance
Accessories and Modifications
Accessories
When installing accessories, check the following:
• Do not install accessories on the windsh ield. They can obstruct your view and
delay your reaction to driving conditions.
• Do not install any accessories over areas marked SRS Airbag, on the sides or backs
of the front seats, on front or side pillars, or near the side windows.
Accessories installed in these areas may interfere with proper operation of the
vehicle’s airbags or may be propelled into you or another occupant if the airbags
deploy.
• Be sure electronic accessories do not overload electrical circuits or interfere with
proper operation of your vehicle.
2 Fuses P. 661
•Before installing any electro nic accessory, have the installer contact a dealer for
assistance. If possible, have a deal er inspect the final installation.
1Accessories and Modifications
Honda Genuine accessor ies are recommended to
ensure proper operati on on your vehicle.
3WARNING
Improper accessories or modifications can
affect your vehicle's handling, stability, and
performance, and cause a crash in which
you can be seriously hurt or killed.
Follow all instruction s in this owner's
manual regarding accessories and
modifications.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 619 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

620
uuAccessories and Modifications uModifications
Maintenance
Modifications
Do not modify your vehicle in a manner that may affect its handling, stability, or
reliability, or install non-genuine Honda parts or accessories that may have a similar
effect.
Even minor modifications to vehicle systems can affect overall vehicle performance.
Always make sure all equipment is prop erly installed and maintained, and do not
make any modification to your vehicle or its systems that might cause your vehicle
to no longer meet federal, state, province, territory, and local regulations.
The on-board diagnostic port (OBD-II/SAE J1962 connector) installed on this vehicle
is intended to be used with automobile system diagnostic devices or with other
devices that Honda has approved. Use of any other type of device may adversely
affect the vehicle’s electronic systems or allow them to be compromised, possibly
resulting in a system malfunction, draine d battery, or other unexpected problems.
Do not modify or attempt to repair any of the electrical components.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 620 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

621
Handling the Unexpected
This chapter explains how to handle unexpected troubles.
ToolsTypes of Tools .................................. 622
If a Tire Goes Flat
Temporarily Repairi ng a Flat Tire....... 623
Changing a Flat Tire ......................... 636
Handling of the jack
How to Set Up the Jack .................... 644
Engine Does Not Start Checking the Engine ........................ 646
Vehicles with temporary tire repair kit
Vehicles with a compact spare tire
Canadian models with temporary tire
repair kit
If the Smart Entry Remote Battery is
Weak ......................................... 647
Emergency Engine Stop ................... 648
Jump Starting .................................... 649
Shift Lever Does Not Move .............. 652
Overheating ...................................... 653
Indicator, Coming On/Blinking
If the Low Oil Pressu re Indicator Comes
On................................................ 655
If the Charging System Indicator Comes
On ................................................. 655
If the Malfunction Indicator Lamp Comes
On or Blinks ................................... 656
If the Brake System Indicator (Red) Comes On or Blinks ................................... 657
If the Brake System Indicator (Red) Comes On or
Blinks at the Same Time When the Brake System
Indicator (Amber) Comes On ....................... 658
If the Electric Power Steering (EPS) System Indicator Comes On......................... 659
If the Low Tire Pressure/TPMS Indicator
Comes On or Blinks
*...................... 660
Fuses Fuse Locations ................................. 661
Inspecting and Changing Fuses ........ 665
Emergency Towing ........................... 666
When You Cannot Unlock the Fuel Fill
Door ................................................. 667
When You Cannot Open the Hatch.....668Refueling ........................................... 669
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 621 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

622
Handling the Unexpected

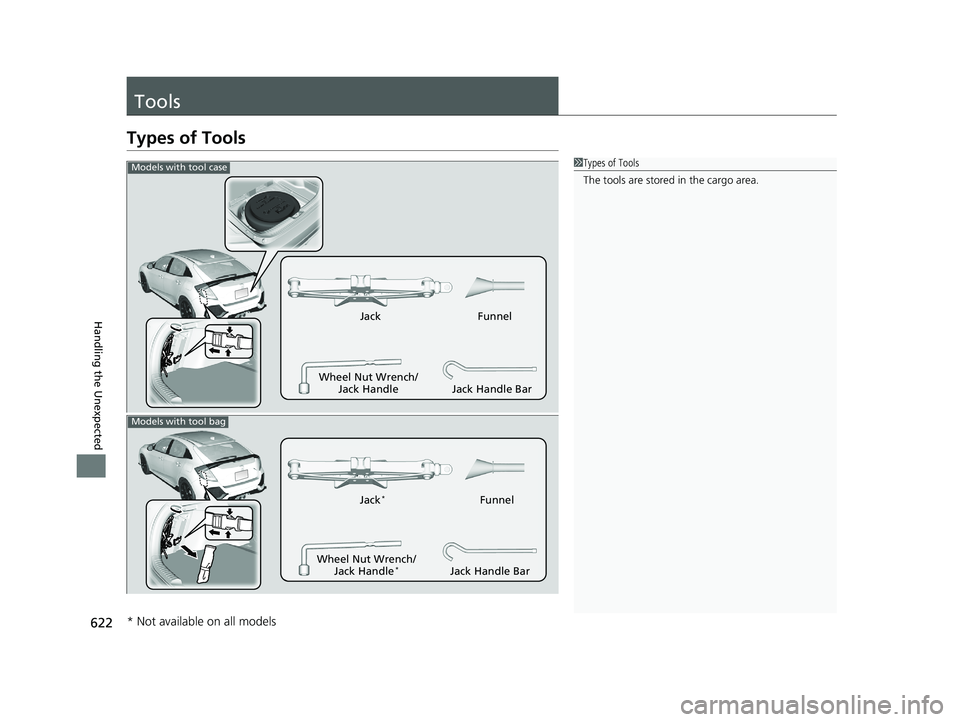

Tools
Types of Tools
1Types of Tools
The tools are stored in the cargo area.
Wheel Nut Wrench/
Jack Handle Jack
Jack Handle BarFunnel
Models with tool case
Jack Handle Bar
Models with tool bag
Wheel Nut Wrench/
Jack Handle*
Jack*Funnel
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 622 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
