Visual Index
8
Quick Reference Guide❙Maintenance Under the Hood (P567)
❙Windshield Wipers (P181, 592)
❙Tires (P597, 623)
❙Fog Lights* (P177, 584)
❙Power Door Mirrors (P188)
❙How to Refuel (P551)
❙High-Mount Brake Light (P591)
❙Opening/Closing the Hatch (P158)
❙Multi-View Rear Camera (P548)
❙Door Lock/Unlock Control (P145)
❙Side Turn Signal Lights* (P174, 589)
❙Headlights (P174, 582)
❙Front Turn Signal Lights (P174, 586)
❙Parking/Daytime Running Lights (P174, 589)
❙Front Side Marker Lights (P587)
❙Taillights (P591)
❙Back-Up Lights (P590)
❙Brake Lights (P590)
❙Rear Turn Signal Lights (P590)
❙Taillights/Rear Side Marker Lights (P591)
❙Rear Wiper (P183, 595)
❙Hatch Release Button (P159)
❙License Plate Light (P591)
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 8 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

11
Quick Reference Guide
Instrument Panel (P 77)
System Indicators
Malfunction Indicator
Lamp
Charging System
IndicatorAnti-lock Brake
System (
ABS)
Indicator
Vehicle Stability
Assist® (VSA®) System
Indicator
Vehicle Stability
Assist® (VSA®) OFF
Indicator
Low Tire Pressure/
TPMS Indicator
*
Electric Power
Steering (EPS) System
Indicator Seat Belt Reminder
Indicator
System Indicators
Parking Brake and
Brake System
Indicator (Red) Supplemental
Restraint System
Indicator
Tachometer
Immobilizer System Indicator/
Security System Alarm Indicator
Shift Lever
Position Indicator
*
Low Fuel Indicator
ECON Mode Indicator
*
Turn Signal and
Hazard Warning
Indicators
Parking Brake and
Brake System
Indicator (Amber)
System Indicators
U.S.
Canada
U.S.
Canada Automatic
Brake Hold
System Indicator
Automatic Brake
Hold IndicatorU.S.
Canada
Temperature
Gauge
Lights Indicators
Lights On Indicator
High Beam Indicator
Fog Light Indicator*
Adaptive Cruise
Control (ACC) with
Low Speed Follow
(LSF)
* Indicator
(Amber/Green)*
System Message
Indicator
Collision Mitigation
Braking System
TM
(CMBSTM) Indicator*
Road Departure
Mitigation (RDM)
Indicator
*
Lane Keeping Assist
System (LKAS)
Indicator (Amber/
Green)
*
M (7-speed manual shift mode)
Indicator/Shift Indicator*
Auto High-Beam
Indicator*
Shift Up/Down
Indicator*
Drive Mode Indicator*
Speedometer Fuel Gauge
Gear Position Indicator*
Gauges (P 117)/Driver Informat
ion Interface (P 119)/System Indicators (P 78)
Low Oil Pressure
Indicator
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 11 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

25
Quick Reference Guide
Honda Sensing®*
Honda Sensing® is a driver support system
which employs the use of two distinctly
different kinds of sensors, a radar sensor
located in the lower bu mper next to the fog
light
* and a front sensor camera mounted to
the interior side of the windshield, behind
the rearview mirror.
The camera is
located behind the
rearview mirror.
Front Sensor
Camera
Radar Sensor
The radar sensor is in
the lower bumper.
Adaptive Cruise Control
(ACC) with Low Speed
Follow (LSF)
* (P 474)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours and, if the detected
vehicle comes to a stop, can decelerate and
stop your vehicle, without you having to
keep your foot on the brake or the
accelerator.
Adaptive Cruise Control
(ACC)
* (P 490)
Helps maintain a constant vehicle speed and
a set following-interval behind a vehicle
detected ahead of yours, without you
having to keep your foot on the brake or
the accelerator.
Road Departure
Mitigation (RDM) System
(P 504)
Alerts and helps to assist you when the
system detects a possibility of your vehicle
unintentionally crossing over detected lane
markings and/or leaving the roadway
altogether.
Lane Keeping Assist
System (LKAS)
(P 509)
Provides steering input to help keep the
vehicle in the middle of a detected lane and
provides tactile and visual alerts if the
vehicle is detected drifting out of its lane.
Collision Mitigation
Braking System
TM
(CMBS
TM) (P 537)
Can assist you when there is a possibility of
your vehicle colliding with a vehicle or a
pedestrian detected in front of yours. The
CMBS
TM is designed to alert you when a
potential collision is determined, as well as
to reduce your vehi cle speed to help
minimize collision severity when a collision is
deemed unavoidable.
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 25 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

26
Quick Reference Guide
Maintenance (P 557)
Under the Hood (P 567)
● Check engine oil, engine coolant, and windshield washer
fluid. Add when necessary.
● Check brake/clutch
* fluid.
● Check the battery condition monthly.
aPull the hood release handle under the corner of the
dashboard.
bLocate the hood latch lever, pull it up, and then raise the
hood. Once you have raised the hood slightly, you can
release the lever.
cWhen finished, close the hood and make sure it is firmly
locked in place.
Lights (P 582)
● Inspect all lights regularly.
Wiper Blades (P 592)
● Replace blades if they leave streaks
across the windshield.
Tires (P 597)
● Inspect tires and wheels regularly.
● Check tire pressures regularly.
● Install snow tires for winter driving.
Handling Summer Only tires and Ultra
High Performance (UHP) tires in low
ambient temperatures. 2 Cold Weather Driving (P607)
2.0 L engine models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 26 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

28
Quick Reference Guide
What to Do If
*1:Canadian models and 2.0 L engine models
The ignition switch does
not turn from
(0 to (q.
Why?
The power mode does not
change from VEHICLE OFF
(LOCK) to ACCESSORY.
Why?
The steering wheel may be locked.
●Try to turn the steering wheel left and right
while turning the ignition key.
●Move the steering wheel left and right after
pressing the ENGINE START/STOP button.
The ignition switch does
not turn from
(q to (0 and
I cannot remove the key.
Why?
The power mode does not
change from ACCESSORY
to VEHICLE OFF (LOCK).
Why?
The shift lever should be moved to (P.
Why does the brake pedal
pulsate slightly when
applying the brakes?This can occur when the ABS activates and does not indicate a
problem. Apply firm, steady pressure on the brake pedal. Never
pump the brake pedal.
2 Anti-lock Brake System (ABS) (P535)
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system*1
Models without smart entry system
Models with smart entry system
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 28 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

126
uuGauges and Driver Information Interface uDriver Information Interface
Instrument Panel
Displays the strength (G) and direction of the load that is applied to the vehicle
during driving.
Displays the brake pressure in PSI when the brake is applied.
Displays the accelerator position in degrees of %.
Light up from left to right according to engine
speed.
■G-Meter*
■Braking Pressure Meter*
■Accelerator Position Meter*
■Rev Indicators*
Rev Indicators
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 126 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

177
uuOperating the Switches Around the Steering Wheel uFog Lights*
Controls
Fog Lights*
When the low beam headlights are on, turn
the fog light switch on to use the fog lights.
Daytime Running Lights
The parking/daytime running lights come on when the following conditions have
been met:
• The ignition switch is in ON
(w*1.
• The headlight switch is AUTO or OFF .
• The parking brake is released.
The lights remain on even if you set th e parking brake. Turning off the ignition
switch or setting the power mode to VEHI CLE OFF will turn off the daytime running
lights.
The daytime running lights are off once the h eadlight switch is turned on, or when
the headlight switch is in AUTO and it is getting darker outside.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
Fog Light Switch
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 177 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

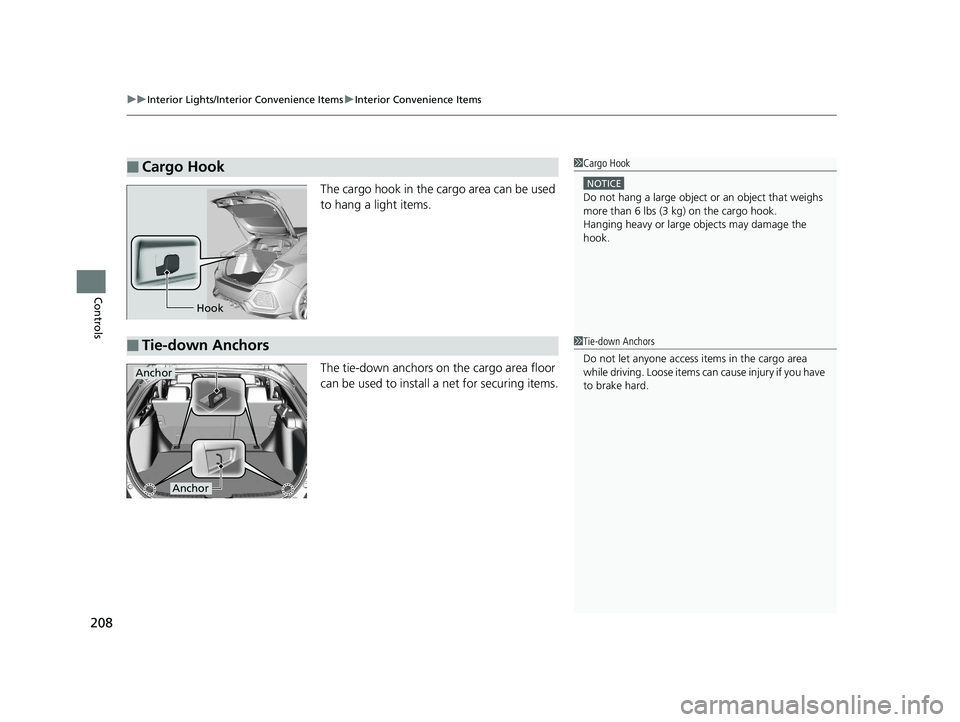

uuInterior Lights/Interior Convenience Items uInterior Convenience Items
208
Controls
The cargo hook in the cargo area can be used
to hang a light items.
The tie-down anchors on the cargo area floor
can be used to install a net for securing items.
■Cargo Hook1Cargo Hook
NOTICE
Do not hang a large object or an object that weighs
more than 6 lbs (3 kg) on the cargo hook.
Hanging heavy or large objects may damage the
hook.
Hook
■Tie-down Anchors1Tie-down Anchors
Do not let anyone access items in the cargo area
while driving. Loose items ca n cause injury if you have
to brake hard.
Anchor
Anchor
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 208 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
