2019 HONDA CIVIC HATCHBACK Owner's Manual (in English)

671
Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications .................................... 672
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 674
Devices that Emit Radio Waves ....... 675
Reporting Safety Defects ................. 676Emissions Testing
Testing of Readiness Codes.............. 677
Warranty Coverages ........................ 680
Authorized Manuals ......................... 682
Customer Service Information ......... 683
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 671 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

672
Information
Specifications
■Vehicle Specifications
*1: 1.5 L engine models with continuously variable transmission
*2: 1.5 L engine models with manual transmission
*3: 2.0 L engine models
ModelCivic*1, *2
Civic TYPE R*3
No. of Passengers:
Front 2
Rear 3
*1, *2
2*3
Total 5*1, *2
4*3
Weights:Gross Vehicle Weight
Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
■Air Conditioning
■ Engine Specifications
*1: 1.5 L engine models
*2: 2.0 L engine models
■Fuel
*1: Models without the label “PREMIUM RECOMMENDED”
*2: Models with the label “PREMIUM RECOMMENDED”
■Washer Fluid
*1: 1.5 L engine models
*2: 2.0 L engine models
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.70 – 6.28 cu-in (77 – 103 ml)
Displacement91.38 cu-in (1,498 cm3)*1
121.76 cu-in (1,996 cm3)*2
Spark Plugs NGK ILZKAR8H8S
Type
Unleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.:2.6 US qt (2.5 L)*1
3.2 US qt (3.0 L)*2
Canada:4.8 US qt (4.5 L)*1
3.2 US qt (3.0 L)*2
■ Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: 2.0 L engine models
*4: 1.5 L engine models without 16 inch wheel
*5: 2.0 L engine models with halogen headlights
*6: 2.0 L engine models with LED headlights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights*3, *435 W (H8)*4, *5
LED*6
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Taillights/Rear Side Marker Lights LED
Back-Up Lights16 W
Taillights LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights8 WCeiling Light8 WVanity Mirror Lights*2 WGlove Box Light3.4 WCargo Area Light5 W
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 672 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

673
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
*1: 1.5 L engine models
*2: 2.0 L engine models
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)*1
2.3 US qt (2.2 L)*2
■
Engine Oil
*1: 1.5 L engine models
*2: 2.0 L engine models
■Engine Coolant
*1: Models with continuously variable transmission
*2: Models with manual transmission
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change
3.4 US qt (3.2 L)
*1
5.3 US qt (5.0 L)*2
Change
including
filter3.7 US qt (3.5 L)*1
5.7 US qt (5.4 L)*2
SpecifiedHonda Long Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.30 US gal (4.92 L)*1
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
1.28 US gal (4.84 L)
*2
(change including the remaining
0.15 US gal (0.58 L) in the reserve tank)
1.26 US gal (4.64 L)
(change including the remaining
0.20 US gal (0.75 L) in the reserve tank)
1.5 L engine models
2.0 L engine models
■ Tire
*1: Models with 16 inch wheel
*2: Models with 17 inch wheel
*3: 1.5 L engine models with 18 inch wheel
*4: 2.0 L engine models with 18 inch wheel
*5: Models with 20 inch wheel
*6: 2.0 L engine models with optional compact spare tire
Regular
Size
215/55R16 93H*1
215/50R17 91H*2
235/40R18 91W*3
235/40R18 95Y*4
245/30ZR20 90Y*5
Pressure
psi (kPa [kgf/cm2])
Front32 (220 [2.2])*1, *2
35 (240 [2.4])*3, *4, *5
Rear32 (220 [2.2])*1, *2
33 (230 [2.3])*3, *4, *5
Compact
Spare Size
T125/80D16 97M
*1, *2
T125/70D17 98M*3
T125/70R18 99M*6
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel Size
Regular
16 x 7J*1
17 x 7J*2
18 x 8J*3, *4
20 x 8 1/2J*5
Compact Spare16 x 4T*1, *2
17 x 4T*3
18 x 4T*6
* Not available on all models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 673 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

674
Information

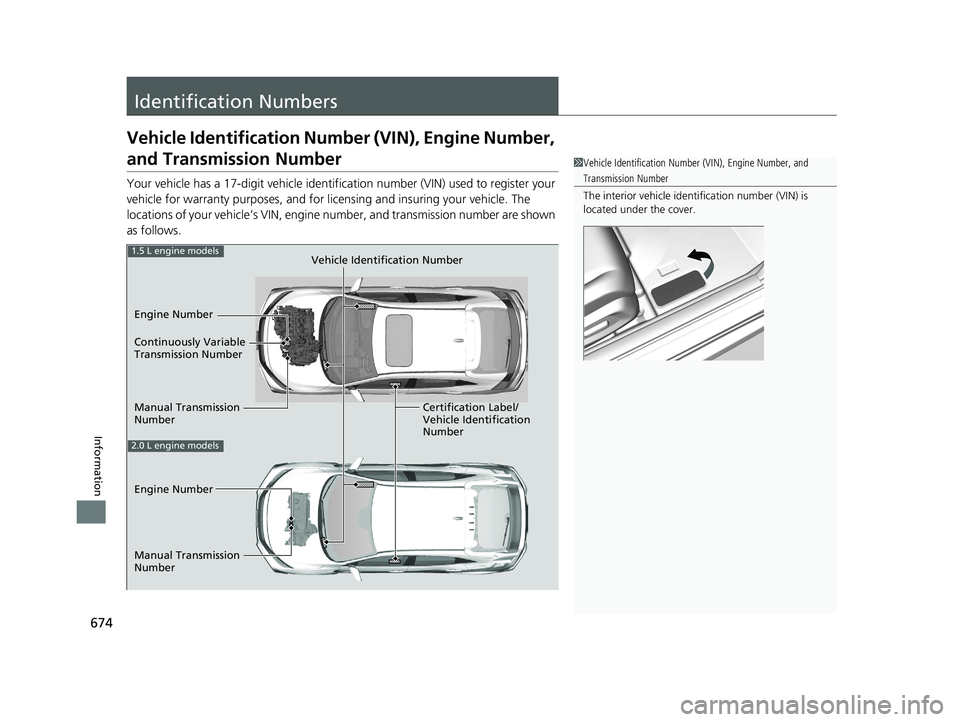

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identifi cation number (VIN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle. The
locations of your vehicle’s VIN, engine number, and transmission number are shown
as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
Continuously Variable
Transmission Number
Manual Transmission
Number
1.5 L engine models
2.0 L engine models
Engine Number
Manual Transmission
Number
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 674 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

675
Information
Devices that Emit Radio Waves
Each radio frequency device installed in the vehicle conforms to the requirements
and standards of the regulation listed below:
As required by the FCC:
This device complies with Part 15 of the FCC rules. Operation is
subject to the following two cond itions: (1) This device may not
cause harmful interferenc e, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Changes or modifications not ex pressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
This device complies with Industry Canada licence-exempt RSS standard(s).
Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference
that may cause undesired operation of the device.
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 675 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

676
Information

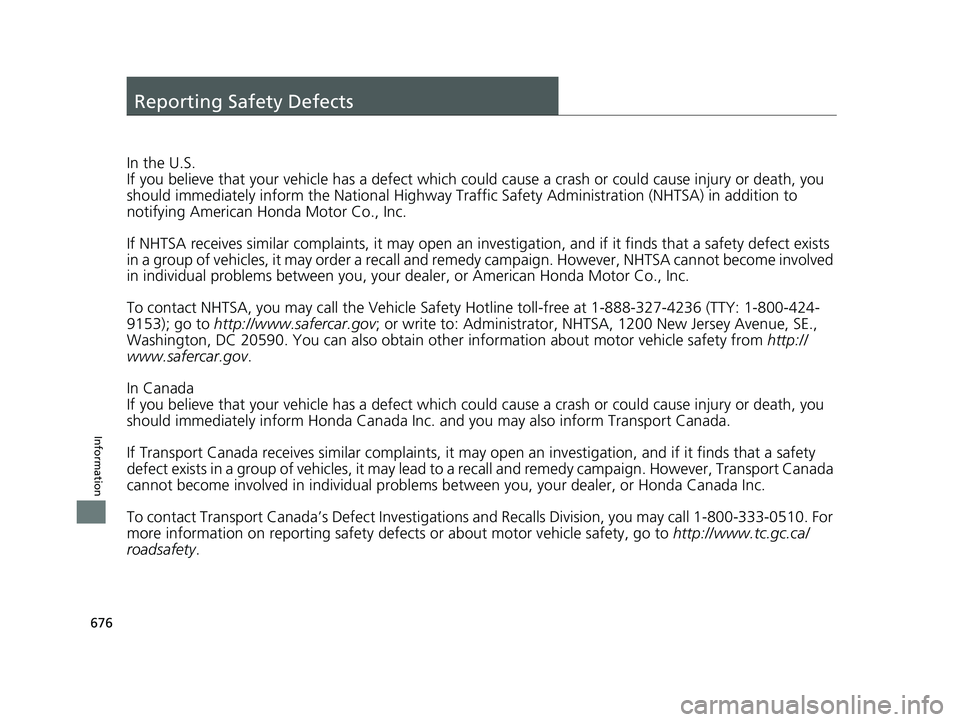

Reporting Safety Defects
In the U.S.
If you believe that your vehicle has a defect which could cause a crash or could cause injury or death, you
should immediately inform the Nati onal Highway Traffic Safety Administration (NHTSA) in addition to
notifying American Honda Motor Co., Inc.
If NHTSA receives similar complaints, it may open an inve stigation, and if it finds that a safety defect exists
in a group of vehicles, it may order a recall and remedy campaign. However, NHTSA cannot become involved
in individual problems between you, your dealer, or American Honda Motor Co., Inc.
To contact NHTSA, you may call the Vehicle Safety Ho tline toll-free at 1-888-327-4236 (TTY: 1-800-424-
9153); go to http://www.safercar.gov ; or write to: Administrator, NHTSA , 1200 New Jersey Avenue, SE.,
Washington, DC 20590. You can also obtain othe r information about motor vehicle safety from http://
www.safercar.gov .
In Canada
If you believe that your vehicle has a defect which c ould cause a crash or could cause injury or death, you
should immediately inform Honda Canada Inc. and you may also inform Transport Canada.
If Transport Canada receives similar complaints, it may open an investigation, and if it finds that a safety
defect exists in a group of vehicles, it may lead to a recall and remedy campaign. However, Transport Canada
cannot become involved in individual problems between you, your dealer, or Honda Canada Inc.
To contact Transport Canada’s Defect Investigations and Recalls Division, you may call 1-800-333-0510. For
more information on reporting safety defects or about motor vehicle safety, go to http://www.tc.gc.ca/
roadsafety .
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 676 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

677Continued
Information
Emissions Testing
Testing of Readiness Codes
Your vehicle has readiness code as part of the onboard self diagnostic system. Some
states use these codes for testing to ve rify whether your vehicle’s emissions
components are working properly.
The codes may not be read properly if testing is performed just after the battery has
gone dead or been disconnected.
To check if they are set, tu rn the ignition switch to ON
(w*1, without starting the
engine. The malfunction indicator lamp will co me on for several seconds. If it then
goes off, the readiness codes are set. If it blinks five times, the readiness codes are
not set.
If you are required to have your vehicle te sted before the readiness codes are ready,
prepare the vehicle for retest ing by doing the following:
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the ac celerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(P (continuously variable transmission) or (N (manual
transmission). Increase the engine speed to 2,000 rpm, and hold it there for about
3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
1 Testing of Readiness Codes
The readiness codes are erased when the battery is
disconnected, and set again onl y after several days of
driving under a variety of conditions.
If a testing facility determines that the readiness
codes are not set, you may be requested to return at
a later date to complete the test.
If the testing facility determines the readiness codes
are still not set, see a dealer.
1.5 L engine models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 677 ページ ２０１８年１０月２５日　木曜日　午後４時１２分

678
uuEmissions Testing uTesting of Readiness Codes
Information
7. Select a nearby, lightly traveled major hi ghway where you can maintain a speed
of 50 to 60 mph (80 to 97 km/h) for at least 20 minutes. Drive on the highway in
(D (continuously variable transmission) or 5th (manual). Do not use cruise
control. When traffic allows, drive for 90 seconds without moving the accelerator
pedal. (Vehicle speed may vary slightly; this is okay.) If you cannot do this for a
continuous 90 seconds because of traffic conditions, drive for at least 30 seconds,
then repeat it two more time s (for a total of 90 seconds).
8. Drive in city or suburban traffic for at le ast 10 minutes. When traffic conditions
allow, let the vehicle coast for several se conds without using the accelerator pedal
or the brake pedal.
9. Park the vehicle and leave the engine off for 30 minutes.
1. Fill the gas tank to approximately 3/4 full.
2. Park the vehicle and leave the engine off for 6 hours or more.
3. Make sure the ambient temperature is between 40°F and 95°F (4°C and 35°C).
4. Start the engine without touching the acce lerator pedal, and let it idle for 20
seconds.
5. Keep the vehicle in
(N. Increase the engine speed to 2,000 rpm, and hold it
there for about 3 minutes.
6. Let the engine idle with your foot off the accelerator for 20 seconds.
7. Drive in city or suburban traffic for at least 10 minutes . When traffic conditions
allow, let the vehicle coast for several seconds without using the accelerator
pedal or the brake pedal.
2.0 L engine models
19 CIVIC 5D HUM (KA KC KL)-31TGG6201.book 678 ページ ２０１８年１０月２５日　木曜日　午後４時１２分
