2019 HONDA CIVIC COUPE Owner's Manual (in English)

647
Handling the Unexpected

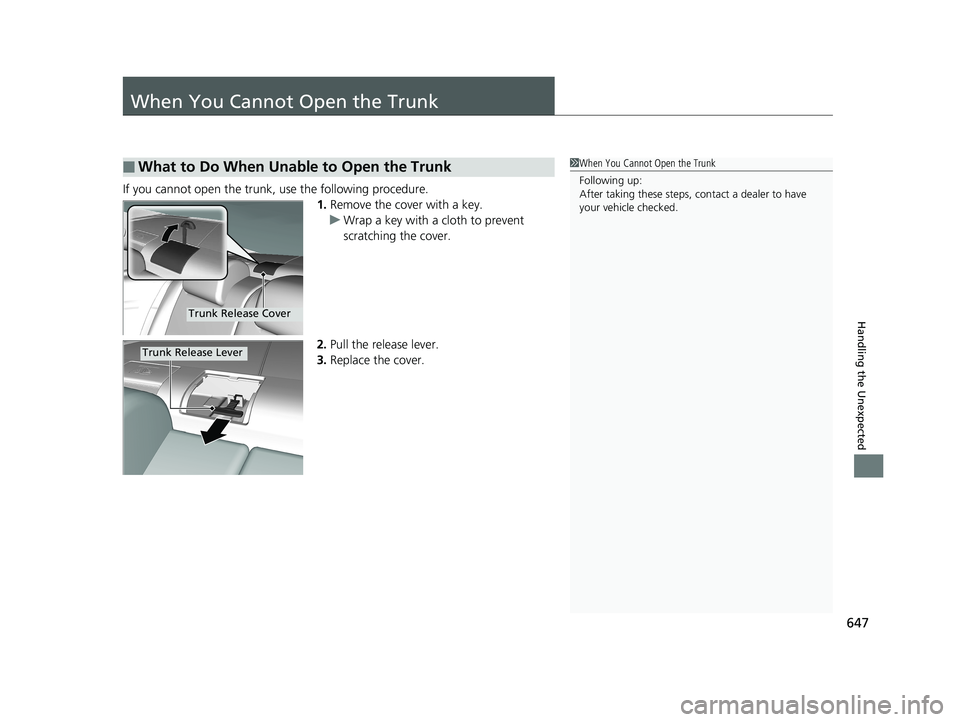

When You Cannot Open the Trunk
If you cannot open the trunk, use the following procedure.1.Remove the cover with a key.
u Wrap a key with a cloth to prevent
scratching the cover.
2. Pull the release lever.
3. Replace the cover.
■What to Do When Unable to Open the Trunk1When You Cannot Open the Trunk
Following up:
After taking these steps, contact a dealer to have
your vehicle checked.
Trunk Release Cover
Trunk Release Lever
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 647 ページ ２０１８年９月４日　火 曜日　午後１時３８分

648
Handling the Unexpected
Refueling
Refueling From a Portable Fuel Container
If you have run out of fuel and need to refuel your vehicle from a portable fuel
container, use the funnel pr ovided with your vehicle.
1.Turn off the engine.
2. Press on the edge of the fuel fill door to
make it pop up slightly.
u The fuel fill door opens.
3. Take the funnel out of the tool case in the
trunk.
2 Types of Tools P. 606
4.Place the end of the funnel on the lower
part of filler opening, then insert it slowly
and fully.
u Make sure that the end of the funnel
goes down along with the filler pipe.
5. Fill the tank with fuel from the portable fuel
container.
u Pour fuel carefully so you do not spill any.
6. Remove the funnel from the filler neck.
u Wipe up any fuel from the funnel before
storing it.
7. Shut the fuel fill door by hand.
1Refueling From a Portable Fuel Container
NOTICE
Do not insert the nozzle of a portable fuel container
or any funnel other than the one provided with your
vehicle. Doing so can damage the fuel system.
Do not try to pry open or push open the sealed fuel
tank with foreign objects. This can damage the fuel
system and its seal.
Make sure the fuel in the portable fuel container is
gasoline before you refuel.
3WARNING
Gasoline is highly flammable and explosive.
You can be burned or seriously injured
when handling fuel.
• Stop the engine, and keep heat, sparks,
and flame away.
• Handle fuel only outdoors.
• Wipe up spills immediately.
Funnel
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 648 ページ ２０１８年９月４日　火 曜日　午後１時３８分

649

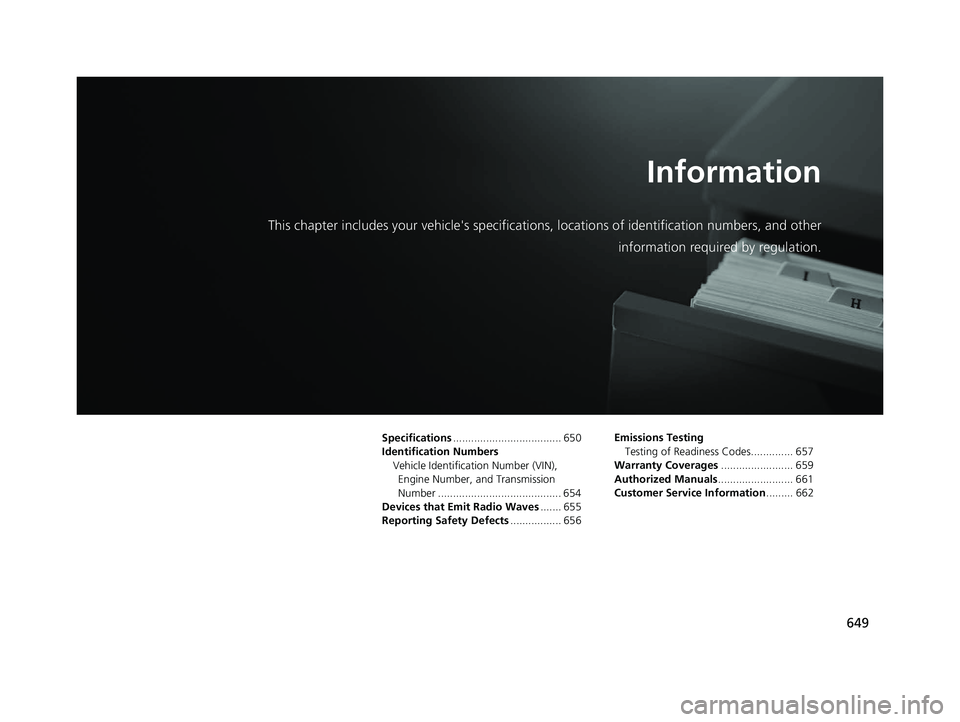

Information
This chapter includes your vehicle's specifications, locations of identification numbers, and other
information required by regulation.
Specifications.................................... 650
Identification Numbers Vehicle Identification Number (VIN), Engine Number, and Transmission
Number ......................................... 654
Devices that Emit Radio Waves ....... 655
Reporting Safety Defects ................. 656Emissions Testing
Testing of Readiness Codes.............. 657
Warranty Coverages ........................ 659
Authorized Manuals ......................... 661
Customer Service Information ......... 662
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 649 ページ ２０１８年９月４日　火 曜日　午後１時３８分

650
Information

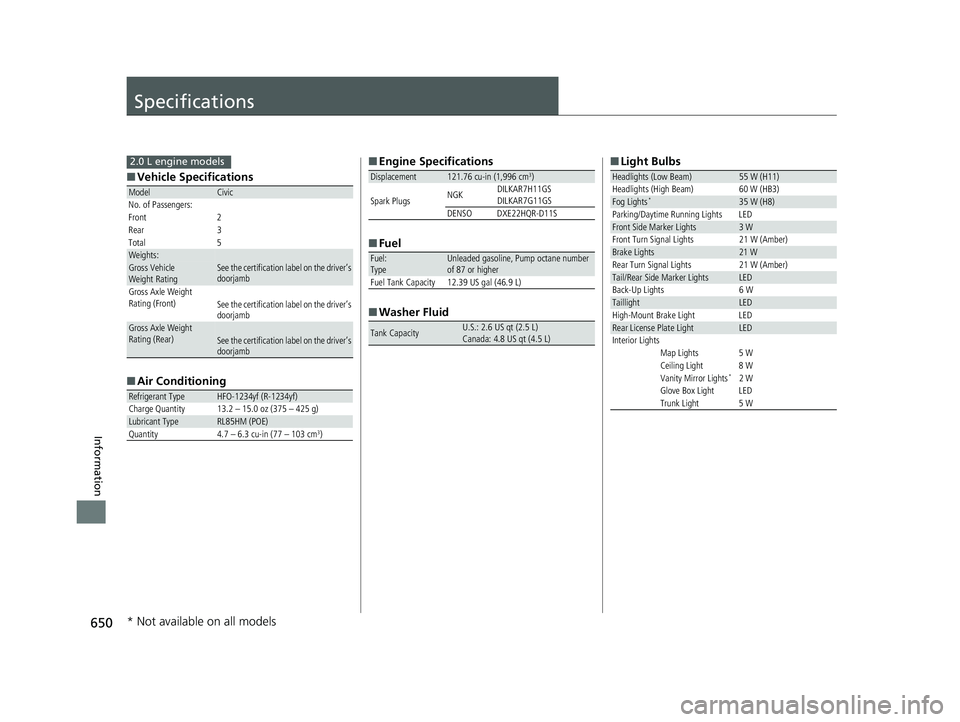

Specifications
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
2.0 L engine models■ Engine Specifications
■ Fuel
■ Washer Fluid
Displacement121.76 cu-in (1,996 cm3)
Spark Plugs NGK
DILKAR7H11GS
DILKAR7G11GS
DENSO DXE22HQR-D11S
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■ Light Bulbs
Headlights (Low Beam)55 W (H11)
Headlights (High Beam) 60 W (HB3)
Fog Lights*35 W (H8)
Parking/Daytime Running Lights LED
Front Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)
Brake Lights21 W
Rear Turn Signal Lights 21 W (Amber)
Tail/Rear Side Marker LightsLED
Back-Up Lights 6 W
TaillightLED
High-Mount Brake Light LED
Rear License Plate LightLED
Interior Lights Map Lights 5 W
Ceiling Light 8 W
Vanity Mirror Lights
*2 W
Glove Box Light LED
Trunk Light 5 W
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 650 ページ ２０１８年９月４日　火 曜日　午後１時３８分

651
uuSpecifications u
Continued
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.7 US qt (3.5 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 4.2 US qt (4.0 L)
Change
including
filter
4.4 US qt (4.2 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity1.41 US gal (5.32 L)
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Models with 215/55R16 tires
*2: Models with 235/40R18 tires
Regular
Size215/55R16 93H*1
235/40R18 91W*2
Pressure
psi (kPa [kgf/cm2])Front33 (220 [2.2])*1
33 (225 [2.3])*2
Rear32 (220 [2.2])*1, *2
Compact
Spare Size
T125/80D16 97M
*1
T125/70R17 98M*2
Pressure
psi (kPa [kgf/cm2])60 (420 [4.2])
Wheel SizeRegular16 x 7J*1
18 x 8J*2
Compact Spare16 x 4T*1
17 x 4T*2
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 651 ページ ２０１８年９月４日　火
曜日　午後１時３８分

652

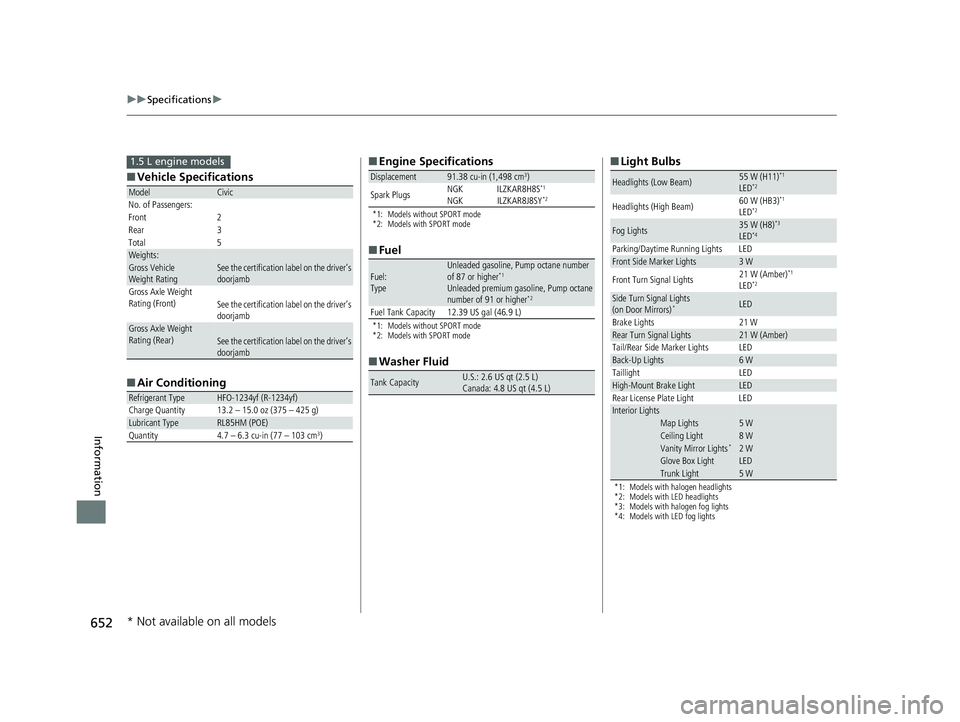

uuSpecifications u
Information
■Vehicle Specifications
■ Air Conditioning
ModelCivic
No. of Passengers:
Front 2
Rear 3
Total 5
Weights:Gross Vehicle
Weight Rating See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Front)See the certification label on the driver’s
doorjamb
Gross Axle Weight
Rating (Rear)See the certification label on the driver’s
doorjamb
Refrigerant TypeHFO-1234yf (R-1234yf)
Charge Quantity 13.2 – 15.0 oz (375 – 425 g)
Lubricant TypeRL85HM (POE)
Quantity 4.7 – 6.3 cu-in (77 – 103 cm3)
1.5 L engine models■ Engine Specifications
*1: Models without SPORT mode
*2: Models with SPORT mode
■Fuel
*1: Models without SPORT mode
*2: Models with SPORT mode
■Washer Fluid
Displacement91.38 cu-in (1,498 cm3)
Spark Plugs NGK
NGKILZKAR8H8S*1
ILZKAR8J8SY*2
Fuel:
TypeUnleaded gasoline, Pump octane number
of 87 or higher*1
Unleaded premium gasoline, Pump octane
number of 91 or higher*2
Fuel Tank Capacity 12.39 US gal (46.9 L)
Tank CapacityU.S.: 2.6 US qt (2.5 L)
Canada: 4.8 US qt (4.5 L)
■
Light Bulbs
*1: Models with halogen headlights
*2: Models with LED headlights
*3: Models with halogen fog lights
*4: Models with LED fog lights
Headlights (Low Beam)55 W (H11)*1
LED*2
Headlights (High Beam) 60 W (HB3)*1
LED*2
Fog Lights35 W (H8)*3
LED*4
Parking/Daytime Running Lights LEDFront Side Marker Lights3 W
Front Turn Signal Lights 21 W (Amber)*1
LED*2
Side Turn Signal Lights
(on Door Mirrors)*LED
Brake Lights 21 W
Rear Turn Signal Lights21 W (Amber)
Tail/Rear Side Marker Lights LED
Back-Up Lights6 W
Taillight LED
High-Mount Brake LightLED
Rear License Plate Light LED
Interior LightsMap Lights5 WCeiling Light8 WVanity Mirror Lights*2 WGlove Box LightLEDTrunk Light5 W
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 652 ページ ２０１８年９月４日　火 曜日　午後１時３８分

653
uuSpecifications u
Information
■Brake/Clutch* Fluid
■ Continuously Variable Transmission
Fluid
*
■Manual Transmission Fluid*
SpecifiedHonda Heavy Duty Brake Fluid DOT 3
SpecifiedHonda HCF-2
Capacity Change 3.9 US qt (3.7 L)
SpecifiedHonda MTF
Capacity Change 2.0 US qt (1.9 L)
■ Engine Oil
■ Engine Coolant
*1: Continuously variable transmission models
*2: Manual transmission models
Recommended·Genuine Honda Motor Oil 0W-20
·API Premium-grade 0W-20 detergent oil
Capacity Change 3.4 US qt (3.2 L)
Change
including
filter
3.7 US qt (3.5 L)
SpecifiedHonda Long-Life Antifreeze/Coolant Type2
Ratio 50/50 with distilled water
Capacity
1.34 US gal (5.09 L)*1
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
1.32 US gal (5.01 L)
*2
(change including the remaining
0.2 US gal (0.75 L) in the reserve tank)
■ Tire
*1: Continuously variable transmission models with halogen
headlights
*2: Continuously variable transmission models with LED headlights
*3: Manual transmission models
*4: U.S. manual transmission model with optional 235/40R18 95Y tires
*5: U.S. manual transmission model with optional spare tire
*6: Canadian manual transmission model
RegularSize215/50R17 91H*1
235/40R18 91W*2, *3
235/40R18 95Y*4
Pressure
psi (kPa [kgf/cm2])Front32 (220 [2.2])*1
33 (225 [2.3])*2, *3, *4
Rear32 (220 [2.2])*1, *2, *3, *4
Compact
Spare*
Size T125/80D16 97M*1
T125/70R17 98M*2, *5, *6
Pressure
psi (kPa [kgf/cm2])
60 (420 [4.2])
Wheel SizeRegular17 x 7J*1
18 x 8J*2, *3, *4
Compact Spare*16 x 4T*1
17 x 4T*2, *5, *6
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 653 ページ ２０１８年９月４日　火
曜日　午後１時３８分

654
Information

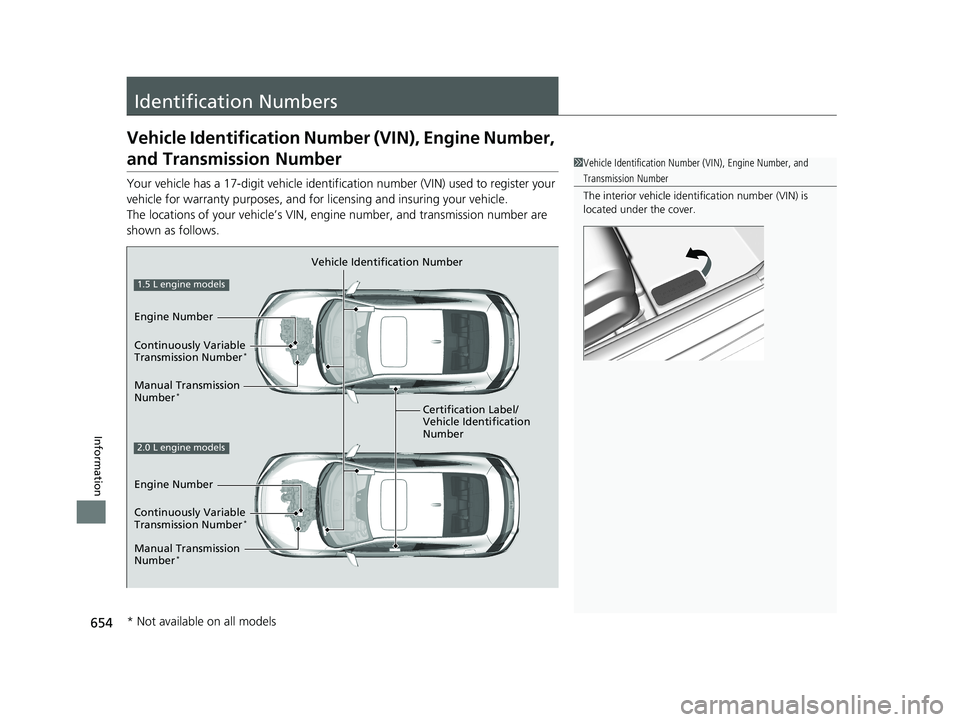

Identification Numbers
Vehicle Identification Number (VIN), Engine Number,
and Transmission Number
Your vehicle has a 17-digit vehicle identification number (V IN) used to register your
vehicle for warranty purposes, and for licensing and insuring your vehicle.
The locations of your vehicle’s VIN, en gine number, and transmission number are
shown as follows.
1 Vehicle Identification Number (VIN), Engine Number, and
Transmission Number
The interior vehicle identification number (VIN) is
located under the cover.
Vehicle Identification Number
Engine Number
Certification Label/
Vehicle Identification
Number
2.0 L engine models
1.5 L engine models
Continuously Variable
Transmission Number*
Engine Number
Continuously Variable
Transmission Number*
Manual Transmission
Number*
Manual Transmission
Number*
* Not available on all models
