2019 HONDA CIVIC COUPE Owner's Manual (in English)

543
Driving

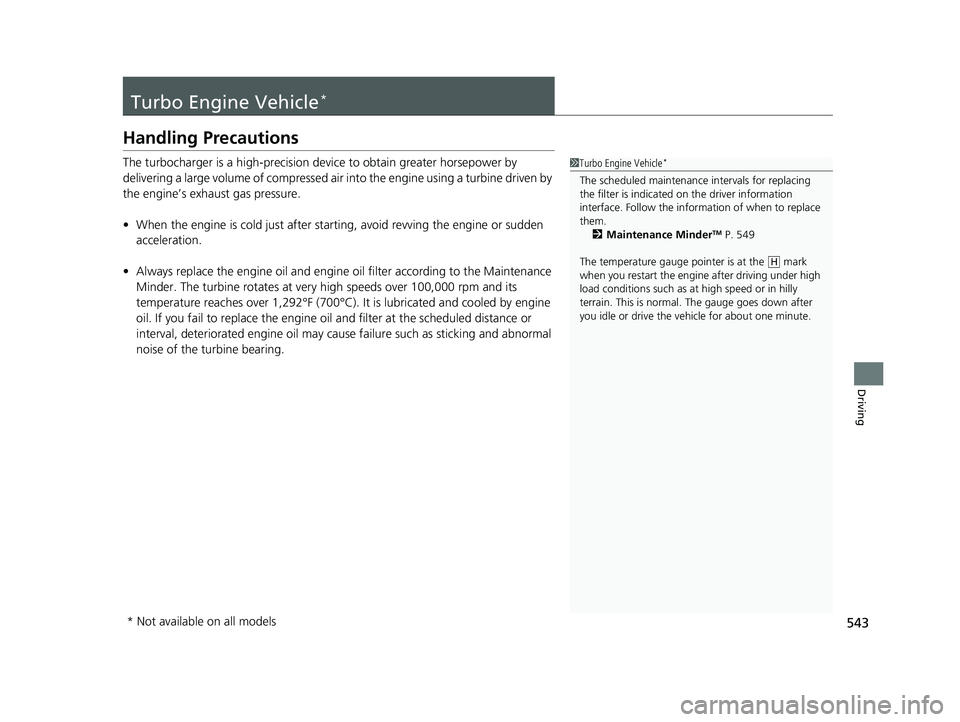

Turbo Engine Vehicle*
Handling Precautions
The turbocharger is a high-precision device to obtain greater horsepower by
delivering a large volume of compressed air into the engine using a turbine driven by
the engine’s exhaust gas pressure.
• When the engine is cold just after sta rting, avoid revving the engine or sudden
acceleration.
• Always replace the engine oil and engine oil filter according to the Maintenance
Minder. The turbine rotates at very high speeds over 100,000 rpm and its
temperature reaches over 1,2 92°F (700°C). It is lubricated and cooled by engine
oil. If you fail to replace the engine oil and filter at the scheduled distance or
interval, deteriorated engine oil may caus e failure such as sticking and abnormal
noise of the turbine bearing.1 Turbo Engine Vehicle*
The scheduled maintenance intervals for replacing
the filter is indicated on the driver information
interface. Follow the information of when to replace
them. 2 Maintenance Minder
TM P. 549
The temperature gauge pointer is at the mark
when you restart the engi ne after driving under high
load conditions such as at high speed or in hilly
terrain. This is normal. The gauge goes down after
you idle or drive the vehi cle for about one minute.
H
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 543 ページ ２０１８年９月４日　火 曜日　午後１時３８分

544
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 544 ページ ２０１８年９月４日　火曜日　午後１時３８分

545
Maintenance
This chapter discusses basic maintenance.
Before Performing MaintenanceInspection and Maintenance ............ 546
Safety When Performing Maintenance .... 547Parts and Fluids Used in Maintenance
Service ........................................... 548
Maintenance Minder
TM..................... 549
Maintenance Under the Hood
Maintenance Items Un der the Hood .... 555Opening the Hood ........................... 557
Recommended Engine Oil ................ 558
Oil Check ......................................... 559
Adding Engine Oil ............................ 561
Changing the Engine Oil and Oil Filter..... 562
Engine Coolant ................................ 565
Transmission Fluid ............................ 567
Brake/Clutch
* Fluid .......................... 568
Refilling Window Washer Fluid......... 569
Replacing Light Bulbs ....................... 570
Checking and Maintaining Wiper Blades.... 579Checking and Maintaining Tires
Checking Tires ................................. 582
Tire and Loading Information Label ..... 583Tire Labeling .................................... 583DOT Tire Quality Grading (U.S. Vehicles) ...... 585Wear Indicators................................ 587
Tire Service Life ................................ 587 Tire and Wheel Replacement ........... 588
Tire Rotation .................................... 589
Winter Tires ..................................... 590
Battery ............................................... 592
Remote Transmitter Care Replacing the Button Battery ........... 594
Climate Control System Maintenance.... 596CleaningInterior Care .................................... 597
Exterior Care.................................... 599
Accessories and Modifications Accessories ...................................... 602
Modifications................................... 603
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 545 ページ ２０１８年９月４日　火 曜日　午後１時３８分

546

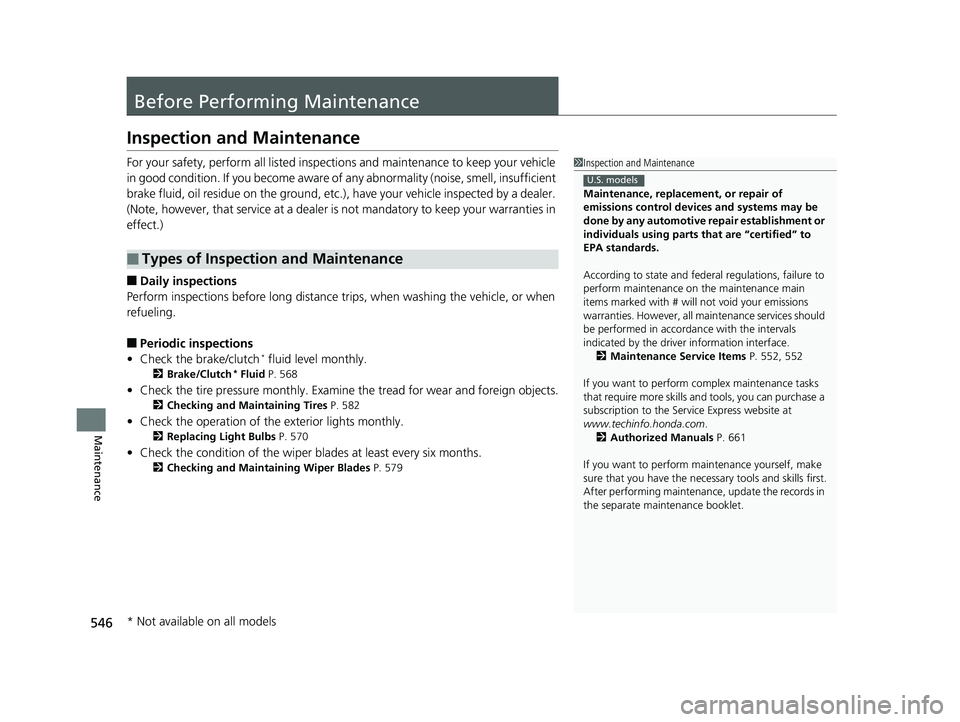

Maintenance
Before Performing Maintenance
Inspection and Maintenance
For your safety, perform all listed inspections and maintenance to keep your vehicle
in good condition. If you become aware of any abnormality (noise, smell, insufficient
brake fluid, oil residue on the ground, etc.), have your vehicle inspected by a dealer.
(Note, however, that service at a dealer is not mandatory to keep your warranties in
effect.)
■Daily inspections
Perform inspections before long distance trips, when washing the vehicle, or when
refueling.
■Periodic inspections
• Check the brake/clutch* fluid level monthly.
2 Brake/Clutch* Fluid P. 568
•Check the tire pressure monthly. Examin e the tread for wear and foreign objects.
2Checking and Maintaining Tires P. 582
•Check the operation of the exterior lights monthly.
2 Replacing Light Bulbs P. 570
•Check the condition of the wiper bl ades at least every six months.
2Checking and Maintaining Wiper Blades P. 579
■Types of Inspection and Maintenance
1Inspection and Maintenance
Maintenance, replacement, or repair of
emissions control devices and systems may be
done by any automotive repair establishment or
individuals using parts that are “certified” to
EPA standards.
According to state and fede ral regulations, failure to
perform maintenance on the maintenance main
items marked with # will not void your emissions
warranties. However, all ma intenance services should
be performed in accordan ce with the intervals
indicated by the driver information interface.
2 Maintenance Service Items P. 552, 552
If you want to perform complex maintenance tasks
that require more skills a nd tools, you can purchase a
subscription to the Service Express website at
www.techinfo.honda.com .
2 Authorized Manuals P. 661
If you want to perform ma intenance yourself, make
sure that you have the necessary tools and skills first.
After performing ma intenance, update the records in
the separate maintenance booklet.
U.S. models
* Not available on all models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 546 ページ ２０１８年９月４日　火 曜日　午後１時３８分

547
uuBefore Performing Maintenance uSafety When Performing Maintenance
Maintenance

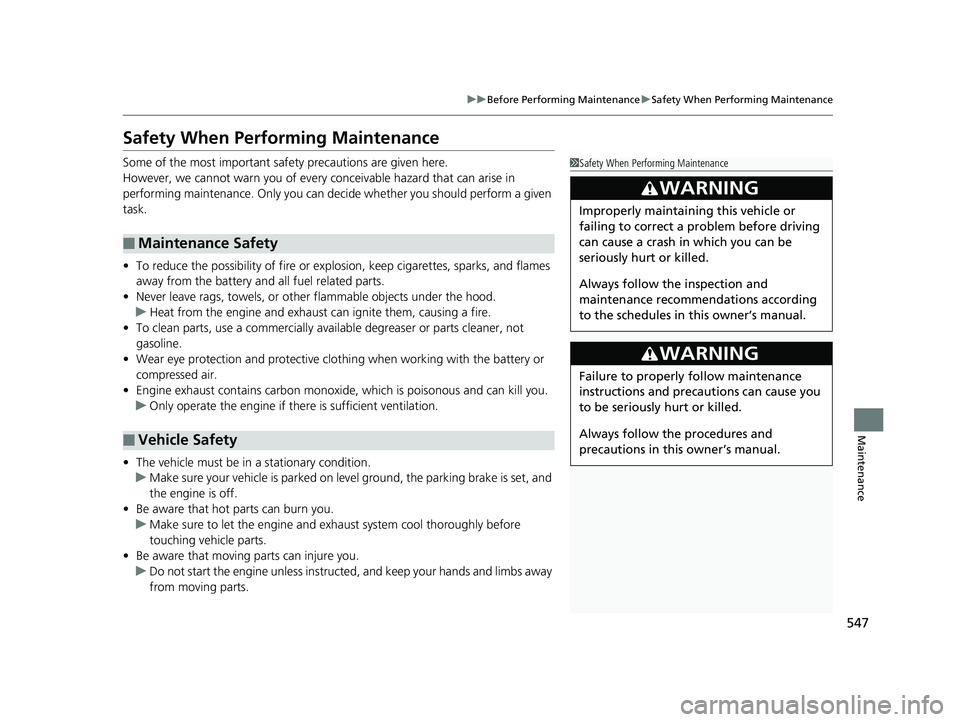

Safety When Performing Maintenance
Some of the most important safe ty precautions are given here.
However, we cannot warn you of every conceivable hazard that can arise in
performing maintenance. Only you can decide whether you should perform a given
task.
• To reduce the possibility of fire or explos ion, keep cigarettes, sparks, and flames
away from the battery and all fuel related parts.
• Never leave rags, towels, or other flammable objects under the hood.
u Heat from the engine and exhaust can ignite them, causing a fire.
• To clean parts, use a co mmercially available degreaser or parts cleaner, not
gasoline.
• Wear eye protection and prot ective clothing when working with the battery or
compressed air.
• Engine exhaust contains carbon monoxide, which is poisonous and can kill you.
u Only operate the engine if th ere is sufficient ventilation.
• The vehicle must be in a stationary condition.
u Make sure your vehicle is parked on le vel ground, the parking brake is set, and
the engine is off.
• Be aware that hot parts can burn you.
u Make sure to let the engine and exhaust system cool thoroughly before
touching vehicle parts.
• Be aware that moving parts can injure you.
u Do not start the engine unless instruct ed, and keep your hands and limbs away
from moving parts.
■Maintenance Safety
■Vehicle Safety
1 Safety When Performing Maintenance
3WARNING
Improperly maintaining this vehicle or
failing to correct a pr oblem before driving
can cause a crash in which you can be
seriously hurt or killed.
Always follow the inspection and
maintenance recommendations according
to the schedules in this owner’s manual.
3WARNING
Failure to properly follow maintenance
instructions and prec autions can cause you
to be seriously hurt or killed.
Always follow the procedures and
precautions in this owner’s manual.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 547 ページ ２０１８年９月４日　火 曜日　午後１時３８分

548
uuBefore Performing Maintenance uParts and Fluids Used in Maintenance Service
Maintenance

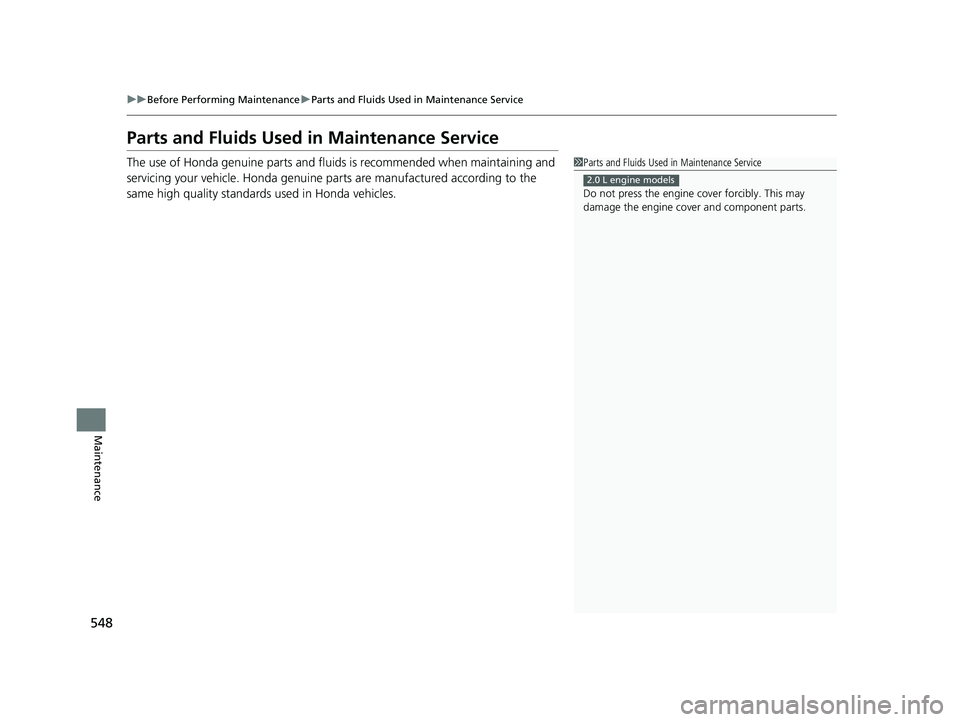

Parts and Fluids Used in Maintenance Service
The use of Honda genuine parts and fluids is recommended when maintaining and
servicing your vehicle. Honda genuine parts are manufactured according to the
same high quality standards used in Honda vehicles.1Parts and Fluids Used in Maintenance Service
Do not press the engine cover forcibly. This may
damage the engine cover and component parts.
2.0 L engine models
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 548 ページ ２０１８年９月４日　火 曜日　午後１時３８分

549
Maintenance
Maintenance MinderTM
If the engine oil life is less than 15%, you will see the Maintenance Minder messages
appear on the driver information interface ev ery time you turn the ignition switch to
ON
(w*1. The messages notify you when to cha nge the engine oil, or when to bring
your vehicle to a dealer for indicated maintenance services.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 549 ページ ２０１８年９月４日　火 曜日　午後１時３８分

550
uuMaintenance MinderTMuTo Use Maintenance MinderTM
Maintenance
To Use Maintenance MinderTM
Maintenance items, which should be serviced at the same time that you replace the
engine oil, appear on the driver informat ion interface. You can view them on the
Maintenance Minder screen at any time.
1. Turn the ignition switch to ON
(w*1.
2. Press the button several times until is displayed.
3. Press ENTER to go to the Maintenance Minder screen. The engine oil life
appears on the driver info rmation interface along with maintenance items due
soon.
*1: Models with the smart entry system have an ENGINE START/STOP button instead of an
ignition switch.
■Displaying the Maintenance Minder Information1 Displaying the Maintena nce Minder Information
Based on the engine opera ting conditions and oil
age, the remaining engine oi l life is calculated and
displayed as a percentage.
There is a list of maintena nce main and sub items you
can view on the driver information interface.
2 Maintenance Service Items P. 552
Displayed Engine Oil
Life (%)Calculated Engine Oil Life (%)
100 100 to 91
9090 to 81
80 80 to 71
7070 to 61
60 60 to 51
5050 to 41
40 40 to 31
3030 to 21
20 20 to 16
1515 to 11
10 10 to 6
55 to 1
0 0
Sub Item
Engine Oil Life
Main Item
ENTER Button
Button
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 550 ページ ２０１８年９月４日　火 曜日　午後１時３８分
