2019 HONDA CIVIC COUPE Owner's Manual (in English)

503
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Continued
Driving
■Detection limitations
• A vehicle suddenly crosses in front of you.
• The interval between your vehicle and the vehicle ahead of you is too short.
• A vehicle cuts in front of you at a slow speed, and it brakes suddenly.
• When you accelerate rapidly and approach the vehicle ahead of you at high
speed.
• The vehicle ahead of you is a motorcycle, bicycle, mobility scooter, or other small
vehicle.
• When there are animals in front of your vehicle.
• When you drive on a curved or winding or undulating road that makes it difficult
for the sensor to properly detect a vehicle in front of you.
• The speed difference between your vehi cle and a vehicle in front of you is
significantly large.
• An oncoming vehicle suddenly comes in front of you.
• Your vehicle abruptly crosses over in front of an oncoming vehicle.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 503 ページ ２０１８年９月４日　火 曜日　午後１時３８分

504
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Driving

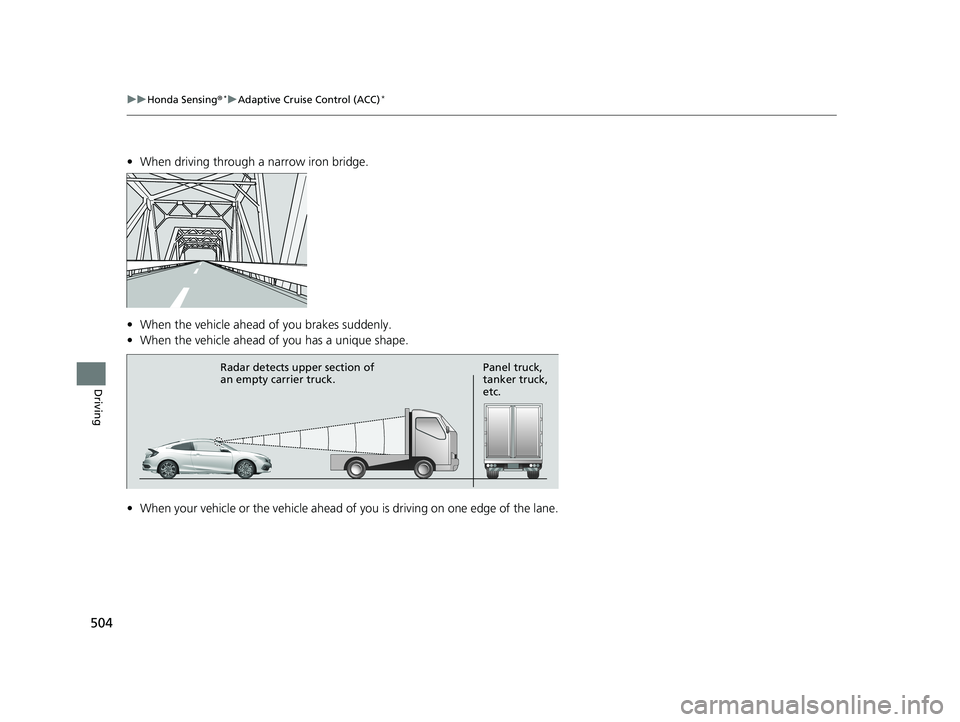

• When driving through a narrow iron bridge.
• When the vehicle ahead of you brakes suddenly.
• When the vehicle ahead of you has a unique shape.
• When your vehicle or the vehicle ahead of you is driving on one edge of the lane.
Radar detects upper section of
an empty carrier truck. Panel truck,
tanker truck,
etc.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 504 ページ ２０１８年９月４日　火
曜日　午後１時３８分

Continued505
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Driving

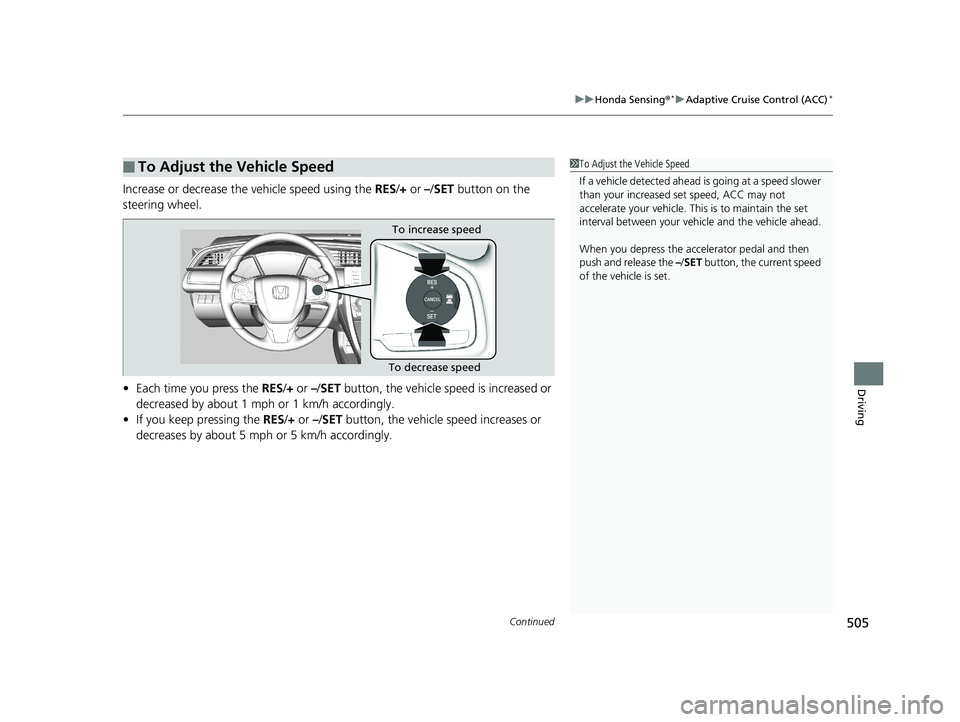

Increase or decrease the vehicle speed using the RES/+ or –/ SET button on the
steering wheel.
• Each time you press the RES/+ or –/ SET button, the vehicle speed is increased or
decreased by about 1 mph or 1 km/h accordingly.
• If you keep pressing the RES/+ or –/SET button, the vehicle speed increases or
decreases by about 5 mph or 5 km/h accordingly.
■To Adjust the Vehicle Speed1To Adjust the Vehicle Speed
If a vehicle detected ahead is going at a speed slower
than your increased set speed, ACC may not
accelerate your vehicle. This is to maintain the set
interval between your vehi cle and the vehicle ahead.
When you depress the accelerator pedal and then
push and release the –/SET button, the current speed
of the vehicle is set.
To increase speed
To decrease speed
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 505 ページ ２０１８年９月４日　火 曜日　午後１時３８分

506
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Driving

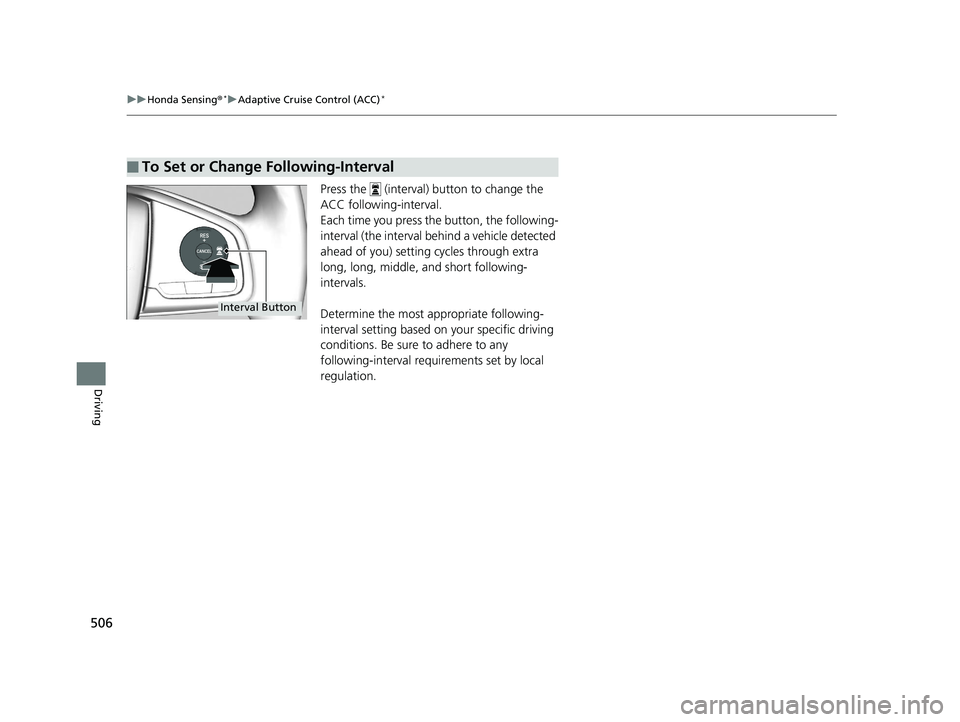

Press the (interval) button to change the
ACC following-interval.
Each time you press the button, the following-
interval (the interval behind a vehicle detected
ahead of you) setting cycles through extra
long, long, middle, and short following-
intervals.
Determine the most appropriate following-
interval setting based on your specific driving
conditions. Be sure to adhere to any
following-interval requ irements set by local
regulation.
■To Set or Change Following-Interval
Interval Button
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 506 ページ ２０１８年９月４日　火 曜日　午後１時３８分

507
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Continued
Driving

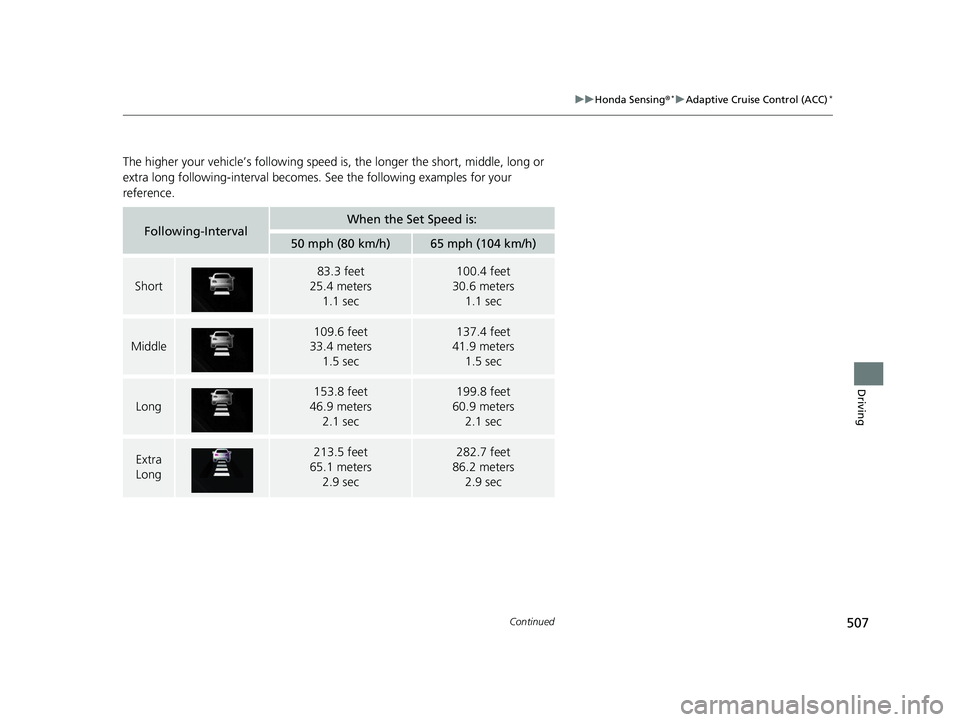

The higher your vehicle’s fo llowing speed is, the longer the short, middle, long or
extra long following-interval becomes. See the following examples for your
reference.
Following-IntervalWhen the Set Speed is:
50 mph (80 km/h)65 mph (104 km/h)
Short
83.3 feet
25.4 meters
1.1 sec100.4 feet
30.6 meters
1.1 sec
Middle
109.6 feet
33.4 meters 1.5 sec137.4 feet
41.9 meters 1.5 sec
Long
153.8 feet
46.9 meters 2.1 sec199.8 feet
60.9 meters 2.1 sec
Extra
Long213.5 feet
65.1 meters
2.9 sec282.7 feet
86.2 meters
2.9 sec
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 507 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
508
Driving

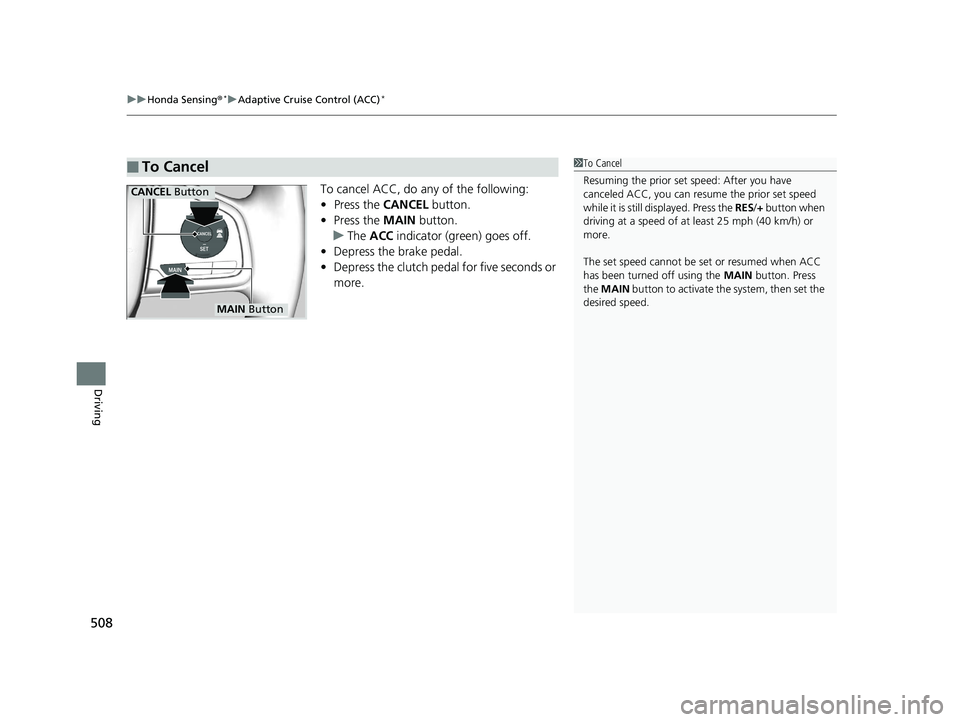

To cancel ACC, do any of the following:
• Press the CANCEL button.
• Press the MAIN button.
u The ACC indicator (green) goes off.
• Depress the brake pedal.
• Depress the clutch pedal for five seconds or
more.
■To Cancel1To Cancel
Resuming the prior set speed: After you have
canceled ACC, you can resume the prior set speed
while it is still displayed. Press the RES/+ button when
driving at a speed of at least 25 mph (40 km/h) or
more.
The set speed cannot be set or resumed when ACC
has been turned off using the MAIN button. Press
the MAIN button to activate the system, then set the
desired speed.
MAIN Button
CANCEL Button
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 508 ページ ２０１８年９月４日　火 曜日　午後１時３８分

Continued509
uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
Driving
■Automatic ca ncellation
The beeper sounds and a message appears on the driver information interface when
ACC is automatically cancel ed. Any of these conditions may cause the ACC to
automatically cancel:
• Bad weather (rain, fog, snow, etc.)
• When the radar sensor in the lower bumper gets dirty.
• The vehicle ahead of yo u cannot be detected.
• An abnormal tire condition is de tected, or the tires are skidding.
• Driving on a mountainous road, or driving off road for extended periods.
• Abrupt steering wheel movement.
• When the ABS, VSA ® or CMBS
TM is activated.
• When the ABS or VSA ® system indicator comes on.
• When you manually apply the parking brake.
• When the detected vehicle within the AC C range is too close to your vehicle.
• The camera behind the rearview mirror, or the area around the camera, including
the windshield, gets dirty.
• When the Maximum Load Limit is exceeded.
• When passing through an enclosed space, such as tunnel.
• Ignoring shift down indication shown in the tachometer display will cancel the
ACC after about 10 seconds.
• The engine speed goes into the tachometer’s red zone.
• The engine speed goes to below 1,000 rpm.
• You shift into neutral temporarily when shifting into a higher or lower gear.
1Automatic cancellation
Even though ACC has been automatically canceled,
you can still resume the prior set speed.
Wait until the condition that caused ACC to cancel
improves, then press the – /SET button.
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 509 ページ ２０１８年９月４日　火 曜日　午後１時３８分

uuHonda Sensing ®*uAdaptive Cruise Control (ACC)*
510
Driving

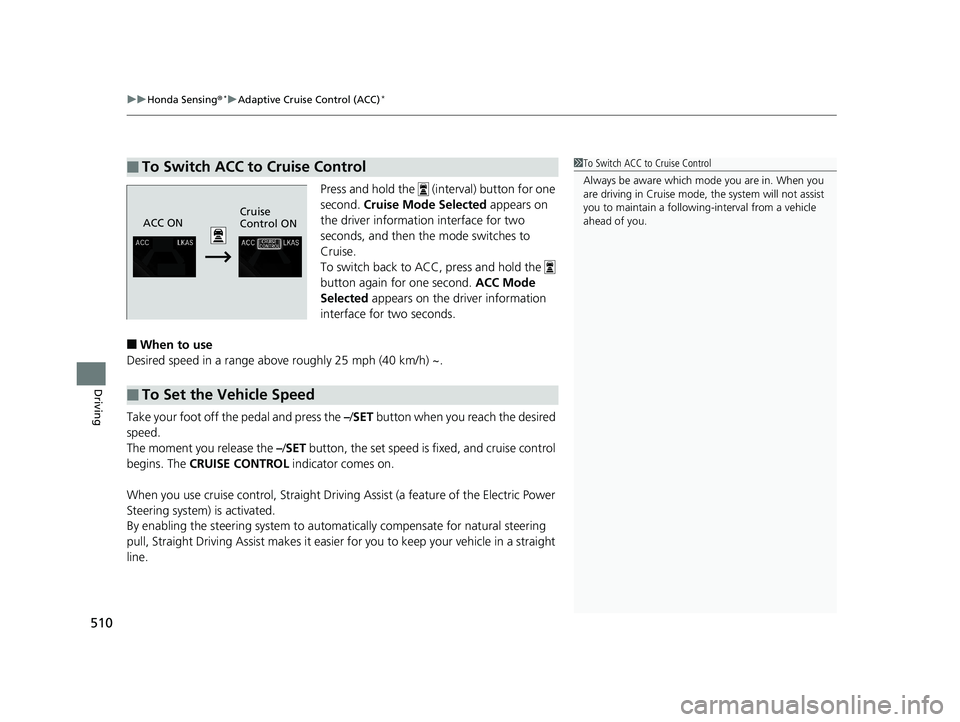

Press and hold the (interval) button for one
second. Cruise Mode Selected appears on
the driver information interface for two
seconds, and then the mode switches to
Cruise.
To switch back to ACC, press and hold the
button again for one second. ACC Mode
Selected appears on the driver information
interface for two seconds.
■When to use
Desired speed in a range above roughly 25 mph (40 km/h) ~.
Take your foot off the pedal and press the –/SET button when you reach the desired
speed.
The moment you release the –/ SET button, the set speed is fixed, and cruise control
begins. The CRUISE CONTROL indicator comes on.
When you use cruise control, Straight Driv ing Assist (a feature of the Electric Power
Steering system) is activated.
By enabling the steering system to automa tically compensate for natural steering
pull, Straight Driving Assist makes it easier for you to keep your vehicle in a straight
line.
■To Switch ACC to Cruise Control1 To Switch ACC to Cruise Control
Always be aware which mode you are in. When you
are driving in Cruise mode, the system will not assist
you to maintain a following-interval from a vehicle
ahead of you.
ACC ON Cruise
Control ON
■To Set the Vehicle Speed
19 CIVIC 2D HCM (KA KL KC)-31TBG6300.book 510 ページ ２０１８年９月４日　火
曜日　午後１時３８分
